COS128, COS129
36V, Precision
Low-Power Instrumentation Amplifier
Features
General Description
■
Low Offset Voltage: 50µV (Max.)
COS128 and COS129 are low-power, general
■
Low Drift: 0.2µV/ºC
purpose instrumentation amplifiers offering
■
Low Input Bias Current: 2nA (Max.)
excellent accuracy. The versatile 3-op amp
■
Gain Bandwidth Product: 1.5MHz
design and small size make these amplifiers
■
Slew Rate: 1.0V/µs
ideal for a wide range of applications. A single
■
Wide Supply Range:±2.25V ~ ±18V
external resistor sets any gain from 1 to 10,000.
■
Low Quiescent Current: 1.0mA
■
Unity Gain Stable
COS128 and COS129 are laser-trimmed for
■
Input Over-Voltage Protection
very low offset voltage (50µV), drift (0.2µV/ºC)
■
Extended Temperature Ranges
and high common mode rejection. They
From -40°C to +125°C
operate with power supplies as low as ±2.25.

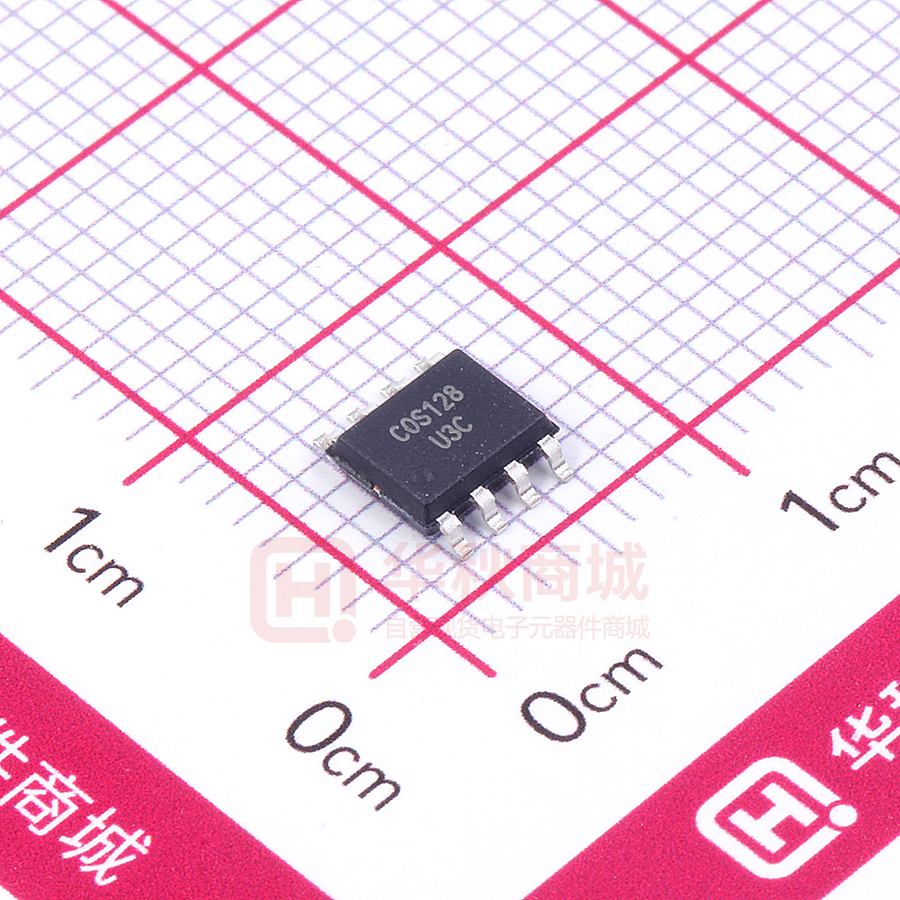

Available as SOP8/MSOP8/DIP8
The quiescent current is only 1.0mA, ideal for
■
battery-operated systems. COS128/129 are
Applications
■
Medical Instrumentation
■
RTD Sensor Amplifier
■
Data Acquisition
■
Thermocouple Amplifier
■
Bridge Amplifier
available in 8-pin plastic SOP8, DIP8 and
MSOP8 packages, specified for the -40 ºC to
+125 ºC temperature range.
Rev1.1
Copyright@2018 Cosine Nanoelectronics Inc. All rights reserved
The information provided here is believed to be accurate and reliable. Cosine Nanoelectronics assumes
no reliability for inaccuracies and omissions. Specifications described and contained here are subjected
to change without notice on the purpose of improving the design and performance. All of this information
described herein should not be implied or granted for any third party.
www.cosine-ic.com
Block Diagram
1
COS128,COS129
1. Pin Configuration and Functions
Pin Functions
Pin
Name
I/O
Description
1,8
RG
-
Cain setting pin. For gains greater than 1, place a gain resistor
between pin1 & 8
2
Vin-
I
Negative input
3
Vin+
I
Positive input
4
V-
P
Negative supply
5
Ref
I
Reference input. This Pin must be driven by low impedance or
connected to ground
6
Vo
O
Output
7
V+
P
Positive supply
2. Product Specification
2.1 Absolute Maximum Ratings (1,2)
Parameter
Rating
Units
Power Supply: +Vs to -Vs
36
V
Differential Input Voltage Range
±36
V
-Vs to +Vs
V
50
mA
-65 to 150
°C
150
°C
-40 to 125
°C
2000
V
Common Mode Input voltage Range(2)
Output Current
Storage Temperature Range
Junction Temperature
Operating Temperature Range
ESD Susceptibility, HBM
www.cosine-ic.com
2
COS128,COS129
(1) Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable
above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition,
extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute
maximum ratings are stress ratings only.
(2) Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.5V beyond the
supply rails should be current-limited to 10mA or less.
2.2 Thermal Data
Parameter
Rating
Unit
Package Thermal Resistance
206 (MSOP8)
155 (SOP8)
46 (DIP8)
°C/W
Rating
Unit
±2.5V ~ ±18V
V
-Vs+1.9 ~ +Vs-1.2
V
-40 to +125
°C
2.3 Recommended Operating Conditions
Parameter
DC Supply Voltage
Input common-mode voltage range
Operating ambient temperature
2.4 Electrical Characteristics
(+VS=+15V, -VS=-15V, TA=+25°C, RL=10kΩ, unless otherwise noted)
Parameter
Symbol
Conditions
Min
Typ
Max
Unit
COS128U/129U
±10
±50
μV
COS128UA/129UA
±25
±125
μV
-40 to 125°C
0.2
0.7
μV/°C
Input Characteristics
Input Offset Voltage
VOS
Input Offset Voltage Drift
ΔVOS/ΔT
Input Bias Current
IB
±0.5
±2
nA
Input Offset Current
IOS
±0.2
±1
nA
Common-Mode Voltage Range
VCM
+VS-1.2
V
Common-Mode Rejection Ratio
CMRR
Open-Loop Voltage Gain
AOL
www.cosine-ic.com
-VS+1.9
RL ≥ 2kΩ, VO = ±10V
120
125
dB
100
120
dB
3
COS128,COS129
Output Characteristics
Output Voltage High
VOH
Output Voltage Low
VOL
Output Current
IOUT
Short-Circuit Current
ISC
+VS-1.1
-VS+0.9
VDROPOUT < 1.2 V
V
V
±10
mA
±24
mA
Power Supply
Operating Voltage Range
±2.25
Power Supply Rejection Ratio
PSRR
Quiescent Current / Amplifier
IQ
120
±18
130
1.0
V
dB
1.3
mA
Dynamic Performance
Gain Bandwidth Product
GBWP
CL=100pF, RL=10kΩ
1.5
MHz
Slew Rate
SR
CL=100pF, RL=10kΩ,
Av=1
1.0
V/μs
en
f=1kHz
8.0
nV/√Hz
Noise Performance
Voltage Noise Density
3.0 Application Notes
3.1 Overview
The COS128/129 instrumentation amplifiers are differential amplifier that has been outfitted with
input protection circuit and input buffer amplifiers, which eliminate the need for input impedance
matching and make the amplifier particularly suitable for use in measurement and test equipment.
Additional characteristics of the COS128/129 include a very low DC offset, low drift, low noise, very
high open-loop gain, very high common-mode rejection ratio, and very high input impedance.
3.2 Application Information
COS128/129 measure small differential voltage with high common-mode voltage developed
between the noninverting and inverting input. The ability to set the reference pin to adjust the
functionality of the output signal offers additional flexibility that is practical for multiple configurations.
www.cosine-ic.com
4
COS128,COS129
Figure 3.1 shows the basic connections required for operation of the COS128/129. Applications with
noisy or high impedance power supplies may require decoupling capacitors close to the device pins
as shown. This must be a low-impedance connection to assure good common-mode rejection. A
resistance of 8Ω in series with the REF pin will cause a typical device to degrade to approximately
80dB CMR.
Figure 3.1 Functional Block Diagram
Gain is set by connecting a single external resistor, RG, between pins 1 and 8:
G
www.cosine-ic.com
= 1+2*R1/RG
=1 + 50 kΩ/RG
for COS128
=1 + 49.4 kΩ/RG
for COS129
5
COS128,COS129
Commonly used gains and resistor values are shown in Table 3.1.
Desired Gain
G(V/V)
1
2
5
10
20
50
100
200
500
1000
2000
5000
10000
COS128: G=1 + 50 kΩ/RG
Nearest
RG(Ω)
1% RG(Ω)
NC
50k
12.5k
5.556k
2.632k
1.02k
505.1
251.3
100.2
50.05
25.01
10.00
5.001
NC
49.9k
12.4k
5.62k
2.61k
1.02k
511
249
100
49.9
24.9
10
4.99
COS129: G=1 + 49.4 kΩ/RG
Nearest
RG(Ω)
1% RG(Ω)
NC
49.4k
12.35k
5489
2600
1008
499
248
99
49.5
24.7
9.88
4.94
NC
49.9k
12.4k
5.49k
2.61k
1k
499
249
100
49.9
24.9
9.76
4.87
Table 3.1 Required Values of Gain Resistors
4. Package and Ordering Information
Model
COS128
COS129
www.cosine-ic.com
Order Number
Package
Package Option
Marking
Information
COS128U
SOP-8
Tape and Reel, 4000
COS128U
COS128UA
SOP-8
Tape and Reel, 4000
COS128UA
COS128P
DIP-8
Tube, 50
COS128P
COS128PA
DIP-8
Tube, 50
COS128PA
COS129U
SOP-8
Tape and Reel, 4000
COS129U
COS129UA
SOP-8
Tape and Reel, 4000
COS129UA
COS129P
DIP-8
Tube, 50
COS129P
COS129PA
DIP-8
Tube, 50
COS129PA
6
COS128,COS129
5. Package Information
5.1 SOP8 (Package Outline Dimensions)
5.2 DIP8 (Package Outline Dimensions)
www.cosine-ic.com
7
