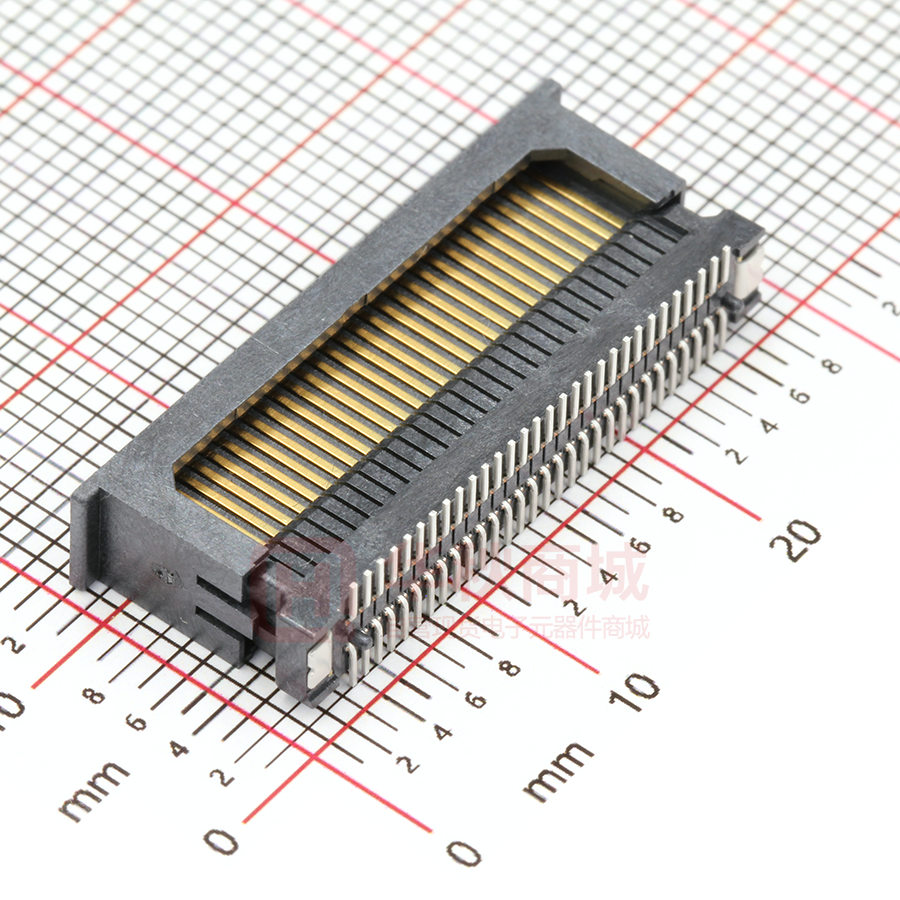

BB41-60GT-1B-LHR

REV. 1 ECN Number Description Drawn CS20120080 初版发行 2020/12/09 100PIN:BB41-AOGT-1B-XHR 备注： 1.塑胶材料：LCP-GA130，黑色，防火等级：UL 94v-0 2.端子材料：铜合金 3.额定电压：50V AC/DC for 1 minute 4.接触阻抗：50mΩmax. initial(不包括导体阻抗) 5.耐电压：500V AC for 1 minute 6.绝缘阻抗：100MΩ min. 7.额定电流：0.5A 8.寿命：30次 min 9.插入力：150gf max./pin,拔出力：8.5gf min./pin 10.保持力：250gf 最小/pin 11.有害物质需符合Rohs2.0标准。 12.尺寸符合ANSI Y14.5M-1994。 料号说明: BB41-XXGT-1B-XHR 39.20 3D VIWE (With out cover) 3.30 5.40 11.50 10.90 (With cover) 5.55 (8.50) (0.75) PCB (1.55) (3.20) (7.05) 43.08 母座 (4.20) (0.68) (公母合高) SCALE 1:1 ShenZhen ShenTai weixiang Electronics Co., Ltd X.X ±0.35 X.XX ±0.20 X.XXX X. ±5° UNIT mm X.X ±3° X.XX ±2° SIZE A4 ORIGINAL DRAWN: Qinghua Fu CHECK: Guangyu Guo APPROVE: Ady Zhou 0.50 2.00 0.95 公头 (0.68) TOLERANCE UNLESS OTHERWISE SPECIFIED 0.80 2.30 (0.75) Pin数 3.00 0.10 ALL THE PIN 39.20 12.75±0.50 0.80 G:公母合高12.25mm-13.25mm 39.20 2.00 42.20 3D VIWE (With cover) 2.30 44.30 PCB X方向浮动量：±0.5 Y方向浮动量：±0.5 Z方向浮动量：±0.5 RECOMMENDED PCB LAYOUT TOLERANCE:±0.05mm DATE DWG.NO. 2020/12/09 600-0000-0450 DATE 2020/12/09 PARTS NO.(INTENDED USE) DATE BB41-XXGT-1B-XHR 2020/12/09 TITLE 0.80mm Pitch 浮动BTB （配高12.75mm）客户图 REV. 1 SHEET 1/2 60PIN: BB41-6OGT-1B-XHR 15.20 23.20 31.20 20.30 28.30 36.30 18.20 26.20 34.20 0.80 0.80 0.80 31.20 19.08 27.08 35.08 2.00 0.80 0.50 RECOMMENDED PCB LAYOUT TOLERANCE:±0.05mm ShenZhen ShenTai weixiang Electronics Co., Ltd ±0.35 X.XX ±0.20 X.XXX X. ±5° X.X ±3° X.XX ±2° SCALE 1:1 UNIT mm SIZE 0.50 A4 ORIGINAL DRAWN: Smark CHECK: Guangyu Guo APPROVE: Ady Zhou 31.20 2.00 2.30 2.00 RECOMMENDED PCB LAYOUT TOLERANCE:±0.05mm TOLERANCE UNLESS OTHERWISE SPECIFIED X.X 0.80 0.95 23.20 2.30 2.00 0.95 2.30 0.95 15.20 2.00 3.00 0.50 3.00 0.80 2.30 23.20 2.30 15.20 3.00 2.00 80PIN: BB41-8OGT-1B-XHR 2.30 40PIN: BB41-4OGT-1B-XHR RECOMMENDED PCB LAYOUT TOLERANCE:±0.05mm DATE DWG.NO. 2020/12/09 600-0000-0450 DATE 2020/12/09 PARTS NO.(INTENDED USE) DATE BB41-XXGT-1B-XHR 2020/12/09 TITLE 0.80mm Pitch 浮动BTB 客户图 REV. 1 SHEET 2/2
