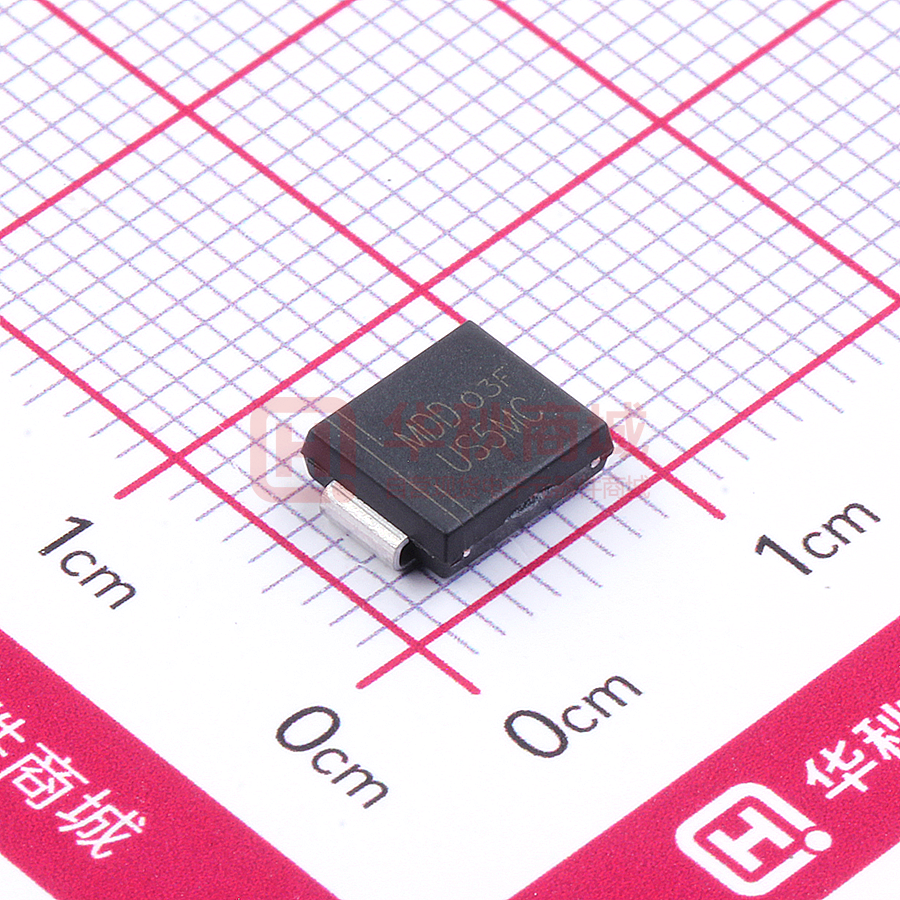

US5AC THRU US5MC
Reverse Voltage - 50 to 1000 Volts
Forward Current - 5.0 Ampere
SURFACE MOUNT ULTRA FAST RECTIFIER
Features
DO-214AB/SMC
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
For surface mounted applications
0.245(6.22)
0.220(5.59)
0.126 (3.20)
0.114 (2.90)
Ultra fast switching for high efficiency
Low reverse leakage
0.280(7.11)
0.260(6.60)
Built-in strain relief,ideal for automated placement
High forward surge current capability
0.012(0.305)
0.006(0.152)
High temperature soldering guaranteed
0.103(2.62)
0.079(2.06)
250 °C/10 seconds at terminals
0.060(1.52)
0.030(0.76)
Mechanical Data
0.008(0.203)MAX.
0.320(8.13)
0.305(7.75)
Case : JEDEC SMC Molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Polarity symbol marking on body
Mounting Position : Any
Weight : 0.007ounce, 0.25 grams
Dimensions in inches and (millimeters)
Maximum Ratings And Electrical Characteristics
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
US5AC US5BC US5DC US5GC US5JC
Parameter
SYMBOLS
Marking Code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at TL=55℃
Peak forward surge current
8.3ms single half sine-wave
superimposed onrated load (JEDEC Method)
Maximum instantaneous forward voltage at 5.0A
Maximum DC reverse current
at rated DCblocking voltage
Maximum reverse recovery time
TA=25℃
TA=125℃
(NOTE 1)
Typical junction capacitance (NOTE 2)
Typical thermal resistance (NOTE 3)
Operating junction and storage temperature range
VRRM
VRMS
VDC
US5KC US5MC
MDD
MDD
MDD
MDD
MDD
MDD
MDD
US5AC US5BC US5DC US5GC US5JC US5KC US5MC
50
35
50
100
70
100
200
140
200
400
280
400
600
420
600
800
560
800
1000
700
1000
UNITS
V
V
V
I(AV)
5.0
A
IFSM
100
A
VF
1.40
10
300
1.0
IR
trr
50
CJ
RJA
15.0
TJ,TSTG
1.70
V
uA
75
12.0
ns
pF
15.0
℃/W
-55 to +150
℃
Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas
DN:T20825A0
http://www.microdiode.com
Rev:2020A1
Page :1
US5AC THRU US5MC
Reverse Voltage - 50 to 1000 Volts
Forward Current - 5.0 Ampere
Ratings And Characteristic Curves
trr
10 ohm
Noninductive
50 ohm
Noninductive
+0.5
D.U.T
+
PULSE
GENERATOR
Note 2
25Vdc
approx
0
-
-0.25
1 ohm
NonInductive
OSCILLOSCOPE
Note 1
-1.0
Note:1.Rise Time = 7ns, max.
Input Impedance = 1megohm,22pF.
2. Ries Time =10ns, max.
Source Impedance = 50 ohms.
20ns/div
Set time Base for 20ns/div
Fig.3 Typical Reverse Characteristics
7.0
300
6.0
100
I R - Reverse Current (μA)
Average Forward Current (A)
Fig.2 Maximum Average Forward Current Rating
5.0
4.0
3.0
2.0
1.0
Single phase half-wave 60 Hz
resistive or inductive load
50
75
10
T J =75°C
1.0
T J =25°C
0.1
0.0
25
T J =125°C
100
125
150
20
0
175
40
Case Temperature (°C)
10
Junction Capacitance (pF)
Instaneous Forward Current (A)
80
100
Fig.5 Typical Junction Capacitance
Fig.4 Typical Forward Characteristics
T J =25°C
1.0
US5AC~US5DC
US5GC
0.1
60
% of PIV.VOLTS
US5JC~US5MC
0.01
T J =25°C
100
10
T J=25°C
f = 1.0MHz
V sig = 50mV p-p
1
0.001
0
0.5
1.0
1.5
0.1
Instaneous Forward Voltage (V)
1.0
10
100
Reverse Voltage (V)
Fig.6 Maximum Non-Repetitive Peak
Forward Surge Current
Peak Forward Surge Current (A)
140
120
100
80
60
40
20
8.3 ms Single Half Sine Wave
(JEDEC Method)
00
1
10
100
Number of Cycles
The curve above is for reference only.
http://www.microdiode.com
Rev:2020A1
Page :2
US5AC THRU US5MC
Reverse Voltage - 50 to 1000 Volts
Forward Current - 5.0 Ampere
Packing information
P0
unit:mm
P1
d
Item
Symbol
Tolerance
SMC
Carrier width
Carrier length
Carrier depth
Sprocket hole
13" Reel outside diameter
13" Reel inner diameter
Feed hole diameter
Sprocket hole position
Punch hole position
Punch hole pitch
Sprocket hole pitch
Embossment center
Overall tape thickness
Tape width
A
B
C
d
D
D1
D2
E
F
P
P0
P1
T
W
Reel width
W1
0.1
0.1
0.1
0.05
2.0
min
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.3
1.0
6.15
8.41
2.42
1.50
330.00
50.00
13.00
1.75
7.50
8.00
4.00
2.00
0.25
16.00
16.50
E
F
B
A
W
P
D2
D1
T
C
W1
D
Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above.
Reel packing
PACKAGE
REEL SIZE
REEL
(pcs)
COMPONENT
SPACING
(mm)
SMC
13"
3,000
4.0
INNER
BOX
(mm)
REEL
DIA,
(mm)
190*190*41
330
BOX
(pcs)
6000
CARTON
SIZE
(mm)
CARTON
(pcs)
365*365*340
42000
APPROX.
GROSS WEIGHT
(kg)
14.0
Suggested Pad Layout
Symbol
Unit (mm)
A
4.3
0.170
C
4.1
7.9
0.160
0.311
D
3.8
0.150
E
12
0.472
B
Unit (inch)
Important Notice and Disclaimer
Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and
specifications at any time without notice. Customers should obtain and confirm the latest product information and
specifications before final design,purchase or use.
Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application
assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with
products which are purchased or used for any unintended or unauthorized application.
No license is granted by implication or otherwise under any intellectual property rights of Microdiode
Electronics (Jiangsu).
Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support
devices or systems without express written approval of Microdiode Electronics (Jiangsu).
http://www.microdiode.com
Rev:2020A1
Page :3
