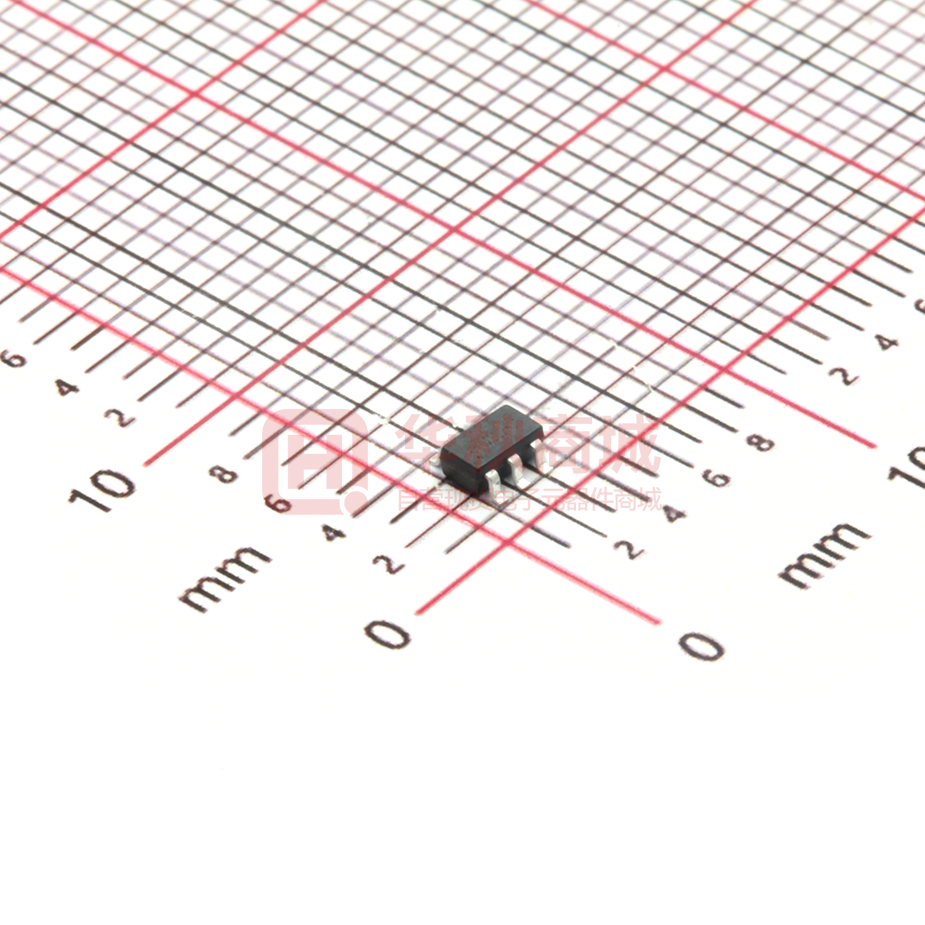

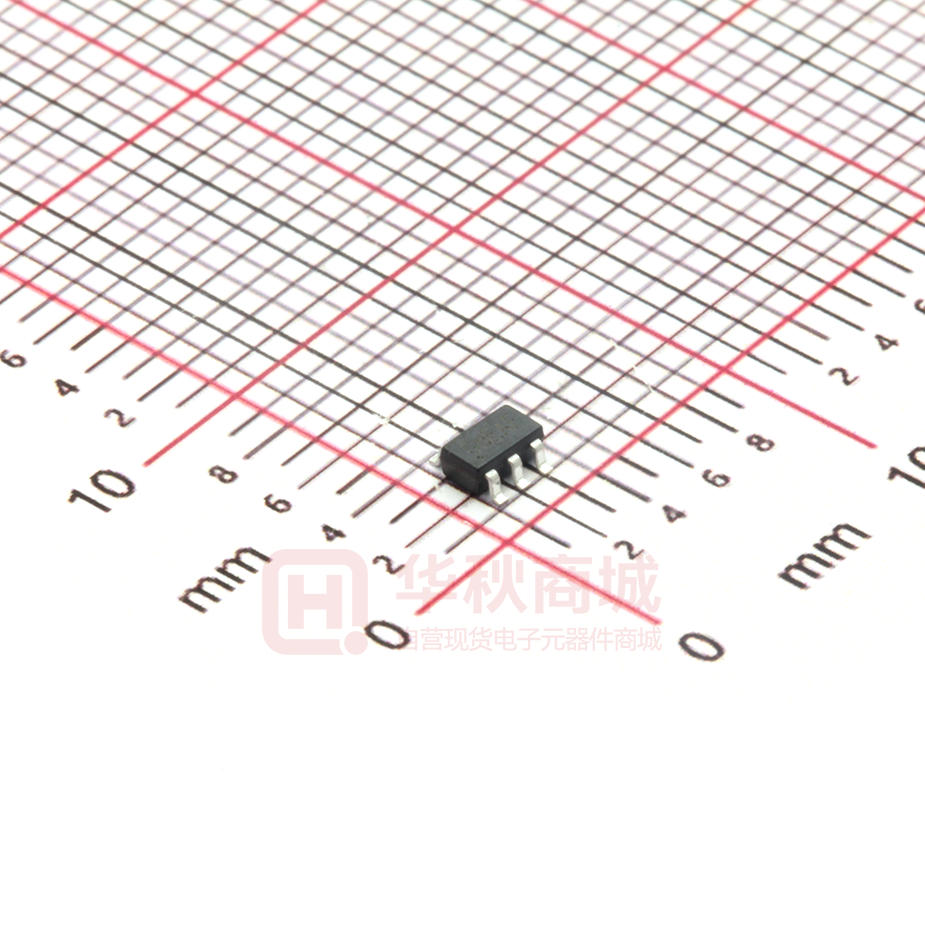

RY9320AT6

RY9320 28V 2A 500KHz ECOT PSM Sync Step-Down Regulator Features • • • • Wide 4.5V to 28V Operating Input Range 2A Continuous Output Current 500KHz Switching Frequency ECOT PSM Mode Control with Fast Transient Response • • • • Built-in Over Current Limit Built-in Over Voltage Protection PFM Mode for High Efficiency in Light Load Internal Soft-Start • 100mΩ/50mΩ Low RDS(ON) Internal Power MOSFETs • • • • • • • Output Adjustable from 0.6/0.8/0.765V No Schottky Diode Required Short Protection with Hiccup-Mode Integrated internal compensation Thermal Shutdown Available in SOT23-6 Package -40°C to +85°C Temperature Range • • • Printer Systems Industrial Power Systems Distributed Power Systems Applications • • • Automotive Systems Network Terminal Equipment Security Monitoring Camera General Description The RY9320 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 2A continuous output current over a wide input supply range, with excellent load and line regulation. ECOT PSM control operation provides very fast transient response and easy loop design as well as very tight output regulation. The RY9320 requires a minimal number of readily available, external components and is available in a space saving SOT23-6 package. Typical Application Circuit C1 BS VIN IN SW L1 VOUT R1 CIN ON/ OFF EN CFF COUT FB GND R2 Basic Application Circuit Email: support@rychip.com ©RYCHIP Semiconductor Inc. http://www.rychip.com Page 1 / 12 RY9320 28V 2A 500KHz ECOT PSM Sync Step-Down Regulator Pin Description Pin Configuration TOP VIEW BS 1 6 SW GND 2 5 IN FB 3 4 EN SOT23-6 RY9320AT6 Top Marking: GaYLL (device code: Ga, Y=year code, LL= lot number code) RY9320BT6 Top Marking: GqYLL (device code: Gq, Y=year code, LL= lot number code) RY9320CT6 Top Marking: GsYLL (device code: Gs, Y=year code, LL= lot number code) Pin Description Pin Name Function 1 BS 2 GND 3 FB Adjustable Version Feedback input. Connect FB to the center point of the external resistor divider 4 EN Drive this pin to a logic-high to enable the IC. Drive to a logic-low to disable the IC and enter micro-power shutdown mode. 5 IN Power Supply Pin 6 SW Switching Pin Bootstrap. A capacitor connected between SW and BST pins is required to form a floating supply across the high-side switch driver. Ground Pin Order Information (1) Marking Part No. Model Description Package T/R Qty GaYLL 70301511 RY9320AT6 RY9320AT6 ECOT PSM Buck, 4.5-28V, SOT23-6 2A, 500KHz, VFB 0.6V, SOT23-6 3000PCS GqYLL 70301512 RY9320BT6 RY9320BT6 ECOT PSM Buck, 4.5-28V, SOT23-6 2A, 500KHz, VFB 0.8V, SOT23-6 3000PCS GsYLL 70301513 RY9320CT6 RY9320CT6 ECOT PSM Buck, 4.5-28V, SOT23-6 2A, 500KHz, VFB 0.765V, SOT23-6 3000PCS Note (1): All RYCHIP parts are Pb-Free and adhere to the RoHS directive. Email: support@rychip.com ©RYCHIP Semiconductor Inc. http://www.rychip.com Page 2 / 12 RY9320 28V 2A 500KHz ECOT PSM Sync Step-Down Regulator Specifications Absolute Maximum Ratings (1) (2) Item Min Max Unit VIN voltage -0.3 32 V EN voltage -0.3 32 V SW voltage -0.3 VIN+1V V SW voltage (10ns transient) -5 VIN+2V V BS voltage (to sw) -0.3 6 V FB voltage -0.3 6 V Power dissipation (3) Internally Limited Operating junction temperature, TJ -40 150 °C Storage temperature, Tstg -55 150 °C 260 °C Lead Temperature (Soldering, 10sec.) Note (1): Exceeding these ratings may damage the device. Note (2): The device is not guaranteed to function outside of its operating conditions. Note (3): The maximum allowable power dissipation is a function of the maximum junction temperature, TJ(MAX), the junction-to-ambient thermal resistance, RθJA, and the ambient temperature, TA. The maximum allowable power dissipation at any ambient temperature is calculated using: PD (MAX) = (TJ(MAX) − TA)/RθJA. Exceeding the maximum allowable power dissipation causes excessive die temperature, and the regulator goes into thermal shutdown. Internal thermal shutdown circuitry protects the device from permanent damage. Thermal shutdown engages at TJ=160°C (typical) and disengages at TJ= 130°C (typical). ESD Ratings Item Description Value Unit V(ESD-HBM) Human Body Model (HBM) ANSI/ESDA/JEDEC JS-001-2014 Classification, Class: 2 ±2000 V V(ESD-CDM) Charged Device Mode (CDM) ANSI/ESDA/JEDEC JS-002-2014 Classification, Class: C0b ±200 V ILATCH-UP JEDEC STANDARD NO.78E APRIL 2016 Temperature Classification, Class: I ±150 mA Min Max Unit -40 125 °C Operating temperature range -40 85 °C Input voltage VIN 4.5 28 V Output current 0 2 A Recommended Operating Conditions Item Operating junction temperature (1) Note (1): All limits specified at room temperature (TA = 25°C) unless otherwise specified. All room temperature limits are 100% production tested. All limits at temperature extremes are ensured through correlation using standard Email: support@rychip.com ©RYCHIP Semiconductor Inc. http://www.rychip.com Page 3 / 12 RY9320 28V 2A 500KHz ECOT PSM Sync Step-Down Regulator Statistical Quality Control (SQC) methods. All limits are used to calculate Average Outgoing Quality Level (AOQL). Thermal Information Item Description (1)(2) Value Unit 105 °C/W RθJA Junction-to-ambient thermal resistance RθJC(top) Junction-to-case (top) thermal resistance 55 °C/W RθJB Junction-to-board thermal resistance 17.5 °C/W ψJT Junction-to-top characterization parameter 3.5 °C/W ψJB Junction-to-board characterization parameter 17.5 °C/W Note (1): The package thermal impedance is calculated in accordance to JESD 51-7. Note (2): Thermal Resistances were simulated on a 4-layer, JEDEC board. Electrical Characteristics (1) (2) VIN=12V, TA=25°C, unless otherwise specified. Parameter Test Conditions Input Voltage Range Typ. 4.5 Supply Current (Quiescent) VEN =3.0V Supply Current (Shutdown) VEN =0 or EN = GND Feedback Voltage Min 0.6 Max Unit 28 V 0.8 mA 4 uA RY9320AT6 0.585 0.600 0.615 V RY9320BT6 0.780 0.800 0.820 V RY9320CT6 0.746 0.765 0.784 V High-Side Switch On-Resistance ISW=100mA 100 mΩ Low-Side Switch On-Resistance ISW=-100mA 50 mΩ Valley Switch Current Limit 2.5 A Over Voltage Protection Threshold 28.5 V Switching Frequency 500 KHz 85 % 200 nS Maximum Duty Cycle VFB=90% Minimum Off-Time EN Rising Threshold 1.2 V EN Falling Threshold Wake up VIN Voltage Under-Voltage Lockout Threshold Shutdown VIN Voltage 3.8 V 4.2 V 3.4 V 400 mV Soft Start 1.5 mS Thermal Shutdown 160 ℃ Thermal Hysteresis 30 ℃ Hysteresis VIN voltage 3.0 0.9 Note (1): MOSFET on-resistance specifications are guaranteed by correlation to wafer level measurements. Note (2): Thermal shutdown specifications are guaranteed by correlation to the design and characteristics analysis. Email: support@rychip.com ©RYCHIP Semiconductor Inc. http://www.rychip.com Page 4 / 12 RY9320 28V 2A 500KHz ECOT PSM Sync Step-Down Regulator Typical Performance Characteristics (1) (2) Note (1): Performance waveforms are tested on the evaluation board. Note (2): VIN =12V, VOUT=3.3V, TA = +25ºC, unless otherwise noted. Efficiency vs Load Current Load Regulation Line Regulation VOUT=5V, 3.3V, 1.2V VOUT=5V, 3.3V, 1.2V VOUT=3.3V Output Ripple Voltage Output Ripple Voltage Output Ripple Voltage VIN=12V, VOUT=3.3V, IOUT=0A VIN=12V, VOUT=3.3V, IOUT=1A VIN=12V, VOUT=3.3V, IOUT=2A Loop Response Output Short Short Circuit Entry VIN=12V, VOUT=3.3V, IOUT=1A-2A VIN=12V, VOUT=3.3V VIN=12V, VOUT=3.3V Email: support@rychip.com ©RYCHIP Semiconductor Inc. http://www.rychip.com Page 5 / 12 RY9320 28V 2A 500KHz ECOT PSM Sync Step-Down Regulator Short Circuit Recovery Enable Startup at No Load Enable Shutdown at No Load VIN=12V, VOUT=3.3V VIN=12V, VOUT=3.3V, IOUT=0A VIN=12V, VOUT=3.3V, IOUT=0A Enable Startup at Full Load Enable Shutdown at Full Load Power Up at No Load VIN=12V, VOUT=3.3V, IOUT=2A VIN=12V, VOUT=3.3V, IOUT=2A VIN=12V, VOUT=3.3V, IOUT=0A Power Up at Full Load VIN=12V, VOUT=3.3V, IOUT=2A Email: support@rychip.com ©RYCHIP Semiconductor Inc. http://www.rychip.com Page 6 / 12 RY9320 28V 2A 500KHz ECOT PSM Sync Step-Down Regulator Functional Block Diagram IN Internal Regulator EN Bias&Voltage Reference VCC BS UVLO HICCUP VSHORT Reference FB On-Time Control PWM Reference Ripple Gen SW Driver OC OCL Reference SW GND Block Diagram Functions Description Internal Regulator The RY9320 is a ECOT step down DC/DC converter that provides excellent transient response with no extra external compensation components. This device contains an internal, low resistance, high voltage power MOSFET, and operates at a high 500KHz operating frequency to ensure a compact, high efficiency design with excellent AC and DC performance. Under-Voltage Lockout (UVLO) Under-voltage lockout (UVLO) protects the chip from operating at an insufficient supply voltage. UVLO protection monitors the internal regulator voltage. When the voltage is lower than UVLO threshold voltage, the device is shut off. When the voltage is higher than UVLO threshold voltage, the device is enabled again. Thermal Shutdown Thermal shutdown prevents the chip from operating at exceedingly high temperatures. When the silicon die temperature exceeds 160°C, it shuts down the whole chip. When the temperature falls below its lower threshold (Typ. 130°C) the chip is enabled again. Internal Soft-Start The soft-start is implemented to prevent the converter output voltage from overshooting during startup. When the chip starts, the internal circuitry generates a soft-start voltage (SS) ramping up from 0V to VFB. When it is lower than the internal reference (REF), SS overrides REF so the error amplifier uses SS as the reference. When SS is higher than REF, REF regains control. The SS time is internally max to 1.5ms. Email: support@rychip.com ©RYCHIP Semiconductor Inc. http://www.rychip.com Page 7 / 12 RY9320 28V 2A 500KHz ECOT PSM Sync Step-Down Regulator Over Current Protection The RY9320 has cycle-by-cycle over current limit when the inductor current valley value exceeds the set current limit threshold. Meanwhile, output voltage starts to drop until FB is below the Under-Voltage (UV) threshold. Once a UV is triggered, the RY9320 enters hiccup mode to periodically restart the part. This protection mode is especially useful when the output is dead-short to ground. The average short circuit current is greatly reduced to alleviate the thermal issue and to protect the regulator. The RY9320 exits the hiccup mode once the over current condition is removed. Startup and Shutdown If both VIN and EN are higher than their appropriate thresholds, the chip starts. The reference block starts first, generating stable reference voltage and currents, and then the internal regulator is enabled. The regulator provides stable supply for the remaining circuitries. Three events can shut down the chip: EN low, VIN low and thermal shutdown. In the shutdown procedure, the signaling path is first blocked to avoid any fault triggering. The comp voltage and the internal supply rail are then pulled down. The floating driver is not subject to this shutdown command. Applications Information Setting the Output Voltage RY9320 require an input capacitor, an output capacitor and an inductor. These components are critical to the performance of the device. RY9320 are internally compensated and do not require external components to achieve stable operation. The output voltage can be programmed by resistor divider. 𝑉𝑉𝑂𝑂𝑂𝑂𝑂𝑂 = 𝑉𝑉𝐹𝐹𝐹𝐹 × Example for VFB=0.8V 𝑅𝑅1 + 𝑅𝑅2 𝑅𝑅2 VOUT(V) R1(KΩ) R2(KΩ) L1(μH) C1(nF) CIN(μF) COUT(μF) CFF (pF) Opt. 1.0 2.50 10 1.0 100 22 22×2 CFF Chapter 1.2 5.00 10 1.5 100 22 22×2 CFF Chapter 1.5 8.75 10 2.2 100 22 22×2 CFF Chapter 1.8 12.50 10 2.2 100 22 22×2 CFF Chapter 2.5 21.25 10 2.2 100 22 22×2 CFF Chapter 3.3 31.25 10 3.3 100 22 22×2 CFF Chapter 5.0 52.50 10 4.7 100 22 22×2 CFF Chapter All the external components are the suggested values, the final values are based on the application testing results. Selecting the Inductor The recommended inductor values are shown in the Application Diagram. It is important to guarantee the inductor core does not saturate during any foreseeable operational situation. The inductor should be rated to handle the maximum inductor peak current: Care should be taken when reviewing the different saturation current ratings that are specified by different manufacturers. Saturation current ratings are typically specified at 25°C, so ratings at maximum ambient temperature of the application should be requested from the manufacturer. The inductor value can be calculated with: Email: support@rychip.com ©RYCHIP Semiconductor Inc. http://www.rychip.com Page 8 / 12 RY9320 28V 2A 500KHz ECOT PSM Sync Step-Down Regulator 𝐿𝐿 = 𝑉𝑉𝑂𝑂𝑂𝑂𝑂𝑂 × (𝑉𝑉𝐼𝐼𝐼𝐼 − 𝑉𝑉𝑂𝑂𝑂𝑂𝑂𝑂 ) 𝑉𝑉𝐼𝐼𝐼𝐼 × ∆𝐼𝐼𝐿𝐿 × 𝐹𝐹𝑂𝑂𝑂𝑂𝑂𝑂 Where ΔIL is the inductor ripple current. Choose inductor ripple current to be approximately 30% to 40% of the maximum load current. The maximum inductor peak current can be estimated as: 𝐼𝐼𝐿𝐿(𝑀𝑀𝑀𝑀𝑀𝑀) = 𝐼𝐼𝐿𝐿𝐿𝐿𝐿𝐿𝐿𝐿 + ∆𝐼𝐼𝐿𝐿 2 Under light load conditions below 100mA, larger inductance is recommended for improved efficiency. Larger inductances lead to smaller ripple currents and voltages, but they also have larger physical dimensions, lower saturation currents and higher linear impedance. Therefore, the choice of inductance should be compromised according to the specific application. Selecting the Input Capacitor The input current to the step-down converter is discontinuous and therefore requires a capacitor to supply AC current to the step-down converter while maintaining the DC input voltage. For a better performance, use ceramic capacitors placed as close to VIN as possible and a 0.1µF input capacitor to filter out high frequency interference is recommended. Capacitors with X5R and X7R ceramic dielectrics are recommended because they are stable with temperature fluctuations. The capacitors must also have a ripple current rating greater than the maximum input ripple current of the converter. The input ripple current can be estimated with Equation: 𝐼𝐼𝐶𝐶𝐶𝐶𝐶𝐶 = 𝐼𝐼𝑂𝑂𝑂𝑂𝑂𝑂 × � 𝑉𝑉𝑂𝑂𝑂𝑂𝑂𝑂 𝑉𝑉𝑂𝑂𝑂𝑂𝑂𝑂 × �1 − � 𝑉𝑉𝐼𝐼𝐼𝐼 𝑉𝑉𝐼𝐼𝐼𝐼 From the above equation, it can be concluded that the input ripple current reaches its maximum at VIN=2VOUT where 𝐼𝐼 I𝐶𝐶𝐶𝐶𝐶𝐶 = 𝑂𝑂𝑂𝑂𝑂𝑂 . For simplification, choose an input capacitor with an RMS current rating greater than half of the 2 maximum load current. The input capacitance value determines the input voltage ripple of the converter. If there is an input voltage ripple requirement in the system, choose the input capacitor that meets the specification. The input voltage ripple can be estimate with Equation: ∆𝑉𝑉𝐼𝐼𝐼𝐼 = 𝐼𝐼𝑂𝑂𝑂𝑂𝑂𝑂 𝑉𝑉𝑂𝑂𝑂𝑂𝑂𝑂 𝑉𝑉𝑂𝑂𝑂𝑂𝑂𝑂 × × �1 − � 𝐹𝐹𝑂𝑂𝑂𝑂𝑂𝑂 × 𝐶𝐶𝐼𝐼𝐼𝐼 𝑉𝑉𝐼𝐼𝐼𝐼 𝑉𝑉𝐼𝐼𝐼𝐼 Similarly, when VIN=2VOUT, input voltage ripple reaches its maximum of ∆𝑉𝑉𝐼𝐼𝐼𝐼 = Selecting the Output Capacitor 1 4 × 𝐹𝐹 𝐼𝐼𝑂𝑂𝑂𝑂𝑂𝑂 𝑂𝑂𝑂𝑂𝑂𝑂 ×𝐶𝐶𝐼𝐼𝐼𝐼 . An output capacitor is required to maintain the DC output voltage. The output voltage ripple can be estimated with Equation: 𝑉𝑉𝑂𝑂𝑂𝑂𝑂𝑂 𝑉𝑉𝑂𝑂𝑂𝑂𝑂𝑂 1 ∆𝑉𝑉𝑂𝑂𝑂𝑂𝑂𝑂 = × �1 − � × �𝑅𝑅𝐸𝐸𝐸𝐸𝐸𝐸 + � 8 × 𝐹𝐹𝑂𝑂𝑂𝑂𝑂𝑂 × 𝐶𝐶𝑂𝑂𝑂𝑂𝑂𝑂 𝐹𝐹𝑂𝑂𝑂𝑂𝑂𝑂 × 𝐿𝐿 𝑉𝑉𝐼𝐼𝐼𝐼 There are some differences between different types of capacitors. In the case of ceramic capacitors, the impedance at the switching frequency is dominated by the capacitance. The output voltage ripple is mainly caused by the Email: support@rychip.com ©RYCHIP Semiconductor Inc. http://www.rychip.com Page 9 / 12 RY9320 28V 2A 500KHz ECOT PSM Sync Step-Down Regulator capacitance. For simplification, the output voltage ripple can be estimated with Equation: ∆𝑉𝑉𝑂𝑂𝑂𝑂𝑂𝑂 = 𝑉𝑉𝑂𝑂𝑂𝑂𝑂𝑂 2 8 × 𝐹𝐹𝑂𝑂𝑂𝑂𝑂𝑂 × 𝐿𝐿 × 𝐶𝐶𝑂𝑂𝑂𝑂𝑂𝑂 × �1 − 𝑉𝑉𝑂𝑂𝑂𝑂𝑂𝑂 � 𝑉𝑉𝐼𝐼𝐼𝐼 A larger output capacitor can achieve a better load transient response, but the maximum output capacitor limitation should also be considered in the design application. If the output capacitor value is too high, the output voltage will not be able to reach the design value during the soft-start time and will fail to regulate. The maximum output capacitor value (COUT_MAX) can be limited approximately with Equation: 𝐶𝐶𝑂𝑂𝑂𝑂𝑂𝑂_𝑀𝑀𝑀𝑀𝑀𝑀 = �𝐼𝐼𝐿𝐿𝐿𝐿𝐿𝐿_𝐴𝐴𝐴𝐴𝐴𝐴 − 𝐼𝐼𝑂𝑂𝑂𝑂𝑂𝑂 � × 𝑇𝑇𝑆𝑆𝑆𝑆 /𝑉𝑉𝑂𝑂𝑂𝑂𝑂𝑂 Where LLIM_AVG is the average start-up current during the soft-start period, and TSS is the soft- start time. On the other hand, special attention should be paid when selecting these components. The DC bias of these capacitors can result in a capacitance value that falls below the minimum value given in the recommended capacitor specifications table. The ceramic capacitor’s actual capacitance can vary with temperature. The capacitor type X7R, which operates over a temperature range of −55°C to +125°C, will only vary the capacitance to within ±15%. The capacitor type X5R has a similar tolerance over a reduced temperature range of −55°C to +85°C. Many large value ceramic capacitors, larger than 1uF are manufactured with Z5U or Y5V temperature characteristics. Their capacitance can drop by more than 50% as the temperature varies from 25°C to 85°C. Therefore, X5R or X7R is recommended over Z5U and Y5V in applications where the ambient temperature will change significantly above or below 25°C. Feed-Forward Capacitor (CFF) RY9320 has internal loop compensation, so adding CFF is optional. Specifically, for specific applications, if necessary, consider whether to add feed-forward capacitors according to the situation. The use of a feed-forward capacitor (CFF) in the feedback network is to improve the transient response or higher phase margin. For optimizing the feed-forward capacitor, knowing the cross frequency is the first thing. The cross frequency (or the converter bandwidth) can be determined by using a network analyzer. When getting the cross frequency with no feed-forward capacitor identified, the value of feed-forward capacitor (CFF) can be calculated with the following equation: 𝐶𝐶𝐹𝐹𝐹𝐹 = 1 1 1 1 ×� ×� + � 2𝜋𝜋 × 𝐹𝐹𝐶𝐶𝐶𝐶𝐶𝐶𝐶𝐶𝐶𝐶 𝑅𝑅1 𝑅𝑅2 𝑅𝑅1 Where FCROSS is the cross frequency. To reduce transient ripple, the feed-forward capacitor value can be increased to push the cross frequency to higher region. Although this can improve transient response, it also decreases phase margin and cause more ringing. In the other hand, if more phase margin is desired, the feed-forward capacitor value can be decreased to push the cross frequency to lower region. Email: support@rychip.com ©RYCHIP Semiconductor Inc. http://www.rychip.com Page 10 / 12 RY9320 28V 2A 500KHz ECOT PSM Sync Step-Down Regulator PC Board Layout Consideration PCB layout is very important to achieve stable operation. It is highly recommended to duplicate EVB layout for optimum performance. If change is necessary, please follow these guidelines for reference. 1. Keep the path of switching current short and minimize the loop area formed by Input capacitor, high-side MOSFET and low-side MOSFET. 2. Bypass ceramic capacitors are suggested to be put close to the VIN Pin. 3. Ensure all feedback connections are short and direct. Place the feedback resistors and compensation components as close to the chip as possible. 4. VOUT, SW away from sensitive analog areas such as FB. 5. Connect IN, SW, and especially GND respectively to a large copper area to cool the chip to improve thermal performance and long-term reliability. Top Layer Bottom Layer Sample Board Layout Email: support@rychip.com ©RYCHIP Semiconductor Inc. http://www.rychip.com Page 11 / 12 RY9320 28V 2A 500KHz ECOT PSM Sync Step-Down Regulator Package Description SOT23-6 2.80 3.00 0.95 BSC 0.60 TYP 1.20 TYP EXAMPLE TOP MARK AAAAA 1.50 2.60 1.70 3.00 2.60 TYP PIN 1 TOP VIEW RECOMMENDED PAD LAYOUT GAUGE PLANE 0.25 BSC 0.90 1.30 1.45 MAX SEATING PLANE 0.30 0.50 0.95 BSC FRONT VIEW 0.00 0.15 0°~8° 0.30 0.55 0.09 0.20 SIDE VIEW NOTE: 1. CONTROL DIMENSION IS IN INCHES. DIMENSION IN BRACKET IS IN MILLIMETERS. 2. PACKAGE LENGTH DOES NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. 3. PACKAGE WIDTH DOES NOT INCLUDE INTERLEAD FLASH OR PROTRUSIONS. 4. LEAD COPLANARITY (BOTTOM OF LEADS AFTER FORMING) SHALL BE 0.004" INCHES MAX. 5. DRAWING CONFORMS TO JEDEC MS-012, VARIATION BA. 6. DRAWING IS NOT TO SCALE. Email: support@rychip.com ©RYCHIP Semiconductor Inc. http://www.rychip.com Page 12 / 12
