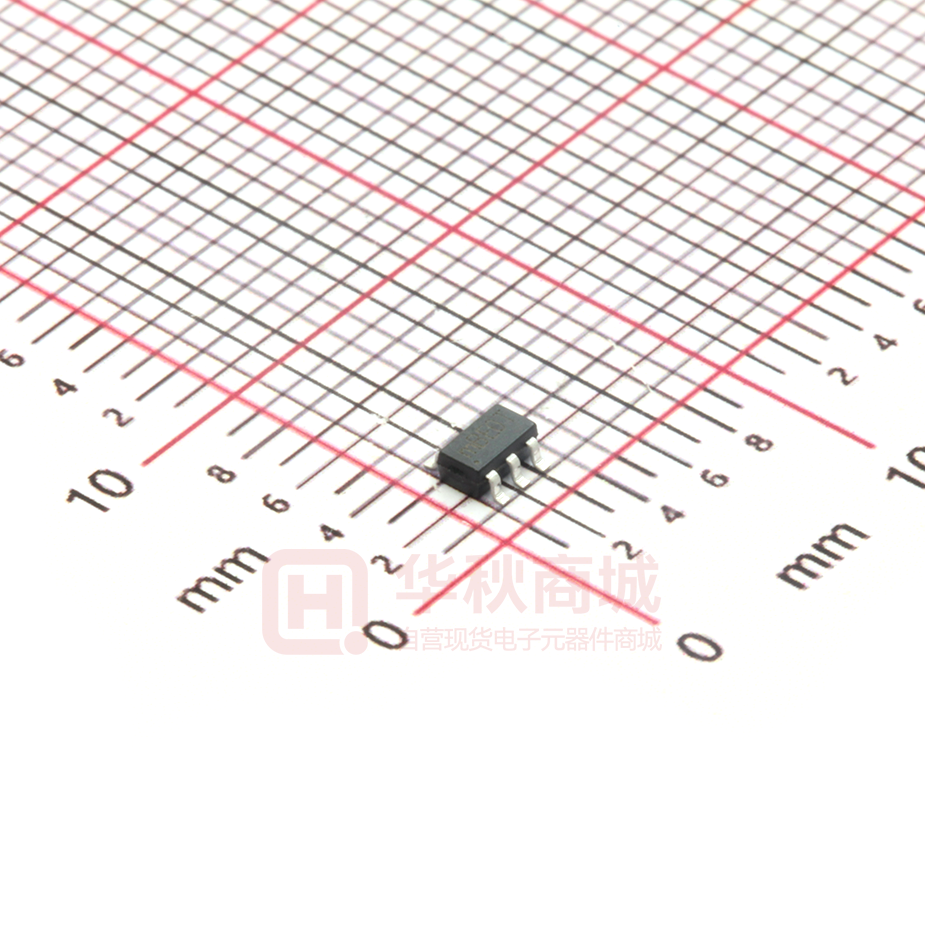

RY2334
30V High Side Over Voltage Protector
Features
•
•
•
•
30V standoff voltage
Fixed 6.0V protection voltage
Integrated OTP
Environment Temperature: -40℃~85℃
•
•
•
•
Maximum load Current 2A
Typical equivalent on-resistance 110mΩ
Input OVP with 0.1us reaction time
SOT-23-3, SOT23-6 package
•
•
Car Camera
Cellphone
Applications
•
•
All electronic devices with input DC power plug
E-Cigarette
General Description
RY2334 is a high voltage 30V over voltage protector (OVP) which has a low on resistance, by only change the
external connecting. It can be used as an OVP device or a high voltage switch. RY2334 consists of a charge pump,
a configurable power MOSFET, a voltage reference, a gate driver and some logics and protection modules. RY2334
can react to an input surge very fast and shut off the switch in less than 0.1us. RY2334 is available in SOT-23-3,
SOT23-6 package.
Typical Application Circuit
VOUT
VIN
OUT
IN
COUT
10μF
CIN
10μF
GND
RY2334 fixed version application circuit
Email: support@rychip.com
©RYCHIP Semiconductor Inc.
http://www.rychip.com
Page 1 / 7
RY2334
30V High Side Over Voltage Protector
Pin Description
Pin Configuration
TOP VIEW
GND
TOP VIEW
1
2
VIN
OUT
3
GND
1
6
GND
GND
2
5
GND
VIN
3
4
OUT
SOT23-3
SOT23-6
RY2334AT3 Top Marking: mAYLL [ device code: mA, Y=year code, LL= lot number code)
RY2334AT6 Top Marking: mBYLL [ device code: mB, Y=year code, LL= lot number code)
Pin Description
SOT23-3
Pin No.
SOT23-6
Pin No.
Name
2
4
OUT
Output voltage (VOUT) pin for the regulator
3
3
VIN
Input voltage (VIN) pin for the regulator.
1
1/2/5/6
GND
Ground pin
Function
Order Information (1)
Marking
Part No.
Model
Description
Package
T/R Qty
mAYLL
70702302
RY2334AT3
RY2334AT3 OVP IC, VIN 2.5-30V, OVP
SOT23-3
fixed 6.0V, 2A, SOT23-3
3000PCS
mBYLL
70702301
RY2334AT6
RY2334AT6 OVP IC, VIN 2.5-30V, OVP
SOT23-6
fixed 6.0V, 2A, SOT23-6
3000PCS
Note (1): All RYCHIP parts are Pb-Free and adhere to the RoHS directive.
Email: support@rychip.com
©RYCHIP Semiconductor Inc.
http://www.rychip.com
Page 2 / 7
RY2334
30V High Side Over Voltage Protector
Specifications
Absolute Maximum Ratings (1) (2)
Item
Maximum VIN voltage
Power dissipation
(3)
Min
Max
Unit
-0.3
30
V
150
°C
150
°C
260
°C
Internally Limited
Operating junction temperature, TJ(MAX)
Storage temperature, Tstg
–65
Lead Temperature (Soldering, 10sec.)
Note (1): Exceeding these ratings may damage the device.
Note (2): The device is not guaranteed to function outside of its operating conditions.
Note (3): The maximum allowable power dissipation is a function of the maximum junction temperature, TJ(MAX),
the junction-to-ambient thermal resistance, RθJA, and the ambient temperature, TA. The maximum allowable power
dissipation at any ambient temperature is calculated using: PD (MAX) = (TJ(MAX) − TA)/RθJA. Exceeding the maximum
allowable power dissipation causes excessive die temperature, and the regulator goes into thermal shutdown.
Internal thermal shutdown circuitry protects the device from permanent damage. Thermal shutdown engages at
TJ=160°C (typical) and disengages at TJ= 130°C (typical).
ESD Ratings
Item
Description
Value
Unit
V(ESD-HBM)
Human Body Model (HBM)
ANSI/ESDA/JEDEC JS-001-2014
Classification, Class: 2
±2000
V
V(ESD-CDM)
Charged Device Mode (CDM)
ANSI/ESDA/JEDEC JS-002-2014
Classification, Class: C0b
±200
V
ILATCH-UP
JEDEC STANDARD NO.78E APRIL 2016
Temperature Classification,
Class: I
±150
mA
Min
Max
Unit
-40
125
°C
Operating temperature range
-40
85
°C
Input voltage VIN
2.5
6
V
Recommended Operating Conditions
Item
Operating junction temperature
(1)
Note (1): All limits specified at room temperature (TA = 25°C) unless otherwise specified. All room temperature
limits are 100% production tested. All limits at temperature extremes are ensured through correlation using standard
Statistical Quality Control (SQC) methods. All limits are used to calculate Average Outgoing Quality Level (AOQL).
Email: support@rychip.com
©RYCHIP Semiconductor Inc.
http://www.rychip.com
Page 3 / 7
RY2334
30V High Side Over Voltage Protector
Thermal Information
Item
Description
SOT23
3 Pin
SOT23
6 Pin
Unit
RθJA
Junction-to-ambient thermal resistance (1)(2)
208
180
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
112
130
°C/W
RθJB
Junction-to-board thermal resistance
56
45
°C/W
ψJT
Junction-to-top characterization parameter
9.2
35
°C/W
ψJB
Junction-to-board characterization parameter
52
45
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
N/A
N/A
°C/W
Note (1): The package thermal impedance is calculated in accordance to JESD 51-7.
Note (2): Thermal Resistances were simulated on a 4-layer, JEDEC board
Electrical Characteristics
VIN =5V, TA=25℃, unless otherwise noted.
Parameter
Test Conditions
Input Voltage
UVLO
Min
Typ.
2.5
Hys=260mV
OVP
OVP Range
VCC=5V, Iout=1A
Iq
Units
5.9
V
2.4
V
6.0
V
30
2.5
Ron
Max
V
110
mΩ
Standby current, IN and Vcc <
OVP voltage
150
uA
Isd
Shutdown current
10
μA
Thermal Shutdown
Rising, Hys=50℃
135
℃
Email: support@rychip.com
©RYCHIP Semiconductor Inc.
-
http://www.rychip.com
Page 4 / 7
RY2334
30V High Side Over Voltage Protector
Block Diagram
OUT
VIN
Charge Pump
Gate Driver
Logic
Vref
GND
RY2334 Block Diagram
Detailed Description
RY2334 can disconnect the systems from its output pin (OUT) in case wrong input operating conditions are detected.
The system is positive overvoltage protected up to 30V. The internal OVLO is 6.0V. RY2334 also has internal over
temperature protect (OTP) function and it can monitor chip temperature to protect the device.
Email: support@rychip.com
©RYCHIP Semiconductor Inc.
http://www.rychip.com
Page 5 / 7
RY2334
30V High Side Over Voltage Protector
Package Description
SOT23-3
1.90
BSC
2.80
3.00
0.60
TYP
1.20
TYP
AAAAA
1.50
2.60
1.70
3.00
2.60
TYP
PIN 1
TOP VIEW
RECOMMENDED PAD LAYOUT
1.90 BSC
GAUGE PLANE
0.25 BSC
0.90
1. 30
1.45 MAX
SEATING PLANE
0.30
0.50
0.00
0.15
FRONT VIEW
0°~8°
0.30
0.55
0.09
0.20
SIDE VIEW
NOTE:
1. CONTRO L DI MENSION IS IN INCHES. DIMENSION I N BRACKET IS IN MILLIMETERS.
2. PACKAG E LENGTH DOES NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS.
3. PACKAG E WIDTH DO ES NOT INCLUDE I NTERLEAD FLASH OR PROTRUSIONS.
4. LEAD COPLANARITY (BO TTO M O F LEADS AFTER FORMING) SHALL BE 0. 004" INCHES MAX.
5. DRAWING CONFORMS TO JEDEC MS-012, VARIATION BA.
6. DRAWING IS NOT TO SCALE.
Email: support@rychip.com
©RYCHIP Semiconductor Inc.
http://www.rychip.com
Page 6 / 7
RY2334
30V High Side Over Voltage Protector
Package Description
SOT23-6
2.80
3.00
0.95
BSC
0.60
TYP
1.20
TYP
EXAMPLE
TOP MARK
AAAAA
1.50
2.60
1.70
3.00
2.60
TYP
PIN 1
TOP VIEW
RECOMMENDED PAD LAYOUT
GAUGE PLANE
0.25 BSC
0.90
1. 30
1.45 MAX
SEATING PLANE
0.30
0.50
0.95 BSC
FRONT VIEW
0.00
0.15
0°~8°
0.30
0.55
0.09
0.20
SIDE VIEW
NOTE:
1. CONTRO L DI MENSION IS IN INCHES. DIMENSION I N BRACKET IS IN MILLIMETERS.
2. PACKAG E LENGTH DOES NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS.
3. PACKAG E WIDTH DO ES NOT INCLUDE I NTERLEAD FLASH OR PROTRUSIONS.
4. LEAD COPLANARITY (BO TTO M O F LEADS AFTER FORMING) SHALL BE 0. 004" INCHES MAX.
5. DRAWING CONFORMS TO JEDEC MS-012, VARIATION BA.
6. DRAWING IS NOT TO SCALE.
Email: support@rychip.com
©RYCHIP Semiconductor Inc.
http://www.rychip.com
Page 7 / 7
