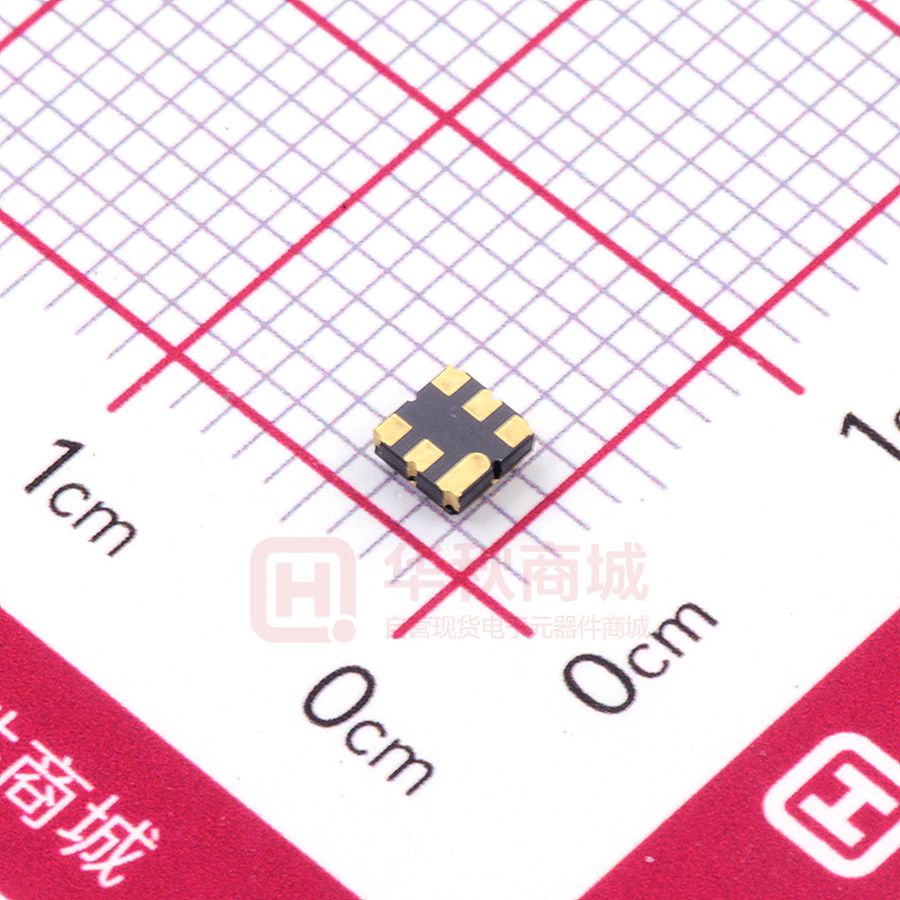

AW433920DCC6CA75UE

SAW Resonator UNIT AW DCC6C Series Approved by: 刘惠光 Checked by: 李相同 Issued by: 贺丹斌 SPECIFICATION SJK P/N: AW433920DCC6CA75UE 深圳市晶科鑫实业有限公司 SHENZHEN CRYSTAL TECHNOLOGY INDUSTRIAL CO., LTD. Add: 12F, Bldg. 3C, TianAn Cloud Park Phase 1, Bantian, Longgang, Shenzhen 518129, China Tel: (86) 755 88352809 88352810 Fax: (86) 755 88353718 88352499 E-mail: sjk@q-crystal.com HTTP://www.q-crystal.com Page １ of 4 SAW Resonator UNIT AW DCC6C Series The SJK433.920 is a true one- port ， surface- acoustic- wave( SAW) resonator in a low- profile DCC6C case. It provides reliable ， fundamental- mode ， quartz frequency stabilization of fixed- frequency transmitters operating at 433.920MHz. Performance 1-1.Maximum Rating Rating Value Unit RF Power Dissipation PS 10 dBm DC voltage between any two pins VDC 10 V Operating temperature range TA -40 ~ +85 °C Storage temperature range Tstg -55 ~ +125 °C 1-2.Electronic Characteristics Test Temperature: 25℃±2℃/Terminating source impedance: 50Ω/Terminating load impedance: 50Ω Characteristic Sym Frequency Aging Maximum Unit fC 433.920 MHz Tolerance from 433.920 MHz ∆fC ±75 kHz IL 1.4 Unloaded Q QU 12451 50Ω Loaded Q QL 1984 Turnover Temperature TO Turnover Frequency fO fC kHz Frequency Temperature Coefficient FTC 0.032 ppm/°C2 Absolute Value during the First Year |fA| ≤10 ppm/yr Insertion Loss Temperature Stability Typical Absolute Frequency Center Frequency Quality Factor Minimum DC Insulation Resistance between the Two Pins 25 40 2.0 dB 55 °C MΩ 1.0 Motional Resistance RM 14.5 25.5 Ω Motional Inductance LM 65.5 95.5 µH Motional Capacitance CM 2.05 Pin 1 to Pin 2 Static Capacitance CO RF Equivalent RLC Model 2.55 2.95 fF 3.35 Add: 12F, Bldg. 3C, TianAn Cloud Park Phase 1, Bantian, Longgang, Shenzhen 518129, China Tel: (86) 755 88352809 88352810 Fax: (86) 755 88353718 88352499 E-mail: sjk@q-crystal.com HTTP://www.q-crystal.com Page ２ of 4 pF SAW Resonator UNIT AW DCC6C Series Package Dimension (DCC6C) Pin Configuration Marking R 433.92 SAW Resonator Part number Test Circuit Temperature Characteristics Add: 12F, Bldg. 3C, TianAn Cloud Park Phase 1, Bantian, Longgang, Shenzhen 518129, China Tel: (86) 755 88352809 88352810 Fax: (86) 755 88353718 88352499 E-mail: sjk@q-crystal.com HTTP://www.q-crystal.com Page ３ of 4 SAW Resonator UNIT AW DCC6C Series Typical Frequency Response CAUTION: Electrostatic Sensitive Device. Observe precautions for handling! NOTES: 1. The center frequency, fC, is measured at the minimum IL point with the resonator in the 50Ω test system. 2. Unless noted otherwise, case temperature TC = +25°C±2°C. 3. Frequency aging is the change in fC with time and is specified at +65°C or less. Aging may exceed the specification for prolonged temperatures above +65°C. Typically, aging is greatest the first year after manufacture, decreasing in subsequent years. 4. Turnover temperature, T0, is the temperature of maximum (or turnover) frequency, f0. The nominal frequency at any 2 case temperature, TC, may be calculated from: f = f0 [1 - FTC (T0 - TC) ]. 5. This equivalent RLC model approximates resonator performance near the resonant frequency and is provided for reference only. The capacitance C0 is the measured static (nonmotional) capacitance between the two terminals. The measurement includes case parasitic capacitance. 6. Derived mathematically from one or more of the following directly measured parameters: fC, IL, 3 dB bandwidth, fC versus TC, and C0. 7. The specifications of this device are based on the test circuit shown above and subject to change or obsolescence without notice. 8. Typically, equipment utilizing this device requires emissions testing and government approval, which is the responsibility of the equipment manufacturer. 9. Our liability is only assumed for the Surface Acoustic Wave (SAW) component(s) per se, not for applications, processes and circuits implemented within components or assemblies. 10. For questions on technology, prices and delivery please contact our sales offices . Add: 12F, Bldg. 3C, TianAn Cloud Park Phase 1, Bantian, Longgang, Shenzhen 518129, China Tel: (86) 755 88352809 88352810 Fax: (86) 755 88353718 88352499 E-mail: sjk@q-crystal.com HTTP://www.q-crystal.com Page ４ of 4
