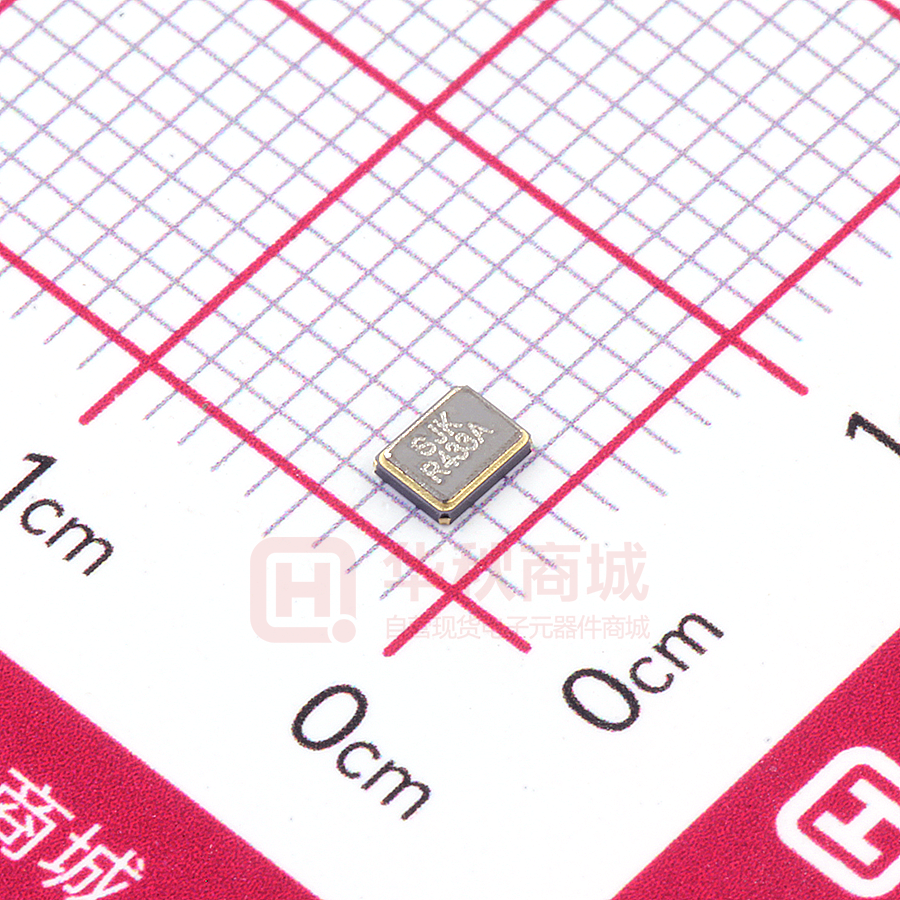

AW433920000F9A75UB

SAW Resonator Unit AW 3.2*2.5*1.2mm Series Approved by: 刘惠光 Checked by: 李相同 Issued by: 贺丹斌 SPECIFICATION P/N: SJK-AW433920000F9A75UB 深圳市晶科鑫实业有限公司 SHENZHEN CRYSTAL TECHNOLOGY INDUSTRIAL CO., LTD. Add: 12F, Bldg. 3C, TianAn Cloud Park Phase 1, Bantian, Longgang, Shenzhen 518129, China Tel: (86) 755 88352809 88352810 Fax: (86) 755 88353718 88352499 E-mail: sjk@q-crystal.com HTTP://www.q-crystal.com Page 1 of 5 SAW Resonator Unit AW 3.2*2.5*1.2mm Series Features  1-port Resonator  Ceramic Package for Surface Mounted Technology (SMT)  RoHS compatible  Package size 3.20x2.50x1.2mm Performance 1-1. Maximum Ratings Rating RF Power Dissipation DC Voltage Value Unit 25 dBm 30 V P VDC Operable Temperature Range TA -40~ +85 ℃ Storage Temperature Range Tstg -40 ~ +85 ℃ 1-2 Electronic Characteristics Test Temperature: 25℃±2℃ /Terminating source impedance: 50Ω/Terminating load impedance: 50Ω Item Center Frequency Absolute Frequency Frequency Aging Maximum Unit 433.845 433.920 433.995 MHz ±75 IL 1.6 Unloaded Q QU 13959 50Ω Loaded Q QL 1871 Absolute Value during the First Year |fA| ≤10 DC Insulation Resistance between Any Two Pins RF Equivalent RLC Model Typical △fc Tolerance from 433.920MHz Insertion Loss(min) Quality Factor fc Minimum KHz 2.0 dB ppm/yr 1.0 MΩ Ω Motional Resistance RM 15.5 Motional Inductance LM 79.3 µH Motional Capacitance CM 1.7 fF Static Capacitance C0 3.1 pF 20 Add: 12F, Bldg. 3C, TianAn Cloud Park Phase 1, Bantian, Longgang, Shenzhen 518129, China Tel: (86) 755 88352809 88352810 Fax: (86) 755 88353718 88352499 E-mail: sjk@q-crystal.com HTTP://www.q-crystal.com Page 2 of 5 SAW Resonator Unit AW 3.2*2.5*1.2mm Series Pin Configuration Package Dimensions (3225) Application Typical Low-Power Transmitter Application Typical Local Oscillator Application Add: 12F, Bldg. 3C, TianAn Cloud Park Phase 1, Bantian, Longgang, Shenzhen 518129, China Tel: (86) 755 88352809 88352810 Fax: (86) 755 88353718 88352499 E-mail: sjk@q-crystal.com HTTP://www.q-crystal.com Page 3 of 5 SAW Resonator Unit AW 3.2*2.5*1.2mm Series Test Circuit Equivalent LC Model Freq uency Response Add: 12F, Bldg. 3C, TianAn Cloud Park Phase 1, Bantian, Longgang, Shenzhen 518129, China Tel: (86) 755 88352809 88352810 Fax: (86) 755 88353718 88352499 E-mail: sjk@q-crystal.com HTTP://www.q-crystal.com Page 4 of 5 SAW Resonator Unit AW 3.2*2.5*1.2mm Series Reliability The SAW components shall remain electrical performance after tests No. 1 Test item Test condition Temperature Storage Temperature: 85℃±2℃ , Duration: 250h , Recovery time: 2h±0.5h Temperature: –40℃±3℃ , Duration: 250h ,Recovery time: 2h±0.5h 2 Humidity Test Conditions: 60℃±2℃ , 90~95% RH Duration: 250h 3 Thermal Shock Heat cycle conditions: TA=-40℃±3℃, TB=85℃±2℃, t1=t2=30min, Switch time: ≤ 3min , Cycle time: 100 times , Recovery time : 2h±0.5h. 4 Vibration Fatigue Frequency of vibration: 10~55Hz Amplitude:1.5mm Directions: X,Y and Z Duration: 2h 5 Drop Test Cycle time: 10 times Height: 1.0m 6 Solder Ability Test Temperature: 245℃±5℃ Duration: 3.0s--5.0s Depth: DIP--2/3 , SMD--1/5 7 Resistance to (1)Thickness of PCB:1mm , Solder condition: 260 ℃ ± 5 ℃ , Duration: 10 ± 1s Soldering Heat (2)Temperature of Soldering Iron: 350℃±10℃ , Duration: 3~4s ,Recovery time : 2 ± 0.5h Notes 1. As a result of the particularity of inner structure of SAW products, it easy to be breakdown by electrostatic, so we should pay attention to ESD protect in the test. 2. Static voltage between signal load and ground may cause deterioration and destruction of the component. Please avoid static voltage. 3. Ultrasonic cleaning may cause deterioration and destruction of the component. Please avoid ultrasonic cleaning. 4. Only leads of component may be soldered. Please avoid soldering another part of component. 5. There is a close relationship between the device's performance and matching network. The specifications of this device are based on the test circuit shown above. L and C values may change depending on board layout. Values shown are intended as a guide only. Add: 12F, Bldg. 3C, TianAn Cloud Park Phase 1, Bantian, Longgang, Shenzhen 518129, China Tel: (86) 755 88352809 88352810 Fax: (86) 755 88353718 88352499 E-mail: sjk@q-crystal.com HTTP://www.q-crystal.com Page 5 of 5
