PESDMC2FD18VB

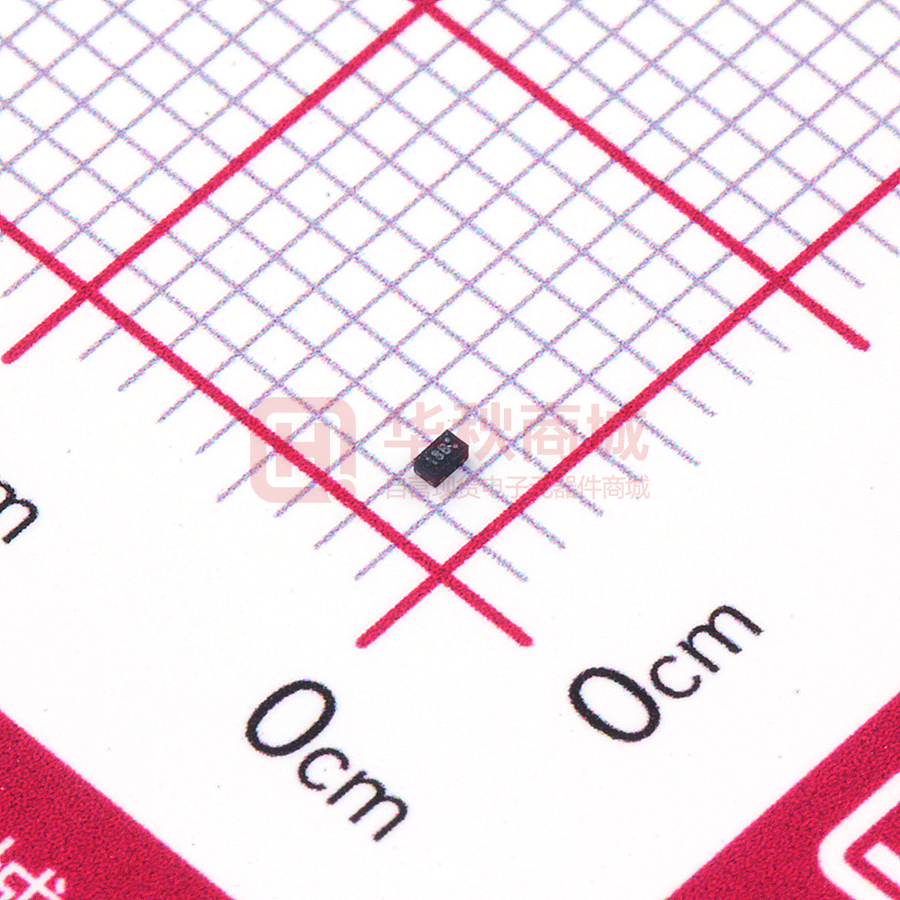

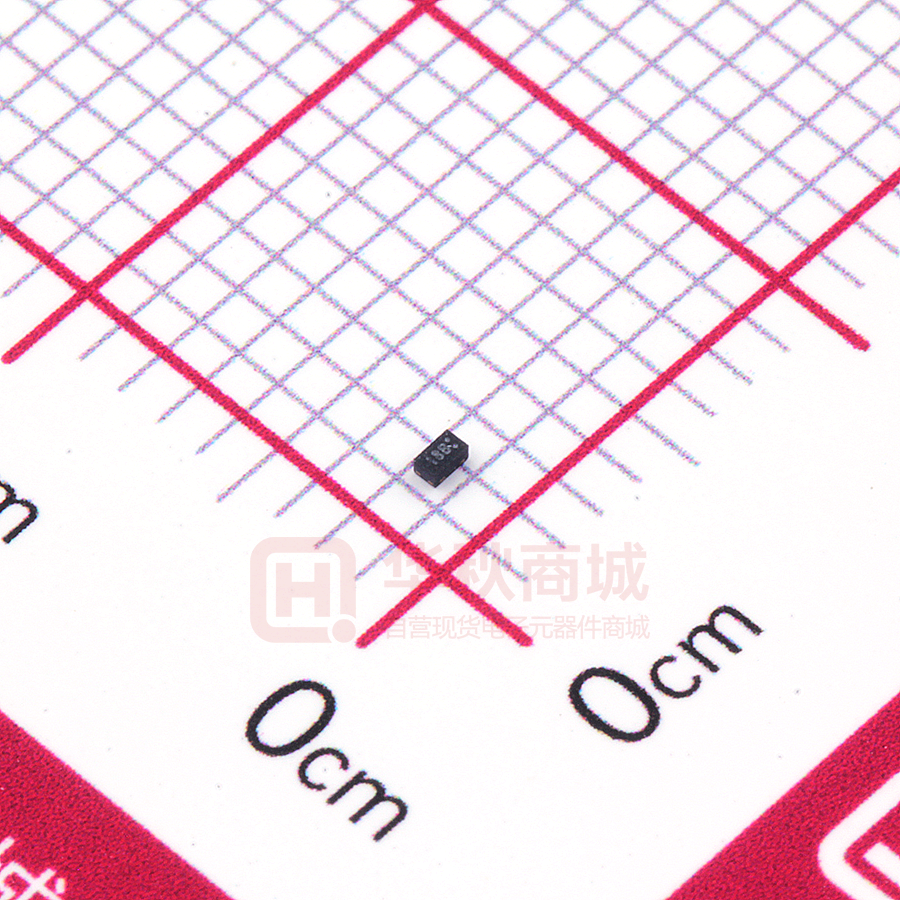

PESDMC2FD18VB Bi-directional 18V Low Capacitance ESD Protector Description The PESDMC2FD18VB protects sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD) and other voltage induced transient events. They feature large cross-sectional area junctions for conducting high transient currents, offer desirable electrical characteristics for board level protection, such as fast response time, low operating voltage. It gives designer the flexibility to protect one bi-directional line in applications where arrays are not practical. DFN1006-2L(Bottom View) Feature  30W peak pulse power per line (tP = 8/20μs)  DFN1006-2L package  Replacement for MLV(0402)  Bidirectional configurations  Response time is typically < 1ns  Low clamping voltage  RoHS compliant  Transient protection for data lines to Pin 1 Pin 2 Circuit Diagram IEC61000-4-2(ESD) ±15KV(air), ±15KV(contact); IEC61000-4-4 (EFT) 40A (5/50ns) Applications  Cellular phones  Portable devices  Digital cameras  Power supplies 18B Marking (Top View) Mechanical Characteristics  Mounting position: Any  Qualified max reflow temperature:260℃  Device meets MSL 1 requirements  DFN1006-2L without plating Rev.06.1 1 www.prisemi.com ESD Protector PESDMC2FD18VB Electronics Parameter Symbol VRWM IR VBR Parameter Peak Reverse Working Voltage Reverse Leakage Current @ VRWM Breakdown Voltage @ IT IT Test Current IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP PPP Peak Pulse Power CJ Junction Capacitance IF Forward Current VF Forward Voltage @ IF Electrical characteristics per line@25℃ (unless otherwise specified) Parameter Peak Reverse Working Voltage Breakdown Voltage Symbol Conditions Min. Typ. Max. Units 18 V 23 V 3.5 V 1.0 μA VRWM VBR It =1mA 19 VHOLD IHOLD=60mA 2.0 Reverse Leakage Current IR VRWM =18V T=25℃ Clamping Voltage VC TLP=16A or ESD=8KV Clamping Voltage VC IPP=1A 6 V Clamping Voltage VC IPP=4A 8 V Junction Capacitance Cj 0.5 pF Reverse holding voltage VR=0V f = 1MHz 2.8 9 V 0.4 Absolute maximum rating@25℃ Rating Symbol Value Units Peak Pulse Power (tp=8/20μs) Ppp 30 W Peak Pulse Current(tp=8/20μs) Ipp 4 A Operating Temperature TJ -55 to 150 ℃ TSTG -55 to 150 ℃ Storage Temperature Rev.06.2 2 www.prisemi.com ESD Protector PESDMC2FD18VB Typical Characteristics 9 tf=8μs VC-Clamping Voltage (V) IPP – Peak Pulse Current - % of IPP Pulse waveform: tp=8/20us 8 100 80 60 tP =20μs(IPP /2) 40 20 7 6 5 4 3 2 1 0 0 0 5 10 15 20 25 30 0 1 t - Time -μs 2 3 IPP-Peak pulse current (A) 4 5 Fig 2. Clamping voltage F vs. Peak pulse current Fig 1.Pulse Waveform 0.45 0.45 1000 f=1MHz 0.4 0.40 C-Junction capacitance (pF) 0.35 0.35 Peak Pulse Power (W) 100 0.3 0.30 0.25 0.25 0.2 0.20 0.15 0.15 10 0.1 0.10 0.05 0.05 1 1 00 1000 100 10 00 3 3 6 6 9 9 12 15 12 15 18 18 VR-Reverse voltage (V) Pulse Duration(us) Fig 3. Non-Repetitive Peak Pulse Power vs. Pulse time 2020 Fig 4. Capacitance vs. Reveres voltage PESDMC2XD18VB 300 300 15 15 250 250 200 200 IR(nA) 55 00 IR (nA) TLP Current(A) (A) Current 10 10 150 150 -5-5 100 100 -10 -10 5050 -15 -15 -20 -20 -25 -20 -20 -15 -15 -25 -10 -10 -5 -5 00 55 Voltage (V) TLP Voltage(v) 10 10 15 15 20 20 25 25 Fig 5. TLP Measurement 00 00 25 25 50 50 75 100 75 100 Temperature (ºC) 125 125 150 150 Fig 6. Typical Leakage Current vs. Temperature Temperature (℃) Rev.06.2 3 www.prisemi.com ESD Protector PESDMC2FD18VB 10V/div 10V/div 20ns/div 20ns/div Fig 7. ESD clamping voltage (IEC61000-4-2 +8KV contact) Fig 8. ESD clamping voltage (IEC61000-4-2-8KV contact) Solder Reflow Recommendation Peak Temp=257℃, Ramp Rate=0.802deg. ℃/sec 280 240 200 160 120 80 40 0 0 30 60 90 120 150 180 240 210 270 300 330 360 390 420 450 480 Time (sec) PCB Design For TVS diodes a low-ohmic and low-inductive path to chassis earth is absolutely mandatory in order to achieve good ESD protection. Novices in the area of ESD protection should take following suggestions to heart:  Do not use stubs, but place the cathode of the TVS diode directly on the signal trace.  Do not make false economies and save copper for the ground connection.  Place via holes to ground as close as possible to the anode of the TVS diode.  Use as many via holes as possible for the ground connection.  Keep the length of via holes in mind! The longer the more inductance they will have. Rev.06.2 4 www.prisemi.com ESD Protector PESDMC2FD18VB Product dimension (DFN1006-2L) Inches A Millimeters Dim B C R D E MIN MAX MIN MAX A 0.013 0.020 0.34 0.50 B 0.000 0.002 0.00 0.05 C 0.037 0.043 0.95 1.080 D 0.022 0.027 0.55 0.680 E 0.016 0.024 0.40 0.60 F 0.008 0.012 0.20 0.30 H R F 0.015Typ. 0.001 0.005 0.40Typ. 0.05 0.15 H 1.20 0.50 0.60 0.70 Unit:mm Suggested PCB Layout Ordering information Device Package Reel Shipping PESDMC2FD18VB DFN1006-2L (Pb-Free) 7" 10000 / Tape & Reel Rev.06.2 5 www.prisemi.com ESD Protector PESDMC2FD18VB Load with information USER DIRECTION OF FEED Φ1.50 ± 0.10 2.00 ± 0.05 2.00 ± 0.05 1.75 ± 0.10 4.00 ± 0.10 3.50 ± 0.05 8.00 ± 0.10 Φ0.50 ± 0.05 Unit：mm Rev.06.2 6 www.prisemi.com ESD Protector PESDMC2FD18VB IMPORTANT NOTICE and are registered trademarks of Prisemi Electronics Co., Ltd (Prisemi) ,Prisemi reserves the right to make changes without further notice to any products herein. Prisemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Prisemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in Prisemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Prisemi does not convey any license under its patent rights nor the rights of others. The products listed in this document are designed to be used with ordinary electronic equipment or devices, Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. Website: http://www.prisemi.com For additional information, please contact your local Sales Representative. ©Copyright 2009, Prisemi Electronics is a registered trademark of Prisemi Electronics. All rights are reserved. Rev.06.2 7 www.prisemi.com
