PTVSHC3N24VUH

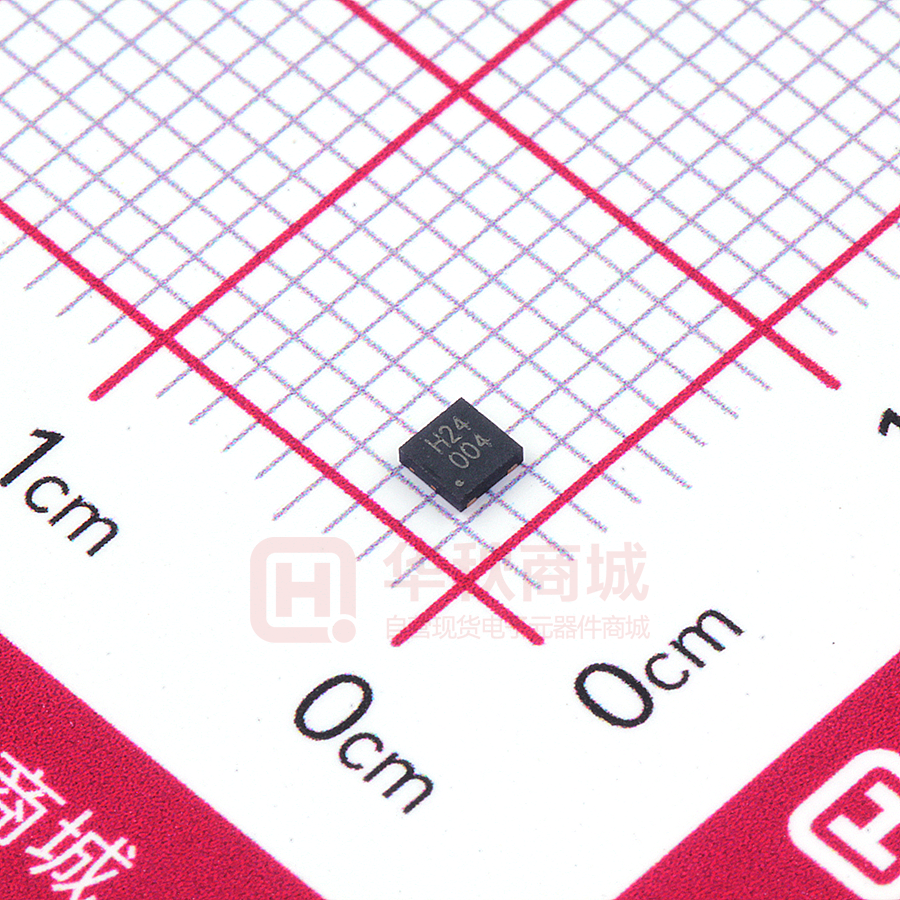

PTVSHC3N24VUH Transient Voltage Suppressor Description The PTVSHC3N24VUH Transient Voltage Suppressor is designed to replace Pin3 multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDA’s. They feature large cross-sectional area junctions for conducting high transient currents, offer desirable electrical characteristics for board level protection, such as fast response time, lower operating voltage, lower clamping voltage and no device degradation when compared to MLVs. The PTVSHC3N24VUH protects sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD) and other voltage induced transient events. The PTVSHC3N24VUH is available in a DFN2× Pin1 2-3L package with working voltages of 24 volt. It is used to meet the ESD Pin2 Pin configuration immunity requirements of IEC 61000-4-2. Feature  5500W Peak pulse power per line (tP = 8/20μs)  DFN2×2-3L package  Response time is typically < 1 ns  Protect one I/O or power line  RoHS compliant  Transient protection for data lines to Pin3 Pin 1, 2 Circuit Diagram IEC61000-4-2(ESD) ±30KV(air), ±30KV(contact); IEC 61000-4-4 (EFT) 80A (5/50ns), IEC 61000-4-5 (Lightning) 140A (8/20us) Applications  Cell phone handsets and accessories  Personal digital assistants (PDA’s)  Notebooks, desktops, and servers  Portable instrumentation  Cordless phones  Digital cameras  Peripherals  MP3 players H24 004 004 004 Marking (Top View) Mechanical Characteristics  Lead finish:100% matte Sn(Tin)  Mounting position: Any  Qualified max reflow temperature:260℃  Pure tin plating: 7 ~ 17 um Rev.06.0 1 www.prisemi.com Transient Voltage Suppressor PTVSHC3N24VUH Electronics Parameter I IF Symbol Parameter VRWM Peak Reverse Working Voltage IR Reverse Leakage Current @ V RWM VBR Breakdown Voltage @ I T IT Test Current I PP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP PPP Peak Pulse Power CJ Junction Capacitance IF Forward Current VF Forward Voltage @ I F V VC VBR VRWM IR VF IT IPP Electrical characteristics per line@25℃( unless otherwise specified) Parameter Symbol Conditions Min. Typ. Max. Units Peak Reverse Working Voltage VRWM 24 V Forward Voltage VF I F =10mA Breakdown Voltage VBR I t =1mA Reverse Leakage Current IR VRWM =24V Maximum Reverse Peak Pulse Current I PP Clamping Voltage VC I PP=70A tP = 8/20μs 34 36 V Clamping Voltage VC I PP=140A tP = 8/20μs 40 44 V Junction Capacitance Cj VR=0V f = 1MHz 800 900 pF 0.75 25 27 V 29 V 1.0 μA 140 A Notes ：Measured from pin 3 to pin 1 & pin 2. Absolute maximum rating@25℃ Rating Symbol Value Units Peak Pulse Power ( tP = 8/20μS ) Ppp 5500 W Lead Soldering Temperature TL 260 (10 sec) ℃ Operating Temperature TJ -55 to +150 ℃ TSTG -55 to +150 ℃ Storage Temperature Rev.06.0 2 www.prisemi.com Transient Voltage Suppressor PTVSHC3N24VUH tf=8μs 100 100 80 % Of Rated Power IPP – Peak Pulse Current - % of IPP Typical Characteristics 60 tP =20μs(IPP /2) 40 80 60 40 20 20 0 0 0 5 10 15 20 25 0 30 25 50 75 100 125 150 TL – Lead Temperature - ℃ t - Time -μs Fig 1.Pulse Waveform Fig 2.Power Derating Curve 60 1000 Pulse waveform: tp=8/20us f=1MHz 800 C-Junction capacitance (pF) VC-Clamping Voltage (V) 50 40 30 20 10 0 30 60 90 IPP-Peak pulse current (A) 120 600 400 200 0 150 0 Fig 3. Clamping voltage vs. Peak pulse current 5 10 15 VR-Reverse voltage (V) 20 Fig 4. Capacitance vs. Reveres voltage Peak Pulse Power (W) 100000 10000 1000 100 1 10 100 Pulse Duration(us) 1000 Fig 5. Non Repetitive Peak Pulse Power vs. Pulse time Rev.06.0 3 www.prisemi.com 25 Transient Voltage Suppressor PTVSHC3N24VUH Temperature of Soldering (℃) Solder Reflow Recommendation Peak Temp=257℃, Ramp Rate=0.802deg. ℃/sec PCB Design For TVS diodes a low-ohmic and low-inductive path to chassis earth is absolutely mandatory in order to achieve good ESD protection. Novices in the area of ESD protection should take following suggestions to heart:  Do not use stubs, but place the cathode of the TVS diode directly on the signal trace.  Do not make false economies and save copper for the ground connection.  Place via holes to ground as close as possible to the anode of the TVS diode.  Use as many via holes as possible for the ground connection.  Keep the length of via holes in mind! The longer the more inductance they will have. Rev.06.0 4 www.prisemi.com Transient Voltage Suppressor PTVSHC3N24VUH Product dimension (DFN2×2-3L) J F F 1 2 D H B G K I E C L F 3 A Bottom View Millimeters Dim MIN MAX A 1.90 2.10 B 1.90 2.10 C 1.40 1.60 D 0.90 E 1.15 1.30BSC F 0.25 0.40 G 0.90 1.10 H 0.20 0.30 I 0.32 0.48 J 0.50 0.65 K 0.20 0.45 L 0.15 0.30 1.3 1.05 0.5 0.4 1.1 0.25 0.4 Unit:mm 1.6 Recommended Soldering Pad Ordering information Device PTVSHC3N24VUH Rev.06.0 Package DFN2×2-3L (Pb-Free) Reel 7" 5 Shipping 3000 / Tape & Reel www.prisemi.com Transient Voltage Suppressor PTVSHC3N24VUH Load with information USER DIRECTION OF FEED 2.00 ± 0.05 4.00 ± 0.10 4.00 ± 0.10 1.75 ± 0.10 3.50 ± 0.05 8.00+0. 30 -0.10 Rev.06.0 6 www.prisemi.com Transient Voltage Suppressor PTVSHC3N24VUH IMPORTANT NOTICE and are registered trademarks of Prisemi Electronics Co., Ltd (Prisemi) ,Prisemi reserves the right to make changes without further notice to any products herein. Prisemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Prisemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in Prisemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Prisemi does not convey any license under its patent rights nor the rights of others. The products listed in this document are designed to be used with ordinary electronic equipment or devices, Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. Website: http://www.prisemi.com For additional information, please contact your local Sales Representative. ©Copyright 2009, Prisemi Electronics is a registered trademark of Prisemi Electronics. All rights are reserved. Rev.06.0 7 www.prisemi.com
