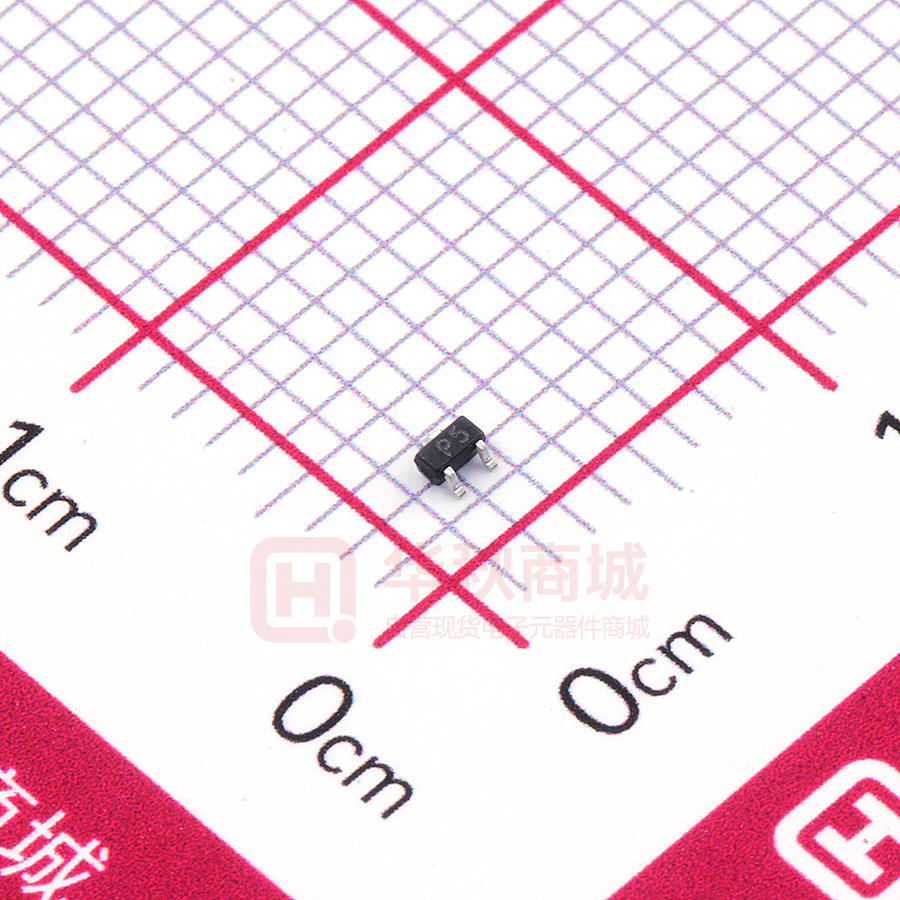

PESDUC523T5VU Low Capacitance ESD Protector Description The PESDUC523T5VU is a TVS array designed to protect I/O or data lines 3 from the damaging effects of ESD. it is low capacitance transient voltage suppressors for high speed data interface that designed to protect sensitive electronics from damage or latch-up due to ESD lightning, and other voltage induced transient events. The SOT-523 is a very small package which allows space saving on high density printed circuit board and also gives the designer the flexibility to provide two I/O lines protection. All pins are rated to withstand 15kV ESD pulses using the IEC61000-4-2 1 air discharge method, which can meet the requirement of level 4. Feature 2 Applications  SOT-523 package  High-definition multimedia interface(HDMI)  Protect up two data lines  Mobile display digital interface(MDDI)  Low clamping voltage  RF/Antenna circuits  Working voltage: 5V  USB 2.0&firewire ports  Low leakage current  HBT power amp protection  125W peak pulse power(tp=8/20us)  Transceiver protection  RoHS compliant transient protection for high speed data lines to IEC61000-4-2(ESD)±15kV(air),±8kV(contact) Mechanical Characteristics  Lead finish:100% matte Sn(Tin)  Mounting position: Any  Qualified max reflow temperature:260℃  Device meets MSL 1 requirements  Pure tin plating: 7 ~ 17 um  Pin flatness:≤3mil Electronics Parameter Symbol Parameter VRWM Peak Reverse Working Voltage IR Reverse Leakage Current @ VRWM VBR Breakdown Voltage @ IT IT Test Current IPP Maximum Reverse Peak Pulse Current Rev.06 VC Clamping Voltage @ IPP PPP Peak Pulse Power CJ Junction Capacitance IF Forward Current VF Forward Voltage @ IF I IF V VC VBR VRWM IR VF IT IPP 1 www.prisemi.com Low Capacitance ESD Protector PESDUC523T5VU Electrical characteristics per line@25℃( unless otherwise specified) Parameter Symbol Reverse Stand-off Voltage Conditions Min. Typ. Max. Units 5 V VRWM Reverse Breakdown Voltage VBR It = 1mA Reverse Leakage Current IR VRWM = 5V 1 μA Clamping Voltage VC IPP = 1A, tP = 8/20μs pin1 to pin2 13.5 V Clamping Voltage VC 20.0 V Clamping Voltage VC IPP= 5A, tP = 8/20μs pin1to pin2 23.0 V Junction Capacitance Cj VR=0V, f = 1MHz Pin1 to Pin2 0.35 0.45 pF Junction Capacitance Cj VR=0V f = 1MHz pin1or pin2 to pin3 0.7 0.9 pF 5.6 V IPP= 5A, tP = 8/20μs pin1or pin2 to pin3 Absolute maximum rating@25℃ Rating Symbol Value Units Peak Pulse Power (tp=8/20μs) Ppp 125 W Peak Pulse Power (tp=8/20μs) Ipp 5.5 A Operating Temperature TJ -55 to +150 ℃ Storage Temperature TSTG -55 to +150 ℃ Typical Characteristics Test 100 Waveform Parameters 80 % Of Rated Power IPP – Peak Pulse Current - % of IPP tf=8μs 100 tf=8us 60 tp=20us 40 tP =20μs(IPP /2) 20 60 40 20 0 0 0 5 10 15 t - Time -μs 20 25 30 0 Fig 1.Pulse Waveform Rev.06 80 25 50 75 100 125 TL – Lead Temperature - ℃ 150 Fig 2.Power Derating Curve 2 www.prisemi.com Low Capacitance ESD Protector PESDUC523T5VU 10000 Clamping voltage – VC(V) Peak Pulse Power (W) 25 1000 100 20 15 10 Test Waveform Parameters 5 tf=8us td=20us 0 10 1 10 100 Pulse Duration(us) 0 1000 1 2 3 4 5 Peak Pulse Current (A) Fig 3. Non Repetitive Peak Pulse Power vs. Pulse time Fig 4. Clamping Voltage vs. Peak Pulse Current (Pin 1 to Pin 2) Clamping voltage – VC(V) 20 15 10 Test Waveform 5 Parameters tf=8us td=20us 0 0 1 2 3 4 5 6 Peak Pulse Current (A) Fig.5 Clamping Voltage vs. Peak Pulse Current (Pin 1 or Pin 2 to Pin 3) Rev.06 3 www.prisemi.com 6 Low Capacitance ESD Protector PESDUC523T5VU Solder Reflow Recommendation Peak Temp=257℃, Ramp Rate=0.802deg. ℃/sec 280 240 200 160 120 80 40 0 0 30 60 90 120 150 180 210 240 270 300 330 360 390 420 450 480 Time (sec) PCB Design For TVS diodes a low-ohmic and low-inductive path to chassis earth is absolutely mandatory in order to achieve good ESD protection. Novices in the area of ESD protection should take following suggestions to heart:  Do not use stubs, but place the cathode of the TVS diode directly on the signal trace.  Do not make false economies and save copper for the ground connection.  Place via holes to ground as close as possible to the anode of the TVS diode.  Use as many via holes as possible for the ground connection.  Keep the length of via holes in mind! The longer the more inductance they will have. Rev.06 4 www.prisemi.com Low Capacitance ESD Protector PESDUC523T5VU Product dimension（SOT-523） A (3) C θ B (1) (2) H D G F E J L K Millimeters Inches Dim MIN MAX MIN MAX A 1.50 1.70 0.059 0.067 B 0.75 0.85 0.030 0.033 C 1.450 1.750 0.057 0.069 D 0.50BSC E 0.30 0.33 0.012 0.015 F 0.900 1.100 0.035 0.043 G 0.100 0.200 0.004 0.008 H Rev.06 0.020BSC 0.550 0.022 J 0.150 0.250 0.006 0.010 K 0.700 0.900 0.028 0.038 L 0.024 0.027 0.600 0.700 θ 0° 4° 0° 4° 5 www.prisemi.com Low Capacitance ESD Protector PESDUC523T5VU a Millimeters Dim b a d MIN MAX a -- 0.4 b -- 0.6 c -- 1.0 d -- 1.24 b c Ordering information Rev.06 Device Package Shipping PESDUC523T5VU SOT-523 (Pb-Free) 3000 / Tape & Reel 6 www.prisemi.com Low Capacitance ESD Protector PESDUC523T5VU IMPORTANT NOTICE and are registered trademarks of Prisemi Electronics Co., Ltd (Prisemi) ,Prisemi reserves the right to make changes without further notice to any products herein. Prisemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Prisemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in Prisemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Prisemi does not convey any license under its patent rights nor the rights of others. The products listed in this document are designed to be used with ordinary electronic equipment or devices, Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. Website: http://www.prisemi.com For additional information, please contact your local Sales Representative. ©Copyright 2009, Prisemi Electronics is a registered trademark of Prisemi Electronics. All rights are reserved. Rev.06 7 www.prisemi.com
