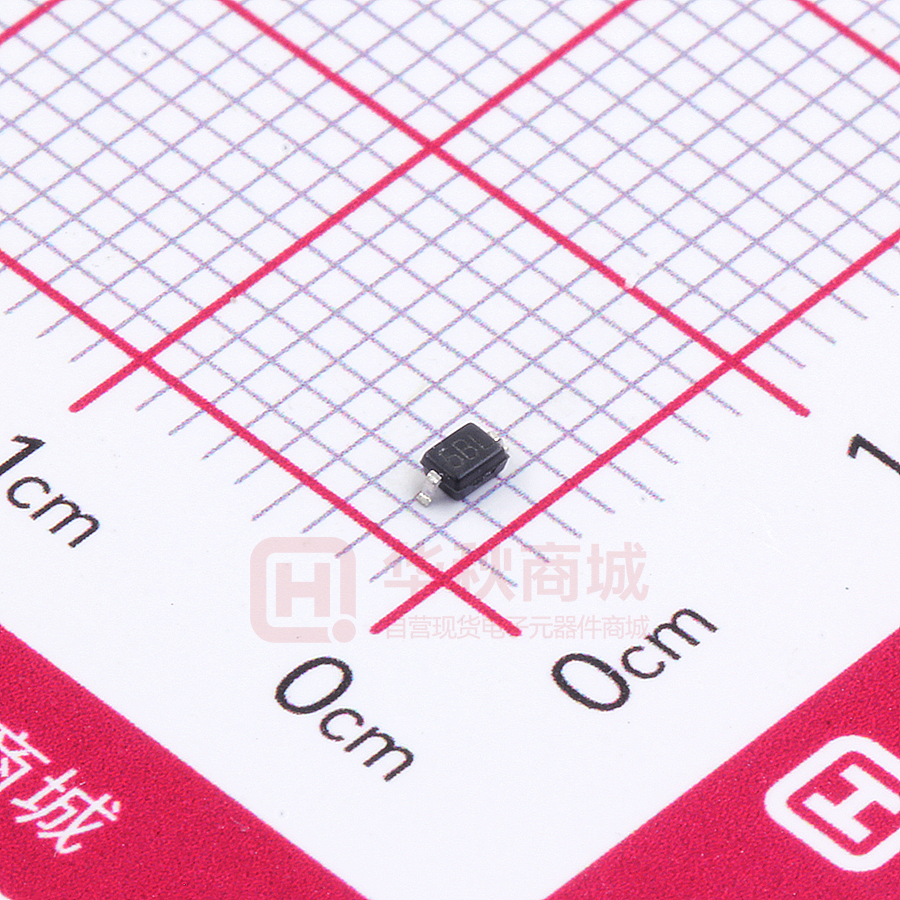

SD05CL

厂商：
DOWO(东沃电子)
封装：
SOD-323
描述：
TVS SOD323 Vc=21V,Ipp=12A,Ppp=300W VRWM=5V

数据手册：

下载SD05CL.pdf

立即购买

详情介绍
数据手册
价格&库存

SD05CL 数据手册

SDxxCL 1. Description The SDxxCL Series are ultra-low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and smart phones. This series is available bidirectional configurations and is rated at 300 Watts for an 8/20us waveshape. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra-low capacitance and low leakage current in a miniature SOD-323 package. 2. Features    IEC 61000-4-2 Level 4 ESD Protection  RoHS compliance - ±15kV Contact Discharge  Bidirectional configuration - ±15kV Air Discharge  Ultra-low Capacitance: 0.8pF (Typical) IEC 61000-4-4 EFT Protection  Low clamping voltage -  Protects one power or I/O  End Equipment 40A (5/50ns) 300W Peak pulse Power (8/20us) 3. Applications  Interfaces - USB 2.0/1.1 - Industrial and Serve Robots - GPIO - Laptops and Desktops - Ethernet 10/100/1000 Mbps - TV and Monitors - Audio - Wearables 4. Ordering Information Part Number SDxxCL Package Material Packing Quantity per reel Flammability Rating Reel Size SOD-323 Halogen free Tape & Reel 3000 PCS UL 94V-0 7 inches Marking for the SELC3Dxx1BA series VRWM 3.3V 5V 8V 12V 15V 24V - Marking CC AC BC DC EC HC - Table-1 Ordering information 1 / 6 SDxxCL 5. Pin Configuration and Functions Pin Name Description 1 IO Connect to IO 2 IO Outline 1 Marking Circuit Diagram 2 2 1 Connect to IO Table-2 Pin configuration 6. Specification 6.1. Absolute Maximum rating Over operating free-air temperature range (unless otherwise noted) Parameters Symbol Min. Max. Unit Peak pulse power (tp=8/20us)@25℃ Ppk - 300 W Peak pulse current (tp=8/20us)@25℃ IPP Refer to Table-5 A ESD (IEC61000-4-2 air discharge) @25℃ VESD - ±15 kV ESD (IEC61000-4-2 contact discharge) @25℃ VESD - ±15 kV TJ - 125 ℃ Operating temperature TOP -40 85 ℃ Storage temperature TSTG -55 150 ℃ TL - 260 ℃ Junction temperature Lead temperature Table-3 Absolute Maximum rating 2 / 6 SDxxCL 6.2. Electrical Characteristics Symbol Description VRWM Rated reverse stand-off voltage VBR Minimum breakdown voltage @IT = 1mA VCL Typical Clamping voltage IPP Maximum peak pulse current IR Reverse leakage current @VRWM CO Typical line capacitance (VIO=0V, VP-P = 30mV, f = 1MHz) Table-4 Parameters Description At TA = 25℃ unless otherwise noted VRWM VBR VCL@I=1A IPP VCL@I=IPP IR CO (V) (V) (V) (A) (V) (uA) (pF) SD03CL 3.3 4.5 8.5 14.0 20.0 1.0 0.8 SD05CL 5.0 6.5 9.5 12.0 21.0 1.0 0.8 SD08CL 8.0 8.5 12.0 10.0 25.0 1.0 0.8 SD12CL 12.0 13.3 19.0 7.0 35 1.0 0.8 SD15CL 15.0 16.5 24 5.0 45 1.0 0.8 SD24CL 24.0 26.0 34 3.0 55 1.0 0.8 Part Number Table-5 Electrical Characteristics for All Series 3 / 6 SDxxCL 7. Typical Characteristic 8. Typical Application Pic-3 Typical Internet 1G Interface Application 4 / 6 SDxxCL 9. Dimension SOD-323 Symbol A A1 A2 b C D E E1 L L1 θ Dimensions in Millimeters Min. Max. 1.000 0.000 0.100 0.800 0.900 0.250 0.350 0.080 0.150 1.200 1.400 1.600 1.800 2.550 2.750 0.475REF 0.250 0.400 0° 8° Table-6 Dimensions in Inches Min. Max. 0.039 0.000 0.004 0.031 0.035 0.010 0.014 0.003 0.006 0.047 0.055 0.063 0.071 0.100 0.108 0.019REF 0.010 0.016 0° 8° product dimensions 5 / 6 SDxxCL 10. Recommended Land Pattern Note: 1. Controlling dimension: in millimeters 2. General tolerance: ±0.05mm 3. The pad layout is for reference only 6 / 6

下载 PDF

SD05CL

1. 物料型号：SDxxCL系列，提供超低电容的瞬态电压抑制器阵列。

2. 器件简介：该系列设计用于保护便携式电子设备和智能手机等应用，提供双向配置，额定功率为300瓦特，适用于8/20微秒波形。在高频操作或快速边沿速率下，插入损耗和信号完整性是主要关注点。该系列在微型SOD-323封装中提供超低电容和低漏电流。

3. 引脚分配：文档中提供了引脚配置和功能表，但具体内容未在摘要中显示。

4. 参数特性： - 额定反向电压（VRWM） - 最小击穿电压（VBR） - 典型钳位电压（VcL） - 最大峰值脉冲电流（Ipp） - 反向漏电流（IR） - 典型线路电容（Co）

5. 功能详解：包括IEC 61000-4-2的4级ESD保护、RoHS合规性、±15kV接触放电、±15kV空气放电、IEC 61000-4-4的EFT保护和低钳位电压。

6. 应用信息：适用于USB 2.0/1.1、以太网10/100/1000 Mbps、音频接口、工业和服务器机器人、GPIO、笔记本电脑和台式机、电视和显示器、可穿戴设备等。

7. 封装信息：SOD-323封装，提供无卤材料选项，3000PCS/卷的包装，UL 94V-0的阻燃等级，7英寸的卷径。

8. 订购信息：提供了详细的订购信息表，包括不同额定电压的型号和标记。

9. 典型特性曲线：展示了8/20微秒脉冲电流曲线。

10. 典型应用：提供了1G接口应用的典型应用图。
