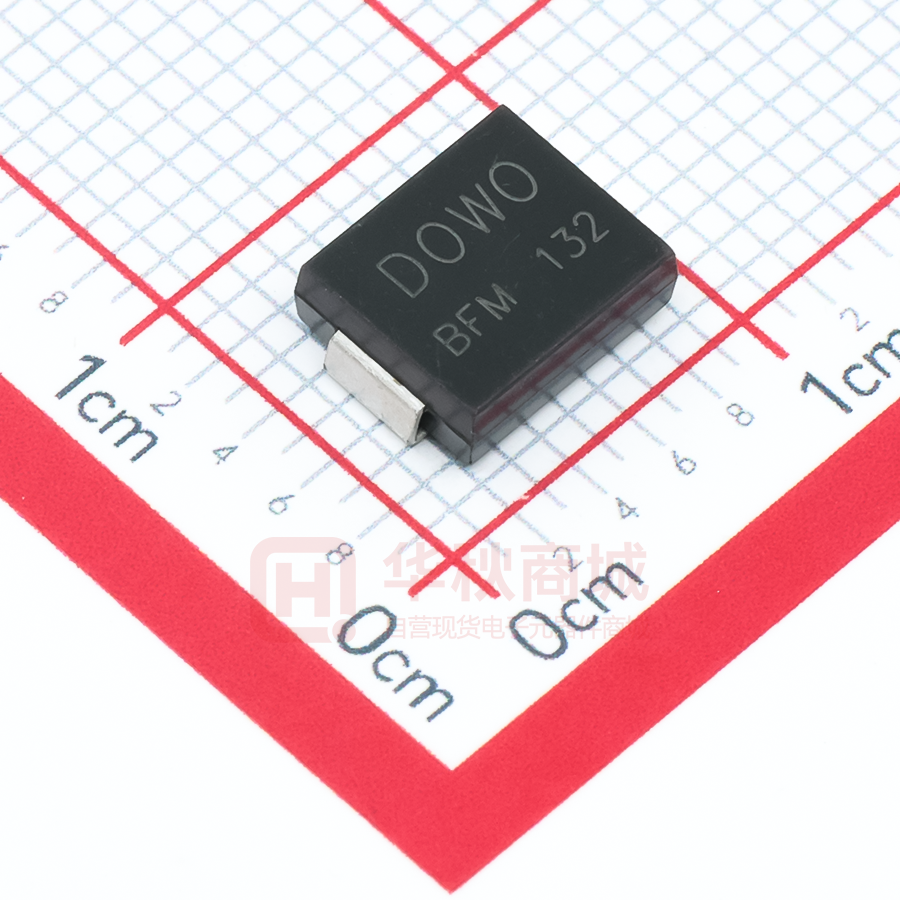

SMCJ33CA

SMCJ Series Working Voltage: 5.0 to 440 V Peak Pulse Power: 1500 W Surface Mount Transient Voltage Suppressors Features ● ● ● ● ● ● ● ● SMC/ DO-214AB Glass passivated chip 1500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 % Low leakage Uni and Bidirectional unit Excellent clamping capability Very fast response time RoHS compliant IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact) Mechanical Data ● ● ● ● ● Case: Molded plastic Epoxy: UL 94V-0 rate flame retardant Lead: Solderable per MIL-STD-750, method 2026 Polarity: Color band denotes cathode end except Bipolar Mounting position: Any Maximum Ratings(TA=25℃ unless otherwise noted) Parameter (1) Peak power dissipation with a 10/1000μs waveform Peak pulse current with a 10/1000μs waveform(1) Power dissipation on infinite heatsink at TL = 75 °C Peak forward surge current, 8.3 ms single half sinewave unidirectional only(2) Maximum instantaneous forward voltage at 100 A for unidirectional only(3) Operating junction and storage temperature range Typical thermal resistance, Junction to Ambient Typical thermal resistance, junction to lead Value Symbol PPP 1500 IPP See Next Table PD 6.5 Unit W A W IFSM 200 A VF 3.5/5.0 V TJ, TSTG Rθ JA Rθ JL - 55 to +150 75 15 °C °C/ W Note: (1)Non-repetitive current pulse per Fig.5 and derated above TA= 25 °C per Fig.1 (2)Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum (3)VF
