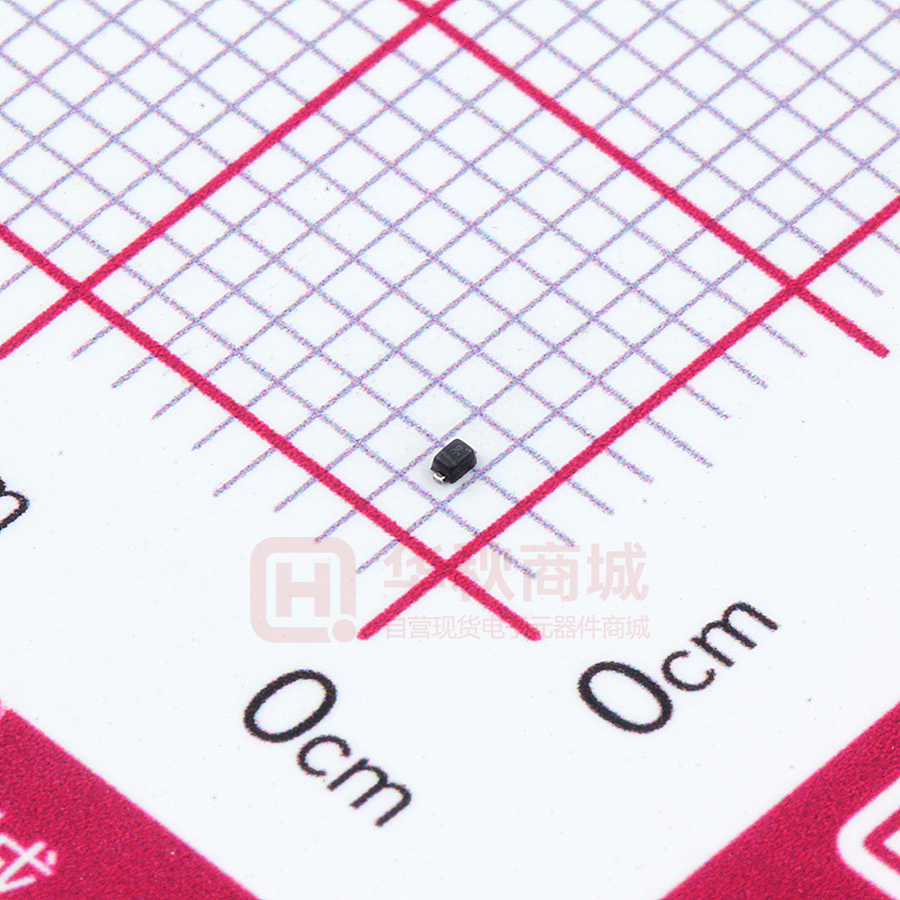

RLSD92A031C

TVS/ESD Arrays RLSD92Axx1C Series Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. TVS/ESD Arrays - RLSD92Axx1C Series Features • 100 Watts Peak Pulse Power per Line (tp = 8/20μs) • Working voltages: 3.3V、5V • Low Leakage Current • Low operating and clamping voltages • Lead Free/RoHS compliant • Solid-state silicon avalanche technology • Provides ESD protection to IEC61000-4-2(ESD): ±15kV (air discharge) ±8kV (contact discharge) Mechanical Characteristics Pinout and Functional Block Diagram • SOD-923 package • Molding compound flammability rating: UL 94V-0 • Quantity Per Reel : 8,000pcs • Reel Size : 7 inch • Lead Finish : Lead Free 1 Applications • Cell Phone Handsets and Accessories • Microprocessor based equipment • Personal Digital Assistants (PDA’s) • Notebooks, Desktops, and Servers • Portable Instrumentation • Pagers Peripherals 2 Part Number Code R L LOGO S D 9 Package SOD-923 2 A Straight foot overhanging 0 5 VRWM:5V 1 C V= Unidirectional C= Bidirectional Protects 1 Lines Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:1 TVS/ESD Arrays - RLSD92Axx1C Series Absolute Maximum Rating Rating Symbol Value Units Ppk 100 Watts ESD Voltage (Contact) VESD ±8 Kv ESD Voltage (Air) VESD ±15 Kv Lead Soldering Temperature TL 260 (10 sec.) °C Operating Temperature TJ -55 to +125 °C TSTG -55 to +150 °C Peak Pulse Power (tp =8/20μs) Storage Temperature Electrical Parameters (T=25°C) Electrical Characteristics(@ 25°C Unless Otherwise Specified) Reverse Stand-Off Voltage Minimum Breakdown Voltage Peak Pulse Voltage @8/20μS Peak Pulse Current @8/20μS Reverse Leakage @VRWM VRWM VBR@1mA VC@1A IPP IR@VRWM V V V A μA pF RLSD92A031C 3.3 4.0 7.5 1 2.5 30 RLSD92A051C 5.0 6.0 9.8 1 1 15 Typical Capacitance Type Number Circuit Protection System DC=0V CJ@ 1 MHz Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:2 TVS/ESD Arrays - RLSD92Axx1C Series Typical Characteristics Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:3 TVS/ESD Arrays - RLSD92Axx1C Series Recommended Soldering Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3°C/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) TS max to TL -Ramp-up Rate Time maintained above: -Temperature (TL) -Time (tL) 150°C 200°C 60-180 seconds 3°C/second max. 217°C 60-150 seconds Peak Temperature (TP) 260°C Time within 5°C of actual Peak Temperature (tP) Ramp-down Rate Time 25°C to Peak Temperature Circuit Protection System 20-40 seconds 6°C/second max. 8 minutes max. Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:4 TVS/ESD Arrays - RLSD92Axx1C Series D Dimensions DIM E 1 b 2 2X 0.08(0.0032) X Y A c L Inches Millimeters Min Nom Max Min Nom Max A 0.014 0.016 0.017 0.36 0.40 0.43 b 0.006 0.008 0.010 0.15 0.20 0.25 C 0.003 0.005 0.007 0.07 0.12 0.17 D 0.030 0.031 0.038 0.75 0.80 0.85 E 0.022 0.024 0.026 0.55 0.60 0.65 HE 0.037 0.039 0.041 0.95 1.00 1.05 L 0.002 0.004 0.006 0.05 0.10 0.15 HE Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:5
