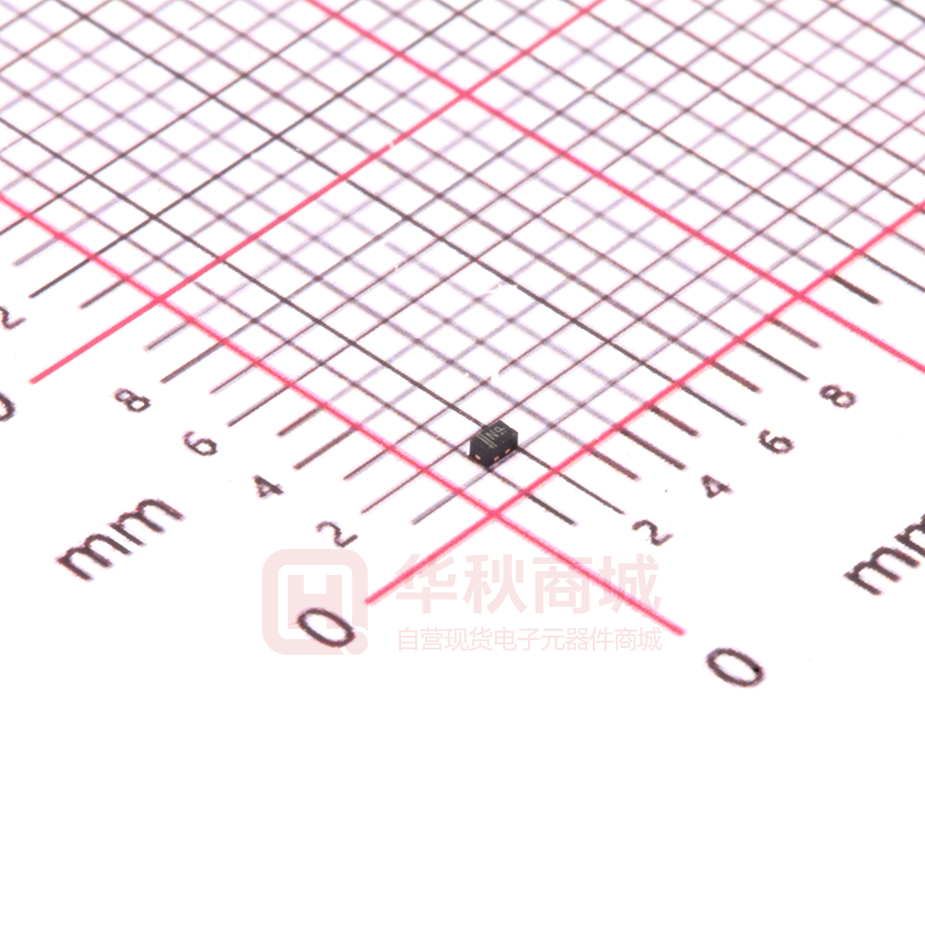

RLSD92Q051LC

TVS/ESD Arrays RLSD92Q051LC Series Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. TVS/ESD Arrays - RLSD92Q051LC Series Features • 90 Watts Peak Pulse Power per Line (tp = 8/20μs) • Working voltages: 5V • Low Leakage Current • Low operating and clamping voltages • Lead Free/RoHS compliant • Solid-state silicon avalanche technology • Provides ESD protection to IEC61000-4-2(ESD): ±24kV (air discharge) ±8kV (contact discharge) Mechanical Characteristics Pinout and Functional Block Diagram • SOD-882 package • Molding compound flammability rating: UL 94V-0 • Quantity Per Reel :10,000pcs • Reel Size : 7 inch • Lead Finish : Lead Free Applications • Video I/O ports protection • Set Top Boxes • Portable Instrumentation • Notebooks, Desktops, and Servers • Pagers Peripherals Part Number Code R L LOGO S D 9 Package 2 Q 0 5 VRWM:5V 1 L Low Capacitance SOD-882 C V= Unidirectional C= Bidirectional Protects 1 Lines Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:1 TVS/ESD Arrays - RLSD92Q051LC Series Absolute Maximum Rating Rating Symbol Value Units Ppk 90 Watts ESD Voltage (Contact) VESD ±8 Kv ESD Voltage (Air) VESD ±15 Kv Lead Soldering Temperature TL 260 (10 sec.) °C Operating Temperature TJ -55 to +125 °C TSTG -55 to +150 °C Peak Pulse Power (tp =8/20μs) Storage Temperature Electrical Parameters (T=25°C) Electrical Characteristics(@ 25°C Unless Otherwise Specified) Reverse Stand-Off Voltage Minimum Breakdown Voltage Peak Pulse Voltage @8/20μS Peak Pulse Current @8/20μS Reverse Leakage @VRWM VRWM VBR@1mA VC@1A IPP IR@VRWM V V V A μA pF 5 6 9.8 3 1 1 Type Number RLSD92Q051LC Circuit Protection System Typical Capacitance DC=0V CJ@ 1 MHz Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:2 TVS/ESD Arrays - RLSD92Q051LC Series Typical Characteristics Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:3 TVS/ESD Arrays - RLSD92Q051LC Series Recommended Soldering Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3°C/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) TS max to TL -Ramp-up Rate Time maintained above: -Temperature (TL) -Time (tL) 150°C 200°C 60-180 seconds 3°C/second max. 217°C 60-150 seconds Peak Temperature (TP) 260°C Time within 5°C of actual Peak Temperature (tP) Ramp-down Rate Time 25°C to Peak Temperature Circuit Protection System 20-40 seconds 6°C/second max. 8 minutes max. Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:4 TVS/ESD Arrays - RLSD92Q051LC Series Package dimension SOD-882 Dimensions(Millimeters) Symbol Min Nom Max A 0.45 - 0.55 A1 0.01 - 0.05 A3 D 0.951 - 1.05 E 0.55 0.65 0.65 b 0.200 0.25 0.30 L 0.450 0.50 0.55 e Circuit Protection System 0.150Ref 0.65 BSC Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:5
