TVS/ESD
Arrays
RLSD52A051LC Series
Circuit Protection
System
Revision:DEC-16
Please refer to http://www.ruilon.com.cn for current information.
TVS/ESD Arrays - RLSD52A051LC Series
Features
• 100 Watts Peak Pulse Power per Line (tp = 8/20μs)
• Working voltages: 5V
• Low Leakage Current
• Low operating and clamping voltages
• Lead Free/RoHS compliant
• Solid-state silicon avalanche technology
• Provides ESD protection to IEC61000-4-2(ESD):
±15kV (air discharge)
±8kV (contact discharge);
Mechanical Characteristics
Pinout and Functional Block Diagram

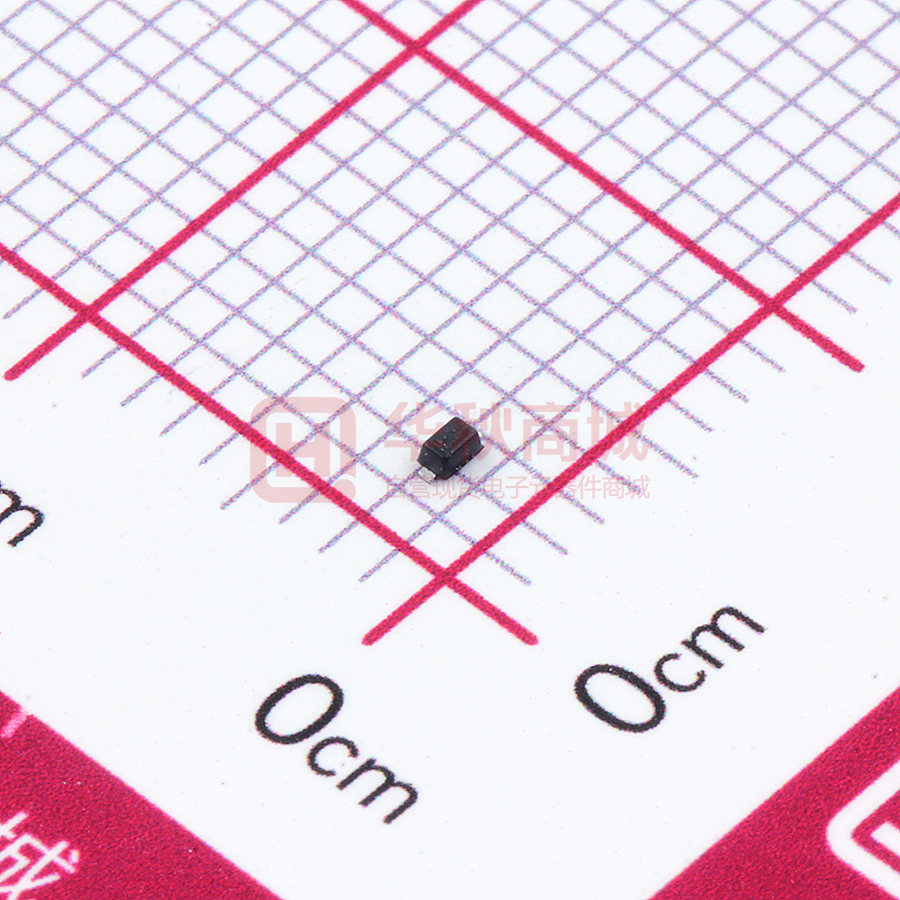

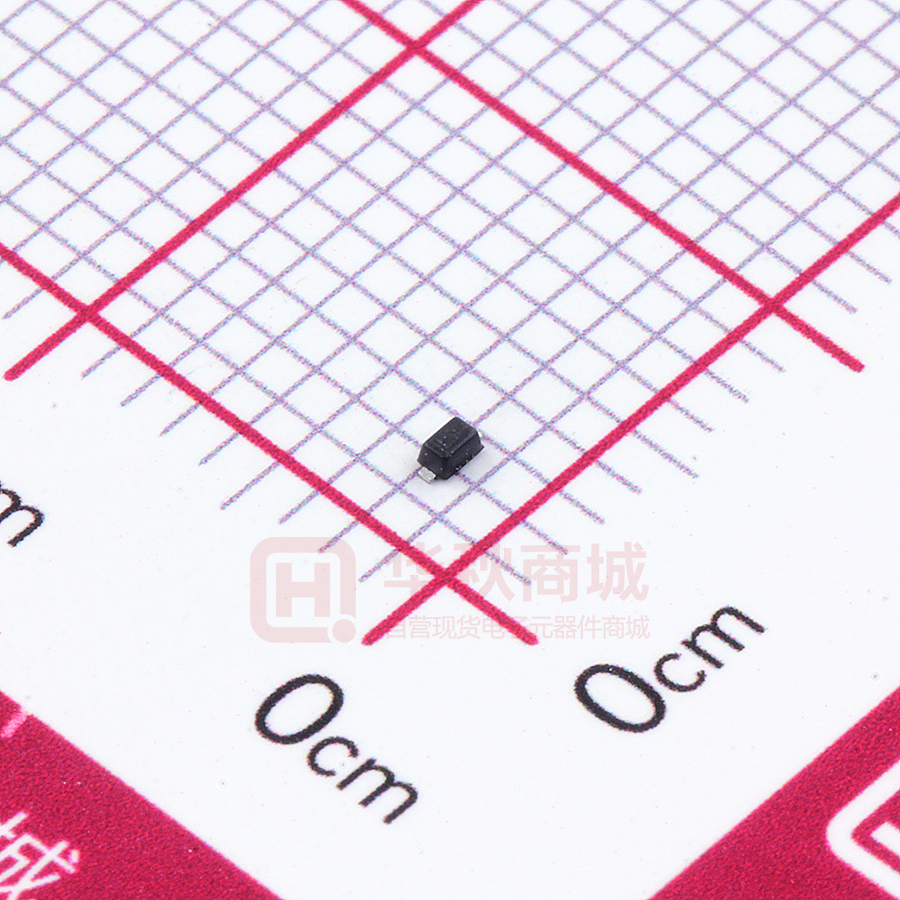

• SOD-523 package
• Molding compound flammability rating: UL 94V-0
• Quantity Per Reel :3,000pcs
• Reel Size : 7 inch
• Lead Finish : Lead Free
Applications
• Cell Phone Handsets and Accessories
• Microprocesor based equipment
• Personal Digital Assistants (PDA’s)
• Notebooks, Desktops, and Servers
• Portable Instrumentation
• Pagers Peripherals
Part Number Code
R
L
LOGO
S
D
5
Package
SOD-523
2
A
Straight foot
overhanging
0
5
1
VRWM:5V
C
V= Unidirectional
C= Bidirectional
Protects 1
Lines
Circuit Protection
System
L
Low
capacitance
Revision:DEC-16
Please refer to http://www.ruilon.com.cn for current information.
Page:1
TVS/ESD Arrays - RLSD52A051LC Series
Absolute Maximum Rating
Rating
Symbol
Value
Units
Ppk
100
Watts
ESD Voltage (Contact)
VESD
±8
Kv
ESD Voltage (Air)
VESD
±15
Kv
Lead Soldering Temperature
TL
260 (10 sec.)
°C
Operating Temperature
TJ
-55 to +125
°C
TSTG
-55 to +150
°C
Peak Pulse Power (tp =8/20μs)
Storage Temperature
Electrical Parameters (T=25°C)
I
Symbol
Parameter
Ipp
IPP
Maximum Reverse Peak Pulse Current
VC
Clamping Voltage @ IPP
VRWM
IR
VBR
IT
IT
IR
VC VBR VRWM
Working Peak Reverse Voltage
IR
IT
Maximum Reverse Leakage Current @ VRWM
VRWM VBR VC
V
Breakdown Voltage @ IT
Test Current
Ipp
Electrical Characteristics(@ 25°C Unless Otherwise Specified)
Type Number
RLSD52A051LC
Reverse
Stand-Off
Voltage
Minimum
Breakdown
Voltage
Peak Pulse
Voltage
@8/20μS
Peak Pulse
Current
@8/20μS
Reverse
Leakage
@VRWM
Typical
Capacitance
VRWM
VBR@1mA
VC@1A
IPP
IR@VRWM
CJ@ 1 MHz
V
V
V
A
μA
pF
5
6
9.8
7
1
1
Circuit Protection
System
Revision:DEC-16
Please refer to http://www.ruilon.com.cn for current information. Page:2
TVS/ESD Arrays - RLSD52A051LC Series
Typical Characteristics
Circuit Protection
System
Revision:DEC-16
Please refer to http://www.ruilon.com.cn for current information.
Page:3
TVS/ESD Arrays - RLSD52A051LC Series
Recommended Soldering Conditions
Profile Feature
Pb-Free Assembly
Average ramp-up rate (TL to TP)
3°C/second max.
Preheat
-Temperature Min (TS min)
-Temperature Max (TS max)
-Time (min to max) (ts)
TS max to TL
-Ramp-up Rate
Time maintained above:
-Temperature (TL)
-Time (tL)
150°C
200°C
60-180 seconds
3°C/second max.
217°C
60-150 seconds
Peak Temperature (TP)
260°C
Time within 5°C of actual Peak Temperature (tP)
Ramp-down Rate
Time 25°C to Peak Temperature
Circuit Protection
System
20-40 seconds
6°C/second max.
8 minutes max.
Revision:DEC-16
Please refer to http://www.ruilon.com.cn for current information. Page:4
TVS/ESD Arrays - RLSD52A051LC Series
Package dimension SOD-523
F
E
B
A
C Symbol
D
G
F
B
E
C
0.80
(2X)
D
G
Dimensions
Inches
Millimeters
Min
Nom
Max
Min
Nom
Max
A
0.020
0.024
0.028
0.50
0.60
0.70
B
0.003
0.006
0.008
0.07
0.14
0.20
C
0.028
0.031
0.70
0.80
0.90
D
0.010
0.012
0.014
0.25
0.30
0.35
E
0.043
0.047
0.051
1.10
1.20
1.30
F
0.059
0.063
0.067
1.50
1.60
1.70
G
0.006
0.008
0.010
0.15
0.20
0.25
0.035
0.60
(2X)
0.80
(2X)
1.1
1.9
1.1
1.9
Circuit Protection
System
Revision:DEC-16
Please refer to http://www.ruilon.com.cn for current information.
Page:5
