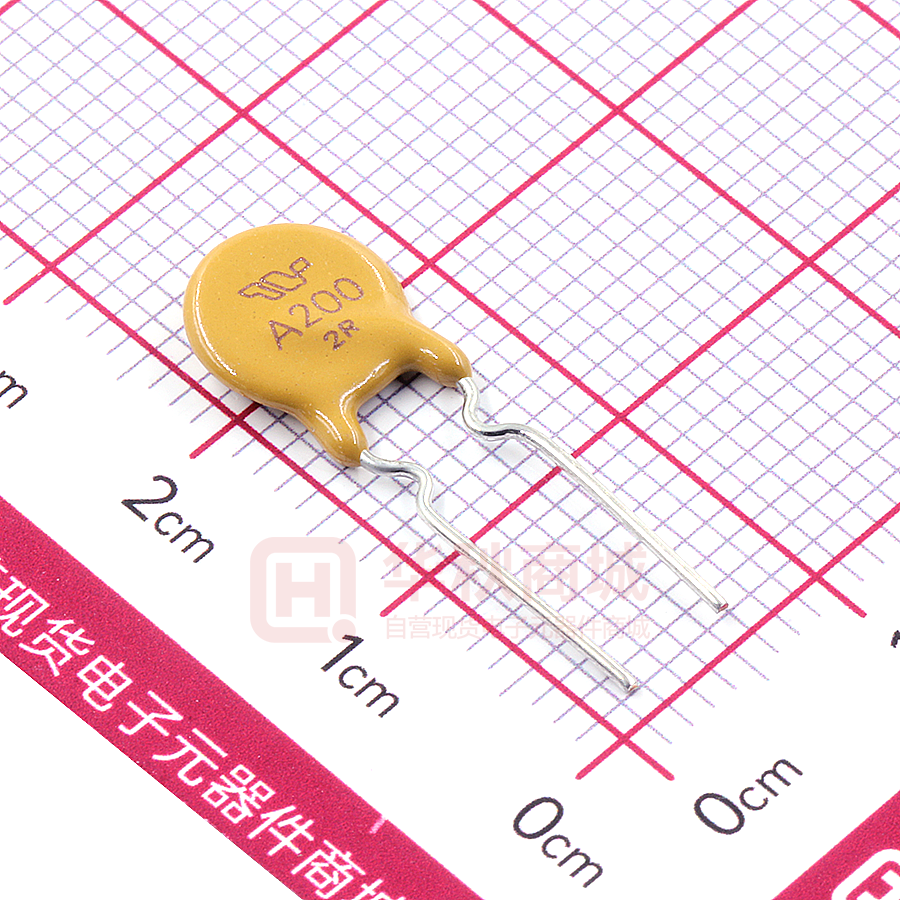

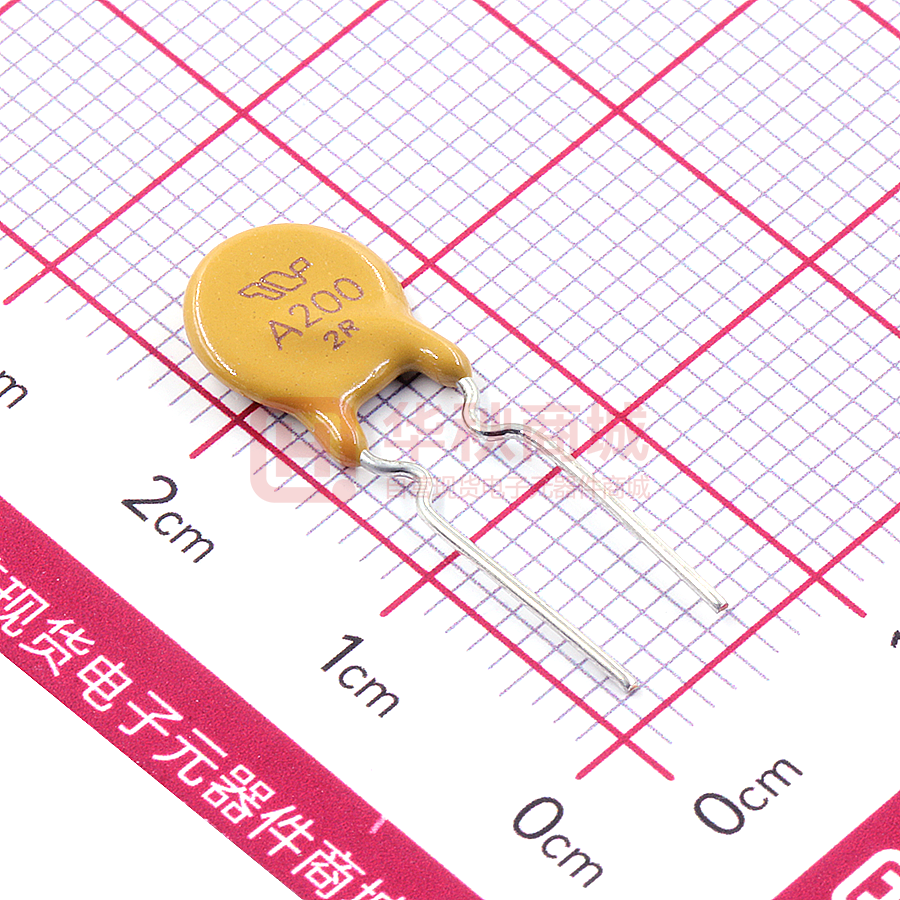

TRA200

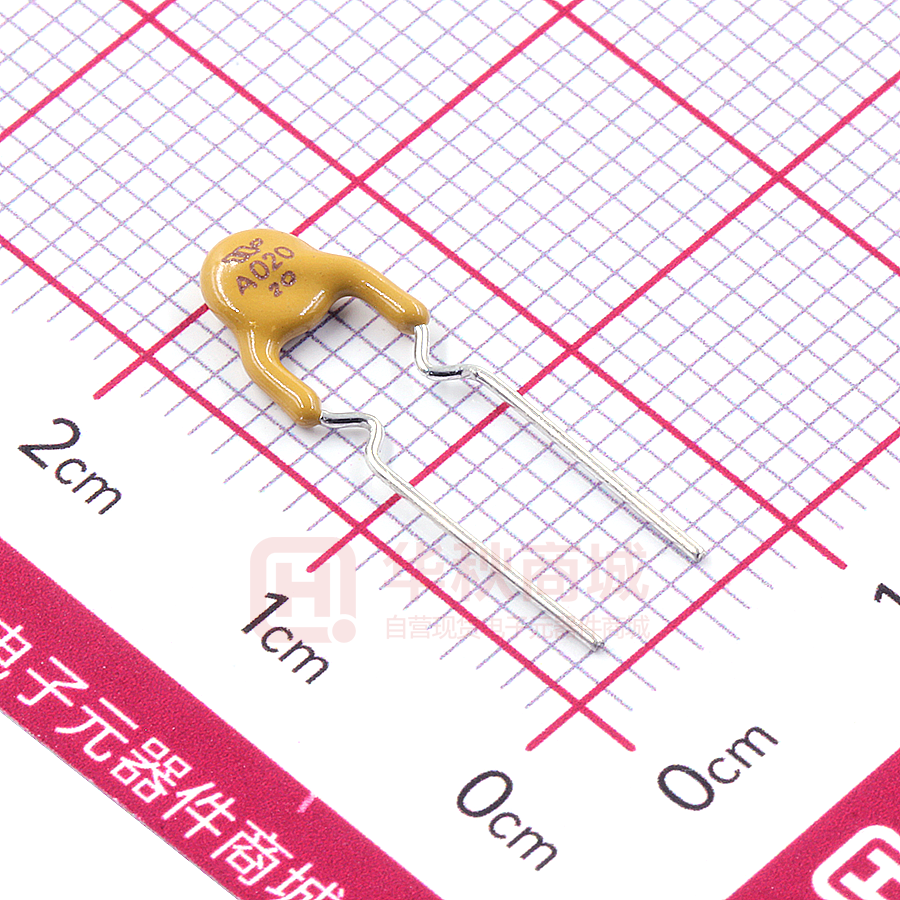

Revision: A Date: 2018-04-24 Page No.: 1 OF 1 PPTC RESETTALBE 电路保护元器件专业制造商 FUSES TRA(16V) Series Features ◆ Radial Leaded Devices ◆ Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements ◆ Bulk Package, or tape and reel available on most models ◆ UL(Pending), C-UL(Pending), TUV(R50322003) ◆ RoHS, Reach, HF compliance Applications Almost anywhere there is a low voltage power supply, up to 16V and a load to be protected, including: ◆ Personal computer ◆ Toys ◆ Medical electronics ◆ Personal care product 电气特性 ： 保持电流 跳脱电流 最大电压 最大电流 最大动作时间 IH, (A) IT, (A) V max, (V) I max, (A) (A) (Sec.) Pd typ, (W) 消耗功率 R min, 电阻范围（Ω） R max, R1max, TRA005 0.05 0.10 16 40 0.25 5.0 0.26 8.00 11.50 17.00 TRA010 0.10 0.20 16 40 0.50 4.0 0.35 2.00 4.50 6.70 TRA017 0.17 0.34 16 40 0.85 3.0 0.36 0.980 1.800 2.700 TRA020 0.20 0.40 16 40 1.00 3.0 0.36 0.780 1.600 2.200 TRA025 0.25 0.50 16 40 1.25 3.0 0.36 0.500 1.100 1.650 P/N TRA030 0.30 0.60 16 40 1.50 3.0 0.36 0.350 0.700 1.050 TRA040 0.40 0.80 16 40 2.00 3.0 0.40 0.230 0.650 0.970 TRA050 0.50 1.00 16 40 2.50 3.0 0.45 0.170 0.400 0.810 TRA065 0.65 1.30 16 40 3.25 3.0 0.45 0.110 0.300 0.450 0.260 TRA075 0.75 1.50 16 40 3.75 3.0 0.54 0.080 0.230 TRA090 0.90 1.80 16 40 4.50 3.2 0.54 0.070 0.180 0.210 TRA110 1.10 2.20 16 40 5.50 4.0 0.54 0.045 0.140 0.170 TRA120 1.20 2.40 16 40 6.00 4.0 0.54 0.040 0.120 0.160 TRA135 1.35 2.70 16 40 6.75 4.0 0.54 0.035 0.100 0.140 TRA160 1.60 3.20 16 40 8.00 4.5 0.54 0.030 0.100 0.110 TRA185 1.85 3.70 16 40 9.25 4.5 0.54 0.030 0.080 0.100 TRA200 2.00 4.00 16 40 10.0 5.0 0.90 0.020 0.065 0.090 TRA250 2.50 5.00 16 40 12.5 5.0 0.90 0.015 0.050 0.070 TRA300 3.00 6.00 16 40 15.0 4.0 0.90 0.010 0.040 0.055 TRA400 4.00 8.00 16 40 20.0 3.0 1.35 0.010 0.030 0.045 TRA500 5.0 10.0 16 100 25.0 5.0 2.6 0.009 0.027 0.033 TRA600 6.0 12.0 16 100 30.0 7.0 2.8 0.007 0.021 0.031 TRA700 7.0 14.0 16 100 35.0 8.0 3.0 0.006 0.015 0.020 TRA800 8.0 16.0 16 100 40.0 9.0 3.0 0.004 0.013 0.018 TRA900 9.0 18.0 16 100 45.0 12.0 3.3 0.003 0.012 0.016 TRA1000 10.0 20.0 16 100 50.0 12.5 3.7 0.002 0.011 0.015 TRA1100 11.0 22.0 16 100 55.0 13.5 3.7 0.002 0.010 0.013 TRA1200 12.0 24.0 16 100 60.0 15.0 4.2 0.002 0.009 0.012 TRA1300 13.0 26.0 16 100 65.0 18.0 4.2 0.002 0.008 0.011 TRA1400 14.0 28.0 16 100 70.0 20.0 4.2 0.002 0.008 0.011 TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Revision: A Date: 2018-04-24 Page No.: 1 OF 2 PPTC RESETTALBE 电路保护元器件专业制造商 FUSES TRA(16V) Series 产品尺寸 (Unit: mm) ： Manufacturer's Trademark A500 XX A 090 XX Max. working voltage: A=16V B=30V C=60/72V E=90/120V F=250V G=600V M=265V X 090 Packaging Options: “ - ” Bulk package “ -T ” Tape & Reel XX Lot No Style1 Holding current:0.90A Style2 A B C D E 物理特性 P/N LeadΦ(mm) Material(标准) Max.(最大) Max.(最大) Typ.(标准) Min.(最小) Max.(最大) Style(样式) TRA005 5.7 10.5 5.1 7.6 3.1 1 0.50 CP TRA010 5.7 10.5 5.1 7.6 3.1 1 0.50 CP TRA017 5.7 10.5 5.1 7.6 3.1 1 0.50 CP TRA020 5.7 10.5 5.1 7.6 3.1 1 0.50 CP TRA025 5.7 10.5 5.1 7.6 3.1 1 0.50 CP TRA030 5.7 10.5 5.1 7.6 3.1 1 0.50 CP TRA040 5.7 10.5 5.1 7.6 3.1 1 0.50 CP TRA050 5.7 10.5 5.1 7.6 3.1 1 0.50 CP TRA065 6.5 13.2 5.1 7.6 3.1 1 0.50 CP TRA075 6.5 13.2 5.1 7.6 3.1 1 0.50 CP TRA090 7.4 13.0 5.1 7.6 3.1 1 0.50 CP TRA110 7.4 13.0 5.1 7.6 3.1 1 0.50 CP TRA120 7.4 13.0 5.1 7.6 3.1 1 0.50 CP TRA135 9.4 14.5 5.1 7.6 3.1 1 0.50 CP TRA160 9.4 14.5 5.1 7.6 3.1 1 0.50 CP TRA185 9.4 14.5 5.1 7.6 3.1 1 0.50 CP TRA200 10.7 16.7 5.1 7.6 3.1 1 0.60 Cu Cu TRA250 10.7 16.7 5.1 7.6 3.1 1 0.60 16.7 5.1 7.6 3.1 1 0.60 Cu Cu TRA300 10.7 TRA400 11.5 17.9 5.1 7.6 3.1 1 0.60 TRA500 13.0 18.3 5.1 7.6 3.1 2 0.80 Cu TRA600 13.0 18.3 5.1 7.6 3.1 2 0.80 Cu 5.1 7.6 3.1 2 0.80 Cu Cu TRA700 16.3 21.3 TRA800 17.8 22.9 5.1 7.6 3.1 2 0.80 7.6 3.1 2 0.80 Cu Cu TRA900 21.3 26.4 5.1 TRA1000 21.3 26.4 5.1 7.6 3.1 2 0.80 TRA1100 20.8 29.8 10.2 7.6 3.1 2 0.80 Cu TRA1200 20.8 29.8 10.2 7.6 3.1 2 0.80 Cu TRA1300 24.2 32.9 10.2 7.6 3.1 2 0.80 Cu TRA1400 24.2 32.9 10.2 7.6 2 0.80 Cu 3.1 E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 PPTC RESETTALBE 电路保护元器件专业制造商 FUSES Revision: A Date: 2018-04-24 Page No.: 1 OF 3 TRA(16V) Series 环境温度与工作电流关系特性曲线 ： 工作环境温度 P/N 85℃ -40℃ -20℃ 0℃ 25℃ 40℃ 50℃ 60℃ 70℃ TRA005 0.08 0.07 0.06 0.05 0.04 0.04 0.03 0.03 0.02 TRA010 0.17 0.15 0.13 0.10 0.07 0.06 0.05 0.04 0.03 TRA017 0.27 0.24 0.21 0.17 0.14 0.12 0.09 0.07 0.05 TRA020 0.32 0.28 0.25 0.20 0.16 0.14 0.12 0.10 0.07 TRA025 0.40 0.34 0.29 0.25 0.20 0.17 0.15 0.13 0.09 TRA030 0.47 0.41 0.36 0.30 0.24 0.21 0.18 0.14 0.10 TRA040 0.62 0.53 0.46 0.40 0.31 0.28 0.23 0.20 0.16 0.19 TRA050 0.77 0.67 0.58 0.50 0.40 0.34 0.30 0.25 TRA065 1.00 0.87 0.75 0.65 0.51 0.45 0.40 0.34 0.22 TRA075 1.04 0.94 0.83 0.75 0.61 0.54 0.46 0.41 0.29 TRA090 1.39 1.22 1.07 0.90 0.72 0.63 0.53 0.45 0.33 TRA110 1.61 1.43 1.24 1.10 0.89 0.83 0.74 0.66 0.56 TRA120 1.76 1.56 1.35 1.20 0.97 0.91 0.81 0.72 0.61 TRA135 1.98 1.75 1.54 1.35 1.08 1.01 0.89 0.78 0.67 TRA160 2.30 2.06 1.82 1.60 1.33 1.20 1.05 0.96 0.78 TRA185 2.68 2.41 2.13 1.85 1.53 1.40 1.23 1.13 0.93 TRA200 3.14 2.70 2.28 2.00 1.80 1.72 1.34 1.23 1.03 TRA250 3.63 3.25 2.88 2.50 2.08 1.93 1.70 1.53 1.30 TRA300 4.34 3.87 3.42 3.00 2.49 2.28 2.02 1.82 1.52 TRA400 5.78 5.15 4.58 4.00 3.28 3.04 2.68 2.42 2.07 TRA500 7.23 6.44 5.73 5.00 4.10 3.80 3.35 3.03 2.59 TRA600 10.12 9.01 8.02 7.00 5.74 5.32 5.25 4.24 3.62 TRA700 10.12 9.01 8.02 7.00 5.74 5.32 5.25 4.24 3.62 TRA800 11.56 10.30 9.16 8.00 6.56 6.08 5.36 4.84 4.14 TRA900 13.00 11.58 10.30 9.00 7.38 6.84 5.36 4.84 4.14 TRA1000 14.45 12.88 11.45 10.00 8.20 7.60 6.70 6.05 5.18 TRA1100 15.89 14.16 12.60 11.0 9.02 8.36 7.37 6.66 5.69 TRA1200 17.34 15.45 13.74 12.00 9.84 9.12 8.04 7.26 6.21 TRA1300 18.79 16.74 14.89 13.00 12.66 9.88 8.71 7.87 6.73 TRA1400 20.23 18.03 16.03 14.00 15.31 10.64 9.38 8.47 7.25 动作电流时间曲线表 ： E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 PPTC RESETTALBE FUSES TLS/ 电路保护元器件专业制造商 Revision: A Date: 2018-04-24 Page No.: 1 OF 4 TRA(16V) Series 标准包装数量 ： Model Q’t y/bag TRA005-TRA500 1000pcs TRA600-TRA800 500pcs TRA900-TRA1400 200pcs Tape and Reel Specifications Devices taped using EIA468–B/IEC286-2 standards. 6、Agency Recognition： Caution:Operation beyond the rated voltage or current may result in rupture electrical arcing or flame.Specifications are subject to change without notice. E-mail:sales@tlcet.com.cn TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710
