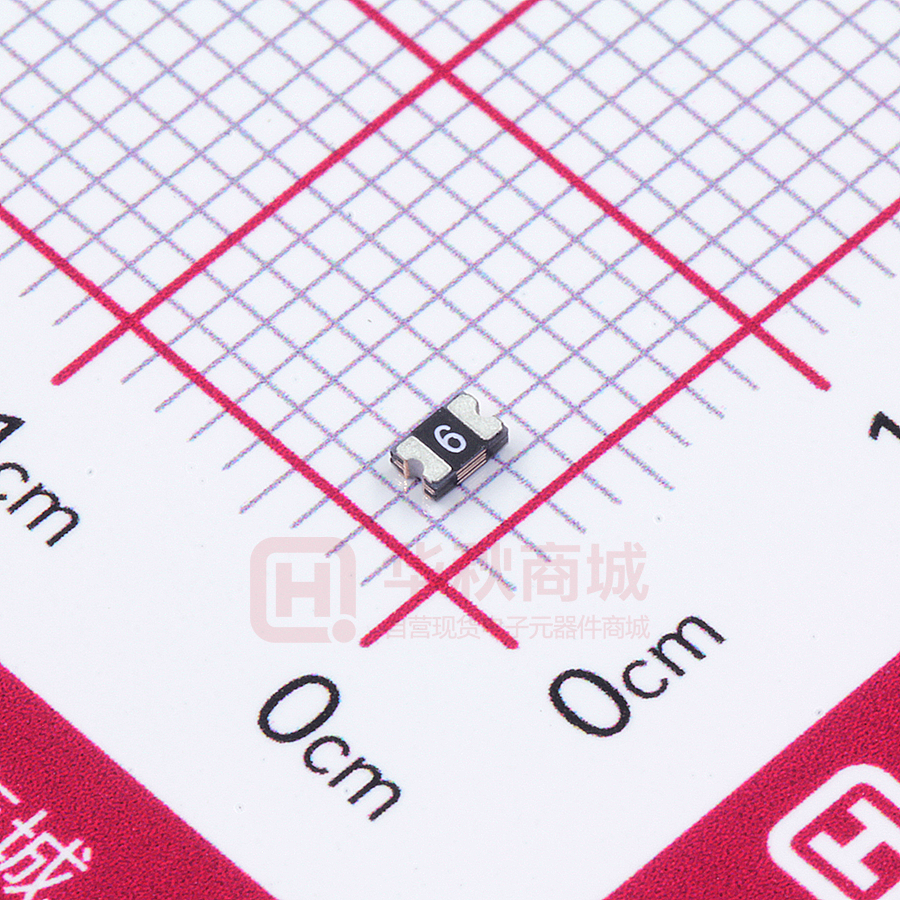

TLC-PSMD110

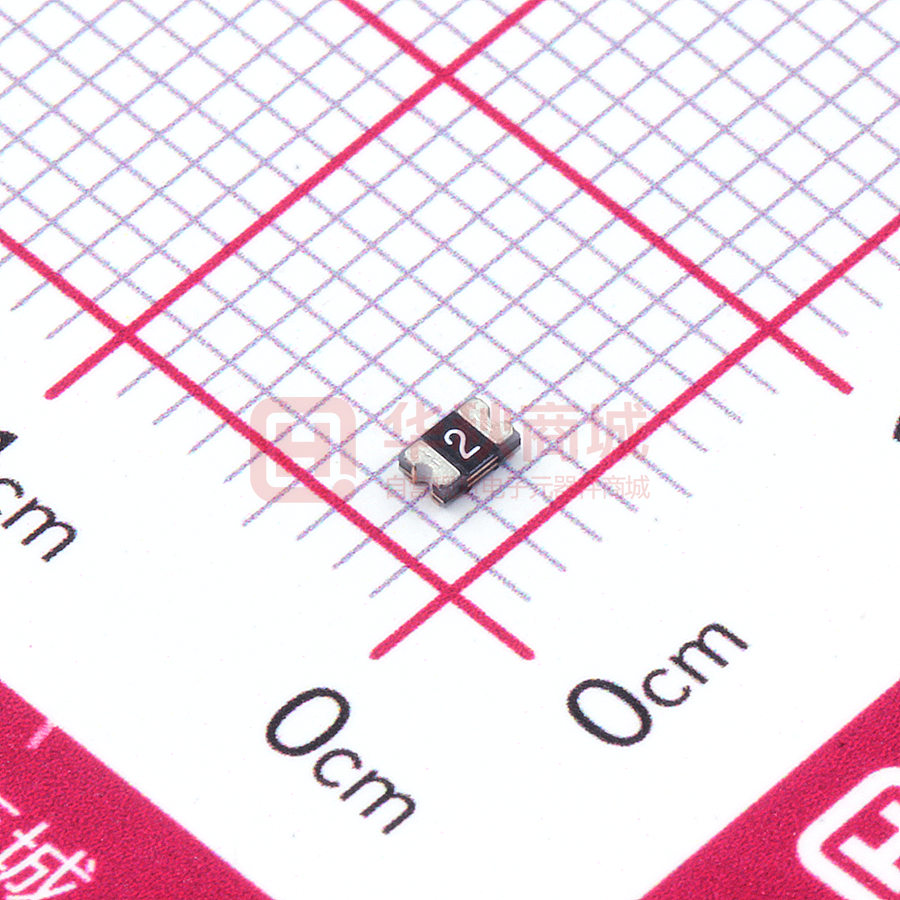

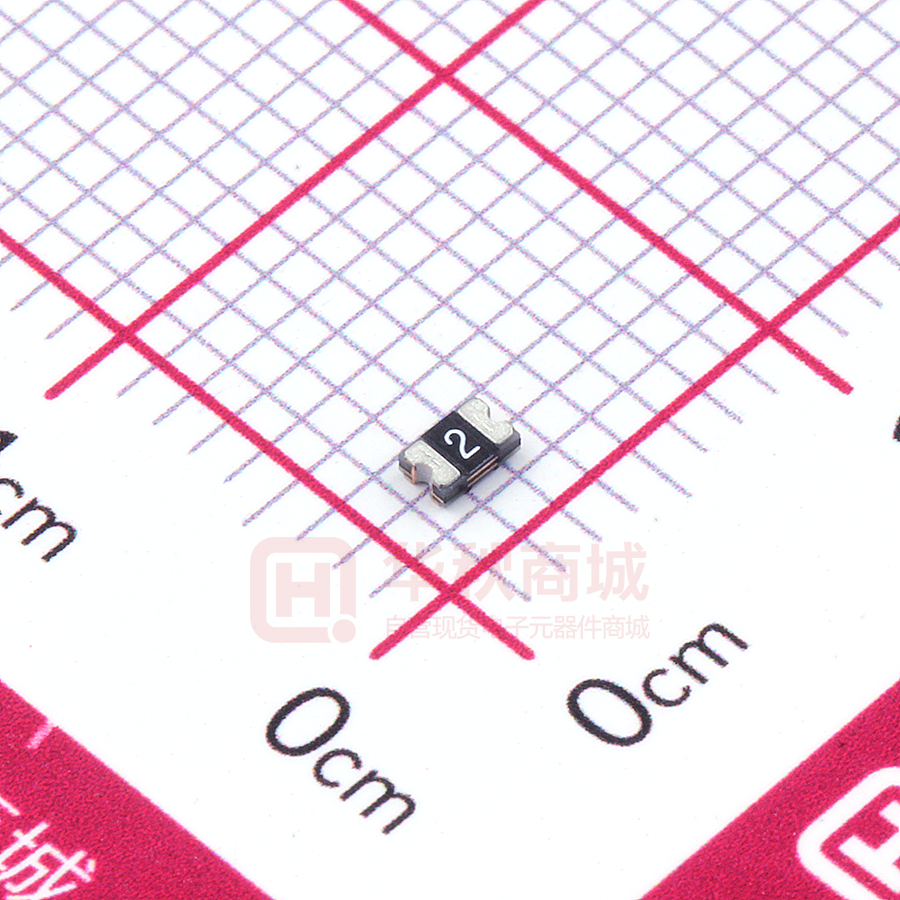

Revision: A Date: 2018-04-24 Page No.: 1 OF 1 PPTC RESETTALBE 电路保护元器件专业制造商 FUSES PSMD0805 Series Features ◆ Surface Mount Devices ◆ Standard 0805mils footprint ◆ Surface mount packaging for automated assembly ◆ Compatible with Pb and Pb-free solder re flow profiles. ◆ UL(E352136), C-UL(E352136), TUV(R50306074) ◆ RoHS, Reach, HF compliance Applications ◆ Mobile phones ◆ PC motherboards ◆ PDAS/Digital cameras ◆ USB port protection ◆ HDMI source protection ◆ Game console port protection 电气特性 ： P/N 保持电流 跳脱电流 最大电压 最大电流 最大动作时间 消耗功率 电阻范围（Ω） IH, (A) IT, (A) V max, (V) I max, (A) (A) (Sec.) Pd typ, (W) R min, R1 max, TLC-PSMD010/24 0.10 0.30 24.0 100 0.5 1.50 0.50 1.000 7.500 TLC-PSMD010 0.10 0.30 15.0 100 0.5 1.50 0.50 1.000 7.50 TLC-PSMD020 0.20 0.50 9.0 100 8.0 0.02 0.50 0.650 3.500 TLC-PSMD035 0.35 0.75 6.0 100 8.0 0.10 0.50 0.250 1.200 TLC-PSMD050 0.50 1.00 6.0 100 8.0 0.10 0.50 0.150 0.900 TLC-PSMD075 0.75 1.50 6.0 100 8.0 0.20 0.60 0.090 0.350 TLC-PSMD100 1.00 2.00 6.0 100 8.0 0.30 0.60 0.060 0.250 TLC-PSMD110 1.10 2.20 6.0 100 8.0 0.30 0.60 0.060 0.210 产品尺寸 (Unit: mm) ： Top and Bottom View Side View A 1 C B D 1 Part Identification A B C D P/N Marking （标识） Min. Max. Min. Max. Min. Max. Min. TLC-PSMD010/24 1 2.00 2.30 1.20 1.50 0.55 0.95 0.20 TLC-PSMD010 1 2.00 2.30 1.20 1.50 0.55 0.95 0.20 TLC-PSMD020 2 2.00 2.30 1.20 1.50 0.55 0.95 0.20 TLC-PSMD035 3 2.00 2.30 1.20 1.50 0.40 0.80 0.20 TLC-PSMD050 4 2.00 2.30 1.20 1.50 0.40 0.80 0.20 TLC-PSMD075 5 2.00 2.30 1.20 1.50 0.60 1.00 0.20 TLC-PSMD100 6 2.00 2.30 1.20 1.50 0.60 1.00 0.20 TLC-PSMD110 6 2.00 2.30 1.20 1.50 0.60 1.00 0.20 TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Revision: A Date: 2018-04-24 Page No.: 1 OF 2 PPTC RESETTALBE 电路保护元器件专业制造商 FUSES PSMD0805 Series 环境温度与工作电流关系特性曲线 ： P/N 工作环境温度 -40℃ -20℃ 0℃ 25℃ 40℃ 50℃ 60℃ 70℃ 85℃ TLC-PSMD010/24 0.15 0.13 0.12 0.10 0.09 0.08 0.07 0.06 0.05 TLC-PSMD010 0.15 0.13 0.12 0.10 0.09 0.08 0.07 0.06 0.05 TLC-PSMD020 0.28 0.25 0.23 0.20 0.17 0.14 0.12 0.10 0.07 TLC-PSMD035 0.47 0.44 0.39 0.35 0.30 0.27 0.24 0.20 0.14 TLC-PSMD050 0.68 0.62 0.55 0.50 0.40 0.37 0.33 0.29 0.23 TLC-PSMD075 1.00 0.90 0.79 0.75 0.63 0.57 0.53 0.42 0.35 TLC-PSMD100 1.45 1.35 1.20 1.00 0.92 0.84 0.75 0.65 0.52 TLC-PSMD110 1.45 1.35 1.20 1.10 0.92 0.84 0.75 0.65 0.52 动作电流时间曲线表 ： The Time to Trip curves represent typical performance of a device in a simulated application environment. Actual performance in specific customer applications may differ from these values due to the influence of other variables. 标准包装数量 ： Model Q’t y/Reel TLC-PSMD010/TLC-PSMD010/24/TLC-PSMD020/TLC-PSMD075/TLC-PSMD100/TLC-PSMD110 3500pcs TLC-PSMD035/TLC-PSMD050 4500pcs Note: Reel packaging per EIA-481-1 standard 6、Agency Recognition： Caution:Operation beyond the rated voltage or current may result in rupture electrical arcing or flame.Specifications are subject to change without notice. TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710
