Revision: A
Date: 2018-04-24 Page
No.: 1 OF 1
PPTC RESETTALBE
电路保护元器件专业制造商
FUSES
USMD1210 Series
Features
◆ Surface Mount Devices
◆ Standard 1210mils footprint
◆ Surface mount packaging for automated assembly
◆ Compatible with Pb and Pb-free solder reflow profiles.
◆ UL(E352136), C-UL(E352136), TUV(R50306076)
◆ RoHS, Reach, HF compliance
Applications
◆ Mobile phones
◆ PC motherboards
◆ IEEE1394 ports
◆ USB port protection
◆ HDMI source protection
◆ Game console port protection
电气特性 :
保持电流
跳脱电流
最大电压
最大电流
最大动作时间
IH, (A)
IT, (A)
V max, (V)
I max, (A)
(A)
TLC-USMD005
0.05
0.15
30
10
TLC-USMD010
0.10
0.30
30
10
TLC-USMD020
0.20
0.40
30
10
8.00
P/N
消耗功率
(Sec.)
Pd typ, (W)
0.25
1.50
0.50
0.60
电阻范围(Ω)
R min,
R1 max,
0.60
2.80
50.00
0.60
0.80
15.00
0.02
0.60
0.40
5.00
TLC-USMD035
0.35
0.75
6
40
8.00
0.20
0.60
0.20
1.30
TLC-USMD050
0.50
1.00
13.2
40
8.00
0.10
0.60
0.18
0.90
TLC-USMD075
0.75
1.50
6
40
8.00
0.10
0.60
0.07
0.45
TLC-USMD110
1.10
2.20
6
40
8.00
0.30
0.60
0.05
0.24
TLC-USMD150
1.50
3.00
6
40
8.00
0.50
0.60
0.03
0.11
TLC-USMD175
1.75
4.00
6
40
8.00
1.00
0.70
0.02
0.09
TLC-USMD200
2.00
4.00
6
40
8.00
1.00
0.70
0.02
0.09
产品尺寸 (Unit: mm) :
Top and Bottom View
Side View
A
T02
C
B
D
T 02
Manufacturer's Trademark
Part Identification
P/N
A
B
C
D
Marking
(标识)
Min.
Max.
Min.
Max.
Min.
Max.
Min.
TLC-USMD005
T0
3.00
3.43
2.35
2.80
0.80
1.20
0.30
TLC-USMD010
T01
3.00
3.43
2.35
2.80
0.80
1.20
0.30
TLC-USMD020
T02
3.00
3.43
2.35
2.80
0.80
1.20
0.30
TLC-USMD035
T03
3.00
3.43
2.35
2.80
0.60
1.00
0.30
TLC-USMD050
T05
3.00
3.43
2.35
2.80
0.60
1.00
0.30
TLC-USMD075
T07
3.00
3.43
2.35
2.80
0.60
1.00
0.30
TLC-USMD110
T11
3.00
3.43
2.35
2.80
0.45
0.85
0.30

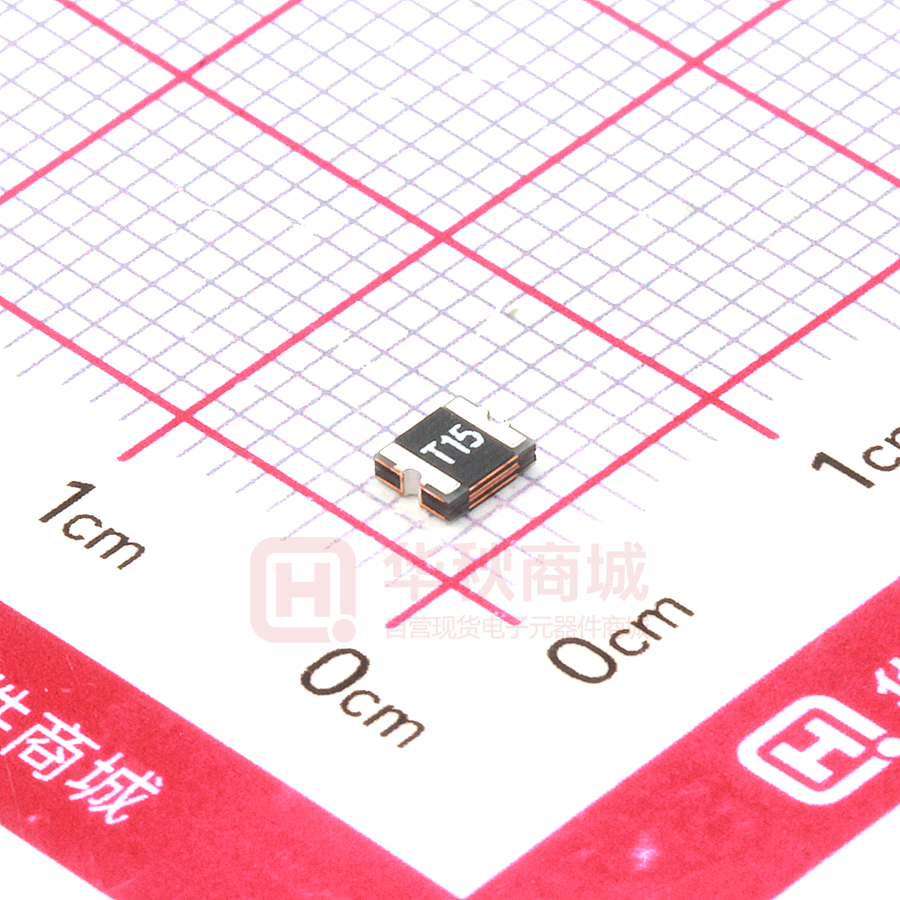

TLC-USMD150
T15
3.00
3.43
2.35
2.80
0.60
1.00
0.30
TLC-USMD175
T20
3.00
3.43
2.35
2.80
0.60
1.00
0.30
TLC-USMD200
T20
3.00
3.43
2.35
2.80
0.60
1.00
0.30
TEL: 86-0769-3892 0554
FAX: 86-0769-8793 2077
E-mail:sales@tlcet.com.cn
Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710
Revision: A
Date: 2018-04-24 Page
No.: 1 OF 2
PPTC RESETTALBE
电路保护元器件专业制造商
FUSES
USMD1210 Series
环境温度与工作电流关系特性曲线 :
P/N
工作环境温度
-40℃
-20℃
0℃
25℃
40℃
50℃
60℃
70℃
85℃
TLC-USMD005
0.08
0.07
0.06
0.05
0.04
0.04
0.03
0.03
0.02
TLC-USMD010
0.15
0.13
0.12
0.10
0.09
0.08
0.07
0.06
0.05
TLC-USMD020
0.32
0.28
0.24
0.20
0.18
0.16
0.14
0.12
0.10
TLC-USMD035
0.51
0.46
0.40
0.35
0.30
0.27
0.24
0.22
0.18
TLC-USMD050
0.76
0.66
0.58
0.50
0.42
0.38
0.35
0.29
0.23
TLC-USMD075
1.10
0.97
0.86
0.75
0.64
0.58
0.55
0.47
0.39
TLC-USMD110
1.60
1.42
1.26
1.10
0.94
0.86
0.80
0.70
0.58
TLC-USMD150
2.30
2.02
1.76
1.50
1.24
1.11
1.00
0.85
0.65
TLC-USMD175
2.55
2.26
2.00
1.75
1.50
1.37
0.98
0.86
0.71
TLC-USMD200
3.20
2.80
2.40
2.00
1.80
1.60
1.40
1.20
1.00
动作电流时间曲线表 :
The Time to Trip curves represent typical performance
of a device in a simulated application environment.
Actual performance in specific customer applications
may differ from these values due to the influence of
other variables.
标准包装数量 :
Model
Q’t y/Reel
TLC-USMD005~TLC-USMD020; TLC-USMD150~TLC-USMD200
3500pcs
TLC-USMD035~TLC-USMD110
4000pcs
Note: Reel packaging per EIA-481-1 standard
6、Agency Recognition:
Caution:Operation beyond the rated voltage or current may result in rupture electrical arcing or flame.Specifications are
subject to change without notice.
TEL: 86-0769-3892 0554
FAX: 86-0769-8793 2077
E-mail:sales@tlcet.com.cn
Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710
