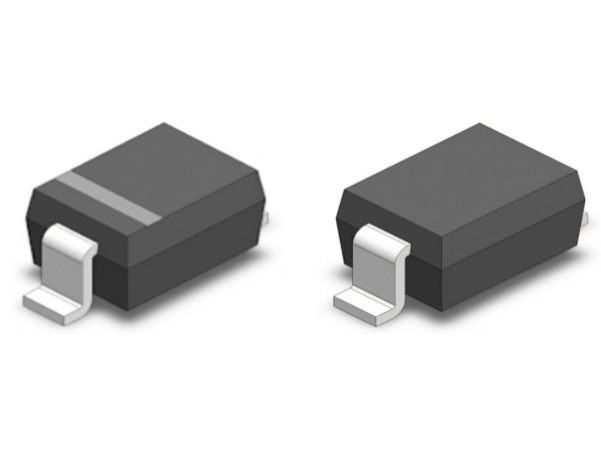

B110WS

B12WS THRU B120WS Reverse Voltage 20 to 200Volts Forward Current - 1.0 Ampere SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features SOD-323  Metal silicon junction, majority carrier conduction  For surface mounted applications  Low power loss, high efficiency  High forward surge current capability 0.008(0.20)max. Cathode bar 0.055(1.40) 0.016(0.40) 0.009(0.25) 0.047(1.20) 0.070 (1.80)  For use in low voltage, high frequency inverters, free 0.063 (1.40) 0.108 (2.75) wheeling, and polarity protection applications 0.019 (0.475) ref. Case : 6OD-323 Terminals : Solderable per MIL-STD-750,Method 2026 Weight : 0.0019 ounce, 0.00548 grams 0.10 (0.0031) 8° 0.0079 (0.20) 0° to Mechanical Data 0.15 (0.0059) 0.016 (0.45) 0.008 (0.2 ) 0.039 (1.0) 0.032 (0.8) 0.100 (2.55) Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage VRMM VRMS VDC B12WS B14WS B16WS B18WS B110WS B112WS B115WS B120WS B12S B14S B16S B18S 110S 112S 115S 120S 20 14 20 40 28 40 60 42 60 80 56 80 100 70 100 120 84 120 150 105 150 200 140 200 UNITS V V V Maximum average forward rectified current I(AV) 1.0 A Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) IFSM 25 A Maximum instantaneous forward voltage at 1.0A VF Maximum DC reverse current at rated DCblocking voltage TA=25℃ TA=100℃ 0.55 IR Typical junction capacitance (NOTE 1) Operating junction temperature range CJ TJ Storage temperature range TSTG 0.70 0.85 0.3 10 0.2 5 80 110 0.90 V 0.1 2 mA pF -55 to +125 ℃ -55 to +150 ℃ Note:1.Measured at 1.0MHz and applied reverse voltage of 4.0V D.C. http://www.microdiode.com Rev:2024A2 Page :1 B12WS THRU B120WS Reverse Voltage 20 to 200Volts Forward Current - 1.0 Ampere Typical Characterisitics Fig.2 Typical Reverse Characteristics Fig.1 Forward Current Derating Curve Instaneous Reverse Current (uA） Average Forward Current (A) 1.2 1.0 0.8 0.6 0.4 0.2 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 75 50 100 125 10 4 10 3 TJ=100°C 10 2 TJ=25°C 101 10 150 0 0 40 20 60 80 100 Percent of Rated Peak Reverse Voltage（%） Case Temperature (°C) Fig.3 Typical Forward Characteristic Fig.4 Typical Junction Capacitance 500 TJ=25°C 10 1.0 Junction Capacitance (pF) Instaneous Forward Current (A) 20 B12WS/B14WS B16WS/B18WS B110WS/B112WS B115WS/B120WS 0.1 200 100 50 B12WS/B14WS 20 B16WS-B120WS 10 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 0.1 1 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surage Current (A) 25 20 15 10 05 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles at 60Hz The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 B12WS THRU B120WS Reverse Voltage 20 to 200Volts Forward Current - 1.0 Ampere Packing information unit:mm P0 P1 d Item Symbol Tolerance Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter 7" Reel outside diameter 7" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width A B C d D D1 D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 SOD-323 E F B A W P D2 T D1 C W1 D 1.46 2.90 1.25 1.50 330.00 50.00 178.00 54.40 13.00 1.75 3.50 4.00 4.00 2.00 0.06 8.00 12.30 Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) CARTON SIZE (m/m) CARTON (pcs) SOD-323 7" 3,000 4.0 45,000 210*208*203 178 430*430*235 180,000 APPROX. GROSS WEIGHT (kg) 9.0 Suggested Pad Layout Symbol A http://www.microdiode.com Unit (mm) Unit (inch) 0.047 B 1.2 1.2 C 2.6 0.102 D 1.4 0.055 E 3.8 0.149 0.047 Rev:2024A2 Page :3
