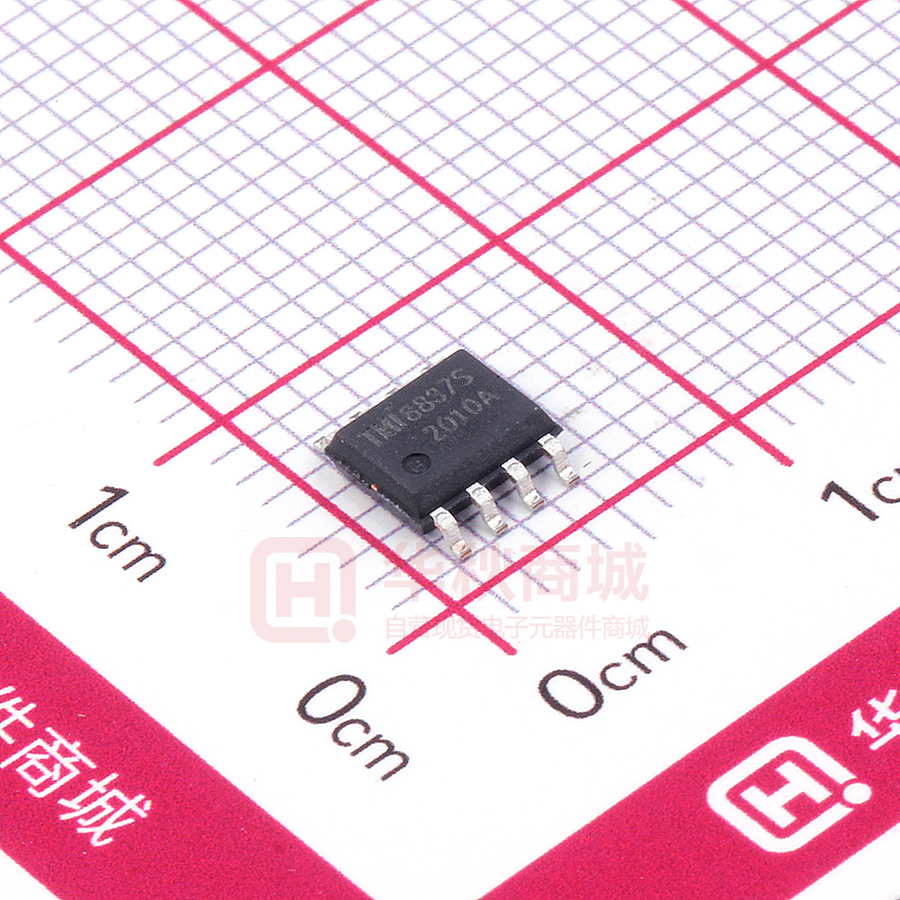

TMI8837S

TMI8837 TMI8837S Low Voltage H-Bridge Motor Drive FEATURES  GENERAL DESCRIPTION Support the input voltage range: Motor power: 1.8V~11V Control power supply: 1.8V~7V             LDMOS RDS(ON) (HS+LS) 650mΩ (typical) Ultra-low power sleep mode 45nA (typical) VM sleep mode current 17nA (typical) VCC sleep mode current Up to 1.5A Peak current output capacity Built-in UVLO Protection TMI8837 and TMI8837S are low voltage DC motor driver IC. Internal integration 650mΩ (HS+LS typical) H bridge NMOS switch, which can support the 1.8V~11V input voltage range. The Peak current capacity is up to 1.5A, support for ultra-low power sleep mode; built-in UVLO, Thermal Shutdown, OCP protection circuit. TMI8837 and TMI8837S can be used in camera, toys and consumer products. Built-in Over Temperature Protection Built-in Short Circuit Protection APPLICATIONS Built-in Over Current Protection Built-in Charge Pump  TMI8837: DFN2x2-8 package  TMI8837S: SOP8 package  Cameras Toys Consumer Products TYPICAL APPILCATION Figure 1. Basic Application Circuit TMI and SUNTO are the brands of TOLL microelectronic TMI8837 TMI8837S V1.4 2022.03 www.toll-semi.com 1 TMI8837 TMI8837S ABSOLUTE MAXIMUM RATINGS Parameter Value Unit VM Voltage Range -0.3~11 V VCC, IN1, IN2, EN Voltages Range -0.3~7 V OUT1, OUT2 Voltage Range -0.3~Vin+0.3 V Storage Temperature Range -50~150 °C Junction Temperature -40~150 °C Package Thermal Resistance θJA of DFN2x2-8 70 °C/W Package Thermal Resistance θJA of SOP8 90 °C/W PACKAGE/ORDER INFORMATION DFN2x2-8 (Top View) SOP8 (Top View) TMI8837 TMI8837S Top Mark: TFCX/XX (TFC: Device Code, X/XX: Inside Code) for TMI8837 Top Mark: T8837S/XXXXX (T8837S: Device Code, XXXXX: Inside Code) for TMI8837S Part Number Package Top Mark Quantity/ Reel TMI8837 DFN2x2-8 TFCX/XX 3000 TMI8837S SOP8 T8837S/XXXXX 3000 TMI8837 and TMI8837S devices are Pb-free and RoHS compliant. www.toll-semi.com 2 TMIandSUNTOarethebrandsofTOLLmicroelectronic TMI8837 TMI8837S V1.4 2022.03 TMI8837 TMI8837S PIN FUNCTIONS Pin Name Function Power Supply for Driver. Connect a 0.1μF bypass ceramic capacitor to GND. A 1 VM bulk capacitor with at least 22μF capacitance on VM to GND is needed and helpful to stabilize VM voltage during motor operation. 2 OUT1 Motor Driver output 1 3 OUT2 Motor Driver output 2 4 GND Ground pin 5 IN2 PWM input2 6 IN1 PWM input1 Chip Enable Input Pin. When this pin is in logic low, the device enters 7 EN low-power sleep mode. The device operates normally when this pin is logic high. The pin has an internal pull-down resistor to GND. 8 VCC Power Supply for Logic Input. Connect a 0.1μF bypass ceramic capacitor to GND ESD RATING Items Description Value Unit VESD Human Body Model for all pins ±2000 V JEDEC specification JS-001 RECOMMENDED OPERATING CONDITIONS Items Description Min Max Unit Voltage Range VM 1.8 11 V TJ Operating Junction Temperature Range -40 125 °C TMI and SUNTO are the brands of TOLL microelectronic TMI8837 TMI8837S V1.4 2022.03 www.toll-semi.com 3 TMI8837 TMI8837S ELECTRICAL CHARACTERISTICS (VM=5V, TA = 25°C, unless otherwise noted.) Parameter Symbol Conditions Min Typ Max Unit 11 V Input Power Supplies (VM and VCC) VM Voltage Range VVM 1.8 VM=5V, VCC=3V VM Supply Current IVM No PWM VM=5V, VCC=3V 50kHz PWM VM sleep mode supply current IVMQ VCC Voltage Range VVCC VM=5V, VCC=3V IVCC IVCCQ 0.53 mA 1.8 No PWM VM=5V, VCC=3V 50kHz PWM VCC sleep mode supply current μA 45 Sleep Mode VM=5V, VCC=3V VCC Supply Current 124 VM=5V, VCC=3V nA 7 V 180 μA 0.32 mA 17 Sleep Mode 95 35 nA PWM Control Logic Inputs (IN1, IN2 and EN) Input Logic Low Voltage Falling Threshold Input Logic High Voltage Rising Threshold Input logic Hysteresis VIL_F 0.25x 0.4x VCC VCC VIH_R IIL Input Logic High Current IIH Input Pull Down Resistor RIN 0.5x 0.6x VCC VCC 0.1x VHYS Input Logic Low Current V V VCC -5 V 5 μA 40 μA 100 kΩ 0.65 Ω Motor Driver Outputs (OUT1 and OUT2) Output Switch On-Resistance (HS+LS) Output Switch Leakage Current RON VM=5V, VCC=3V Iload=800mA ILEAK -200 200 nA Protection Function VCC UVLO Voltage UVLO Hysteresis VUVLO 1.7 V VUVLO_HY 100 mV 1.75 A Over Current Protection IOCP 1.6 Over Current Retry Time TOCP_RT 1 ms Thermal Shutdown Threshold TSDN 160 °C Thermal Shutdown Hysteresis TSDN_HY 20 °C ELECTRICAL CHARACTERISTICS (continued) www.toll-semi.com 4 TMIandSUNTOarethebrandsofTOLLmicroelectronic TMI8837 TMI8837S V1.4 2022.03 TMI8837 TMI8837S (VIN=5V, TA = 25°C, unless otherwise noted.) Parameter Symbol Conditions Min Typ Max Unit Output Enable time T1 180 265 ns Output Disable time T2 70 100 ns T3 140 215 ns T4 160 240 ns Output rise time T5 60 120 ns Output fall time T6 38 100 ns Delay Time IN1 low to OUT2 high IN2 low to OUT1 high Delay Time IN2 high to OUT1 low IN1 high to OUT2 low FUNCTIONAL BLOCK DIAGRAM Figure 2. TMI8837/S Block Diagram TMI and SUNTO are the brands of TOLL microelectronic TMI8837 TMI8837S V1.4 2022.03 www.toll-semi.com 5 TMI8837 TMI8837S INPUT OUTPUT LOGIC EN IN1 IN2 OUT1 OUT2 Function 0 X X Z Z Coast 1 0 0 Z Z Coast 1 1 0 H L Forward 1 0 1 L H Reverse 1 1 1 L L Brake www.toll-semi.com 6 TMIandSUNTOarethebrandsofTOLLmicroelectronic TMI8837 TMI8837S V1.4 2022.03 TMI8837 TMI8837S PACKAGE INFORMATION DFN2x2-8 Unit: mm Symbol Dimensions In Millimeters Min Typ Max A 0.70 0.75 0.80 A1 0 0.02 A3 - b 0.19 Symbol Dimensions In Millimeters Min Typ Max L 0.30 0.35 0.40 0.05 K 0.20 - - 0.20 REF - aaa - 0.15 - 0.24 0.29 bbb - 0.10 - D 2.00 BSC ccc - 0.10 - E 2.00 BSC ddd - 0.05 - D2 1.25 1.30 1.35 eee - 0.08 - E2 0.75 0.80 0.85 fff - 0.10 - e 0.50 BSC Note: 1) All dimensions are in millimeters. TMI and SUNTO are the brands of TOLL microelectronic TMI8837 TMI8837S V1.4 2022.03 www.toll-semi.com 7 TMI8837 TMI8837S PACKAGE INFORMATION SOP8 Unit: mm Symbol Dimensions In Millimeters Min Max A 4.70 5.10 B 3.70 L 6.00 E K Min Max C 1.35 1.75 4.10 a 0.35 0.49 6.40 R 0.30 0.60 P 0° 7° b 0.40 1.25 1.27 BSC 0.12 Dimensions In Millimeters Symbol 0.22 Note: 1) All dimensions are in millimeters. 2) Package length does not include mold flash, protrusion or gate burr. 3) Package width does not include inter lead flash or protrusion. 4) Lead popularity (bottom of leads after forming) shall be 0.10 millimeters max. 5) Pin 1 is lower left pin when reading top mark from left to right. www.toll-semi.com 8 TMIandSUNTOarethebrandsofTOLLmicroelectronic TMI8837 TMI8837S V1.4 2022.03 TMI8837 TMI8837S TAPE AND REEL INFORMATION TAPE DIMENSIONS: DFN2x2-8 REEL DIMENSIONS: DFN2x2-8 Unit: mm TAPE WIDTH Ø A (±1.0) Ø N (±2.0) W1 (+1.5/-0) W2 (Max) 8MM 178 54 8.4 14.4 Note: 1) All Dimensions are in Millimeter 2) Quantity of Units per Reel is 3000 3) MSL level is level 3. TMI and SUNTO are the brands of TOLL microelectronic TMI8837 TMI8837S V1.4 2022.03 www.toll-semi.com 9 TMI8837 TMI8837S TAPE AND REEL INFORMATION TAPE DIMENSIONS: REEL DIMENSIONS: Unit: mm A B C D E F T1 Ø 330±1 12.7±0.5 16.5±0.3 Ø 99.5±0.5 Ø 13.6±0.2 2.8±0.2 1.9±0.2 Note: 4) All Dimensions are in Millimeter 5) Quantity of Units per Reel is 3000 6) MSL level is level 3. www.toll-semi.com 10 TMIandSUNTOarethebrandsofTOLLmicroelectronic TMI8837 TMI8837S V1.4 2022.03
