AT24C32/64
Features
• Low-Voltage and Standard-Voltage Operation
•
•
•
•
•
•
•
•
•
•
•
•
– 5.0 (VCC = 4.5V to 5.5V)
– 2.7 (VCC = 2.7V to 5.5V)
– 2.5 (VCC = 2.5V to 5.5V)
– 1.8 (VCC = 1.8V to 5.5V)
Low-Power Devices (ISB = 2 µA @ 5.5V) Available
Internally Organized 4096 x 8, 8192 x 8
2-Wire Serial Interface
Schmitt Trigger, Filtered Inputs for Noise Suppression
Bidirectional Data Transfer Protocol
100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Compatibility
Write Protect Pin for Hardware Data Protection
32-Byte Page Write Mode (Partial Page Writes Allowed)
Self-Timed Write Cycle (10 ms max)
High Reliability
– Endurance: 1 Million Write Cycles
– Data Retention: 100 Years
– ESD Protection: >3,000V
Automotive Grade and Extended Temperature Devices Available

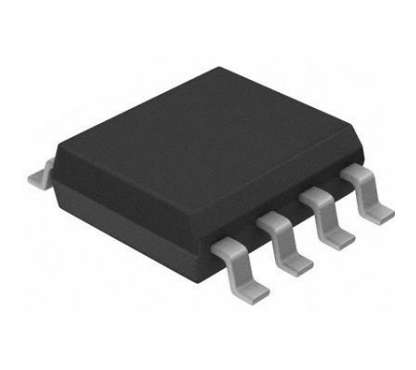

8-Pin JEDEC PDIP, 8-Pin JEDEC SOIC, 8-Pin EIAJ SOIC,
and 8-pin TSSOP Packages
2-Wire
Serial EEPROM
AT24C32
32K (4096 x 8)
AT24C64
64K (8192 x 8)
Description
The AT24C32/64 provides 32,768/65,536 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 4096/8192 words of 8 bits
each. The device’s cascadable feature allows up to 8 devices to share a common 2wire bus. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C32/64 is
available in space saving 8-pin JEDEC PDIP, 8-pin JEDEC SOIC, 8-pin EIAJ SOIC,
and 8-pin TSSOP packages and is accessed via a 2-wire serial interface.
In addition, the entire family is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V),
2.5V (2.5V to 5.5V) and 1.8V (1.8V to 5.5V) versions.
8-Pin PDIP
A0
A1
A2
GND
Pin Configurations
Pin Name
Function
A0 to A2
Address Inputs
SDA
Serial Data
SCL
Serial Clock Input
WP
Write Protect
1
2
3
4
8
7
6
5
VCC
WP
SCL
SDA
2-Wire, 32K
Serial E
8-Pin TSSOP
A0
A1
A2
GND
1
2
3
4
8
7
6
5
VCC
WP
SCL
SDA
8-Pin SOP
A0
A1
A2
GND
http://www.hgsemi.com.cn
1
1
2
3
4
8
7
6
5
VCC
WP
SCL
SDA
2018 MAR
1
AT24C32/64
Absolute Maximum Ratings*
*NOTICE:
Operating Temperature .................................. -55°C to +125°C
Storage Temperature ..................................... -65°C to +150°C
Voltage on Any Pin
with Respect to Ground .....................................-1.0V to +7.0V
Maximum Operating Voltage........................................... 6.25V
Stresses beyond those listed under “Absolute
Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any
other conditions beyond those indicated in the
operational sections of this specification is not
implied. Exposure to absolute maximum rating
conditions for extended periods may affect
device reliability.
DC Output Current........................................................ 5.0 mA
Block Diagram
Pin Description
SERIAL CLOCK (SCL): The SCL input is used to positive
edge clock data into each EEPROM device and negative
edge clock data out of each device.
SERIAL DATA (SDA): The SDA pin is bidirectional for
serial data transfer. This pin is open-drain driven and may
be wire-ORed with any number of other open-drain or open
collector devices.
DEVICE/PAGE ADDRESSES (A2, A1, A0): The A2, A1
and A0 pins are device address inputs that are hard wired
or left not connected for hardware compatibility with
AT24C16. When the pins are hardwired, as many as eight
32K/64K devices may be addressed on a single bus system (device addressing is discussed in detail under the
http://www.hgsemi.com.cn
2
Device Addressing section). When the pins are not hardwired, the default A2, A1, and A0 are zero.
WRITE PROTECT (WP): The write protect input, when tied
to GND, allows normal write operations. When WP is tied
high to V CC, all write operations to the upper quandrant
(8/16K bits) of memory are inhibited. If left unconnected,
WP is internally pulled down to GND.
Memory Organization
AT24C32/64, 32K/64K SERIAL EEPROM: The 32K/64K is
internally organized as 256 pages of 32 bytes each. Random word addressing requires a 12/13 bit data word
address.
2018 MAR
AT24C32/64
Pin Capacitance(1)
Applicable over recommended operating range from TA = 25°C, f = 1.0 MHz, VCC = +1.8V.
Symbol
Test Condition
CI/O
CIN
Note:
Max
Units
Conditions
Input/Output Capacitance (SDA)
8
pF
VI/O = 0V
Input Capacitance (A0, A1, A2, SCL)
6
pF
VIN = 0V
1. This parameter is characterized and is not 100% tested.
DC Characteristics
Applicable over recommended operating range from: TAI = -40°C to +85°C, VCC = +1.8V to +5.5V, TAC = 0°C to +70°C,
VCC = +1.8V to +5.5V (unless otherwise noted).
Symbol
Parameter
VCC1
Supply Voltage
VCC2
Test Condition
Max
Units
1.8
5.5
V
Supply Voltage
2.5
5.5
V
VCC3
Supply Voltage
2.7
5.5
V
VCC4
Supply Voltage
4.5
5.5
V
ICC1
Supply Current VCC = 5.0V
READ at 100 kHz
0.4
1.0
mA
ICC2
Supply Current VCC = 5.0V
WRITE at 100 kHz
2.0
3.0
mA
Standby Current
(1.8V option)
VCC = 1.8V
0.1
ISB1
µA
ISB2
Standby Current
(2.5V option)
VCC = 2.5V
ISB3
Standby Current
(2.7V option)
VCC = 2.7V
ISB4
Standby Current
(5V option)
ILI
VCC = 5.5V
VCC = 5.5V
VCC = 5.5V
Min
Typ
VIN = VCC or VSS
2.0
0.5
VIN = VCC or VSS
µA
2.0
0.5
VIN = VCC or VSS
µA
2.0
VIN = VCC or VSS
20
35
µA
Input Leakage Current
VIN = VCC or VSS
0.10
3.0
µA
ILO
Output Leakage Current
VOUT = VCC or VSS
0.05
3.0
µA
VIL
Input Low Level(1)
-0.6
VCC x 0.3
V
VIH
Input High Level(1)
VCC x 0.7
VCC + 0.5
V
VOL2
Output Low Level VCC = 3.0V
IOL = 2.1 mA
0.4
V
VOL1
Output Low Level VCC = 1.8V
IOL = 0.15 mA
0.2
V
Notes:
VCC = 4.5 - 5.5V
1. VIL min and VIH max are reference only and are not tested.
http://www.hgsemi.com.cn
3
2018 MAR
AT24C32/64
AC Characteristics
Applicable over recommended operating range from TA = -40°C to +85°C, VCC = +1.8V to +5.5V, CL = 1 TTL Gate and 100
pF (unless otherwise noted).
1.8-volt
Parameter
fSCL
Clock Frequency, SCL
tLOW
Clock Pulse Width Low
4.7
4.7
1.2
µs
tHIGH
Clock Pulse Width High
4.0
4.0
0.6
µs
tI
Noise Suppression Time(1)
tAA
Clock Low to Data Out Valid
0.1
tBUF
Time the bus must be free
before a new transmission can start(1)
4.7
4.7
1.2
µs
tHD.STA
Start Hold Time
4.0
4.0
0.6
µs
tSU.STA
Start Set-up Time
4.7
4.7
0.6
µs
tHD.DAT
Data In Hold Time
0
0
0
µs
tSU.DAT
Data In Set-up Time
200
200
100
ns
Inputs Rise Time
Max
Min
100
(1)
(1)
Min
100
100
4.5
Max
5.0-volt
Symbol
tR
Min
2.7-, 2.5-volt
100
0.1
4.5
0.1
Max
Units
400
kHz
50
ns
0.9
µs
1.0
1.0
0.3
µs
300
300
300
ns
tF
Inputs Fall Time
tSU.STO
Stop Set-up Time
4.7
4.7
0.6
µs
tDH
Data Out Hold Time
100
100
50
ns
Write Cycle Time
tWR
Endurance
Note:
(1)
20
5.0V, 25°C, Page Mode
1M
10
1M
10
1M
ms
Write Cycles
1. This parameter is characterized and is not 100% tested.
Device Operation
CLOCK and DATA TRANSITIONS: The SDA pin is normally pulled high with an external device. Data on the SDA
pin may change only during SCL low time periods (refer to
Data Validity timing diagram). Data changes during SCL
high periods will indicate a start or stop condition as
defined below.
START CONDITION: A high-to-low transition of SDA with
SCL high is a start condition which must precede any other
command (refer to Start and Stop Definition timing diagram).
STOP CONDITION: A low-to-high transition of SDA with
SCL high is a stop condition. After a read sequence, the
stop command will place the EEPROM in a standby power
mode (refer to Start and Stop Definition timing diagram).
http://www.hgsemi.com.cn
4
ACKNOWLEDGE: All addresses and data words are serially transmitted to and from the EEPROM in 8-bit words.
The EEPROM sends a zero during the ninth clock cycle to
acknowledge that it has received each word.
STANDBY MODE: The AT24C32/64 features a low power
standby mode which is enabled: a) upon power-up and b)
after the receipt of the STOP bit and the completion of any
internal operations.
MEMORY RESET: After an interruption in protocol, power
loss or system reset, any 2-wire part can be reset by following these steps:
(a) Clock up to 9 cycles, (b) look for SDA high in each cycle
while SCL is high and then (c) create a start condition as
SDA is high.
2018 MAR
AT24C32/64
Bus Timing
SCL: Serial Clock, SDA: Serial Data I/O
Write Cycle Timing
SCL: Serial Clock, SDA: Serial Data I/O
tWR(1)
Note:
1.
The write cycle time tWR is the time from a valid stop condition of a write sequence to the end of the internal clear/write
cycle.
http://www.hgsemi.com.cn
5
2018 MAR
AT24C32/64
Data Validity
Start and Stop Definition
Output Acknowledge
http://www.hgsemi.com.cn
6
2018 MAR
AT24C32/64
Device Addressing
The 32K/64K EEPROM requires an 8-bit device address
word following a start condition to enable the chip for a read
or write operation (refer to Figure 1). The device address
word consists of a mandatory one, zero sequence for the
first four most significant bits as shown. This is common to
all 2-wire EEPROM devices.
The 32K/64K uses the three device address bits A2, A1, A0
to allow as many as eight devices on the same bus. These
bits must compare to their corresponding hardwired input
pins. The A2, A1, and A0 pins use an internal proprietary
circuit that biases them to a logic low condition if the pins
are allowed to float.
The eighth bit of the device address is the read/write operation select bit. A read operation is initiated if this bit is high
and a write operation is initiated if this bit is low.
Upon a compare of the device address, the EEPROM will
output a zero. If a compare is not made, the device will
return to standby state.
NOISE PROTECTION: Special internal circuitry placed on
the SDA and SCL pins prevent small noise spikes from
activating the device. A low-V CC detector (5-volt option)
resets the device to prevent data corruption in a noisy environment.
DATA SECURITY: The AT24C32/64 has a hardware data
protection scheme that allows the user to write protect the
upper quadrant (8/16K bits) of memory when the WP pin is
at VCC.
Write Operations
BYTE WRITE: A write operation requires two 8-bit data
word addresses following the device address word and
acknowledgment. Upon receipt of this address, the
EEPROM will again respond with a zero and then clock in
the first 8-bit data word. Following receipt of the 8-bit data
word, the EEPROM will output a zero and the addressing
device, such as a microcontroller, must terminate the write
sequence with a stop condition. At this time the EEPROM
enters an internally-timed write cycle, tWR, to the nonvolatile
memory. All inputs are disabled during this write cycle and
the EEPROM will not respond until the write is complete
(refer to Figure 2).
PAGE WRITE: The 32K/64K EEPROM is capable of 32byte page writes.
A page write is initiated the same way as a byte write, but
the microcontroller does not send a stop condition after the
first data word is clocked in. Instead, after the EEPROM
acknowledges receipt of the first data word, the microcontroller can transmit up to 31 more data words. The
EEPROM will respond with a zero after each data word
received. The microcontroller must terminate the page
write sequence with a stop condition (refer to Figure 3).
http://www.hgsemi.com.cn
7
The data word address lower 5 bits are internally incremented following the receipt of each data word. The higher
data word address bits are not incremented, retaining the
memory page row location. When the word address, internally generated, reaches the page boundary, the following
byte is placed at the beginning of the same page. If more
than 32 data words are transmitted to the EEPROM, the
data word address will “roll over” and previous data will be
overwritten.
ACKNOWLEDGE POLLING: Once the internally-timed
write cycle has started and the EEPROM inputs are disabled, acknowledge polling can be initiated. This involves
sending a start condition followed by the device address
word. The read/write bit is representative of the operation
desired. Only if the internal write cycle has completed will
the EEPROM respond with a zero, allowing the read or
write sequence to continue.
Read Operations
Read operations are initiated the same way as write operations with the exception that the read/write select bit in the
device address word is set to one. There are three read
operations: current address read, random address read
and sequential read.
CURRENT ADDRESS READ: The internal data word
address counter maintains the last address accessed during the last read or write operation, incremented by one.
This address stays valid between operations as long as the
chip power is maintained. The address “roll over” during
read is from the last byte of the last memory page, to the
first byte of the first page. The address “roll over” during
write is from the last byte of the current page to the first
byte of the same page.
Once the device address with the read/write select bit set
to one is clocked in and acknowledged by the EEPROM,
the current address data word is serially clocked out. The
microcontroller does not respond with an input zero but
does generate a following stop condition (refer to Figure 4).
RANDOM READ: A random read requires a “dummy” byte
write sequence to load in the data word address. Once the
device address word and data word address are clocked in
and acknowledged by the EEPROM, the microcontroller
must generate another start condition. The microcontroller
now initiates a current address read by sending a device
address with the read/write select bit high. The EEPROM
acknowledges the device address and serially clocks out
the data word. The microcontroller does not respond with a
zero but does generate a following stop condition (refer to
Figure 5).
SEQUENTIAL READ: Sequential reads are initiated by
either a current address read or a random address read.
After the microcontroller receives a data word, it responds
with an acknowledge. As long as the EEPROM receives an
2018 MAR
AT24C32/64
acknowledge, it will continue to increment the data word
address and serially clock out sequential data words. When
the memory address limit is reached, the data word
address will “roll over” and the sequential read will con-
tinue. The sequential read operation is terminated when
the microcontroller does not respond with a zero but does
generate a following stop condition (refer to Figure 6).
Figure 1. Device Address
Figure 2. Byte Write
Figure 3. Page Write
Notes:
1.
* = DON’T CARE bits
2.
† = DON’T CARE bits for the 32K
Figure 4. Current Address Read
Figure 5. Random Read
Note:
1.
* = DON’T CARE bits
http://www.hgsemi.com.cn
8
2018 MAR
AT24C32/64
Figure 6. Sequential Read
http://www.hgsemi.com.cn
9
2018 MAR
AT24C32/64
Important statement:
Huaguan Semiconductor Co,Ltd. reserves the right to change
the products and services provided without notice. Customers
should obtain the latest relevant information before ordering,
and verify the timeliness and accuracy of this information.
Customers are responsible for complying with safety
standards and taking safety measures when using our
products for system design and machine manufacturing to
avoid potential risks that may result in personal injury or
property damage.
Our products are not licensed for applications in life support,
military, aerospace, etc., so we do not bear the consequences
of the application of these products in these fields.
Our documentation is only permitted to be copied without
any tampering with the content, so we do not accept any
responsibility or liability for the altered documents.
http://www.hgsemi.com.cn
10
2018 MAR
