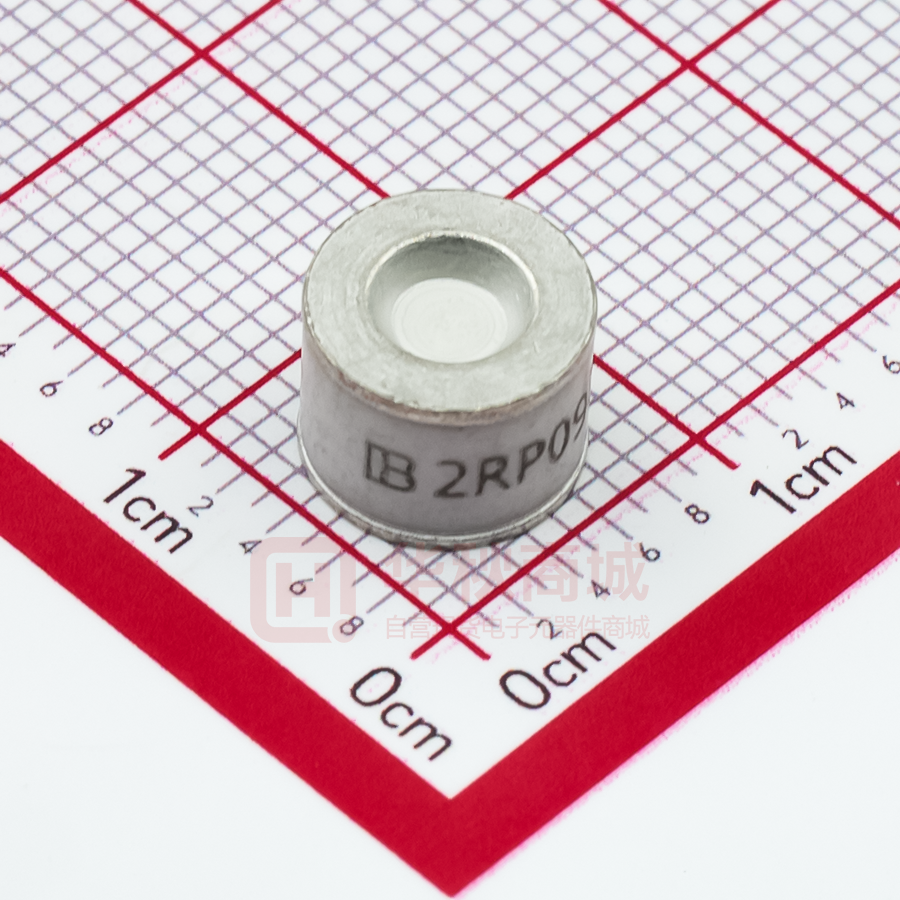

DATA SHEET GAS DISCHARGE TUBES TELEPHONE INTERFACE 2R-8x6 series Product specification– April 25, 2019 V.0 RoHS compliant & Halogen free Circuit Protection Product Specification GAS DISCHARGE TUBS 2 8 2R-8x6 Gas Discharge Tube (GDT) Data Sheet Features ■ Provide ultra-fast response to surge voltage from slow-rising surge of 100V/s to rapid-rising surge of 1KV/μs. ■ Stable breakdown voltage. ■ High insulation resistance. ■ Low capacitance (≤1.5pF) ■ High holdover voltage ■ Large absorbing transient current capability. ■ Micro-Gap Design ■ Size: 8.0mm*6.0mm ■ Storage and operating temperature: -40℃ ~ +85℃ ■ Meets MSL level 1, per J-STD-020 ■ Safety certification: E244458 Applications ■ ■ ■ ■ Repeaters, Modems. Telephone Interface, Line cards. Data communication equipment. Line test equipment Part Number Code 2 8 R Electrical Characteristics M: 10KA P: 20KA Electrode Numbers 2R: 2 Electrodes DC Spark-over Voltage Lead Type L: Lead M: SMD Packing Code No suffix: Bulk TR: Tape & Reel packing Dimensions 8: 8.0mm×6.0mm Ordering Code for different package in 2RMxxxL-8 and 2RPxxxL-8 series Box package: Add suffix “/B” at the end of the part number, such as 2RM075L-8/B or 2RP120L-8/B Reel package: Add suffix “/TR” at the end of the part number, such as 2RM075L-8/TR or 2RP120L-8/TR www.yageo.com Apr. 25, 2019 V.0 Circuit Protection Product Specification GAS DISCHARGE TUBS 3 8 2R-8x6 Marking : BritghtKing Logo 2RM090-8 : Device Marking Code YXXX : Date Code Dimensions L Type Dimension (mm) Symbol D d L D T M Type Spec. Tolerance D 8.0 +0.3, -0.5 T 6.0 +0.3, -0.5 d 0.8 ±0.1 L 30.0 Max. D 8.0 +0.3, -0.5 T 6.0 +0.3, -0.5 B 0.5 ±0.1 6.0 8.0 B D T 1.5 Recommended Pad Size Electrical Characteristics Part Number DC Spark-over Voltage Maximum Impulse Spark-over Voltage Nominal Impulse Discharge Current Alternating Discharge Current Impulse Life 100V/s 1000V/μs 8/20μs 10times 50Hz,1sec 10/1000μs 100A Test Voltage (V) (V) (KA) (A) (times) DC(V) Minimum Insulation Resistance (GΩ) Maximum Capacitance 1MHz Device Marking Code (pF) 2RM075L-8 2RM075M-8 75±20% 600 10 10 500 25 1.0 1.5 2RM075-8 2RM090L-8 2RM090M-8 90±20% 600 10 10 500 50 1.0 1.5 2RM090-8 2RM120L-8 2RM120M-8 120±20% 600 10 10 500 50 1.0 1.5 2RM120-8 2RM145L-8 2RM145M-8 145±20% 700 10 10 500 100 1.0 1.5 2RM145-8 2RM150L-8 2RM150M-8 150±20% 700 10 10 500 100 1.0 1.5 2RM150-8 2RM230L-8 2RM230M-8 230±20% 700 10 10 500 100 1.0 1.5 2RM230-8 2RM250L-8 2RM250M-8 250±20% 800 10 10 500 100 1.0 1.5 2RM250-8 2RM300L-8 2RM300M-8 300±20% 900 10 10 500 100 1.0 1.5 2RM300-8 2RM350L-8 2RM350M-8 350±20% 900 10 10 500 100 1.0 1.5 2RM350-8 2RM400L-8 2RM400M-8 400±20% 1000 10 10 500 100 1.0 1.5 2RM400-8 2RM470L-8 2RM470M-8 470±20% 1100 10 10 500 250 1.0 1.5 2RM470-8 2RM600L-8 2RM600M-8 600±20% 1300 10 10 500 250 1.0 1.5 2RM600-8 www.yageo.com Apr. 25, 2019 V.0 Circuit Protection Product Specification GAS DISCHARGE TUBS 4 8 2R-8x6 Electrical Characteristics Part Number DC Spark-over Voltage Maximum Impulse Spark-over Voltage Nominal Impulse Discharge Current Alternating Discharge Current Impulse Life 100V/s 1000V/μs 8/20μs 10times 50Hz,1sec 10/1000μs 100A Test Voltage (V) (V) (KA) (A) (times) DC(V) Minimum Insulation Resistance (GΩ) Maximum Capacitance 1MHz Device Marking Code (pF) 2RM800L-8 2RM800M-8 800±20% 1500 10 10 500 250 1.0 1.5 2RM800-8 2RP075L-8 2RP075M-8 75±20% 600 20 20 500 25 1.0 1.5 2RP075-8 2RP090L-8 2RP090M-8 90±20% 600 20 20 500 50 1.0 1.5 2RP090-8 2RP120L-8 2RP120M-8 120±20% 600 20 20 500 50 1.0 1.5 2RP120-8 2RP145L-8 2RP145M-8 145±20% 700 20 20 500 100 1.0 1.5 2RP145-8 2RP150L-8 2RP150M-8 150±20% 700 20 20 500 100 1.0 1.5 2RP150-8 2RP230L-8 2RP230M-8 230±20% 700 20 20 500 100 1.0 1.5 2RP230-8 2RP250L-8 2RP250M-8 250±20% 800 20 20 500 100 1.0 1.5 2RP250-8 2RP300L-8 2RP300M-8 300±20% 900 20 20 500 100 1.0 1.5 2RP300-8 2RP350L-8 2RP350M-8 350±20% 900 20 20 500 100 1.0 1.5 2RP350-8 2RP400L-8 2RP400M-8 400±20% 1000 20 20 500 100 1.0 1.5 2RP400-8 2RP470L-8 2RP470M-8 470±20% 1100 20 20 500 250 1.0 1.5 2RP470-8 2RP600L-8 2RP600M-8 600±20% 1300 20 20 500 250 1.0 1.5 2RP600-8 2RP800L-8 2RP800M-8 800±20% 1500 20 20 500 250 1.0 1.5 2RP800-8 Notes: The surface for 2RXXXXM-8 series products is default for nickel plating, please change to use tin plating if used on PCB boards while soldering, and adding the code “Sn” as suffix of the part number to distinguish. www.yageo.com Apr. 25, 2019 V.0 Circuit Protection Product Specification GAS DISCHARGE TUBS 5 8 2R-8x6 Electrical Ratings Items DC Spark-over Voltage Maximum Impulse Spark-over Voltage Test Condition/Description Requirement The voltage is measured with voltage ramp dv/dt=100V/s. The maximum impulse spark-over voltage is measured with voltage ramp dv/dt=1000V/μs. Maximum 8/20μs surge current that can be applied between two electrodes, 5 positive and 5 negative surges, with 3 minutes interval time. Crest value Current (%) 100 90 Impulse Discharge Current To meet the specified value 50 20µs 10 0 8µs Time Impulse Width Alternating Discharge Current Insulation Resistance Capacitance Rated RMS value of AC current at 50Hz, 1 sec. for 10 times with interval time 3 min. The resistance of gas tube shall be measured between two electrodes. The capacitance of gas tube shall be measured between two electrodes. Test frequency: 1MHz Recommended Soldering Conditions Wave Soldering 300 Preheating Maximum Wave 265℃ Soldering Cooling Temperature (℃) 250 200 150 100 50 0 0 0.5 1 1.5 2 2.5 Time (minutes) 3 3.5 Item Conditions Peak Temperature 265℃ Dipping Time 10 seconds Soldering 1 time 4 www.yageo.com Apr. 25, 2019 V.0 Circuit Protection Product Specification GAS DISCHARGE TUBS 6 8 2R-8x6 Reflow Soldering Critical Zone TL to TP tP TP Ramp-up TL tL Temperature TS max TS min Ramp-down tS Preheat 25 t 25℃ to Peak Time Profile Feature Average ramp-up rate (TL to TP) Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) TS max to TL -Ramp-up Rate Time maintained above: -Temperature (TL) -Time (tL) Peak Temperature (TP) Time within 5℃ of actual Peak Temperature (tP) Ramp-down Rate Time 25℃ to Peak Temperature Pb-Free Assembly 3℃/second max. 150℃ 200℃ 60-180 seconds 3℃/second max. 217℃ 60-150 seconds 260℃ 20-40 seconds 6℃/second max. 8 minutes max. www.yageo.com Apr. 25, 2019 V.0 Circuit Protection GAS DISCHARGE TUBS Product Specification 7 8 2R-8x6 Packaging Axial Packing (Bulk) Skin packing Dimension (mm) Symbol Spec. Tolerance A 264.0 ±1.0 B 145.0 ±1.0 H 6.5 ±0.5 Quantity: 100pcs Inner box A0 270.0 ±2.0 B0 150.0 ±1.0 H0 50.0 ±1.0 Quantity: 500pcs Axial Packing (Tape & Reel) Tape Dimension (mm) Symbol Reel Spec. Tolerance P 10.0 ±0.3 W 65.0 ±0.3 E 6.0 ±0.3 F 26.5 ±0.3 d 0.8 ±0.05 A1 330.0 ±1.0 B1 70.0 ±1.0 C1 82.0 ±1.0 D 25.0 ±0.2 t 2.0 ±0.2 Quantity: 500pcs www.yageo.com Apr. 25, 2019 V.0 Circuit Protection Product Specification GAS DISCHARGE TUBS 8 8 2R-8x6 Packaging SMD Packing (Tape & Reel) Tape Dimension (mm) Symbol Reel Spec. Tolerance W 16.00 ±0.20 P0 4.00 ±0.10 P1 12.00 ±0.20 P2 2.00 ±0.10 D0 1.55 ±0.05 E 1.75 ±0.10 F 7.50 ±0.10 A0 8.20 ±0.10 K0 8.50 ±0.10 B0 7.50 ±0.10 t0 0.50 ±0.10 D 330.00 ±1.00 d 13.00 ±0.50 L 20.00 ±0.50 t 2.00 ±0.20 t D d L Quantity: 500pcs www.yageo.com Apr. 25, 2019 V.0
