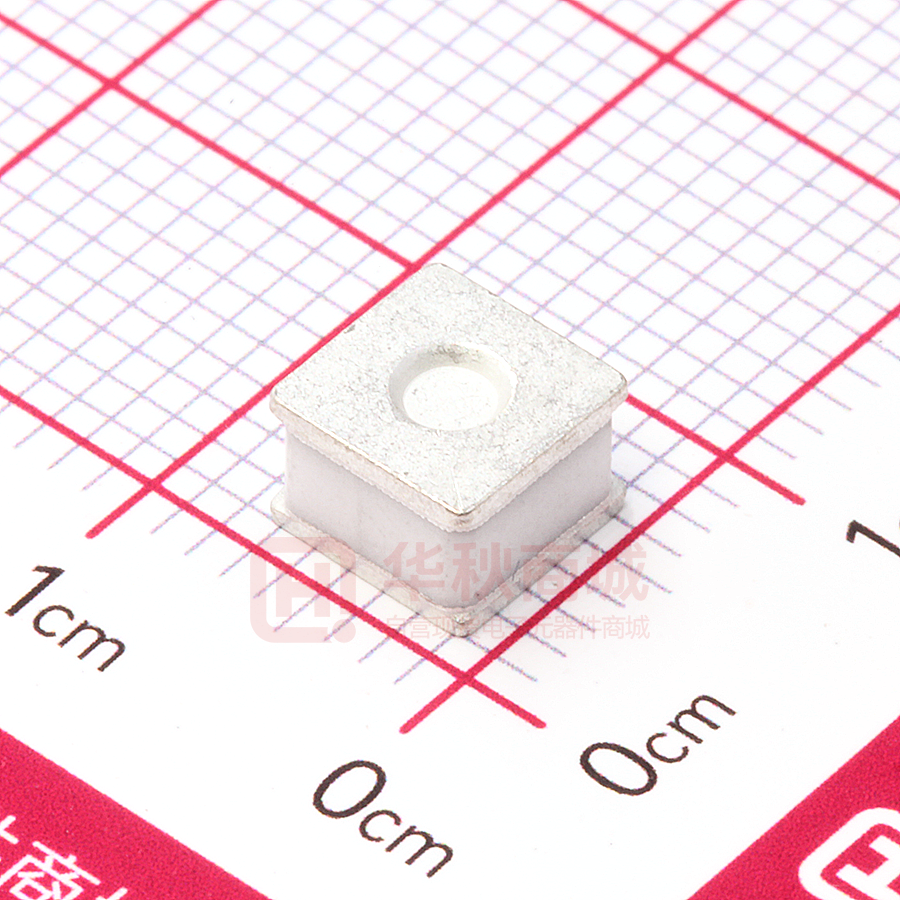

2RL600M-6-S Gas Discharge Tube (GDT) Data Sheet Features ■Provide ultra-fast response to surge voltage from slow-rising surge of100V/s to rapid-rising surge of 1KV/μs. ■ Stable breakdown voltage. ■High insulation resistance. ■Low capacitance (≤1pF) ■ High holdover voltage ■ Large absorbing transient current capability. ■ Micro-Gap Design ■ Size: 6.2mm*4.2mm ■Square ceramic tube for SMD ■Storage and operating temperature: -40℃ ~ +85℃ ■ Meets MSL level 1, per J-STD-020 ■ Safety certification: E244458 Applications ■ Repeaters, Modems. ■ Telephone Interface, Line cards. ■Data communication equipment. ■ Line test equipment Part Number Code 2 L R Lead Type M: SMD Electrical Characteristics L: 5KA Electrode Numbers 2R: 2 Electrodes 6 M DC Spark-over Voltage S: Square electrode Dimensions 6: 6.2mm×4.2mm Dimensions Symbol 7.0 D T Dimension (mm) 3.5 B 1.3 D Recommended Pad Size Revision: GDT-2RL600M-6-S-001 (A0) Spec. Tolerance D 6.2 ±0.5 T 4.2 ±0.5 B 0.6 ±0.1 BrightKing.pulseelectronics.com 2RL600M-6-S Electrical Characteristics DC Spark-over Voltage Maximum Impulse Spark-over Voltage Nominal Impulse Discharge Current Alternating Discharge Current Impulse Life 100V/s 1000V/μs 8/20μs 10times 50Hz,1sec 10/1000μs 100A Test Voltage Part Number 2RL600M-6-S Minimum Insulation Resistance (V) (V) (KA) (A) (times) DC(V) 600±20% 1300 5 5 500 250 Maximum Capacitance 1MHz Device Marking Code (GΩ) (pF) 1 1.0 None Electrical Ratings Items DC Spark-over Voltage Maximum Impulse Spark-over Voltage Test Condition/Description Requirement The voltage is measured with voltage ramp dv/dt=100V/s. The maximum impulse spark-over voltage is measured with voltage ramp dv/dt=1000V/μs. Maximum 8/20μs surge current that can be applied between two electrodes, 5 positive and 5 negative surges, with 3 minutes interval time, without causing the DC spark-over voltage to change more than 25% from its initial value. Crest value Current (%) Impulse Discharge Current 100 90 To meet the specified value 50 20µs 10 0 8µs Time Impulse Width Alternating Discharge Current Rated RMS value of AC current at 50Hz, 1 sec. for 10 times with interval time 3 min. DC spark-over voltage shall not change more than ±25% from its initial value.IR＞108 ohms Insulation Resistance The resistance of gas tube shall be measured between two electrodes. Capacitance The capacitance of gas tube shall be measured between two electrodes. Test frequency: 1MHz Revision: GDT-2RL600M-6-S-001 (A0) BrightKing.pulseelectronics.com 2RL600M-6-S Recommended Soldering Conditions Reflow Soldering Critical Zone TL to TP tP TP Ramp-up TL tL Temperature TS max TS min Ramp-down tS Preheat 25 t 25℃ to Peak Time Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TLto TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) 150℃ 200℃ 60-180 seconds TS maxto TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual PeakTemperature (tP) Ramp-down Rate Time 25℃ to Peak Temperature Revision: GDT-2RL600M-6-S-001 (A0) 20-40 seconds 6℃/second max. 8 minutes max. BrightKing.pulseelectronics.com 2RL600M-6-S Packaging Tape Dimension (mm) Symbol Reel Spec. Tolerance W 16.00 ±0.20 P0 4.00 ±0.10 P1 12.00 ±0.20 P2 2.00 ±0.10 D0 1.55 ±0.05 E 1.75 ±0.10 F 7.50 ±0.10 A0 4.44 ±0.10 K0 6.37 ±0.10 B0 6.48 ±0.10 t0 0.50 ±0.10 D 330.00 ±1.00 d 13.00 ±0.50 L 20.00 ±0.50 t 2.00 ±0.20 t D d L Quantity: 800pcs Revision: GDT-2RL600M-6-S-001 (A0) BrightKing.pulseelectronics.com
