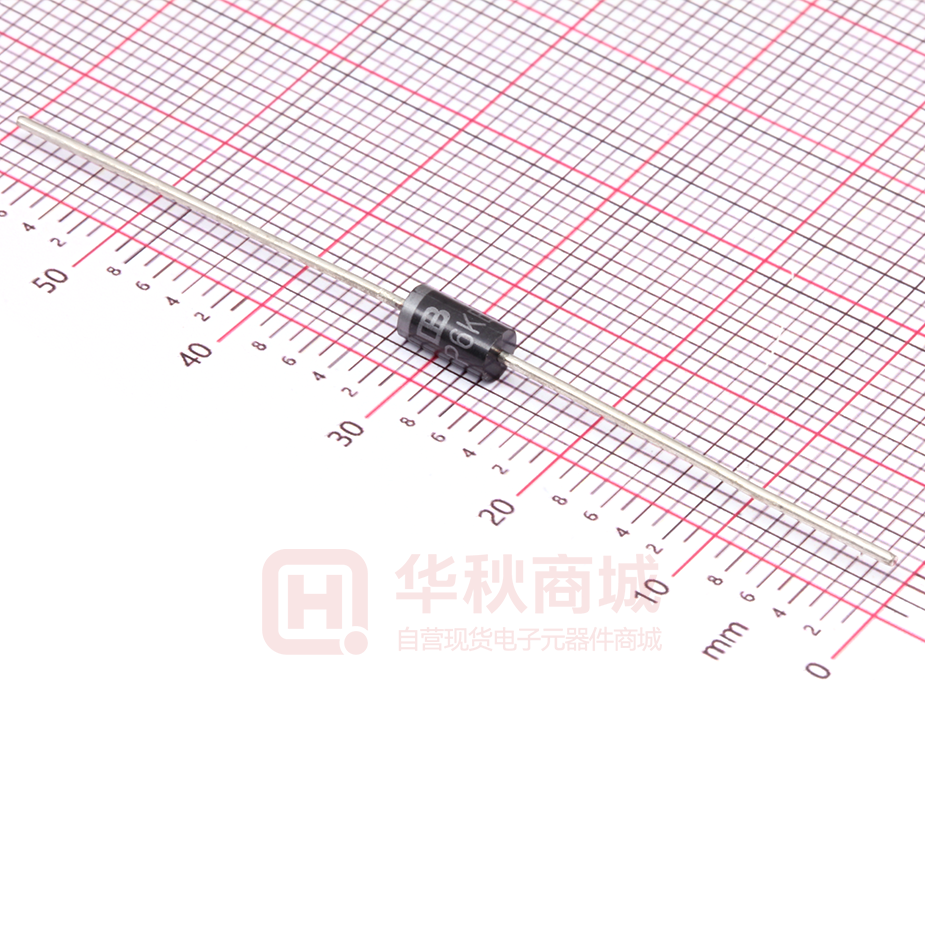

P6KE6.8A-AT

P6KE-AT SERIES Transient Voltage Suppressors (TVS) Data Sheet Features ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Glass passivated junction Low zener impedance Excellent clamping capability 600W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01% Fast response time Typical IR less than 1μA above 12V. High Temperature soldering guaranteed: 265℃/10 seconds/.375″, (9.5mm) lead length, 5lbs (2.3kg) tension Plastic package has underwriters laboratory flammability 94V-0 Meets MSL level 1, per J-STD-020. Safety certification: UL: E244458 AEC-Q101 qualified IEC61000-4-2 ESD 30KV Air, 30KV contact compliance Mechanical Data ■ ■ ■ ■ ■ Case: JEDEC DO-15 Moulded plastic Terminal: Axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode except bi-directional models Mounting Position: Any Weight: 0.42g Applications ■ I/O interface ■ AC/DC power supply ■ Low frequency signal transmission line (RS232, RS485, etc.) Maximum Ratings and Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Rating Symbol Value Units Peak pulse power dissipation at 10/1000μs waveform (Note1, Fig.1) PPPM Minimum 600 Watts Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3) IPPM See Table Amps PM(AV) 5.0 Watts IFSM 100 Amps TJ,TSTG -55 to +150 ℃ Typical thermal resistance junction to lead RθJL 20 ℃/W Typical thermal resistance junction to ambient RθJA 75 ℃/W Steady state power dissipation at TL=75℃ (Fig.5) Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load, (JEDEC Method) (Note2, Fig.6) Operating junction and Storage Temperature Range. Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above TA=25℃ per Fig.2. 2. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum. Revision:TVS-P6KE-AT SERIES-001(A2) 1/6 http://brightking.yageo.com P6KE-AT SERIES Dimensions (DO-204AC/DO-15) Millimeters Cathode Band L T Inches Symbol d Min. Max. Min. Max. L 25.40 - 1.000 - T 5.80 7.60 0.230 0.300 d 2.60 3.60 0.104 0.140 s 0.71 0.86 0.028 0.034 Maximum Peak Reverse Clamping Pulse Leakage Voltage @IPP Current @VRWM s DIA. DIA. L Electrical Characteristics (TA=25℃) Part Number Reverse Breakdown Stand-Off Voltage Voltage @IT Test Current Unidirectional Bidirectional VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) P6KE6.8A-AT P6KE6.8CA-AT 5.80 6.45~7.14 10 10.5 58.1 1000 P6KE7.5A-AT P6KE7.5CA-AT 6.40 7.13~7.88 10 11.3 54.0 500 P6KE8.2A-AT P6KE8.2CA-AT 7.02 7.79~8.61 10 12.1 50.4 200 P6KE9.1A-AT P6KE9.1CA-AT 7.78 8.65~9.55 1 13.4 45.5 50 P6KE10A-AT P6KE10CA-AT 8.55 9.50~10.50 1 14.5 42.1 10 P6KE11A-AT P6KE11CA-AT 9.40 10.50~11.60 1 15.6 39.1 5 P6KE12A-AT P6KE12CA-AT 10.20 11.40~12.60 1 16.7 36.5 5 P6KE13A-AT P6KE13CA-AT 11.10 12.40~13.70 1 18.2 33.5 1 P6KE15A-AT P6KE15CA-AT 12.80 14.30~15.80 1 21.2 28.8 1 P6KE16A-AT P6KE16CA-AT 13.60 15.20~16.80 1 22.5 27.1 1 P6KE18A-AT P6KE18CA-AT 15.30 17.10~18.90 1 25.2 24.2 1 P6KE20A-AT P6KE20CA-AT 17.10 19.00~21.00 1 27.7 22.0 1 P6KE22A-AT P6KE22CA-AT 18.80 20.90~23.10 1 30.6 19.9 1 P6KE24A-AT P6KE24CA-AT 20.50 22.80~25.20 1 33.2 18.4 1 P6KE27A-AT P6KE27CA-AT 23.10 25.70~28.40 1 37.5 16.3 1 P6KE30A-AT P6KE30CA-AT 25.60 28.50~31.50 1 41.4 14.7 1 P6KE33A-AT P6KE33CA-AT 28.20 31.40~34.70 1 45.7 13.3 1 P6KE36A-AT P6KE36CA-AT 30.80 34.20~37.80 1 49.9 12.2 1 P6KE39A-AT P6KE39CA-AT 33.30 37.10~41.00 1 53.9 11.3 1 P6KE43A-AT P6KE43CA-AT 36.80 40.90~45.20 1 59.3 10.3 1 Revision:TVS-P6KE-AT SERIES-001(A2) 2/6 http://brightking.yageo.com P6KE-AT SERIES Electrical Characteristics (TA=25℃) Part Number Reverse Breakdown Stand-Off Voltage Voltage @IT Test Current Maximum Peak Reverse Clamping Pulse Leakage Voltage @IPP Current @VRWM Unidirectional Bidirectional VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) P6KE47A-AT P6KE47CA-AT 40.20 44.70~49.40 1 64.8 9.4 1 P6KE51A-AT P6KE51CA-AT 43.60 48.50~53.60 1 70.1 8.7 1 P6KE56A-AT P6KE56CA-AT 47.80 53.20~58.80 1 77.0 7.9 1 P6KE62A-AT P6KE62CA-AT 53.00 58.90~65.10 1 85.0 7.2 1 P6KE68A-AT P6KE68CA-AT 58.10 64.60~71.40 1 92.0 6.6 1 P6KE75A-AT P6KE75CA-AT 64.10 71.30~78.80 1 103.0 5.9 1 P6KE82A-AT P6KE82CA-AT 70.10 77.90~86.10 1 113.0 5.4 1 P6KE91A-AT P6KE91CA-AT 77.80 86.50~95.50 1 125.0 4.9 1 P6KE100A-AT P6KE100CA-AT 85.50 95.00~105.00 1 137.0 4.5 1 P6KE110A-AT P6KE110CA-AT 94.00 105.00~116.00 1 152.0 4.0 1 P6KE120A-AT P6KE120CA-AT 102.00 114.00~126.00 1 165.0 3.7 1 P6KE130A-AT P6KE130CA-AT 111.00 124.00~137.00 1 179.0 3.4 1 P6KE150A-AT P6KE150CA-AT 128.00 143.00~158.00 1 207.0 2.9 1 P6KE160A-AT P6KE160CA-AT 136.00 152.00~168.00 1 219.0 2.8 1 P6KE170A-AT P6KE170CA-AT 145.00 162.00~179.00 1 234.0 2.6 1 P6KE180A-AT P6KE180CA-AT 154.00 171.00~189.00 1 246.0 2.5 1 P6KE200A-AT P6KE200CA-AT 171.00 190.00~210.00 1 274.0 2.2 1 P6KE220A-AT P6KE220CA-AT 185.00 209.00~231.00 1 328.0 1.9 1 P6KE250A-AT P6KE250CA-AT 214.00 237.00~263.00 1 344.0 1.8 1 P6KE300A-AT P6KE300CA-AT 256.00 285.00~315.00 1 414.0 1.5 1 P6KE350A-AT P6KE350CA-AT 300.00 332.00~368.00 1 482.0 1.3 1 P6KE400A-AT P6KE400CA-AT 342.00 380.00~420.00 1 548.0 1.1 1 P6KE440A-AT P6KE440CA-AT 376.00 418.00~462.00 1 602.0 1.04 1 P6KE480A-AT P6KE480CA-AT 408.00 456.00~504.00 1 658.0 0.9 1 P6KE510A-AT P6KE510CA-AT 434.00 485.00~535.00 1 698.0 0.9 1 P6KE530A-AT P6KE530CA-AT 450.00 503.50~556.50 1 725.0 0.8 1 P6KE540A-AT P6KE540CA-AT 459.00 513.00~567.00 1 740.0 0.8 1 P6KE550A-AT P6KE550CA-AT 467.00 522.50~577.50 1 760.0 0.8 1 P6KE600A-AT P6KE600CA-AT 510.00 570.00~630.00 1 828.0 0.75 1 Revision:TVS-P6KE-AT SERIES-001(A2) 3/6 http://brightking.yageo.com P6KE-AT SERIES Ratings and Characteristic Curves (T A=25℃ unless otherwise noted) Figure 1. Peak Pulse Power Rating Curve Figure 2. Pulse Derating Curve Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage % PPPM - Peak Pulse Power (kW) 100 10 1 0.1 0.1 1 10 100 1000 100 75 50 25 0 10000 0 td-Pulse Width (µs) Bi-directional V=0V 1000 Cj (pF) IPPM - Peak Pulse Current, %IRSM 200 Uni-directional V=0V Uni-directional @VR 50 td 0 100 1 1.0 2.0 3.0 Bi-directional @VR 10 10/1000µs Waveform as defined by R.E.A 0 4.0 TJ=25℃ f=1.0MHz Vsig=50mVp-p 1 Figure 5. Steady State Power Dissipation Derating Curve IFSM - Peak Forward Surve Current (A) 5 4 3 L= 0.375″(9.5mm) Lead Lengths 1 0 50 75 100 125 100 1000 Figure 6. Maximum Non-Repetitive Forward Surge Current Uni-Directional Only 6 25 10 VBR-Reverse Breakdown Voltage (V) t-Time (ms) Steady State Power Dissipation (W) 150 175 10000 Half Value IPPM (IPPM/2) 0 100 125 Peak Value IPPM 100 2 75 Figure 4. Typical Junction Capacitance TJ=25℃ Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM tr=10µs 50 TA-Ambient Temperature (℃) Figure 3. Pulse Waveform 150 25 150 175 200 TL-Lead Temperature (℃) 120 100 80 60 40 20 0 1 10 100 Number of Cycles at 60Hz Revision:TVS-P6KE-AT SERIES-001(A2) 4/6 http://brightking.yageo.com P6KE-AT SERIES Recommended Soldering Conditions Wave Soldering 300 Preheating Maximum Wave 265℃ Soldering Cooling Temperature (℃) 250 200 150 100 50 0 0 0.5 1 1.5 2 2.5 3 3.5 4 Time (minutes) Item Conditions Peak Temperature 265℃ Dipping Time 10 seconds Soldering 1 time Marking Code Cathode Band YXXX Logo P6KE6.8A YXXX Internal control code Logo P6KE6.8CA Marking Code Internal control code Marking Code Part Number Code P6KE XXX C A AT / XXXX Package Code B: Box package TR13: Reel package Internal Control Code 5% VBR Voltage Tolerance Bidirectional VBR Voltage Series Code Revision:TVS-P6KE-AT SERIES-001(A2) 5/6 http://brightking.yageo.com P6KE-AT SERIES Ordering Code for Different Package Box package: Add suffix “/B” at the end of the part number, such as P6KEXXXCA-AT/B Reel package: Add suffix “/TR13” at the end of the part number, such as P6KEXXXCA-AT/TR13 Packaging Tape Z ±5° A E Symbol Dimension (mm) A 5.0±0.5 B 53.0±1.0 Z 1.2Max. T 6.0±0.4 E 0.8Max. L1-L2 1.0Max. L 250.0±5.0 W 75.0±5.0 H 114.0±5.0 L1 B L2 T E Box H L W Quantity: 2000PCS Reel D0 D 330.0±3.0 D0 16.4±2.0 D1 86.0±2.0 W1 76.0±3.0 D1 D Revision:TVS-P6KE-AT SERIES-001(A2) W1 Quantity: 4000PCS 6/6 http://brightking.yageo.com
