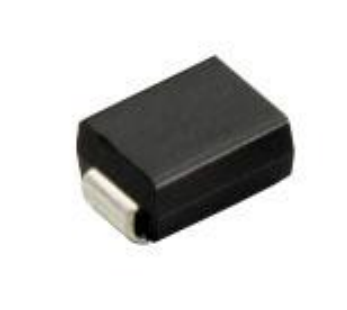

P2300SB

PXXXXSX SERIES Thyristor Surge Suppressors (TSS) Data Sheet Description DO-214AA Thyristor solid state protection thyristor protect telecommunications equipment such as modems, line cards, fax machines, and other CPE. P Series devices are used to enable equipment to meet various regulatory requirements including GR 1089, ITU K.20, K.21 and K.45, IEC 60950, UL 60950, and TIA-968 (formerly known as FCC Part 68). Features Compared to surge suppression using other technologies, P Series devices offer absolute surge protection regardless of the surge current available and the rate of applied voltage (dv/dt). P Series devices: ■ Cannot be damaged by voltage ■ Eliminate hysteresis and heat dissipation typically found with clamping devices ■ Eliminate voltage overshoot caused by fast-rising transients ■ Are non-degenerative ■ Will not fatigue ■ Have low capacitance, making them ideal for high-speed transmission equipment ■ Meets MSL level 1, per J-STD-020 Electrical Parameters Parameter Definition VDRM Peak Off-state Voltage – maximum voltage that can be applied while maintaining off state VS Switching Voltage – maximum voltage prior to switching to on state VT On-state Voltage – maximum voltage measured at rated on-state current IDRM Leakage Current – maximum peak off-state current measured at VDRM IS Switching Current – maximum current required to switch to on state IT On-state Current – maximum rated continuous on-state current IH Holding Current – typical current required to maintain on state CO Off-state Capacitance – typical capacitance measured in off state IPP Peak Pulse Current – maximum rated peak impulse current Revision:TSS-PXXXXSX SERIES-001(A1) 1/6 http://brightking.pulseelectronics.com PXXXXSX SERIES Electrical Characteristics Part Number VDRM (V) VS (V) VT (V) IDRM (μA) IS (mA) IT (A) IH (mA) CO (pF) Marking P0080SA 6 25 4 5 800 2.2 50 50 P008A P0080SB 6 25 4 5 800 2.2 50 70 P008B P0080SC 6 25 4 5 800 2.2 50 100 P008C P0300SA 25 40 4 5 800 2.2 50 70 P03A P0300SB 25 40 4 5 800 2.2 50 70 P03B P0300SC 25 40 4 5 800 2.2 50 100 P03C P0640SA 58 77 4 5 800 2.2 150 50 P06A P0640SB 58 77 4 5 800 2.2 150 60 P06B P0640SC 58 77 4 5 800 2.2 150 100 P06C P0720SA 65 88 4 5 800 2.2 150 50 P07A P0720SB 65 88 4 5 800 2.2 150 60 P07B P0720SC 65 88 4 5 800 2.2 150 100 P07C P0900SA 75 98 4 5 800 2.2 150 45 P09A P0900SB 75 98 4 5 800 2.2 150 55 P09B P0900SC 75 98 4 5 800 2.2 150 90 P09C P1100SA 90 130 4 5 800 2.2 150 45 P11A P1100SB 90 130 4 5 800 2.2 150 55 P11B P1100SC 90 130 4 5 800 2.2 150 90 P11C P1300SA 120 160 4 5 800 2.2 150 45 P13A P1300SB 120 160 4 5 800 2.2 150 55 P13B P1300SC 120 160 4 5 800 2.2 150 90 P13C P1500SA 140 180 4 5 800 2.2 150 40 P15A P1500SB 140 180 4 5 800 2.2 150 60 P15B P1500SC 140 180 4 5 800 2.2 150 85 P15C P1800SA 170 220 4 5 800 2.2 150 40 P18A P1800SB 170 220 4 5 800 2.2 150 60 P18B P1800SC 170 220 4 5 800 2.2 150 85 P18C P2300SA 190 260 4 5 800 2.2 150 35 P23A Revision:TSS-PXXXXSX SERIES-001(A1) 2/6 http://brightking.pulseelectronics.com PXXXXSX SERIES Part Number VDRM (V) VS (V) VT (V) IDRM (μA) IS (mA) IT (A) IH (mA) CO (pF) Marking P2300SB 190 260 4 5 800 2.2 150 55 P23B P2300SC 190 260 4 5 800 2.2 150 80 P23C P2600SA 220 300 4 5 800 2.2 150 35 P26A P2600SB 220 300 4 5 800 2.2 150 50 P26B P2600SC 220 300 4 5 800 2.2 150 80 P26C P3100SA 275 350 4 5 800 2.2 150 30 P31A P3100SB 275 350 4 5 800 2.2 150 45 P31B P3100SC 275 350 4 5 800 2.2 150 65 P31C P3500SA 320 400 4 5 800 2.2 150 30 P35A P3500SB 320 400 4 5 800 2.2 150 40 P35B P3500SC 320 400 4 5 800 2.2 150 65 P35C Notes: ·All measurements are made at an ambient temperature of 25℃. IPP applies to -40℃ through +85℃ temperature range. ·Off-state capacitance(CO) is measured at 1 MHz with a 2V bias and is typical value. ·For surge ratings, see table below. Surge Ratings Series IPP 2×10μs (A) IPP 8×20μs (A) IPP 10×160μs (A) IPP 10×560μs (A) IPP 10×1000μs (A) VPP 10×1000μs (V) ITSM 60Hz (A) di/dt (A/μs) A 150 150 90 50 45 2000 20 500 B 250 250 150 100 80 4000 30 500 C 500 400 200 150 100 6000 50 500 Thermal Considerations Package DO-214AA/SMB Revision:TSS-PXXXXSX SERIES-001(A1) Symbol Parameter Value Unit TJ Operating Junction Temperature -40 to +125 ℃ TS Storage Temperature Range -40 to +150 ℃ RθJA Junction to Ambient on printed circuit 90 ℃/W 3/6 http://brightking.pulseelectronics.com PXXXXSX SERIES Part Number Code and Marking P X X X X S X XXXX Voltage Logo Package Series Code Date Code P008C Device Marking Code Surge Current Characteristics Curves Figure 1. V-I Characteristics Figure 2. tr × td Pulse Wave-form +I IPP - Peak Pulse Current, %IPP tr = rise time to peak value td = decay time to half value IT IS IH IDRM -V +V VT VDRM VS Waveform = tr × td 50 0 -I Half Value 0 td tr t-Time (µs) Figure 3. Normalized Vs Change versus Junction Temperature Figure 4. Normalized DC Holding Current versus Case Temperature 2.0 16 14 12 10 1.8 Ratio of IH/IH(TC=25℃) Percent of VS, Change - % Peak Value 100 8 6 25℃ 4 2 0 -4 1.6 1.4 1.2 25℃ 1.0 0.8 0.6 -6 0.4 -40 -20 -8 -40 -20 0 20 40 60 80 100 120 140 160 20 40 60 80 100 120 140 160 TC-Case Temperature (℃) TJ-Junction Temperature (℃) Revision:TSS-PXXXXSX SERIES-001(A1) 0 4/6 http://brightking.pulseelectronics.com PXXXXSX SERIES Recommended Soldering Conditions Reflow Soldering Critical Zone TL to TP tP TP Ramp-up TL tL Temperature TS max TS min Ramp-down tS Preheat 25 t 25℃ to Peak Time Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) ( tS) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) Ramp-down Rate 6℃/second max. Time 25℃ to Peak Temperature Revision:TSS-PXXXXSX SERIES-001(A1) 20-40 seconds 8 minutes max. 5/6 http://brightking.pulseelectronics.com PXXXXSX SERIES Dimensions (SMB/DO-214AA) Millimeters Inches Symbol D1 D L Min. Max. Min. Max. L 4.06 4.70 0.160 0.185 D 3.30 3.94 0.130 0.155 D1 1.90 2.20 0.075 0.086 T 5.21 5.59 0.205 0.220 T1 0.76 1.52 0.030 0.060 d - 0.203 - 0.008 H 1.95 2.65 0.077 0.104 H d T1 T Packaging Tape P0 P1 P2 D0 B T E F W B0 D1 A A K0 B SECTION B-B A0 SECTION A-A Symbol Dimension (mm) W 12.00±0.30 P0 4.00±0.10 P1 8.00±0.10 P2 2.00±0.10 D0 Φ1.55±0.05 D1 Φ1.55±0.05 E 1.75±0.10 F 5.50±0.10 A0 3.76±0.10 B0 5.69±0.10 K0 2.70±0.10 T 0.25±0.10 D2 Φ330.0±2.0 D3 Φ13.5±0.5 H 2.5±0.5 W1 16.0±1.0 13〃Reel Quantity: 2500PCS P0080SB: 3000PCS Revision:TSS-PXXXXSX SERIES-001(A1) 6/6 http://brightking.pulseelectronics.com
