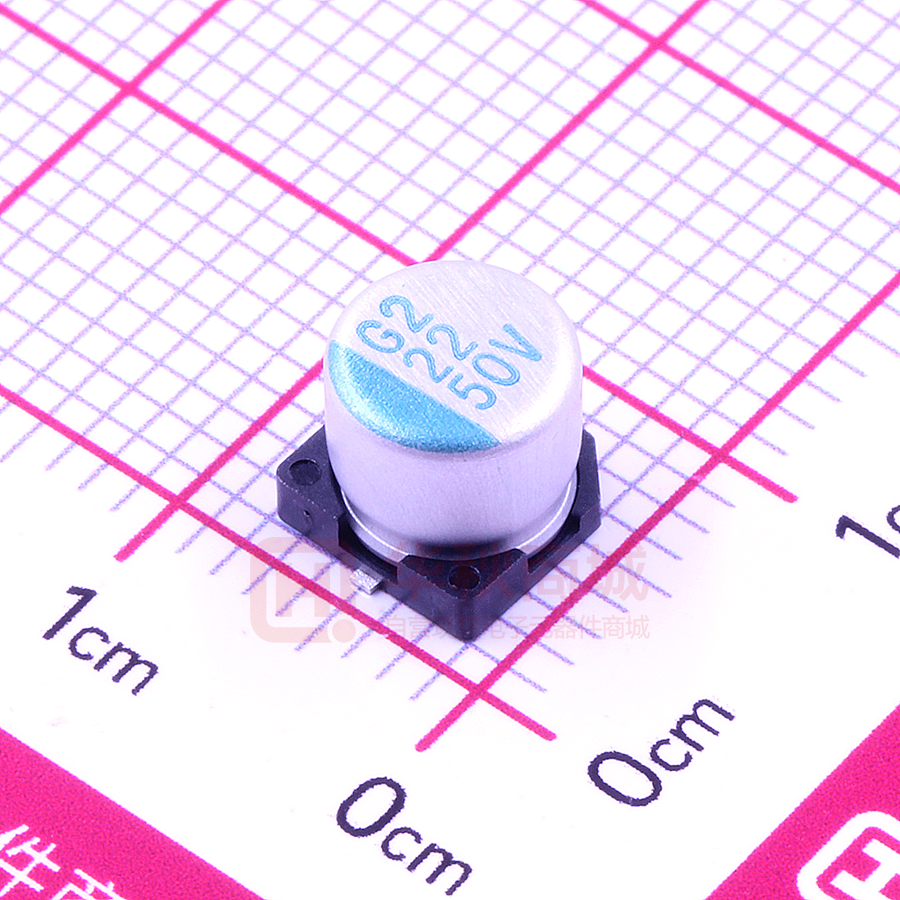

HBV220M1HTR-0606

Conductive Polymer Hybrid Capacitors HBV HBV Series Features ‧105℃, 10,000 hours assured ‧Low ESR and High ripple current ‧RoHS Compliance Marking color: Dark Green Specifications Items Category Temperature Range Capacitance Tolerance Performance -55℃ ~ +105℃ ±20% Leakage Current (at 20℃) I = 0.01CV or 3 (μA) whichever is greater (after 2 minutes) Where, C = rated capacitance in μF, V = rated DC working voltage in V Tanδ (at 120Hz, 20℃) See Standard Ratings Shelf Life Test Capacitance Change Tanδ ESR Leakage Current Resistance to Soldering Heat (Please refer to page 25 for reflowsoldering conditions) Ripple Current and Frequency Multipliers Frequency (Hz) 120 ≦ f < 1k 1k ≦ f < 10k 10k ≦ f < 100k 100k ≦ f < 500k Multiplier 0.1 0.3 0.6 1.0 Diagram of Dimensions Lead Spacing and Diameter B±0.2 φD±0.5 Within ±10% of initial value Within specified value Within specified value Within specified value A±0.2 P C±0.2 Marking φD = 6.3 mm 83 A5 56 25V L A B C W P ± 0.2 6.3 5.8 ± 0.3 6.6 6.6 7.2 0.5 ~ 0.8 2.0 6.3 7.7 ± 0.3 6.6 6.6 7.2 0.5 ~ 0.8 2.0 8 10.0 ± 0.5 8.3 8.3 9.0 0.7 ~ 1.1 3.1 8 12.0 ± 0.5 8.3 8.3 9.0 0.7 ~ 1.1 3.1 10 10.0 ± 0.5 10.3 10.3 11.0 0.7 ~ 1.3 4.7 10 12.5 ± 0.5 10.3 (*): For 6.3φ is 0.4 max. 10.3 11.0 0.7 ~ 1.3 4.7 W 0.3 max. L 0.5 max.(*) Unit: mm φD φD = 8 ~ 10 mm Date code Rated cap. Rated voltage & Series code Negative polarity A5 HBV 270 35V Date code Series name Rated cap. Rated voltage All product specifications in the catalog are subject to change without notice. (CAT. 2018E1) All product specifications in the catalog are subject to change without notice. (CAT. 2018E1) 83 Hybrid Test Time 10,000 Hrs Capacitance Change Within ±30% of initial value Tanδ Less than 200% of specified value ESR Less than 200% of specified value Leakage Current Within specified value * The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied with rated ripple current for 10,000 hours at 105℃. * After storage for 1,000 hours at 105 ± 2℃ with no voltage applied and then being stabilized at 20℃, capacitors shall meet the limits specified in Endurance. (With voltage treatment) Endurance Negative polarity (at 120Hz, 20℃) HBV Conductive Polymer Hybrid Capacitors Dimension: φD×L(mm) Ripple Current: mA/rms at 100k Hz, 105℃ Standard Ratings Rated Volt. (V) Surge Voltage (V) 16V (1C) 25V (1E) 35V (1V) 50V(1H) Hybrid 63V(1J) 80V(1K) 18.4 28.8 40.3 57.5 72.5 92.0 Capacitance (μF) Size φD×L(mm) Tanδ (120Hz, 20℃) LC (μA) ESR (mΩ/at 100kHz, 20℃ max.) Rated R. C. (mA/rms at 100k Hz, 105℃) 1,300 82 6.3 × 5.8 0.16 13.1 50 150 6.3 × 7.7 0.16 24 30 2,000 270 8 × 10 0.16 43.2 27 2,300 470 10 × 10 0.16 75.2 20 2,500 56 6.3 × 5.8 0.14 14 50 1,300 100 6.3 × 7.7 0.14 25 30 2,000 220 8 × 10 0.14 55 27 2,300 330 10 × 10 0.14 82.5 20 2,500 330 10 × 12.5 0.14 82.5 16 2,900 0.12 9.5 60 1,300 27 6.3 × 5.8 68 6.3 × 7.7 0.12 23.8 35 2,000 150 8 × 10 0.12 52.5 27 2,300 270 10 × 10 0.12 94.5 20 2,500 22 6.3 × 5.8 0.10 11 80 1,100 33 6.3 × 7.7 0.10 16.5 40 1,600 68 8 × 10 0.10 34 30 1,800 50 100 10 × 10 0.10 10 6.3 × 5.8 0.08 6.3 22 6.3 × 7.7 0.08 13.9 80 1,500 27 8 × 12 0.08 17 40 1,700 220μF HBV 221 Series Name Capacitance 2,000 1,000 33 8 × 10 0.08 20.8 40 1,700 56 10 × 10 0.08 35.3 30 1,800 22 8 × 10 0.08 17.6 45 1,550 33 10 × 10 0.08 26.4 36 1,700 Part Numbering System HBV Series 28 120 ±20% M Capacitance Tolerance 25V 1E Rated Voltage Carrier Tape TR Package Type 8φ×10L - Terminal Type 0810 Case size Pb-free and PET coating case Lead Wire and Coating Type Note: For more details, please refer to “Part Numbering System (SMD Type)” on page 15. 84 84 All product specifications in the catalog are subject to change without notice. (CAT. 2018E1) All product specifications in the catalog are subject to change without notice. (CAT. 2018E1) Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Lelon: HBV680M1HTR-0810 HBV330M1HTR-0608 HBV271M1VTR-1010 HBV331M1ETR-1010 HBV221M1ETR-0810 HBV220M1JTR-0608 HBV151M1VTR-0810 HBV100M1JTR-0606 HBV101M1HTR-1010 HBV330M1KTR-1010 HBV101M1ETR-0608 HBV680M1VTR-0608 HBV220M1HTR-0606
