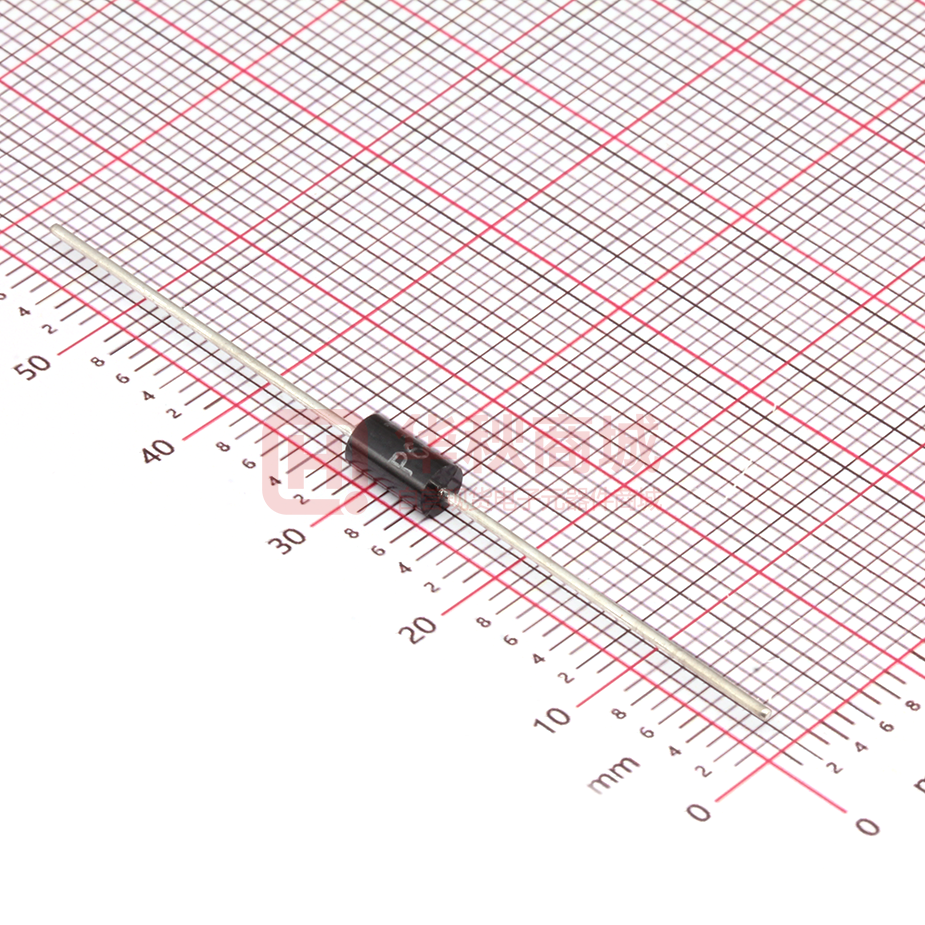

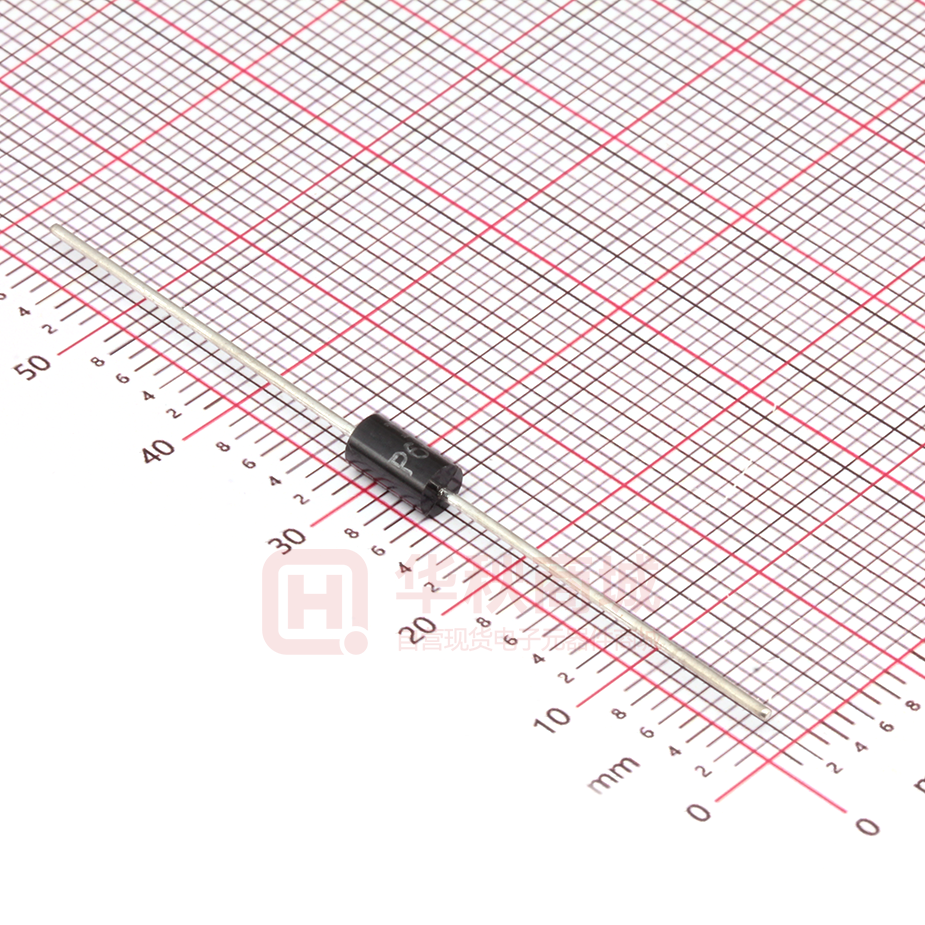

P6KE180CA

P6KE Series Breakdown Voltage: 6.8 to 600 V Peak Pulse Power: 600 W Axial Lead Transient Voltage Suppressors Features ● ● ● ● ● ● ● DO-15 Glass passivated chip 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 % Low leakage Uni and Bidirectional unit Excellent clamping capability Very fast response time RoHS compliant ● ● ● ● [ ] [ ] 0.300 7.63 0.230 5.85 Mechanical Data ● DIA. 0.033 0.84 0.028 0.71 1.000 [25.40] MIN Case: Molded plastic Epoxy: UL 94V-0 rate flame retardant Lead: Solderable per MIL-STD-202, method 208 guranteed Polarity: Color band denotes cathode end except Bipolar Mounting position: Any DIA. 0.142 3.61 0.102 2.60 [ ] 1.000 [25.40] MIN Dimensions : inch [ mm ] Maximum Ratings(TA=25℃ unless otherwise noted) Parameter Peak power dissipation with a 10/1000μs waveform(1) Peak pulse current with a 10/1000μs waveform(1) Power dissipation on infinite heatsink at TL = 75 °C Peak forward surge current, 8.3 ms single half sine-wave unidirectional only(2) Maximum instantaneous forward voltage at 50 A for unidirectional only(3) Operating junction and storage temperature range Symbol PPP Value 600 Unit W IPP See Next Table A PD 5.0 W IFSM 100 A VF 3.5/5.0 V TJ, TSTG - 55 to +150 °C Note: (1)Non-repetitive current pulse per Fig.5 and derated above TA= 25 °C per Fig.1 (2)Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum (3)VF
