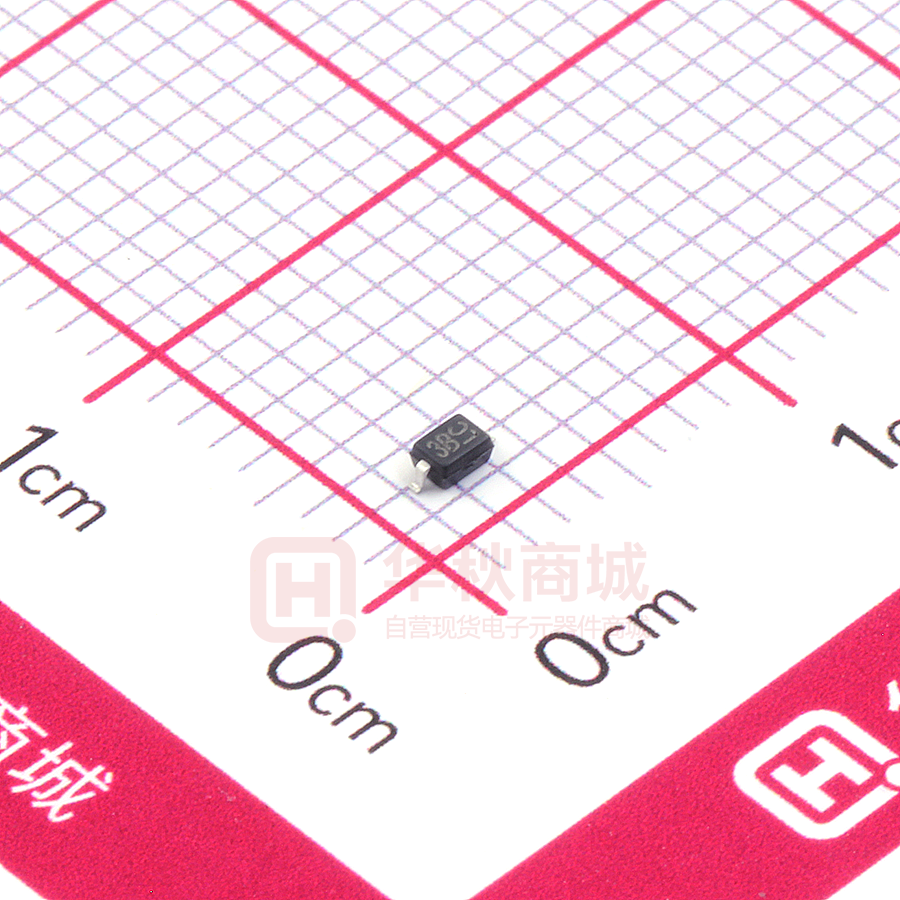

GBLC03C

GBLC03C Features  350 Watts Peak Pulse Power per Line (tp = 8/20μs)  Bidirectional Configuration  Protects One Power or I/O Port  ESD Protection > 40 kilovolts  Low Clamping Voltages  Ultra Low Capacitance: 1.0 pF Typical IEC Compatibility (EN61000-4)  IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)  IEC 61000-4-4 (EFT) 40A (5/50ns)  IEC 61000-4-5(Surge): 20A, 8/20μs Mechanical Characteristics Applications  Molded JEDEC SOD-323 package  Ethernet - 10/100/1000 Base T  Weight 10 milligrams (Approximate)  Cellular Phones  Flammability rating UL 94V-0  Handheld - Wireless Systems  8mm Tape and Reel Per EIA Standard 481  Personal Digital Assistant (PDA)  Device Marking: Marking Code  USB Interface  RoHS Compliant PIN Configuration BIDIRECTIONAL Ver.: A1 2019-02-22 WA 0571-87006810 www.dowosemi.cn 1／4 GBLC03C Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp=8/20μs ) - See Figure 1 PPP 350 Watts Operating Temperature TJ -55 to + 150 °C TSTG -55 to +150 °C Storage Temperature Electrical Parameters (T=25℃) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM Breakdown Voltage @ IT IT Test Current IF Forward Current VF Forward Voltage @ IF Electrical Characteristics PART NUMBER (See Note 1 & Note 2) GBLC03C DEVICE MARKING 3B RATED STAND-OFF VOLTAGE MINIMUM BREAKDOWN VOLTAGE MAXIMUM CLAMPING VOLTAGE (See Fig. 2) MAXIMUM CLAMPING VOLTAGE (See Fig. 2) VWM(Volts) @ 1mA VBR(Volts) @ IP = 1A VC(Volts) @8/20μs VC @ IPP 3.3 4.0 7.0 19.0V @ 20.0A MAXIMUM LEAKAGE CURRENT @VWM Id(μA) 1 TYPICAL CAPACITANCE @0V, 1 MHz C(pF) 1 Note 1: Part numbers with an additional “B” suffix are bidirectional devices Note 2: For Bidirectional Devices Only: Electrical characteristics apply in both directions. Ver.: A1 2019-02-22 WA 0571-87006810 www.dowosemi.cn 2／4 GBLC03C Typical Characteristics Ver.: A1 2019-02-22 WA 0571-87006810 www.dowosemi.cn 3／4 GBLC03C Outline Drawing – SOD323 PACKAGE OUTLINE SOD-323 DIMENSIONS SYMBOL MILLIMETER INCHES MIN MAX MIN MAX A 1.60 1.80 0.063 0.071 B 0.25 0.35 0.010 0.014 C 2.50 2.70 0.098 0.106 D 0.00 1.00 0.000 0.039 E 1.20 1.40 0.047 0.055 F 0.08 0.15 0.003 0.006 L 0.475 REF 0.019REF L1 0.25 0.40 0.010 0.016 H 0.00 0.10 0.000 0.004 Notes 1. Controlling Dimensions in Millimeters. 2. Dimensions are exclusive of mold flash and metal burrs. 3B LC Marking Codes Package Information Qty：3k/Reel Ver.: A1 2019-02-22 WA 0571-87006810 www.dowosemi.cn 4／4
