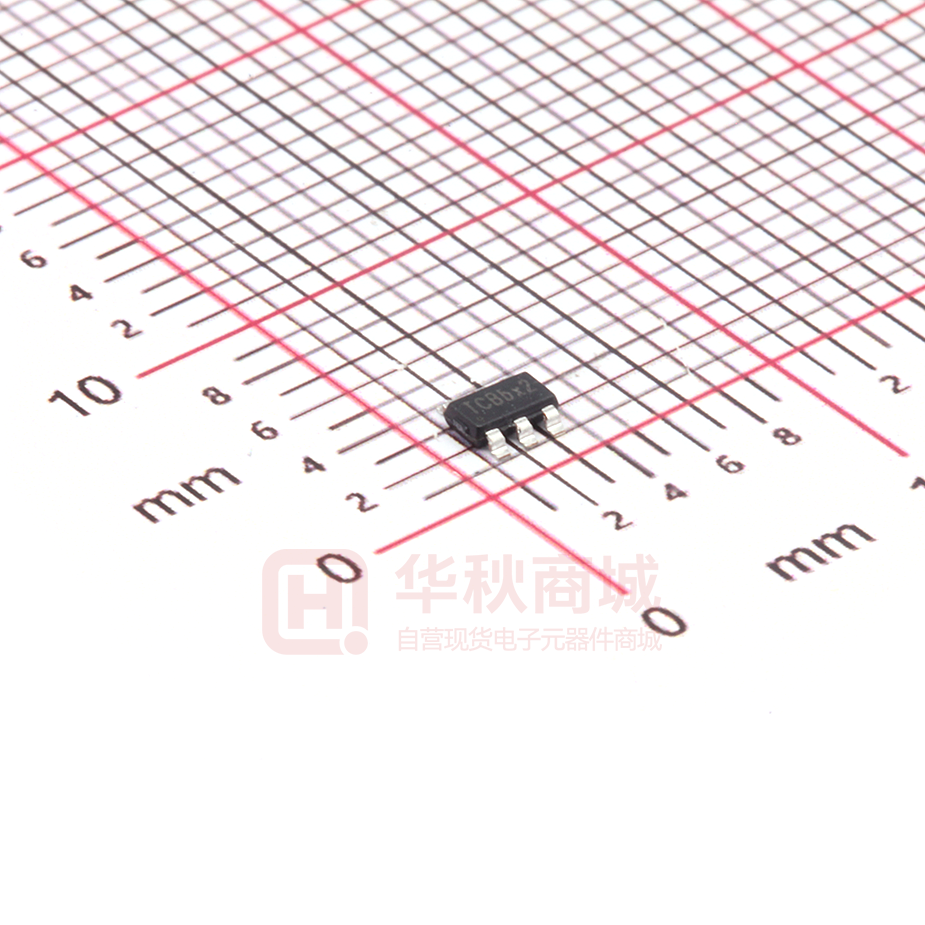

TMI3113

TMI3113 1.0MHz, 3A Peak Synchronous Step-Down Converter FEATURES ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ GENERAL DESCRIPTION The TMI3113 is a 1.0MHz constant frequency, current mode step-down converter. It is ideal for portable equipment requiring high current up to 2.5A from single-cell Lithium-ion batteries while still achieving over 90% efficiency during peak load conditions. The TMI3113 also can run at 100% duty cycle for low dropout operation, extending battery life in portable systems while light load operation provides very low output ripple for noise sensitive applications. The TMI3113 can supply up to 2.5A output load current from a 2.7V to 5.5V input voltage and the output voltage can be regulated as low as 0.6V. The high switching frequency minimizes the size of external components while keeping switching losses low. The internal slope compensation setting allows the device to operate with smaller inductor values to optimize size and provide efficient operation. The TMI3113 is offered in 6-pin, SOT23-6 package, and is available in an adjustable version. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load. High Efficiency: Up to 95% 1.0MHz Constant Frequency Operation 2.5A Continuous, 3A Peak Output Current No Schottky Diode Required 2.7V to 5.5V Input Voltage Range Output Voltage as Low as 0.6V PFM Mode for High Efficiency in Light Load 100% Duty Cycle in Dropout Operation Low Quiescent Current: 50μA Short Circuit Protection Thermal Fault Protection Inrush Current Limit and Soft Start Input overvoltage protection (OVP)
