UM3304
4-Bit Bidirectional Voltage-Level Translator with Auto Direction
Sensing and ±4kV ESD Protection
UM3304 CSP12 1.9×1.4
UM3304QS QFN14 3.5×3.5
UM3304QT QFN16 2.6×1.8
UM3304QA QFN12 1.7×2.0
UM3304UE TSSOP14
General Description
UM3304/UM3304QS/UM3304QT/UM3304QA/UM3304UE is quad channel level translator with
auto direction sensing and ±4kV ESD protection. This 4-channel non-inverting translator uses two
separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any
supply voltage from 1.2V to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply
voltage from 1.65V to 5.5V. This allows for universal low-voltage bidirectional translation
between any of the 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5V voltage nodes. VCCA should not exceed
VCCB. Both I/O ports are auto-sensing; thus, no direction pin is required, making it ideal for data
transfer between low-voltage ASICs/PLDs and higher voltage systems.
The UM3304/UM3304QS/UM3304QT/UM3304QA/UM3304UE operates at a guaranteed data
rate of 20Mbps over the entire specified operating voltage range. Within specific voltage domains,
higher data rates are up to 100Mbps.
When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. The
UM3304/UM3304QS/UM3304QT/UM3304QA/UM3304UE is designed so that the OE input
circuit is tracked to VCCA.
The UM3304 is a quad level translator available in 1.90mm×1.40mm CSP12 bump package while
the UM3304QS is packaged in a 3.50mm×3.50mm QFN14 package, the UM3304QT is packaged
in a 2.60mm×1.80mm QFN16 package, the UM3304QA is packaged in 1.70mm×2.00mm QFN12
package and the UM3304UE is packaged in TSSOP14 package.
Applications
Features
Low-Voltage ASIC Level Translation
Cell-Phone Cradles
Portable POS Systems
Portable Communication Devices
Low-Cost Serial Interfaces
Cell-Phones
GPS
Telecommunications Equipment
1.2V to 3.6V on A Port and 1.65V to 5.5V
on B Port (VCCA≤VCCB)
VCC Isolation Feature – If Either VCC
Input is at GND, All Outputs are in the
High-Impedance State
OE Input Circuit Referenced to VCCA
Low Power Consumption
Latch-Up Performance Exceeds 100mA
±4kV ESD Protection on B Ports
________________________________________________________________________
http://www.union-ic.com Rev.20 Mar.2021
1/18
UM3304
Pin Configurations
Top View
(Top View)
M: Month Code
UM3304
CSP12 1.9×1.4
(Top View)
XX: Week Code
UM3304QS
QFN14 3.5×3.5
(Top View)
XX: Week Code
UM3304QT
QFN16 2.6×1.8
(Top View)
M: Month Code
UM3304QA
QFN12 1.7×2.0
________________________________________________________________________
http://www.union-ic.com Rev.20 Mar.2021
2/18
UM3304
(Top View)
XX: Week Code
UM3304UE
TSSOP14
Ball Mapping for UM3304
Transparent Top View
Pin Description
Pin Name
Function
VCCA
A1
A2
A3
A4
NC
GND
A-Port Supply Voltage. 1.2V≤VCCA≤3.6V and VCCA≤VCCB
Input/Output 1. Referenced to VCCA
Input/Output 2. Referenced to VCCA
Input/Output 3. Referenced to VCCA
Input/Output 4. Referenced to VCCA
Not Connected. (Except for UM3304)
Ground
3-State Output Enable. Pull OE low to place all outputs in 3-state mode.
Referenced to VCCA
Not Connected. (Except for UM3304)
Input/Output 4. Referenced to VCCB
Input/Output 3. Referenced to VCCB
Input/Output 2. Referenced to VCCB
Input/Output 1. Referenced to VCCB
B-Port Supply Voltage. 1.65V≤VCCB≤5.5V
Not Connected. (Only for UM3304QT)
Ground. (Only for UM3304QT)
OE
NC
B4
B3
B2
B1
VCCB
NC
GND
________________________________________________________________________
http://www.union-ic.com Rev.20 Mar.2021
3/18
UM3304
Ordering Information
Part Number
Packaging Type
Marking Code
UM3304
CSP12 1.9×1.4
YAAB
UM3304QS
QFN14 3.5×3.5
UM3304QS
UM3304QT
QFN16 2.6×1.8
3304
UM3304QA
QFN12 1.7×2.0
APA
UM3304UE
TSSOP14
UM3304UE
Shipping Qty
3000pcs/7Inch
Tape & Reel
3000pcs/13Inch
Tape & Reel
3000pcs/7Inch
Tape & Reel
3000pcs/7Inch
Tape & Reel
3000pcs/13Inch
Tape & Reel
Absolute Maximum Ratings (Note 1)
Over operating free-air temperature range (unless otherwise noted)
Symbol
VCCA
VCCB
VI
Parameter
Supply Voltage Range
Supply Voltage Range
Input Voltage Range
A ports
B ports
Value
-0.5 to +4.5
-0.5 to +6.5
-0.5 to +4.5
-0.5 to +6.5
Unit
V
V
V
Voltage Range Applied to Any A ports
-0.5 to +4.5
Output in the High-Impedance or
V
B ports
-0.5 to +6.5
Power-Off State
Voltage Range Applied to Any A ports
-0.5 to (VCCA+0.5)
VO
Output in the High or Low State
V
B ports
-0.5 to (VCCB+0.5)
(Note 2)
IIK
Input Clamp Current
VI0.020
0.022
0.024
A1
0.00
-
0.05
0.000
-
0.002
A3
0.15REF
0.006REF
b
0.15
0.20
0.25
0.006
0.008
0.010
D
1.75
1.80
1.85
0.069
0.071
0.073
E
2.55
2.60
2.65
0.100
0.102
0.104
e
L
0.40BSC
0.30
0.40
0.016BSC
0.50
0.012
0.016
0.020
Land Pattern
NOTES:
1. Compound dimension: 2.60×1.80 ;
2. Unit: mm;
3.General tolerance ±0.05mm unless
specified;
4. The layout is just for reference.
otherwise
Tape and Reel Orientation
________________________________________________________________________
http://www.union-ic.com Rev.20 Mar.2021
15/18
UM3304

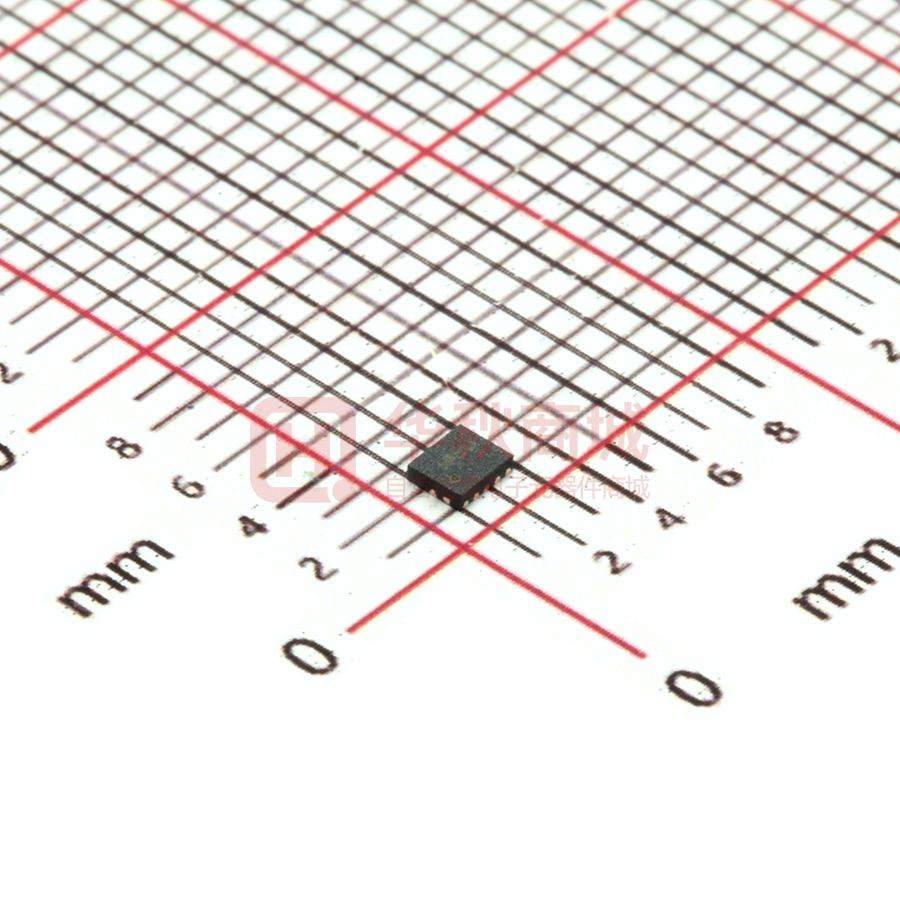

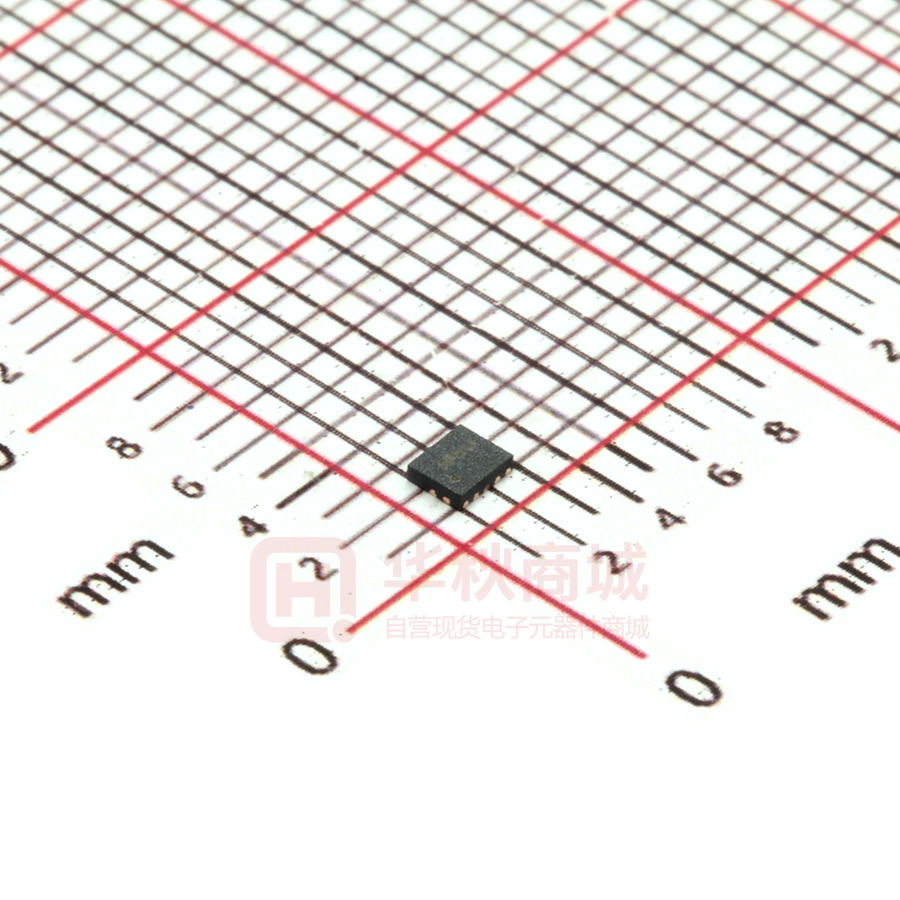

UM3304QA QFN12 1.7×2.0
Outline Drawing
DIMENSIONS
Symbol
MILLIMETERS
INCHES
Min
Typ
Max
Min
Typ
Max
A
>0.50
0.55
0.60
>0.020
0.022
0.024
A1
0.00
-
0.05
0.000
-
0.002
A3
0.15REF
0.006REF
b
0.15
0.20
0.25
0.006
0.008
0.010
D
1.75
1.80
1.85
0.069
0.071
0.073
E
2.55
2.60
2.65
0.100
0.102
0.104
e
L
0.40BSC
0.30
0.40
0.016BSC
0.50
0.012
0.016
0.020
Land Pattern
NOTES:
1. Compound dimension: 1.7×2.0 ;
2. Unit: mm;
3.General tolerance ±0.05mm unless
specified;
4. The layout is just for reference.
otherwise
Tape and Reel Orientation
________________________________________________________________________
http://www.union-ic.com Rev.20 Mar.2021
16/18
UM3304
UM3304UE: TSSOP14
Outline Drawing
DIMENSIONS
Symbol
D
Pin #1 ID
e
c
b
Top View
End View
θ2
0.10
Min
Typ
Max
Min
Typ
Max
-
-
1.20
-
-
0.047
A1
0.05
-
0.15
0.002
-
0.006
A2
0.90
1.00
1.05
0.035
0.039
0.041
A3
0.34
0.44
0.54
0.013
0.017
0.021
b
0.20
-
0.28
0.008
-
0.011
c
0.10
-
0.19
0.004
-
0.007
D
4.86
4.96
5.06
0.191
0.195
0.199
E
4.30
4.40
4.50
0.169
0.173
0.177
E1
6.20
6.40
6.60
0.244
0.252
0.260
0.75
0.018
e
θ1
L1
θ3
INCHES
A
L
L
Side View
MILLIMETERS
0.65BSC
0.45
0.60
0.026BSC
0.024
L1
1.00REF
0.039REF
L2
0.25BSC
0.010BSC
0.030
θ1
0°
-
8°
0°
-
8°
θ2
10°
12°
14°
10°
12°
14°
θ3
10°
12°
14°
10°
12°
14°
Land Pattern
NOTES:
1. Compound dimension: 4.96×4.40;
2. Unit: mm;
3. General tolerance ±0.05mm unless otherwise
specified;
4. The layout is just for reference.
Tape and Reel Orientation
________________________________________________________________________
http://www.union-ic.com Rev.20 Mar.2021
17/18
UM3304
GREEN COMPLIANCE
Union Semiconductor is committed to environmental excellence in all aspects of its
operations including meeting or exceeding regulatory requirements with respect to the use
of hazardous substances. Numerous successful programs have been implemented to
reduce the use of hazardous substances and/or emissions.
All Union components are compliant with the RoHS directive, which helps to support
customers in their compliance with environmental directives. For more green compliance
information, please visit:
http://www.union-ic.com/index.aspx?cat_code=RoHSDeclaration
IMPORTANT NOTICE
The information in this document has been carefully reviewed and is believed to be
accurate. Nonetheless, this document is subject to change without notice. Union assumes
no responsibility for any inaccuracies that may be contained in this document, and makes
no commitment to update or to keep current the contained information, or to notify a
person or organization of any update. Union reserves the right to make changes, at any
time, in order to improve reliability, function or design and to attempt to supply the best
product possible.
Union Semiconductor, Inc
Add: Unit 606, No.570 Shengxia Road, Shanghai 201210
Tel: 021-51093966
Fax: 021-51026018
Website: www.union-ic.com
________________________________________________________________________
http://www.union-ic.com Rev.20 Mar.2021
18/18
