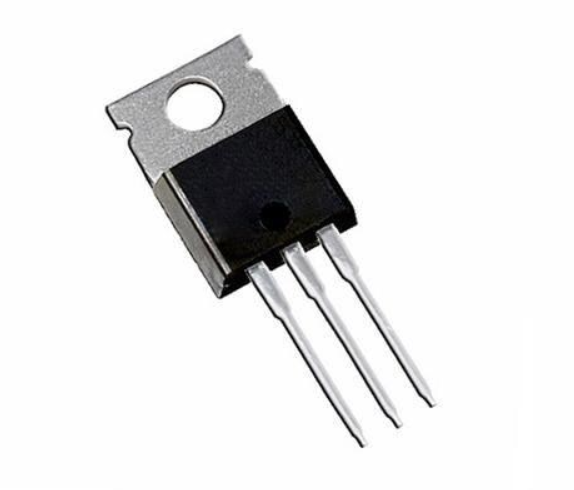

MBR10200CT

MBR101500CT THRU MBR10200CT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 150 to 200 Volts FEATURES TO-220AB 0.185(4.70) 0.175(4.44) 0.154(3.91) DIA 0.148(3.74) 0.415(10.54) MAX 0.057(1.45) 0.051(1.30) 0.113(2.87) 0.103(2.62) 0.145(3.68) 0.135(3.43) 0.410(10.41) 0.390(9.91) PIN 1 2 3 0.635(16.13) 0.625(15.87) 0.560(14.2) 0.530(13.4) 0.350(8.89) 0.330(8.38) 1.148(29.16) 1.118(28.40) 0.160 (4.05) 0.140 (3.55) Forward Current - 10.0 Amperes The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Construction utilizes void-free molded plastic technique Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C,0.25”(6.35mm) from case for 10 seconds 0.110(2.79) 0.100(2.54) 0.590(14.22) 0.530(13.46) MECHANICAL DATA 0.037(0.94) 0.027(0.68) 0.105 (2.67) 0.095 (2.41) 0.105 (2.67) 0.095 (2.41) 0.205 (5.20) 0.195 (4.95) 0.022(0.58) 0.014(0.35) PIN 1 PIN 2 PIN 3 CASE Dimensions in inches and (millimeters) Case: TO-220AB molded plastic body Terminals: Leads solderable per MIL-STD-750, Method 2026 Polarity: As marked Mounting Position: Any Weight:0.080 ounce, 2.24 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. SYMBOLS MBR 10150CT MBR 10200CT UNITS Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current (see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 5.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C VRRM VRMS VDC 150 135 150 200 140 200 VOLTS VOLTS VOLTS Maximum thermal resistance(NOTE 1) Operating junction temperature range Storage temperature range RθJC TJ TSTG MDD Catalog Number Note: 1.Thermal resistance from junction to case I(AV) 10.0 Amps IFSM 125.0 Amps VF 0.95 Volts IR 0.1 15.0 mA 1.5 -50 to +150 -50 to +150 C/W C C RATINGS AND CHARACTERISTIC CURVES MBR10150CT THRU MBR10200CT FIG.2 FORWARD DERATING CURVE 100 10 Average Forward Rectified Current, (A) Instantaneous Forward Current, (A) FIG.1 TYPICAL FORWARD CHARACTERISTICS 10 5.0 1.0 8.0 6.0 4.0 2.0 0 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 0 1.5 Instantaneous Forward Voltage, ( V ) 50 75 100 125 150 Case Temperature, ( °C ) FIG.4 PEAK FORWARD SURGE CURRENT 1000 125 Peak Forward Surge Current, (A) Instantaneous Reverse Leakage Current, (mA) FIG.3 TYPICAL REVERSE CHARACTERISTICS 25 100 10 TJ =100°C 1.0 TJ=25°C 0.1 100 75 50 25 0 0.01 0 20 40 60 80 100 120 140 Percent Of Rated Peak Reverse Voltage, % 1 10 Number Of Cycles At 60Hz The cruve graph is for reference only, can't be the basis for judgment(曲线图仅供参考)! 100
