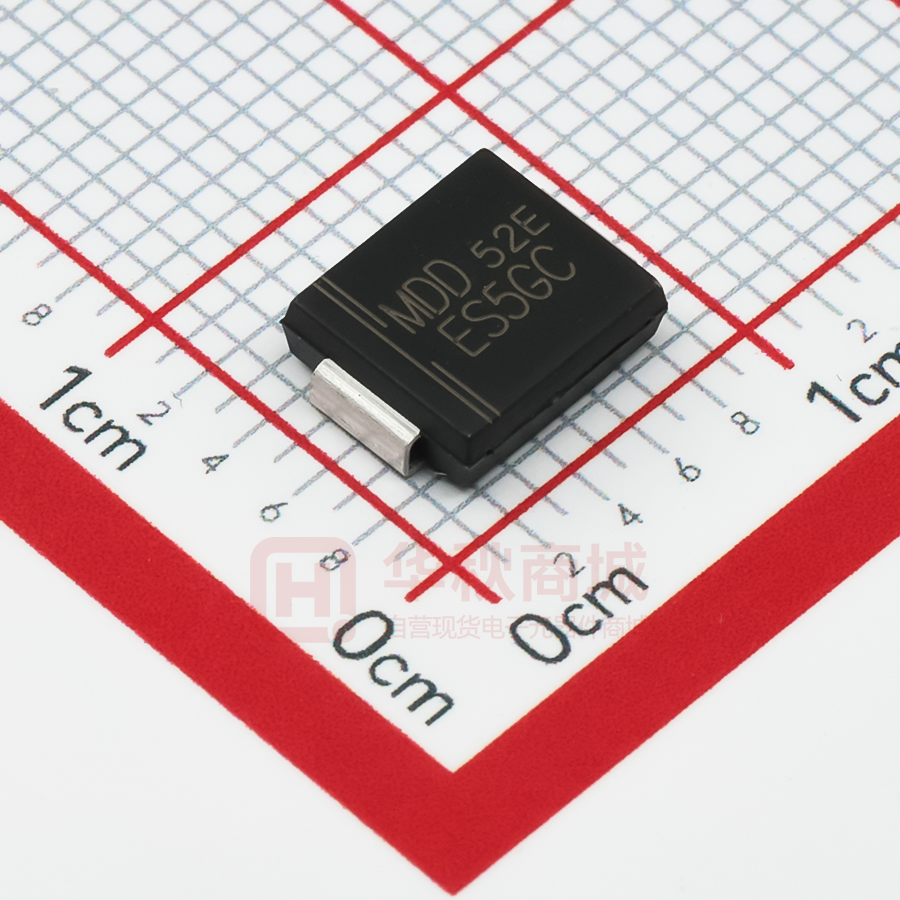

ES5GC

ES5AC THRU ES5JC Reverse Voltage - 50 to 600 Volts Forward Current - 5.0 Ampere SURFACE MOUNT SUPER FAST RECOVERY RECTIFIER Features DO-214AB/SMC  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  For surface mounted applications  Low reverse leakage  Built-in strain relief,ideal for automated  placement High forward surge current capability  High temperature soldering guaranteed: 0.245(6.22) 0.220(5.59) 0.126 (3.20) 0.114 (2.90) 0.280(7.11) 0.260(6.60) 0.012(0.305) 0.006(0.152)  250°C/10 seconds at terminals Glass passivated chip junction 0.103(2.62) 0.079(2.06) 0.060(1.52) 0.030(0.76) Mechanical Data 0.008(0.203)MAX. 0.320(8.13) 0.305(7.75) Case : JEDEC DO-214AB/SMC Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.007 ounce, 0.25 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward r ectified current at T L=100℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 5.0A Maximum DC reverse current TA=25℃ at rated DCblocking voltage TA=125℃ Maximum reverse recovery time (NOTE 1) Typical junction capacitance (NOTE 2) Typical thermal resistance (NOTE 3) Operating junction and storage temperature range SYMBOLS VRRM VRMS VDC I(AV) MDD MDD MDD MDD MDD MDD MDD ES5AC ES5BC ES5CC ES5DC ES5EC ES5GC ES5JC 50 35 50 100 70 100 150 105 150 IFSM VF IR 1 200 140 200 300 210 300 400 280 400 600 420 600 UNITS V V V 5.0 A 120 A 5 100 1.25 1.68 V μA trr 35 ns CJ 50 pF RθJA 35 13 ℃/W RθJC TJ,TSTG - 5 5t o + 1 5 0 ℃ Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3.P.C.B. mounted with 2.0”x2.0”(5.0x5.0cm) copper pad areas DN:T21315A1 http://www.microdiode.com Rev:2021A1 Page :1 ES5AC THRU ES5JC Reverse Voltage - 50 to 600 Volts Forward Current - 5.0 Ampere Ratings And Characteristic Curves Fig.1 Reverse Recovery Time Characteristic And Test Circuit Diagram trr 10 ohm Noninductive 50 ohm Noninductive +0.5 D.U.T + PULSE GENERATOR Note 2 25Vdc approx - 0 -0.25 1 ohm NonInductive OSCILLOSCOPE Note 1 -1.0 Note：1.Rise Time = 7ns, max. Input Impedance = 1megohm,22pF. 2. Ries Time =10ns, max. Source Impedance = 50 ohms. 10ns/div Set time Base for 10ns/div Fig.3 Typical Reverse Characteristics 7.0 300 6.0 100 I R - Reverse Current (μA) Average Forward Current (A) Fig.2 Maximum Average Forward Current Rating 5.0 4.0 3.0 2.0 1.0 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 TJ=125°C 10 TJ=75°C 1.0 TJ=25°C 0.1 175 0 20 Case Temperature (°C) Junction Capacitance (pF) Instaneous Forward Current (A) TJ=25°C 1.0 ES5AC~ES5DC ES5EC/ES5GC ES5JC 0.01 0.5 1.0 1.5 100 TJ=25°C 100 10 TJ=25°C f = 1.0MHz Vsig = 50mVp-p 1 0 80 Fig.5 Typical Junction Capacitance 10 0.001 60 % of PIV.VOLTS Fig.4 Typical Forward Characteristics 0.1 40 2.0 2.5 Instaneous Forward Voltage (V) 0.1 1.0 10 100 Reverse Voltage (V) Peak Forward Surage Current (A) Fig.6 Maximum Non-Repetitive Peak Forward Surage Current 140 120 100 80 60 40 20 00 8.3 ms Single Half Sine Wave (JEDEC Method) 1 10 100 Number of Cycles The curve above is for reference only. http://www.microdiode.com Rev:2021A1 Page :2 ES5AC THRU ES5JC Reverse Voltage - 50 to 600 Volts Forward Current - 5.0 Ampere Packing information P0 unit:mm P1 d E F B A Item Symbol Tolerance SMC Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width A B C d D D1 D2 E F P P0 P1 T W Reel width W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 6.15 8.41 2.42 1.50 330.00 50.00 13.00 1.75 7.50 8.00 4.00 2.00 0.25 16.00 16.50 W P D2 T D1 C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (mm) SMC 13" 3,000 4.0 INNER BOX (mm) REEL DIA, (mm) 190*190*41 330 BOX (pcs) 6000 CARTON SIZE (mm) CARTON (pcs) 365*365*340 42000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout Symbol Unit (mm) A 4.3 0.170 C 4.1 7.9 0.160 0.311 D 3.8 0.150 E 12 0.472 B Unit (inch) Important Notice and Disclaimer Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design,purchase or use. Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application. No license is granted by implication or otherwise under any intellectual property rights of Microdiode Electronics (Jiangsu). Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support devices or systems without express written approval of Microdiode Electronics (Jiangsu). http://www.microdiode.com Rev:2021A1 Page :3
