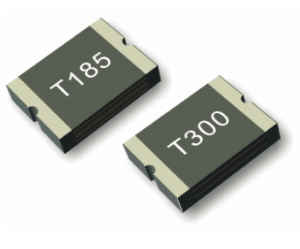

TLC-LSMD100

Revision: A Date: 2018-04-24 Page No.: 1 OF 1 PPTC RESETTALBE 电路保护元器件专业制造商 FUSES LSMD2920 Series Features ◆ Surface Mount Devices ◆ Standard 7555mm(2920mils) footprint ◆ Surface mount packaging for automated assembly ◆ Compatible with Pb and Pb-free solder re flow profiles. ◆ UL(Pending), C-UL(Pending), TUV(Pending) ◆ RoHS，Reach，HF compliance Applications ◆ Computer mother borad,Modem ◆ Industrial controls ◆ IEEE ports ◆ Portable electronics 电气特性 ： 保持电流 跳脱电流 最大电压 最大电流 最大动作时间 消耗功率 电阻范围（Ω） IH, (A) IT, (A) V max, (V) I max, (A) (A) (Sec.) Pd typ, (W) R min, R1 max, TLC-LSMD030 0.30 0.60 60 10 1.5 3.0 1.5 0.600 4.300 TLC-LSMD050 0.50 1.00 60 10 2.5 3.0 1.5 0.180 1.400 TLC-LSMD075 0.75 1.50 33 40 8.0 0.3 1.5 0.100 1.000 TLC-LSMD100 1.00 2.00 33 40 8.0 0.5 1.5 0.065 0.410 TLC-LSMD125 1.25 2.50 33 40 8.0 2.0 1.5 0.050 0.250 TLC-LSMD150 1.50 3.00 33 40 8.0 2.0 1.5 0.035 0.230 TLC-LSMD185 1.85 3.70 33 40 8.0 2.0 1.5 0.030 0.150 TLC-LSMD200 2.00 4.00 16 40 8.0 4.5 1.5 0.025 0.120 TLC-LSMD250 2.50 5.00 16 40 8.0 16.0 1.5 0.018 0.085 TLC-LSMD260 2.60 5.20 16 40 8.0 18.0 1.5 0.014 0.075 TLC-LSMD260/24 2.60 5.20 24 40 8.0 18.0 1.5 0.014 0.075 TLC-LSMD300 3.00 6.00 12 40 8.0 20.0 1.5 0.010 0.055 TLC-LSMD300D 3.00 6.00 24 40 8.0 20.0 1.5 0.010 0.055 TLC-LSMD400 4.00 8.00 12 40 8.0 50.0 1.5 0.007 0.035 TLC-LSMD450 4.50 9.00 16 40 22.5 5.0 1.5 0.005 0.020 TLC-LSMD500 5.00 10.00 12 40 25.0 25.0 1.5 0.005 0.018 P/N TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 Revision: A Date: 2018-04-24 Page No.: 1 OF 2 PPTC RESETTALBE 电路保护元器件专业制造商 FUSES LSMD2920 Series 产品尺寸 (Unit: mm) ： Top and Bottom View Side View A T030 C B D T 030 Manufacturer's Trademark Part Identification A B C D P/N Marking （标识） Min. Max. Min. Max. Min. Max. Min. TLC-LSMD030 T030 6.73 7.98 4.80 5.44 0.75 1.25 0.30 TLC-LSMD050 T050 6.73 7.98 4.80 5.44 0.75 1.25 0.30 TLC-LSMD075 T075 6.73 7.98 4.80 5.44 0.65 1.05 0.30 TLC-LSMD100 T100 6.73 7.98 4.80 5.44 0.65 1.05 0.30 TLC-LSMD125 T125 6.73 7.98 4.80 5.44 0.65 1.05 0.30 TLC-LSMD150 T150 6.73 7.98 4.80 5.44 0.90 1.30 0.30 TLC-LSMD185 T185 6.73 7.98 4.80 5.44 0.90 1.30 0.30 TLC-LSMD200 T200 6.73 7.98 4.80 5.44 0.45 0.85 0.30 TLC-LSMD250 T250 6.73 7.98 4.80 5.44 0.45 0.85 0.30 TLC-LSMD260 T260 6.73 7.98 4.80 5.44 0.45 0.85 0.30 TLC-LSMD260/24 T260 6.73 7.98 4.80 5.44 0.80 1.20 0.30 TLC-LSMD300 T300 6.73 7.98 4.80 5.44 0.45 0.85 0.30 TLC-LSMD300/24 T300 6.73 7.98 4.80 5.44 0.80 1.20 0.30 TLC-LSMD450 T450 6.73 7.98 4.80 5.44 0.80 1.20 0.30 TLC-LSMD400 T400 6.73 7.98 4.80 5.44 0.80 1.20 0.30 TLC-LSMD500 T500 6.73 7.98 4.80 5.44 0.80 1.20 0.30 环境温度与工作电流关系特性曲线 ： P/N 工作环境温度 -40℃ -20℃ 0℃ 25℃ 40℃ 50℃ 60℃ 70℃ 85℃ TLC-LSMD030 0.45 0.40 0.35 0.30 0.25 0.23 0.20 0.17 0.14 TLC-LSMD050 0.76 0.67 0.59 0.50 0.42 0.38 0.33 0.29 0.23 TLC-LSMD075 1.13 1.01 0.88 0.75 0.62 0.56 0.50 0.44 0.34 TLC-LSMD100 1.66 1.47 1.29 1.10 0.91 0.83 0.73 0.64 0.50 TLC-LSMD125 1.89 1.68 1.46 1.25 1.04 0.94 0.83 0.73 0.56 TLC-LSMD150 2.27 2.01 1.76 1.50 1.25 1.13 1.00 0.87 0.74 TLC-LSMD185 2.80 2.47 2.17 1.85 1.54 1.39 1.22 1.07 0.85 TLC-LSMD200 3.02 2.68 2.34 2.00 1.80 1.70 1.54 1.40 1.30 TLC-LSMD250 3.78 3.35 2.93 2.50 2.25 2.13 1.93 1.75 1.63 TLC-LSMD260 3.93 3.48 3.04 2.60 2.34 2.21 2.00 1.82 1.69 TLC-LSMD260/24 3.93 3.48 3.04 2.60 2.34 2.21 2.00 1.82 1.69 TLC-LSMD300 4.53 4.02 3.51 3.00 2.52 2.26 1.99 1.75 1.34 TLC-LSMD300/24 4.53 4.02 3.51 3.00 2.52 2.26 1.99 1.75 1.34 TLC-LSMD450 6.80 6.03 5.27 4.50 4.05 3.83 3.47 3.15 2.93 TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 PPTC RESETTALBE FUSES 电路保护元器件专业制造商 Revision: A Date: 2018-04-24 Page No.: 1 OF 3 LSMD2920 Series 动作电流时间曲线表 ： The Time to Trip curves represent typical performance of a device in a simulated application environment. Actual performance in specific customer applications may differ from these values due to the influence of other variables. 标准包装数量 ： Model Q’t y/Reel TLC-LSMD150/185/ 260/24 / 300D /400 /450 /500 1000pcs TLC-LSMD030~TLC-LSMD125 1500pcs TLC-LSMD200/250/260/300 2000pcs Note: Reel packaging per EIA-481-1 standard 6、Agency Recognition： Caution:Operation beyond the rated voltage or current may result in rupture electrical arcing or flame.Specifications are subject to change without notice. TEL: 86-0769-3892 0554 FAX: 86-0769-8793 2077 E-mail:sales@tlcet.com.cn Address:No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710
