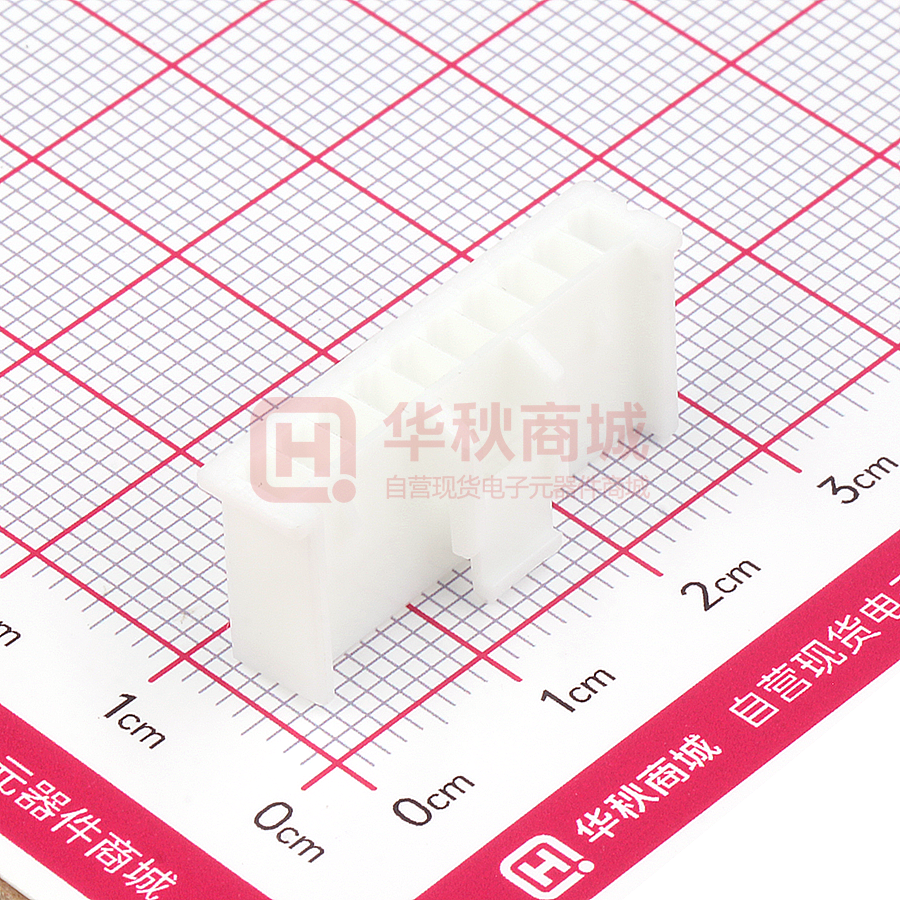

XMP-10V

XM CONNECTOR 2.5mm pitch/Crimp style wire-to-wire connectors Specifications ––––––––––––––––––– The retainer provides added protection against non-insertion or disconnection. • Inner-housing lock • Secondary retainers • Housing lance • Mountable on a variety of panels • Contacts smoothly insert into the housings without colliding with internal obstacles • Current rating: 3A AC, DC max. • Voltage rating: 250V AC, DC max. • Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current) • Contact resistance: Initial value/10m Ω max. After environmental testing/20m Ω max. • Insulation resistance: 500M Ω min. • Withstanding voltage: 1,500V AC/minute • Applicable wire: AWG #28 to #20 0.08 to 0.50mm2 • Applicable panel thickness: 0.5 to 1.8mm * Compliant with RoHS. * Refer to "General Instruction and Notice when using Terminals and Connectors" at the end of this catalog. * Contact JST for details. Standards––––––––––––––––––––––– 0 Recognized E60389 1 Certified LR20812 Panel Layout and Assembly layout (18 circuits) 15.5 7.9 (2 to 12 circuits) 24.4 24.4 ＋0.1 A 0 ＋0.1 B±0.05 Circuits Receptacle housing ＋0.1 0 B±0.05 Panel hole dimensions (mm) General tolerance A +0.1 0 B±0.05 2 XMR-02V 9.3 12.6 3 XMR-03V 10.3 13.6 4 XMR-04V 12.8 16.1 5 XMR-05V 15.3 18.6 6 XMR-06V 17.8 21.1 7 XMR-07V 20.3 23.6 8 XMR-08V 22.8 26.1 9 XMR-09V 25.3 28.6 10 XMR-10V 27.8 31.1 11 XMR-11V 30.3 33.6 12 XMR-12V 32.8 36.1 18 XMR-18V 25.3 28.6 Note: 1. Punch holes in the panel according to the sketch and table shown above. Burrs must be removed. 2. The strength of the panel must be considered when punching two or more holes. 3. The connector must be inserted from the same side as the hole is punched. 1 15.8 11.6±0.05 ＋0.1 0 8.2 5.5±0.05 A  0 Applicable panel thickness (mm) 0.5∼1.8 XM CONNECTOR Contact Pin contact Socket contact 6.5 1.9 1.9 12.5 2.9 2.5 1.3 3.1 2.9 1.3 2.3 2.4 6.3 0.8 0.8 Applicable wire Model No. Q´ty / reel Pin contact Socket contact mm2 AWG # Insulation O.D. (mm) Pin contact Socket contact SXM-001T-P0.6 SXA-001T-P0.6 0.08∼0.33 28∼22 0.8∼1.9 7,000 8,000 *SXM-01T-P0.6 SXA-01T-P0.6 0.22∼0.50 24∼20 1.5∼1.9 7,000 8,000 SXA-001T-P0.6L 0.13∼0.33 26∼22 1.3∼1.9 − 8,000 − Material and Finish Phosphor bronze, tin-plated (reflow treatment) RoHS compliance Note: 1. Contact JST for special products. 2. *Marked product is not UL/CSA approved. Contact Crimping machine Crimp applicator SXM-001T-P0.6 AP-K2N SXM-01T-P0.6 Applicator Dies Crimp applicator with dies MKS-L MK/SXA/M-001-06 APLMK SXA/M001-06 *MKS-SC SC/SXA/M-001-06 APLSC SXA/M001-06 MKS-L MK/SXA/M-01-06 APLMK SXA/M01-06 *MKS-SC SC/SXA/M-01-06 APLSC SXA/M01-06 Note: *Strip-crimp applicator Contact Crimping machine Crimp applicator SXA-001T-P0.6 SXA-01T-P0.6 AP-K2N SXA-001T-P0.6L Applicator Dies Crimp applicator with dies MKS-L MK/SXA/M-001-06 APLMK SXA/M001-06 *MKS-SC SC/SXA/M-001-06 APLSC SXA/M001-06 MKS-L MK/SXA/M-01-06 APLMK SXA/M01-06 *MKS-SC SC/SXA/M-01-06 APLSC SXA/M01-06 MKS-L MK/SXA-001-06L APLMK SXA001-06L *MKS-SC SC/SXA-001-06L APLSC SXA001-06L Contact position location numbers Contact position numbers are stamped Retainer Retainer Receptacle housing 1 2 3 4 5 6 7 8 9 10 11 12 Plug housing 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 12 11 10 9 8 7 6 5 4 3 2 1 9 8 7 6 5 4 3 2 1 18 17 16 15 14 13 12 11 10 2 XM CONNECTOR Receptacle housing (for Pin contact) (2 to 12 circuits) Circuits Model No. 2 XMR-02V XMR-03V XMR-04V XMR-05V XMR-06V XMR-07V XMR-08V XMR-09V XMR-10V XMR-11V XMR-12V XMR-18V A 2.5 B 3 4 5 6 7 10.8 8 20.2 7.9 9 10 (18 circuits) 11 12 A 10.8 15.5 20.2 Q´ty / bag 2.5 8.9 1,000 5.0 9.9 1,000 7.5 12.4 500 10.0 14.9 500 12.5 17.4 500 15.0 19.9 500 17.5 22.4 500 20.0 24.9 500 22.5 27.4 500 25.0 29.9 500 27.5 32.4 500 20.0 24.9 500 Material 2.5 B 18 Dimensions (mm) A B PA 66, UL94V-0 RoHS compliance Note: Receptacle housings without panel lock device are also available for 2, 3, 4, 6, 7, 8 and 9 circuits. Plug housing (for Socket contact) (2 to 12 circuits) Circuits Model No. 2 XMP-02V XMP-03V XMP-04V XMP-05V XMP-06V XMP-07V XMP-08V XMP-09V XMP-10V XMP-11V XMP-12V XMP-18V 3 2.5 A B 4 5 6 11.5 12.0 7 6.3 7.7 8 9 (18 circuits) 10 11 12 Q´ty / bag 2.5 8.8 1,000 5.0 9.8 1,000 7.5 12.3 1,000 10.0 14.8 500 12.5 17.3 500 15.0 19.8 500 17.5 22.3 500 20.0 24.8 500 22.5 27.3 500 25.0 29.8 500 27.5 32.3 500 20.0 24.8 500 A B 18 Dimensions (mm) A B 2.5 Material PA 66, UL94V-0 11.5 12.0 RoHS compliance 13.7 14.6 Retainer Circuits 2 3 4 5 6 A 7 8 2.5 9・18 10 11 2.5 7.8 0.95 12 Model No. XMS-02V XMS-03V XMS-04V XMS-05V XMS-06V XMS-07V XMS-08V XMS-09V XMS-10V XMS-11V XMS-12V Dimensions A (mm) Q´ty / bag 2.5 1,000 5.0 1,000 7.5 1,000 10.0 1,000 12.5 1,000 15.0 1,000 17.5 1,000 20.0 1,000 22.5 1,000 25.0 1,000 27.5 1,000 Material Glass-filled PA 66, UL94V-0 RoHS compliance Note: Commonly used for 9-circuit and 18-circuit housings. 3
