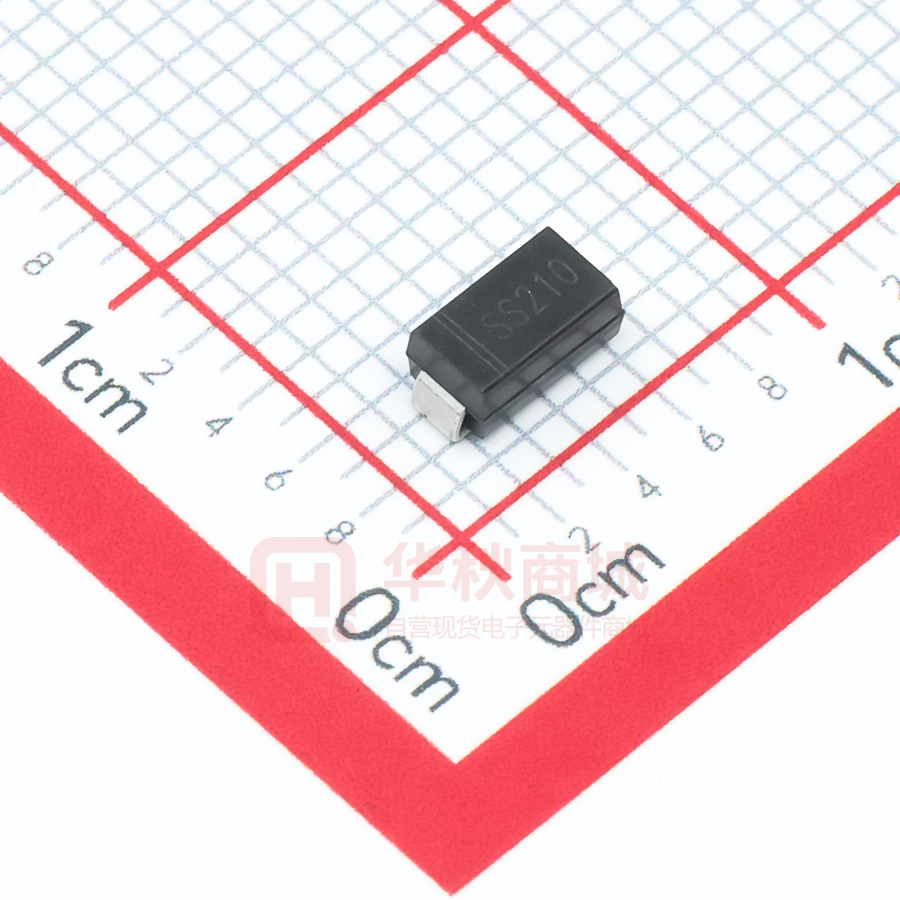

SS210

SS22 THRU SS2200 Reverse Voltage - 20 to 200 Volts Forward Current - 2.0 Ampere SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features PINNING PIN  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 DESCRIPTION 1 Cathode 2 Anode  For surface mounted applications  Metal silicon junction,majority carrier conduction  Low power loss,high efficiency DO-214AC/SMA  Built-in strain relief,ideal for automated placement  High forward surge current capability  High temperature soldering guaranteed: 2 1 250 °C/10 seconds at terminals Mechanical Data      Unipolar Case: JEDEC DO-214AC/SMA molded plastic body Terminals: Solderable per MIL-STD-750,Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight : 0.003 ounce, 0.093 grams Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL(see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 2.0A Maximum DC reverse current at rated DCblocking voltage TA=25℃ TA=125℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction temperature range Storage temperature range SYMBOLS SS22 SS23 SS24 SS25 SS26 SS28 SS210 SS2150 SS2200 UNITS VRMM 20 14 20 30 21 30 40 28 40 50 35 50 60 42 60 80 56 80 100 70 100 150 105 150 200 140 200 V V V VRMS VDC I(AV) 2.0 A IFSM 50 A VF 0.55 IR CJ RJA 5.0 220 0.95 0.2 2.0 180 -50 to +125 TJ 1 mA ℃/W -50 to +150 -50 to +150 TSTG V pF 75.0 Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas www.tw-gmc.com 0.85 0.70 0.5 10.0 ℃ ℃ SS22 THRU SS2200 Reverse Voltage - 20 to 200 Volts Fig.2 Typical Reverse Characteristics Instaneous Reverse Current ( μA) Fig.1 Forward Current Derating Curve Average Forward Current (A) 3.0 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 10 4 T J =75°C 10 2 SS22/SS24 SS26-SS220 10 1 T J =25°C 10 0 0 40 20 60 80 100 Percent of Rated Peak Reverse Voltage（%） Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 500 20 Junction Capacitance ( pF) Instaneous Forward Current (A) T J =100°C 10 3 Case Temperature (°C) 10 1.0 SS22/SS24 SS26/SS28 SS210/SS212 SS215/SS220 0.1 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 T J =25°C 200 100 50 SS22/SS24 20 SS26-SS220 10 1.8 0.1 Transient Thermal Impedance（ °C /W） Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 60 50 40 30 20 10 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles at 60Hz www.tw-gmc.com 1 100 10 Reverse Voltage (V) Instaneous Forward Voltage (V) Peak Forward Surage Current (A) Forward Current - 2.0 Ampere Fig.6- Typical Transient Thermal Impedance 100 10 1 0.01 0.1 1 10 t, Pulse Duration（sec） 2 100 SS22 THRU SS2200 Reverse Voltage - 20 to 200 Volts Forward Current - 2.0 Ampere PACKAGE OUTLINE Plastic surface mounted package; 2 leads A A SMA c a VM e A HE g e E A D E HE c e g max 2.2 4.5 2.7 5.2 0.31 1.6 1.5 min 1.9 4.0 2.3 4.7 0.15 1.3 0.9 max 87 181 106 205 12 63 59 min 75 157 91 185 6 51 35 UNIT mm mil g e A D The recommended mounting pad size 2.4 (94) 1.8 (71) 1.8 (71) 1.8 (71) mm Unit ： (mil) www.tw-gmc.com 3 a 0.3 12
