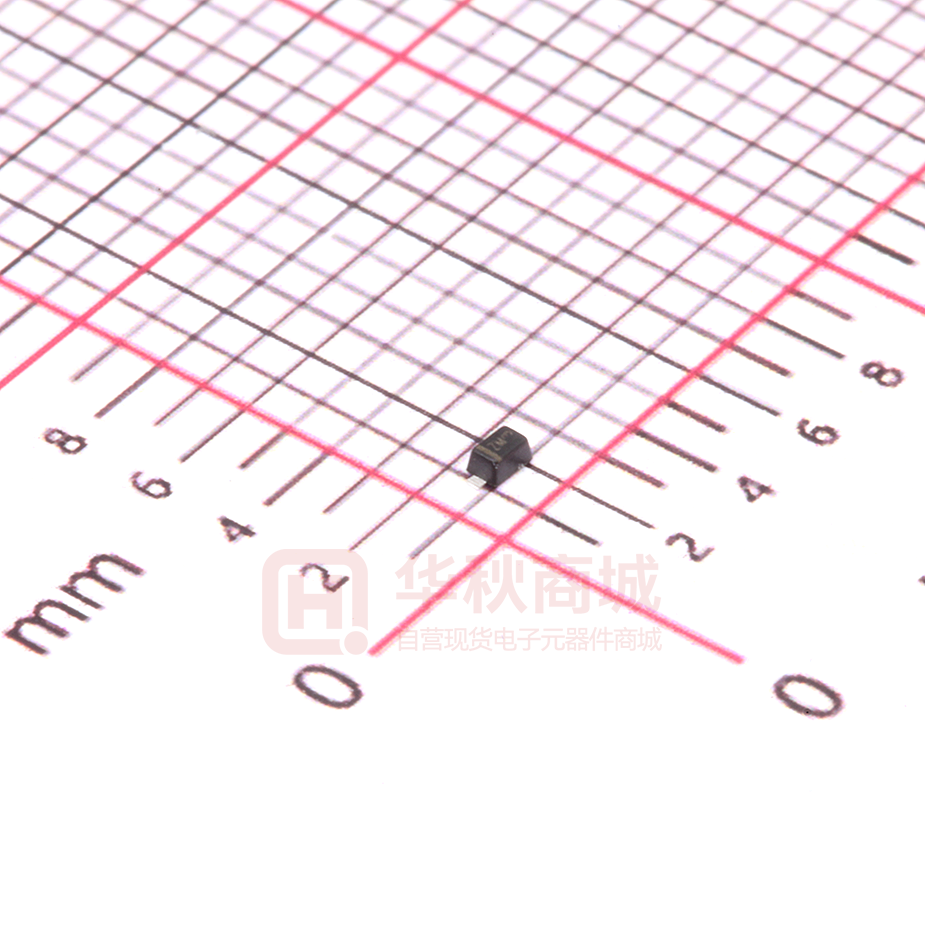

ESD5Z12V

ESD5Z12V Transient Voltage Suppressors for ESD Protection Applications PINNING DESCRIPTION z Cellular phones 1 Cathode z Portable devices 2 Anode z Digital cameras z Power supplies PIN Features 2 1 Top View Simplified outline SOD-523 and symbol z Small Body Outline Dimensions z Low Body Height z Stand−off Voltage: 12V z Peak Power up to 200 Watts @ 8 x 20 _s Pulse z Low Leakage z Response Time is Typically < 1 ns z ESD Rating of Class 3 (> 16 kV) per Human Body Model z IEC61000−4−2 Level 4 ESD Protection z IEC61000−4−4 Level 4 EFT Protection z We declare that the material of product z S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. compliance with RoHS req uirements. Absolute Ratings (Tamb=25°C ) Symbol Parameter Value Units PPP Peak Pulse Power (tp = 8/20μs) 200 W TL Maximum lead temperature for soldering during 10s 260 °C Tstg Storage Temperature Range -55 to +150 °C Top Operating Temperature Range -40 to +125 °C Tj Maximum junction temperature 150 °C ±15 ±8 KV 40 A 16 KV IEC61000-4-2 (ESD) air discharge contact discharge IEC61000-4-4 (EFT) ESD Voltage www.tw-gmc.com Per Human Body Model 1 ESD5Z12V Transient Voltage Suppressors for ESD Protection Electrical Parameter Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM Working Peak Reverse Voltage IR Maximum Reverse Leakage Current @ VRWM IT Test Current VBR Breakdown Voltage @ IT IF Forward Current VF Forward Voltage @ IF Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified.VF = 0.9V at IF = 10mA Device ESD5Z12V Device Marking ZM IR(uA) VBR (V)@ IT VC (V) VC (V) VRWM (V) @ VRWM (Note 1) Max Max Min mA Typ Max 12.0 1.0 13.5 1.0 19 . 28 IT @ IPP=5 A* @ Max IPP* (A)* *Surge current waveform per Figure 1. 1. VBR is measured with a pluse test current IT at an ambient temperature of 25℃． www.tw-gmc.com 1 2 IPP PPK C (W)* (pF) Max Max Typ 5.0 140 35 ESD5Z12V Transient Voltage Suppressors for ESD Protection SOD-523 D −X− NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR GATE BURRS. −Y− E 1 2X b 0.08 M 2 MILLIMETERS X Y TOP VIEW A c RECOMMENDED SOLDERING FOOTPRINT* PACKAGE OUTLINE www.tw-gmc.com NOM A 0.50 0.60 0.70 b 0.25 0.30 0.35 0.20 1.80 2X 0.40 DIMENSION: MILLIMETERS 1 3 MAX c 0.07 0.14 D 1.10 1.20 1.30 E 0.70 0.80 0.90 HE 1.50 1.60 1.70 L2 SIDE VIEW 0.48 MIN L HE 2X DIM 0.30 REF 0.15 0.20 0.25
