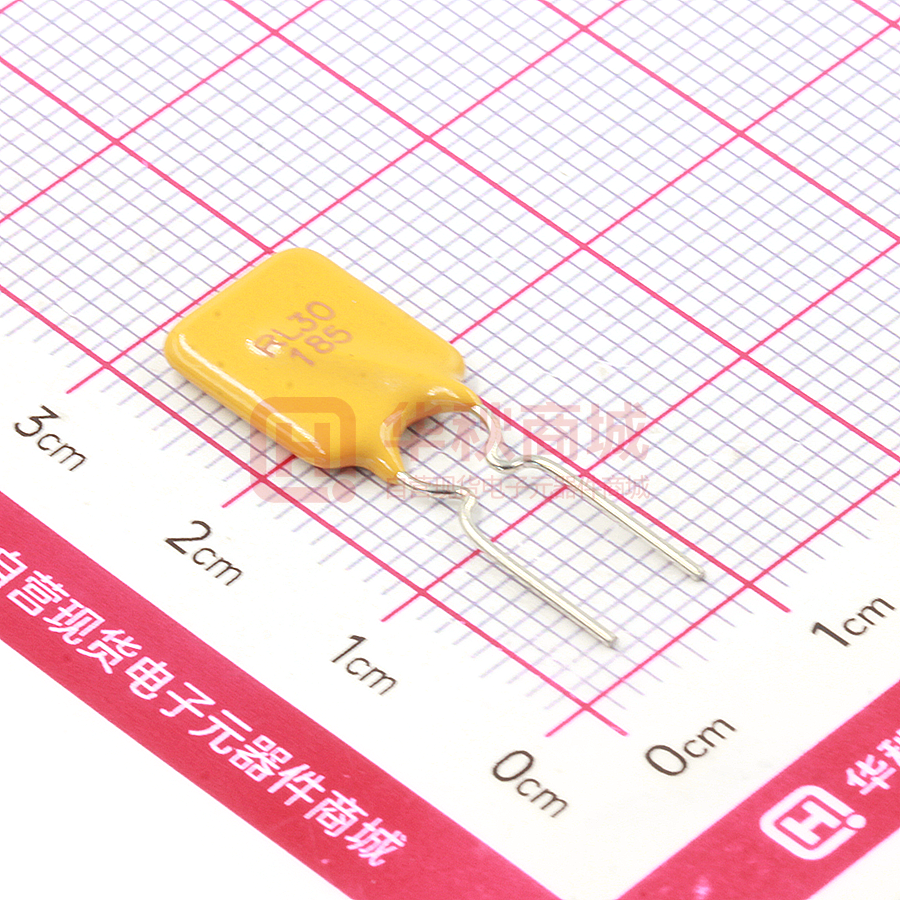

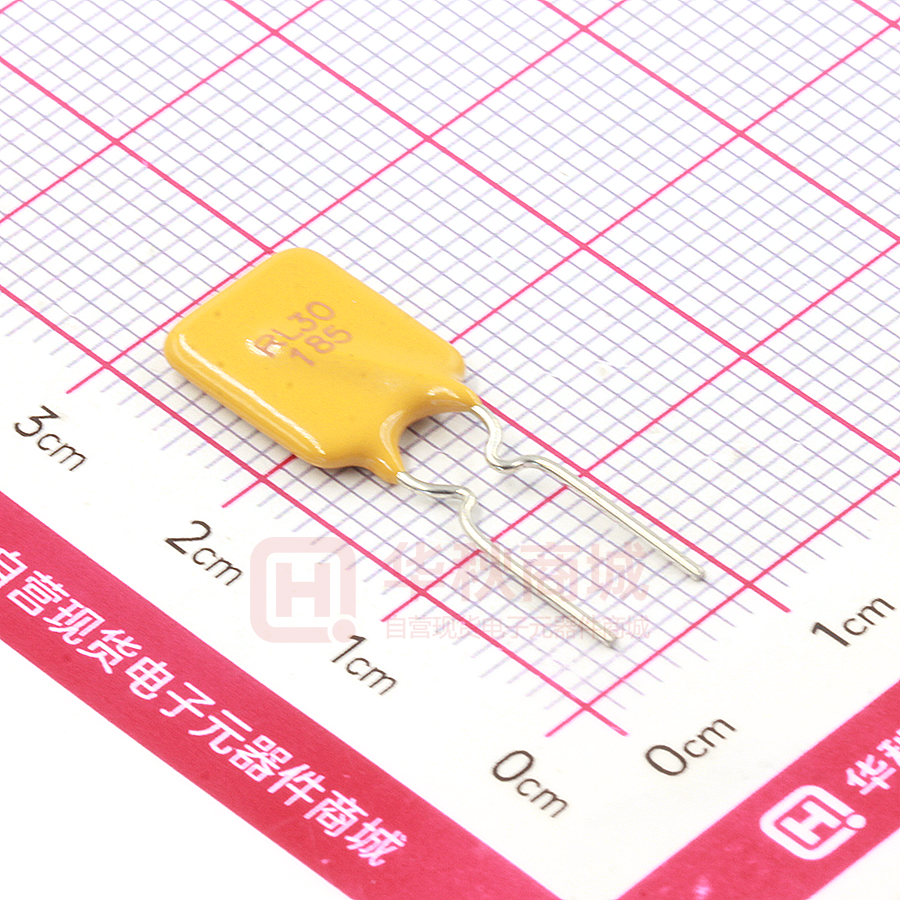

RL30-185

Positive Thermal Coefficient (PTC) RL30 Series Description Positive Thermal Coefficient devices(PTC),provide over-current protection for electrical and electronic devices. They function using conducting strips of metal imbedded inside polymers. Under normal conditions, the devices resistance is near zero, but over-current conditions will heat the PTC and expand the polymer, increasing the impedance. When current returns to normal, the components cool down, returning to their original shape and very low levels of resistance. Applications l Over-current and over-temperature protection of Features automotive electronics l I(hold): 0.5~9.0A l Hard disk drives l 30V Operating voltages l Point-of-sale (POS) equipment l Radial leaded devices. l PCMCIA cards l Over-current protection l Power over Ethernet (POE) l Very high voltage surge capabilities. l HDMI 1.4 Source protection l Available in lead-free version. l Computers & peripherals l Fast time–to–trip l Industrial control l RoHS compliant, Lead- Free and Halogen-Free l Security systems Part Number Code R L X LOGO X X - Voltage rating(VDC) X X X Hold current Environmental Specifications Test Conditions Resistance change Passive aging +85℃,1000hrs ±8% typical Humidity aging +85℃，85%R.H.1000hrs ±8% typical Thermal shock +125℃ to -55℃，10times ±12% typical Resistance to solvent MIL-STD-202，Method 215 No change Vibration MIL-STD-202，Method 201 No change Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2020-07-31 Page:1 Positive Thermal Coefficient (PTC) RL30 Series Electrical Characteristic Ihold （A） IT (A) Vmax （V） RL30-050 0.50 1.0 RL30-070 0.70 RL30-075 Model Maximum Time to Trip Imax （A） Pd typ （W） Current(A) Time(S) 30 2.5 4.1 40 1.4 30 3.50 4.3 0.75 1.5 30 3.75 RL30-090 0.90 1.8 30 RL30-110 1.10 2.2 RL30-120 1.20 RL30-135 Resistance(Ω) Rimin R1max 0.5 0.25 0.25~1.20 40 0.6 0.14 0.35 5.2 40 0.6 0.12 0.42 4.5 5.9 40 0.6 0.07 0.30 30 5.5 6.6 40 0.7 0.05 0.26 2.4 30 6.0 8.0 40 0.8 0.08 0.20 1.35 2.7 30 6.75 7.3 40 0.8 0.04 0.22 RL30-160 1.60 3.2 30 8.0 8.0 40 0.9 0.03 0.18 RL30-185 1.85 3.7 30 9.25 8.7 40 1.0 0.03 0.15 RL30-200 2.00 4.0 30 10.0 11 40 1.0 0.03 0.13 RL30-250 2.50 5.0 30 12.5 10.3 40 1.2 0.02 0.10 RL30-300 3.00 6.0 30 15.0 10.8 40 2.0 0.02 0.10 RL30-400 4.00 8.0 30 20.0 12.7 40 2.5 0.01 0.09 RL30-500 5.00 10.0 30 25.0 14.5 40 3.0 0.01 0.08 RL30-600 6.00 12.0 30 30.0 16 40 3.5 0.005 0.06 RL30-700 7.00 14.0 30 35.0 17.5 40 3.8 0.005 0.05 RL30-800 8.00 16.0 30 40.0 18.8 40 4.0 0.005 0.18 RL30-900 9.00 18.0 30 45.0 20 40 4.2 0.005 0.025 IH=Hold current: maximum current at which the device will not trip at 25℃ still air. IT=Trip current: minimum current at which the device will nalways at 25℃ still air. V max=Maximum voltage device can withstand without damage at rated current. Imax=Maximum fault current device can withstand tithout damage at rated voltage. T trip=Maximum time to trip(s) at assigned current. Pd=Typical power dissipation: typical amount of power dissipated by the decice when in state air environment. Ri min=Minimum device resistance at 25℃ prior to tripping. R1 max=Maximum device resistance is measured one hour post reflow. Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2020-07-31 Page:2 Positive Thermal Coefficient (PTC) RL30 Series Solder reflow conditions Wave Soldering 300 Soldering Temperature:260℃~270℃ 250 Soldering Time:≤3sec. 200 Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 Manual soldering Soldering Temperature:250℃~280℃ Temperature℃ 5s max. Soldering 245℃-260 Pre-heating 150 100℃-130℃ 100 Cooling 50 Soldering Time:≤3sec. 0 Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 0 50 100 150 200 250 Time(s) Environmental temperature and IH,IT 300 250 200 150 100 IT 50 IH 0 -30 -20 -10 0 10 Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. 20 30 40 50 Revised: 2020-07-31 60 70 80 85 Page:3 Positive Thermal Coefficient (PTC) RL30 Series Product Dimensions Marking Marking Marking fig.1 fig.2 fig.3 Dimensions（mm） Dimensions（in） Type Number Shape A(max) B(max) C(typ) D(max) LeadΦ (typ) A(max) B(max) C(typ) D(max) LeadΦ (typ) Fig RL30-050 8.0 14.0 5.1 3.1 0.5 0.315 0.551 0.201 0.122 0.02 1 RL30-070 7.4 14.2 5.1 3 0.5 0.291 0.559 0.201 0.118 0.02 2 RL30-075 7.4 14.2 5.1 3 0.5 0.291 0.559 0.201 0.118 0.02 2 RL30-090 7.4 18.5 5.1 3 0.5 0.291 0.728 0.201 0.118 0.02 2 RL30-110 7.4 18.5 5.1 3 0.5 0.291 0.728 0.201 0.118 0.02 2 RL30-120 7.4 18.5 5.1 3 0.5 0.291 0.728 0.201 0.118 0.02 2 RL30-135 9.2 17.6 5.1 3 0.6 0.362 0.693 0.201 0.118 0.024 2 RL30-160 9.2 20.2 5.1 3 0.6 0.362 0.795 0.201 0.118 0.024 2 RL30-185 10.2 20.2 5.1 3 0.6 0.402 0.795 0.201 0.118 0.024 2 RL30-200 15.2 20.2 5.1 3 0.6 0.598 0.795 0.201 0.118 0.024 2 RL30-250 13.2 22.4 5.1 3 0.6 0.52 0.882 0.201 0.118 0.024 2 RL30-300 13.2 20.4 5.1 3 0.8 0.52 0.803 0.201 0.118 0.031 3 RL30-400 14.0 23.7 5.1 3 0.8 0.551 0.933 0.201 0.118 0.031 3 RL30-500 17.7 24.9 10.2 3 0.8 0.697 0.980 0.402 0.118 0.031 3 RL30-600 17.2 27.0 10.2 3 0.8 0.677 1.063 0.402 0.118 0.031 3 RL30-700 19.1 27.0 10.2 3 0.8 0.752 1.063 0.402 0.118 0.031 3 RL30-800 23.5 29.2 10.2 3 0.8 0.925 1.150 0.402 0.118 0.031 3 RL30-900 25.5 30.0 10.2 3 0.8 1.004 1.181 0.402 0.118 0.031 3 Packaging Part Number Quantity RL30-050~RL30-700 500pcs/bag RL30-800~RL30-900 200pcs/bag Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2020-07-31 Page:4
