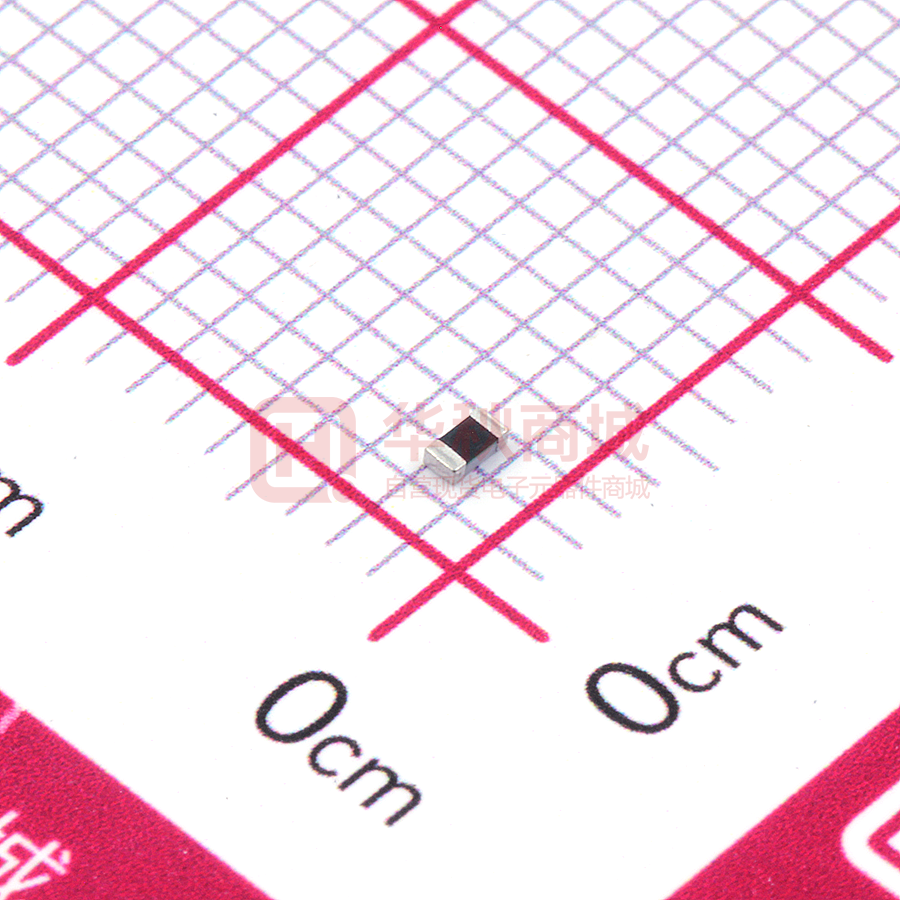

RL0603E024M015K

ESD Protection Device RL0603E Series Circuit Protection System Revision:APR-17 Please refer to http://www.ruilon.com.cn for current information. ESD Protection Device - RL0603E Series Features • Excellent ESD clamping & Small Insertion Loss • High transient current capability, Fastest response time • Capacitance is designed to ultra-low value, which can be efficiently suitable to high speed data line. • EU-RoHS Compliance Features • Transient voltage protection for IC and transistor • ESD and I/O protection • EFT and burst protection • Portable equipment protection, such as mobile phone, PDA Product Name R L 0 6 Brand Name 0 3 E EIA Type 0603 E:ESD 0 0 5 Max. Operating Voltage VDC M 0 Null 1 5 K Capacitance error Capacitance 0.15PF ±20% Package Dimensions Varistor Ceramics L1 W Electrode H L2 EIA L1 W H L2&L3 0603 1.60±0.15 0.80±0.15 1.0(Max) 0.35±0.15 L3 Circuit Protection System Revision:APR-17 Please refer to http://www.ruilon.com.cn for current information. Page:1 ESD Protection Device - RL0603E Series ElectrIcal CharacterlstIcs Per Lin (@ 25°C Unless Otherwise Specified) Working Voltage VDC Max. Leakage Curren Capacitance @1MHz Trigger Voltage Clamping Voltage V uA pF V V RL0603E005M005K 5 1 0.05 450 50 RL0603E005M015K 5 1 0.15 450 50 Type Number RL0603E005M100K 5 1 1 250 50 RL0603E005M200K 5 1 2 50 25 RL0603E005M250K 5 1 2.5 50 25 RL0603E005M300K 5 1 3 50 25 RL0603E005M500K 5 1 5 15 25 RL0603E008M015K 8 1 0.15 250 50 RL0603E008M100K 8 1 1 200 50 RL0603E008M200K 8 1 2 50 25 RL0603E008M250K 8 1 2.5 50 25 RL0603E008M300K 8 1 3 50 25 RL0603E008M500K 8 1 5 50 25 RL0603E012M015K 12 1 0.15 200 50 RL0603E012M100K 12 1 1 200 50 RL0603E012M200K 12 1 2 200 50 RL0603E012M250K 12 1 2.5 200 50 RL0603E012M300K 12 1 3 200 50 RL0603E012M500K 12 1 5 200 50 RL0603E018M015K 18 1 0.15 250 50 RL0603E018M100K 18 1 1 200 50 RL0603E018M200K 18 1 2 125 50 RL0603E018M250K 18 1 2.5 125 50 RL0603E018M300K 18 10 3 500 50 RL0603E018M500K 18 10 5 500 50 RL0603E024M015K 24 10 0.15 500 50 RL0603E024M100K 24 10 1 500 50 RL0603E024M200K 24 10 2 500 50 RL0603E024M250K 24 10 2.5 500 50 RL0603E024M300K 24 10 3 500 50 RL0603E024M500K 24 10 5 500 50 Circuit Protection System Revision:APR-17 Please refer to http://www.ruilon.com.cn for current information. Page:2 ESD Protection Device - RL0603E Series Electrical Rating No ltem 1 Operation Range 1. -55°C ~ 85°C 2 Leakage current Satisfaction to the specification, under 1uA Applied voltage : specified working voltage 3 Capacitance Satisfaction to the specification, under 1pF Frquency & OSC level : 1MHz, 1.0Vrms 4 Solderability More than 90% of the terminal electrode shall be covered with new solder. 1. Type of solder : H63A 2. Soldering Temp & Time : 230+/-5°C, 5+/-1 sec 5 Reflow soldering 1. No Serious mechanical damage 2. More than 50% of the terminal electrode shall be covered with new solder 3. Leakage Currrent :≤ 10uA 1. Type of solder : H63A 2. Temp & Time : max 260+/-5°C, min 10sec 6 Humidity Load Test 1. No Serious mechanical damage 2. Leakage Currrent :≤ 10uA Test Temp. & Relative Humidity & Time : 85+/- 5°C, 85 +/- 5% RH 7 Thermal Shock 1. No Serious mechanical damage 2. Leakage Currrent :≤ 10uA 1. Step 1 : -40 +/- 5°C, Step 2 : 85 +/- 5°C 2. Cycle : 30min ± 3min, each 5 cycles 8 High Temp. Test 1. No Serious mechanical damage 2. Leakage Currrent :≤ 10uA Temp. & time : 85+/-5°C , 1000 +/- 24hrs 9 Adhesive strength 10 ESD Test Condition / Description Requirement - 1. No Serious mechanical damage under condition of 1005 : min 0.5kgf, 1608 : min 1.0kgf 1. No mechanical damage after test 2. Leakage Current :≤ 10uA * ESD gun (IEC61000-4-2 standard) * C=150pF R=330Ω Circuit Protection System W [kgf] min. 1. Contact discharge * Voltage :+/-8kV(Level 4) * Number : 10 times in 10sec 2. Air discharge * Voltage :+/-15kV(Level 4) * Number : 10 times in 10sec Revision:APR-17 Please refer to http://www.ruilon.com.cn for current information. Page:3 ESD Protection Device - RL0603E Series Recommended Soldering Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3°C/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) TS max to TL -Ramp-up Rate Time maintained above: -Temperature (TL) -Time (tL) 150°C 200°C 60-180 seconds 3°C/second max. 217°C 60-150 seconds Peak Temperature (TP) 260°C Time within 5°C of actual Peak Temperature (tP) Ramp-down Rate Time 25°C to Peak Temperature Circuit Protection System 20-40 seconds 6°C/second max. 8 minutes max. Revision:APR-17 Please refer to http://www.ruilon.com.cn for current information. Page:4 ESD Protection Device - RL0603E Series Metal Oxide Packing specifications Circuit Protection System Circuit Protection System Varistors - RL0402A-0603A Series Revision:APR-17 Please refer to http://www.ruilon.com.cn for current information. Page:5 Specifications are subject to change without notice.
