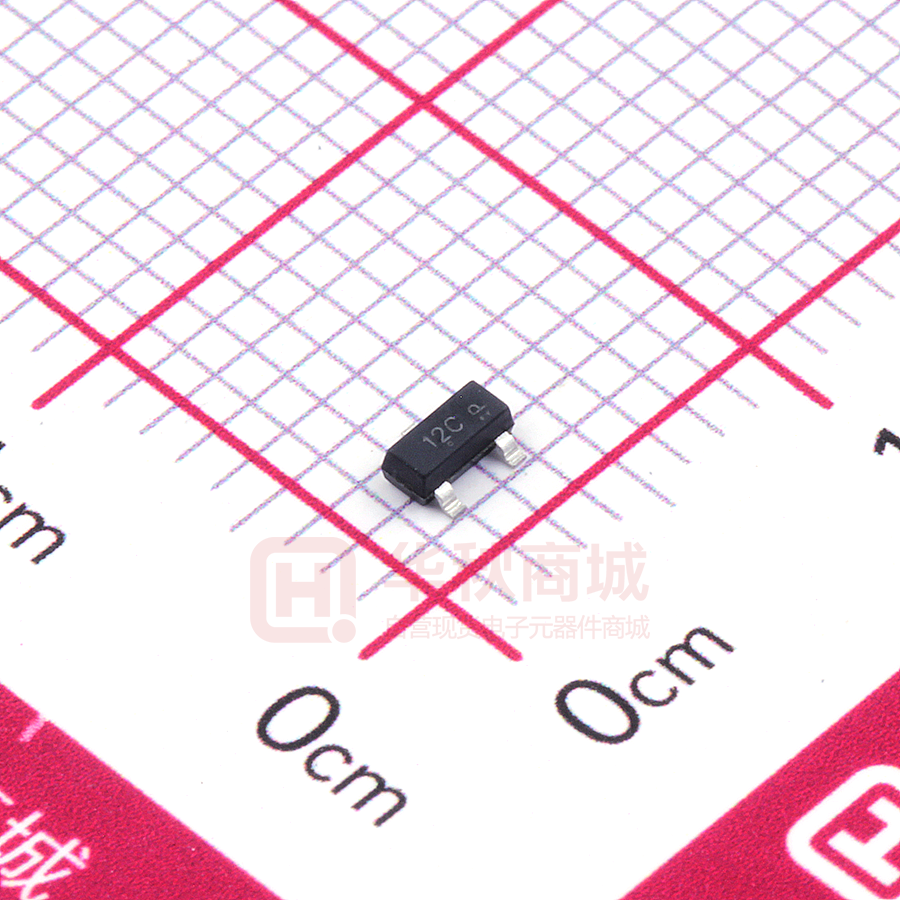

TVS/ESD Arrays RLST23Axx2V Series Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. 30 TVS/ESD Arrays - RLST23Axx2V Series Features Fig.6 Fig.7 • 350 Watts Peak Pulse Power per Line (tp = 8/20μs) • Working voltages: 3.3V、5V、8V、12V、15V、 24V、36V • Low Leakage Current • Low operating and clamping voltages • Lead Free/RoHS compliant • Solid-state silicon avalanche technology • Provides ESD protection to IEC61000-4-2(ESD): ±15kV (air discharge) ±8kV (contact discharge) 31 Mechanical Characteristics Fig.6 Pinout and Functional BlockFig.7 Diagram • SOT-23 package • Molding compound flammability rating: UL 94V-0 • Quantity Per Reel : 3,000pcs • Reel Size : 7 inch • Lead Finish : Lead Free 3 3 Applications • High-Speed data lines • Cellular handsets AND accessories • Universal Serial Bus (USB) port protection • Portable instrumentation • LAN/WAN equipment 1 • Peripherals 32 2 1 Fig.10 4 Circuit Protection System 2 1 3 4 Fig.11 3 4 Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:1 TVS/ESD Arrays - RLST23Axx2V Series Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power (tp =8/20μs) PPK 350 Watts ESD Voltage (Contact) VESD ±8 Kv ESD Voltage (Air) VESD ±15 Kv TL 260 (10 sec.) °C TJ -55 to +125 °C TSTG -55 to +150 °C Lead Soldering Temperature Operating Temperature Storage Temperature Electrical Parameters (T=25°C) Electrical Characteristics(@ 25°C Unless Otherwise Specified) Reverse Stand-Off Voltage Minimum Breakdown Voltage Peak Pulse Voltage @8/20μS Peak Pulse Current @8/20μS Reverse Leakage @VRWM VRWM VBR@1mA VC@1A IPP IR@VRWM V V V A μA pF RLST23A032V 3.3 4.0 7 13 100 300 RLST23A052V 5 6.0 9.8 10 10 220 RLST23A082V 8 8.5 13.4 8 5 150 RLST23A122V 12 13.3 19 5 1 100 RLST23A152V 15 16.7 24 4 1 90 RLST23A242V 24 26.7 43 3 1 80 RLST23A362V 36 40 60 2 1 70 Type Number Circuit Protection System Typical Capacitance DC=0V CJ@ 1 MHz Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:2 TVS/ESD Arrays - RLST23Axx2V Series Characteristic Curves Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:3 TVS/ESD Arrays - RLST23Axx2V Series Recommended Soldering Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3°C/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) TS max to TL -Ramp-up Rate Time maintained above: -Temperature (TL) -Time (tL) 150°C 200°C 60-180 seconds 3°C/second max. 217°C 60-150 seconds Peak Temperature (TP) 260°C Time within 5°C of actual Peak Temperature (tP) Ramp-down Rate Time 25°C to Peak Temperature Circuit Protection System 20-40 seconds 6°C/second max. 8 minutes max. Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:4 TVS/ESD Arrays - RLST23Axx2V Series Package dimension SOT-23 Dimensions Inches DIM Millimeters Min Nom Max Min Nom Max A 0.035 0.040 0.044 0.89 1.00 1.12 A1 0.001 0.002 0.004 0.01 0.06 0.10 b 0.015 0.018 0.020 0.37 0.44 0.50 C 0.003 0.005 0.007 0.09 0.13 0.18 D 0.110 0.114 0.120 2.80 2.90 3.04 E 0.047 0.051 0.055 1.20 1.30 1.40 e 0.070 0.075 0.081 1.78 1.90 2.04 L 0.014 0.021 0.029 0.35 0.54 0.69 HE 0.083 0.094 0.104 2.1 2.4 2.64 Part Number Code R L LOGO S T 2 Package SOT-23 3 A Straight foot overhanging 0 3 VRWM:3.3V 2 V V= Unidirectional C= Bidirectional Protects 2 Lines Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:5
