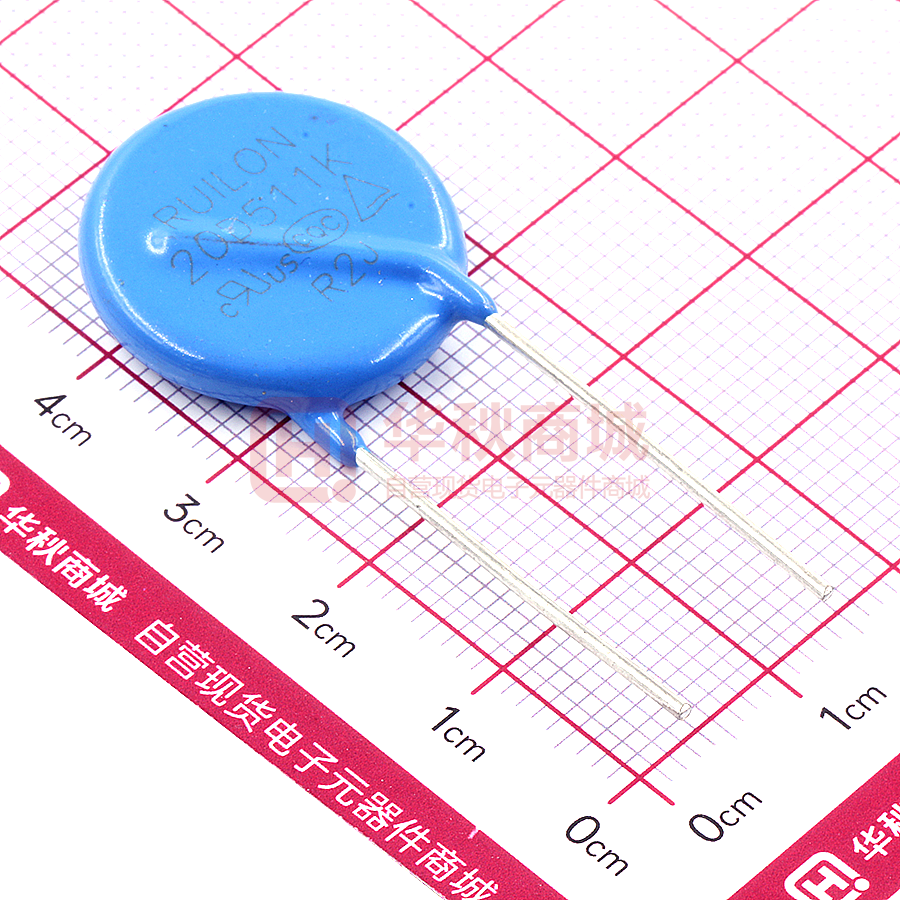

20D511K

Metal Oxide Varistors 20D Series Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Metal Oxide Varistors - 20D Series Features • Wide operating voltage (V1mA) range from 18V to 1800V. • Fast responding to transient over-voltage. • Large absorbing transient energy capability. • Low clamping ratio and no following-on current. General Information • Surge protection in consumer electronics • Surge protection in industrial electronics • Relay and electromagnetic valve surge absorption • Transistor, diode, IC, thyristor or triac semiconductor protection • Surge protection in electronic home appliances, gas and petroleum appliances General Characteristics • Body: Nickel Plated • Devices with No Leads: Nickel Plated • Operating Temperature: -40ºC to +85ºC • Storage Temperature: -40 ºC to +125ºC • Leads: Surface-mount, Axial Devices: Tin Plated Product Name 2 Element Diameter 0 D Type D: Disk S: Square 4 7 1 K J Nominal Varistor Voltage Varistor Voltage Tolerance Surge Series 471=47*101V K = ±10 % No Suffix:Standard Type J:High Surge Type H:Super Surge Type Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:1 Metal Oxide Varistors - 20D Series Electriacl Characteristics Type Number Standard High Surge Maximum Allowable Voltage Varistor Voltage Maximum Clamping Voltage VAC(V) VDC(V) V1mA(V) IP(A) VC(V) Withstanding Surge Current I(A) Standard I(A) High Surge Maximum Energy Rated (10/1000μs) Power (J) Standard (J) High Surge (W) Typical Capacitance (Reference) @1KHz(pf) 20D180K 20D180KJ 11 14 18(15~21.6) 20 36 2000 3000 5.4 6.8 0.2 39000 20D220K 20D220KJ 14 18 22(19.5~26) 20 43 2000 3000 6.6 8.3 0.2 32000 20D270K 20D270KJ 17 22 27(24~30) 20 53 2000 3000 8.1 10.1 0.2 22000 20K330K 20K330KJ 20 26 33(29.5~36.5) 20 65 2000 3000 9.9 12.4 0.2 18000 20D390K 20D390KJ 25 31 39(35~43) 20 77 2000 3000 11.7 14.6 0.2 16000 20D470K 20D470KJ 30 38 47(42~54) 20 93 2000 3000 14.1 17.6 0.2 14000 20D560K 20D560KJ 35 45 56(50~62) 20 100 2000 3000 16.8 21.0 0.2 12000 20D680K 20D680KJ 40 56 68(61~75) 20 135 2000 3000 20.4 25.5 0.2 10000 20D820K 20D820KJ 50 65 82(74~90) 100 135 6500 10000 24.6 30.8 1.0 5800 20D101K 20D101KJ 60 85 100(90~110) 100 165 6500 10000 30.0 37.5 1.0 4800 20D121K 20D121KJ 75 100 120(108~132) 100 200 6500 10000 36.0 45.0 1.0 3800 20D151K 20D151KJ 95 125 150(135~165) 100 250 6500 10000 45.0 56.3 1.0 3000 20D181K 20D181KJ 115 150 180(162~198) 100 300 6500 10000 54.0 67.5 1.0 2600 20D201K 20D201KJ 130 170 200(180~220) 100 340 6500 10000 60.0 75.0 1.0 2400 20D221K 20D221KJ 140 180 220(198~242) 100 360 6500 10000 66.0 82.5 1.0 1800 20D241K 20D241KJ 150 200 240(216~264) 100 395 6500 10000 72.0 90.0 1.0 1500 20D271K 20D271KJ 175 225 270(243~297) 100 455 6500 10000 81.0 101.3 1.0 1400 20D301K 20D301KJ 190 250 300(270~330) 100 500 6500 10000 90.0 112.5 1.0 1350 20D331K 20D331KJ 210 275 330(297~363) 100 550 6500 10000 99.0 123.8 1.0 1300 20D361K 20D361KJ 230 300 360(324~396) 100 595 6500 10000 108.0 135.0 1.0 1250 20D391K 20D391KJ 250 320 390(351~429) 100 650 6500 10000 117.0 146.3 1.0 1180 20D431K 20D431KJ 275 350 430(387~473) 100 710 6500 10000 129.0 161.3 1.0 1100 20D471K 20D471KJ 300 385 470(423~517) 100 775 6500 10000 141.0 176.3 1.0 1050 20D511K 20D511KJ 320 415 510(459~561) 100 845 6500 10000 153.0 191.3 1.0 1000 20D561K 20D561KJ 350 460 560(504~616) 100 925 6500 10000 168.0 210.0 1.0 970 20D621K 20D621KJ 385 505 620(558~682) 100 1025 6500 10000 186.0 232.5 1.0 950 20D681K 20D681KJ 420 560 680(612~748) 100 1120 6500 10000 186.0 232.5 1.0 900 20D751K 20D751KJ 460 615 750(675~825) 100 1240 6500 10000 186.0 232.5 1.0 850 20D781K 20D781KJ 485 640 780(702~858) 100 1290 6500 10000 187.2 234.0 1.0 750 20D821K 20D821KJ 510 670 820(738~902) 100 1355 6500 10000 196.8 246.0 1.0 700 20D911K 20D911KJ 550 745 910(819~1001) 100 1500 6500 10000 218.4 273.0 1.0 600 20D951K 20D951KJ 580 780 950(855-1045) 100 1570 6500 10000 228.0 285.0 1.0 580 20D102K 20D102KJ 625 825 1000(900~1100) 100 1650 6500 10000 240.0 300.0 1.0 500 20D112K 20D112KJ 680 895 1100(990~1210) 100 1815 6500 10000 264.0 330.0 1.0 450 20D152K 20D152KJ 900 1220 1500(1350-1650) 100 2475 6500 10000 359.0 449.0 1.0 400 20D182K 20D182KJ 1100 1465 1800(1620~1980) 100 2970 6500 10000 432.0 540.0 1.0 220 Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:2 Metal Oxide Varistors - 20D Series Electrical Ratings Items Test Condition/Description Requirement Varistor Voltage The voltage between two terminals with the specified measuring current 1mA.DC applied is called Vb. Maximum Allowable Voltage The recommended maximum sine wave voltage (RMS) or the Maximum DC voltage can be applied continuously. The maximum voltage between two terminals with the specification standard impulse current. Applied waveform: 8/20μs Maximum Clamping Voltage To meet the Specified value Rated Wattage The maximum average power that can be applied within the specified ambient temperature. Energy The maximum energy within the varistor voltage change of ±10% when one impulse of 10/1000μs or 2ms is applied. Withstanding Surge Current The maximum current within the varistor voltage change of ±10% with the standard impulse current (8/20μs) applied one time. The change of Vb shall be measured after the impulse listed below which is applied 10,000 times continuously with the interval of ten seconds at room temperature. 5Φ series 7Φ series Surge Life 10Φ series 14Φ series 20Φ series Circuit Protection System 180K to 680K 10A (8/20μs) 820K to 751K 20A (8/20μs) 180K to 680K 25A (8/20μs) 820K to821K 50A (8/20μs) 180K to 680K 50A (8/20μs) 820K to 112K 100A (8/20μs) 180K to 680K 75A (8/20μs) 820K to 182K 150A (8/20μs) 180K to 680K 100A (8/20μs) 820K to 182K 200A (8/20μs) ∆Vb ±10% Vb ≤ Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:3 Metal Oxide Varistors - 20D Series Soldering Recommendation Wave Lead Free Soldering Recommendation Item Conditions Peak Temperature 265ºC Dipping Time 10 seconds (max.) Soldering 1 time Recommendation Reworking Conditions with Soldering Iron Item Conditions Temperature of Soldering Iron-tip 360ºC (max.) Soldering Time 3 seconds (max.) Distance from Varistor 2mm (min.) Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:4 Metal Oxide Varistors - 20D Series Package Dimensions (Unit:mm) A T D B H1 K
