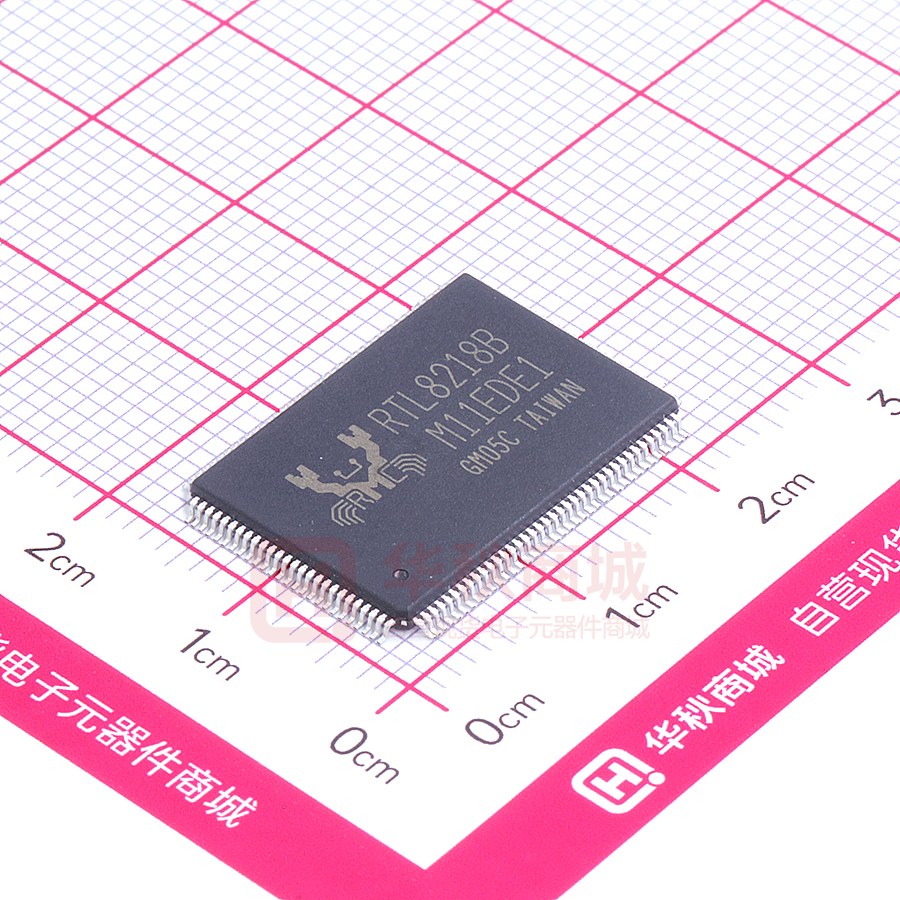

RTL8218B-VC-CG

RTL8218B-VC-CG INTEGRATED OCTAL 10/100/1000M ETHERNET TRANSCEIVER DATASHEET (CONFIDENTIAL: Development Partners Only) Rev. 1.1 21 July 2014 Track ID: JATR-8275-15 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211 Fax: +886-3-577-6047 www.realtek.com RTL8218B-VC Datasheet COPYRIGHT ©2014 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of Realtek Semiconductor Corp. TRADEMARKS Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document are trademarks/registered trademarks of their respective owners. DISCLAIMER Realtek provides this document ‘as is’, without warranty of any kind. Realtek may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors. USING THIS DOCUMENT This document is intended for the hardware and software engineer’s general information on the Realtek RTL8218B-VC IC. Though every effort has been made to ensure that this document is current and accurate, more information may have become available subsequent to the production of this guide. REVISION HISTORY Revision 1.0 1.1 Release Date 2014/06/11 2014/07/21 Summary First release. Corrected minor typing errors. Revised section 9.3 Power Consumption, page 41. Integrated Octal 10/100/1000M Ethernet Transceiver ii Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet Table of Contents 1. GENERAL DESCRIPTION ..............................................................................................................................................1 2. FEATURES .........................................................................................................................................................................2 3. SYSTEM APPLICATIONS...............................................................................................................................................3 3.1. 3.2. 3.3. 3.4. 16-PORT GIGABIT ETHERNET SWITCH .........................................................................................................................3 24-PORT GIGABIT ETHERNET SWITCH .........................................................................................................................4 24+4 COMBO PORT GIGABIT ETHERNET SWITCH.........................................................................................................5 20+4 COMBO PORT GIGABIT ETHERNET SWITCH.........................................................................................................6 4. BLOCK DIAGRAM ...........................................................................................................................................................7 5. PIN ASSIGNMENTS .........................................................................................................................................................8 5.1. 5.2. 5.3. 6. PIN DESCRIPTIONS.......................................................................................................................................................11 6.1. 6.2. 6.3. 6.4. 6.5. 6.6. 6.7. 6.8. 7. PIN ASSIGNMENTS .......................................................................................................................................................8 PACKAGE IDENTIFICATION ...........................................................................................................................................8 PIN ASSIGNMENT TABLES ............................................................................................................................................9 MEDIA DEPENDENT INTERFACE PINS .........................................................................................................................11 RSGMII-PLUS PINS ...................................................................................................................................................13 QSGMII PINS ............................................................................................................................................................13 SERIAL LED PINS ......................................................................................................................................................13 CONFIGURATION PINS ................................................................................................................................................14 MISCELLANEOUS PINS ...............................................................................................................................................15 POWER AND GND PINS ..............................................................................................................................................16 TEST PINS ..................................................................................................................................................................16 FUNCTION DESCRIPTION ..........................................................................................................................................17 7.1. MDI INTERFACE ........................................................................................................................................................17 7.2. 1000BASE-T TRANSMIT FUNCTION ...........................................................................................................................17 7.3. 1000BASE-T RECEIVE FUNCTION ..............................................................................................................................17 7.4. 100BASE-TX TRANSMIT FUNCTION...........................................................................................................................17 7.5. 100BASE-TX RECEIVE FUNCTION .............................................................................................................................18 7.6. 10BASE-T TRANSMIT FUNCTION ...............................................................................................................................18 7.7. 10BASE-T RECEIVE FUNCTION ..................................................................................................................................18 7.8. AUTO-NEGOTIATION FOR UTP ..................................................................................................................................18 7.9. CROSSOVER DETECTION AND AUTO CORRECTION .....................................................................................................19 7.10. POLARITY CORRECTION .............................................................................................................................................19 7.11. MDC/MDIO INTERFACE ...........................................................................................................................................20 7.12. REDUCED SERIAL GIGABIT MEDIA INDEPENDENT INTERFACE PLUS (RSGMII-PLUS) ...............................................21 7.13. QUAD SERIAL GIGABIT MEDIA INDEPENDENT INTERFACE (QSGMII) .......................................................................22 7.13.1. RSGMII-Plus Interface ....................................................................................................................................23 7.13.2. QSGMII Interface ............................................................................................................................................23 7.14. SERIAL LED...............................................................................................................................................................24 7.14.1. Port Status Indicator........................................................................................................................................24 7.14.2. LED Configuration ..........................................................................................................................................24 7.14.3. Serial LED Configuration Register .................................................................................................................27 7.14.4. Serial LED Timing Definitions ........................................................................................................................28 7.15. REALTEK CABLE TEST (RTCT) .................................................................................................................................28 7.16. GREEN ETHERNET ......................................................................................................................................................29 7.16.1. Link-Up and Cable Length Power Saving .......................................................................................................29 7.16.2. Link-Down Power Saving ................................................................................................................................29 7.17. IEEE 802.3AZ ENERGY EFFICIENT ETHERNET (EEE) ................................................................................................29 Integrated Octal 10/100/1000M Ethernet Transceiver iii Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 7.18. 7.19. 7.20. 8. INTERRUPT PIN FOR EXTERNAL CPU .........................................................................................................................29 REG.0.11 POWER DOWN MODE .................................................................................................................................29 REG.0.14 PHY DIGITAL LOOPBACK RETURN TO INTERNAL ......................................................................................30 REGISTER DESCRIPTIONS.........................................................................................................................................31 8.1. 8.2. 8.3. 8.4. 8.5. 8.6. 8.7. 8.8. 8.9. 8.10. 8.11. 8.12. 8.13. 8.14. 9. REGISTER 0: CONTROL ...............................................................................................................................................32 REGISTER 1: STATUS ..................................................................................................................................................33 REGISTER 2: PHY IDENTIFIER 1 .................................................................................................................................34 REGISTER 3: PHY IDENTIFIER 2 .................................................................................................................................34 REGISTER 4: AUTO-NEGOTIATION ADVERTISEMENT .................................................................................................34 REGISTER 5: AUTO-NEGOTIATION LINK PARTNER ABILITY.......................................................................................35 REGISTER 6: AUTO-NEGOTIATION EXPANSION ..........................................................................................................36 REGISTER 7: AUTO-NEGOTIATION NEXT PAGE TRANSMIT ........................................................................................36 REGISTER 8: AUTO-NEGOTIATION LINK PARTNER NEXT PAGE ABILITY ...................................................................37 REGISTER 9: 1000BASE-T CONTROL..........................................................................................................................37 REGISTER 10: 1000BASE-T STATUS ...........................................................................................................................38 REGISTER 13: MMD ACCESS CONTROL REGISTER ....................................................................................................38 REGISTER 14: MMD ACCESS ADDRESS DATA REGISTER ..........................................................................................38 REGISTER 15: EXTENDED STATUS..............................................................................................................................39 ELECTRICAL CHARACTERISTICS ..........................................................................................................................40 9.1. ABSOLUTE MAXIMUM RATINGS ................................................................................................................................40 9.2. OPERATING RANGE ....................................................................................................................................................40 9.3. POWER CONSUMPTION ...............................................................................................................................................41 9.4. IEEE 10/100/1000BASE-T SPECIFICATIONS ..............................................................................................................42 9.5. QSGMII CHARACTERISTICS ......................................................................................................................................43 9.5.1. QSGMII Differential Transmitter Characteristics ...............................................................................................43 9.5.2. QSGMII Differential Receiver Characteristics ....................................................................................................44 9.6. RSGMII-PLUS CHARACTERISTICS .............................................................................................................................45 9.6.1. RSGMII-Plus Differential Transmitter Characteristics........................................................................................45 9.6.2. RSGMII-Plus Differential Receiver Characteristics ............................................................................................46 9.7. XTALI CLOCK CHARACTERISTICS ............................................................................................................................47 9.8. POWER AND RESET CHARACTERISTICS ......................................................................................................................47 9.9. MDC/MDIO INTERFACE CHARACTERISTICS .............................................................................................................48 9.10. LED CHARACTERISTICS .............................................................................................................................................49 9.10.1. Serial LED Timing...........................................................................................................................................49 10. 10.1. 10.2. 10.3. 10.4. 11. 11.1. 11.2. 12. THERMAL CHARACTERISTICS ...........................................................................................................................50 ASSEMBLY DESCRIPTION ...........................................................................................................................................50 MATERIAL PROPERTIES..............................................................................................................................................50 SIMULATION CONDITIONS ..........................................................................................................................................50 THERMAL PERFORMANCE OF E-PAD LQFP-128 ON PCB UNDER STILL AIR CONVENTION ........................................51 MECHANICAL DIMENSIONS.................................................................................................................................52 LQFP-128 E-PAD PACKAGE .....................................................................................................................................52 MECHANICAL DIMENSIONS NOTES ............................................................................................................................52 ORDERING INFORMATION ...................................................................................................................................53 Integrated Octal 10/100/1000M Ethernet Transceiver iv Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet List of Tables TABLE 1. PIN ASSIGNMENTS TABLE ..............................................................................................................................................9 TABLE 2. MEDIA DEPENDENT INTERFACE PINS ...........................................................................................................................11 TABLE 3. RSGMII-PLUS PINS .....................................................................................................................................................13 TABLE 4. QSGMII PINS...............................................................................................................................................................13 TABLE 5. PARALLEL LED PINS ...................................................................................................................................................13 TABLE 6. CONFIGURATION PINS ..................................................................................................................................................14 TABLE 7. MISCELLANEOUS PINS .................................................................................................................................................15 TABLE 8. POWER AND GND PINS ................................................................................................................................................16 TABLE 9. TEST PINS.....................................................................................................................................................................16 TABLE 10. MEDIA DEPENDENT INTERFACE PIN MAPPING.............................................................................................................19 TABLE 11. SERIAL LED PER-LED CONTROL ................................................................................................................................24 TABLE 12. SERIAL LED MODE CONFIGURATION (PER-PORT 3 LEDS) .........................................................................................26 TABLE 13. SERIAL LED CONFIGURATION REGISTER ....................................................................................................................27 TABLE 14. REGISTER DESCRIPTIONS .............................................................................................................................................31 TABLE 15. REGISTER 0: CONTROL ................................................................................................................................................32 TABLE 16. REGISTER 1: STATUS....................................................................................................................................................33 TABLE 17. REGISTER 2: PHY IDENTIFIER 1...................................................................................................................................34 TABLE 18. REGISTER 3: PHY IDENTIFIER 2...................................................................................................................................34 TABLE 19. REGISTER 4: AUTO-NEGOTIATION ADVERTISEMENT ...................................................................................................34 TABLE 20. REGISTER 5: AUTO-NEGOTIATION LINK PARTNER ABILITY ........................................................................................35 TABLE 21. REGISTER 6: AUTO-NEGOTIATION EXPANSION ............................................................................................................36 TABLE 22. REGISTER 7: AUTO-NEGOTIATION NEXT PAGE TRANSMIT ..........................................................................................36 TABLE 23. REGISTER 8: AUTO-NEGOTIATION LINK PARTNER NEXT PAGE ABILITY .....................................................................37 TABLE 24. REGISTER 9: 1000BASE-T CONTROL ...........................................................................................................................37 TABLE 25. REGISTER 10: 1000BASE-T STATUS ............................................................................................................................38 TABLE 26. REGISTER 13: MMD ACCESS CONTROL REGISTER ......................................................................................................38 TABLE 27. REGISTER 14: MMD ACCESS ADDRESS DATA REGISTER ............................................................................................38 TABLE 28. REGISTER 15: EXTENDED STATUS ...............................................................................................................................39 TABLE 29. ABSOLUTE MAXIMUM RATINGS ..................................................................................................................................40 TABLE 30. OPERATING RANGE......................................................................................................................................................40 TABLE 31. POWER CONSUMPTION.................................................................................................................................................41 TABLE 32. IEEE 10/100/1000BASE-T SPECIFICATIONS ................................................................................................................42 TABLE 33. QSGMII DIFFERENTIAL TRANSMITTER CHARACTERISTICS .........................................................................................43 TABLE 34. QSGMII DIFFERENTIAL RECEIVER CHARACTERISTICS ...............................................................................................44 TABLE 35. RSGMII-PLUS DIFFERENTIAL TRANSMITTER CHARACTERISTICS ...............................................................................45 TABLE 36. RSGMII-PLUS DIFFERENTIAL RECEIVER CHARACTERISTICS ......................................................................................46 TABLE 37. XTALI CLOCK CHARACTERISTICS ..............................................................................................................................47 TABLE 38. POWER AND RESET CHARACTERISTICS ........................................................................................................................47 TABLE 39. MDIO TIMING CHARACTERISTICS AND REQUIREMENT ...............................................................................................48 TABLE 40. SERIAL LED TIMING....................................................................................................................................................49 TABLE 41. ASSEMBLY DESCRIPTION .............................................................................................................................................50 TABLE 42. MATERIAL PROPERTIES ...............................................................................................................................................50 TABLE 43. SIMULATION CONDITIONS ...........................................................................................................................................50 TABLE 44. THERMAL PERFORMANCE OF E-PAD LQFP-128 ON PCB UNDER STILL AIR CONVENTION ..........................................51 TABLE 45. ORDERING INFORMATION ............................................................................................................................................53 Integrated Octal 10/100/1000M Ethernet Transceiver v Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet List of Figures FIGURE 1. 16-PORT GIGABIT ETHERNET SWITCH (QSGMII OR RSGMII-PLUS INTERFACE).........................................................3 FIGURE 2. 24-PORT GIGABIT ETHERNET SWITCH (QSGMII OR RSGMII-PLUS INTERFACE) .........................................................4 FIGURE 3. 24+4-PORT COMBO GIGABIT ETHERNET SWITCH (QSGMII OR RSGMII-PLUS INTERFACE) ........................................5 FIGURE 4. 20 + 4-PORT COMBO GIGABIT ETHERNET SWITCH (QSGMII OR RSGMII-PLUS INTERFACE) ......................................6 FIGURE 5. BLOCK DIAGRAM ..........................................................................................................................................................7 FIGURE 6. PIN ASSIGNMENTS ........................................................................................................................................................8 FIGURE 7. CONCEPTUAL EXAMPLE OF POLARITY CORRECTION ..................................................................................................19 FIGURE 8. MDIO READ FRAME FORMAT ....................................................................................................................................20 FIGURE 9. MDIO WRITE FRAME FORMAT ...................................................................................................................................20 FIGURE 10. RSGMII-PLUS INTERCONNECTION DIAGRAM ............................................................................................................21 FIGURE 11. QSGMII INTERCONNECTION DIAGRAM .....................................................................................................................22 FIGURE 12. [MDI X 8] + [RSGMII-PLUS X 2.................................................................................................................................23 FIGURE 13. [[MDI X 8] + [QSGMII X 2] .......................................................................................................................................23 FIGURE 14. SERIAL LED TIMING DEFINITIONS .............................................................................................................................28 FIGURE 15. REG.0.14 PHY DIGITAL LOOPBACK ...........................................................................................................................30 FIGURE 16. QSGMII DIFFERENTIAL TRANSMITTER EYE DIAGRAM ..............................................................................................43 FIGURE 17. QSGMII DIFFERENTIAL RECEIVER EYE DIAGRAM ....................................................................................................44 FIGURE 18. RSGMII-PLUS DIFFERENTIAL TRANSMITTER EYE DIAGRAM.....................................................................................45 FIGURE 19. RSGMII-PLUS DIFFERENTIAL RECEIVER EYE DIAGRAM ...........................................................................................46 FIGURE 20. POWER AND RESET CHARACTERISTICS .......................................................................................................................47 FIGURE 21. MDIO SOURCED BY MASTER (MAC) ........................................................................................................................48 FIGURE 22. MDIO SOURCED BY RTL8218B-VC (SLAVE)............................................................................................................48 FIGURE 23. SERIAL LED TIMING ..................................................................................................................................................49 Integrated Octal 10/100/1000M Ethernet Transceiver vi Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 1. General Description The RTL8218B-VC integrates octal independent 10/100/1000M Ethernet transceivers into a single IC, and performs all the physical layer (PHY) functions for 1000Base-T, 100Base-TX, and 10Base-T Ethernet on category 5 UTP cable except 1000Base-T half-duplex. 10Base-T functionality can also be achieved on standard category 3 or 4 cable. This device includes PCS, PMA, and PMD sub-layers. They perform encoding/decoding, clock/data recovery, digital adaptive equalization, echo cancellers, crosstalk elimination, and line driver, as well as other required supporting circuit functions. The RTL8218B-VC also integrates an internal hybrid that allows the use of inexpensive 1:1 transformer modules. Each of the four independent transceivers features an innovative RSGMII-Plus/QSGMII for reduced PCB traces. All transceivers can communicate with the MAC simultaneously through the same RSGMIIPlus/QSGMII. Integrated Octal 10/100/1000M Ethernet Transceiver 1 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 2. Features „ Octal-port integrated 10/100/1000M Ethernet transceiver „ Each port supports full duplex in 10/100/1000M mode (half duplex is only supported in 10/100M mode) „ Supports Realtek’s Cable Test (RTCT) „ Supports Realtek’s Green Ethernet ‹ Link- On Cable Length Power Saving ‹ Link-Down Power Saving „ Supports RSGMII-Plus (5Gbps serial high speed interface) in 10/100/1000M mode „ Supports one interrupt output to external CPU for notification „ Supports QSGMII (5Gbps serial high speed interface) in 10/100/1000M mode „ Low power consumption „ Easy layout, good EMI, and good thermal performance „ 25MHz crystal or 3.3V OSC input „ 3.3V and 1.1V power supply „ LQFP-128 E-PAD package „ Supports IEEE 802.3az Energy Efficient Ethernet (EEE) „ Supports crossover detection and auto correction in 10Base-T/100Base-T „ Auto-detection and auto-correction of wiring pair swaps, pair skew, and pair polarity „ Auto-detection and auto-correction of wiring pair swaps, pair skew, and pair polarity Integrated Octal 10/100/1000M Ethernet Transceiver 2 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 3. System Applications 3.1. 16-Port Gigabit Ethernet Switch Figure 1. 16-Port Gigabit Ethernet Switch (QSGMII or RSGMII-Plus Interface) Integrated Octal 10/100/1000M Ethernet Transceiver 3 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 3.2. 24-Port Gigabit Ethernet Switch High-Ports Density Gigabit MAC QSGMII x 2 or RSGMII-plus x 2 QSGMII x 2 or RSGMII-plus x 2 QSGMII x 2 or RSGMII-plus x 2 SD #0,1 SD #0,1 SD #0,1 RTL8218B Gigabit PHY RTL8218B Gigabit PHY RTL8218B Gigabit PHY PHY 0~7 LQFP-128 8G Transformer PHY 8~15 LQFP-128 8G Transformer PHY 16~23 LQFP-128 8G Transformer Figure 2. 24-Port Gigabit Ethernet Switch (QSGMII or RSGMII-plus Interface) Integrated Octal 10/100/1000M Ethernet Transceiver 4 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 3.3. 24+4 Combo Port Gigabit Ethernet Switch Figure 3. 24+4-Port Combo Gigabit Ethernet Switch (QSGMII or RSGMII-plus Interface) Integrated Octal 10/100/1000M Ethernet Transceiver 5 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 3.4. 20+4 Combo Port Gigabit Ethernet Switch Figure 4. 20 + 4-Port Combo Gigabit Ethernet Switch (QSGMII or RSGMII-plus Interface) Integrated Octal 10/100/1000M Ethernet Transceiver 6 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 4. Block Diagram S1RXN S!RXP SerDes (#1) S1TXN (RSGMII-plus or QSGMII) S1TXP S0RXN S0RXP S0TXN S0TXP MAC Interface SerDes (#0) (RSGMII-plus or QSGMII) 1000Base-Tx 4DPAM5 EnDec, Scrambler, Viterbi, & DFE Equalizer & Echo, NEXT, FEXT, Cancellers A/D Pulse Shaper F I F O 100Base-Tx 4B/5B EnDec AGC, Timing Recovery, Wander Canceller D/A Filter Scrambler/De scrambler Hybrid Line-Driver PAIR A . . . TwistPair interface PAIR B PAIR C Filter PAIR D MDI (Analog Front End) 10Base-T Manchester EnDec MDC MDIO nRESET Serial Management Interface MII Register PHYADD[4:0] . . . Auto Negotiation . . . . . . PORT 0 PORT 1 PORT 7 PLL Serial LED SXTALI SXTALO LEDCK LEDDA Biasing MDIREF Figure 5. Block Diagram Integrated Octal 10/100/1000M Ethernet Transceiver 7 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 5. Pin Assignments 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 AVDDH PHYADDR2 PHYADDR3/LEDDA PHYADDR4/LEDCK nRESET DVDDIO XTALI XTALO SGND S0TXP S0TXN SVDDL S0RXP S0RXN SVDDL SGND S1TXN S1TXP SGND S1RXN S1RXP SVDDL NC SVDDH INTERRUPT DVDDL MDC MDIO DVDDIO Reserved PHYADDR0 PHYADDR1 EN_PHY DVDDL CHIP_MODE2 CHIP_MODE1 Reserved AVDDH 5.1. Pin Assignments 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 P7MDIDN P7MDIDP P7MDICN P7MDICP AVDDL P7MDIBN P7MDIBP P7MDIAN P7MDIAP AVDDH P6MDIDN P6MDIDP P6MDICN P6MDICP AVDDL P6MDIBN P6MDIBP P6MDIAN P6MDIAP ATESTCK1 PLLVDDL1 P5MDIDN P5MDIDP P5MDICN P5MDICP AVDDL P2MDICP P2MDICN P2MDIDP P2MDIDN AVDDH P3MDIAP P3MDIAN P3MDIBP P3MDIBN AVDDL P3MDICP P3MDICN P3MDIDP P3MDIDN AVDDH AGND MDIREF AVDDL RTT1 RTT2 AVDDH DVDDL DVDDL AVDDH P4MDIAP P4MDIAN P4MDIBP P4MDIBN AVDDL P4MDICP P4MDICN P4MDIDP P4MDIDN AVDDH P5MDIAP P5MDIAN P5MDIBP P5MDIBN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 P0MDIAP P0MDIAN P0MDIBP P0MDIBN AVDDL P0MDICP P0MDICN P0MDIDP P0MDIDN AVDDH P1MDIAP P1MDIAN P1MDIBP P1MDIBN AVDDL P1MDICP P1MDICN P1MDIDP P1MDIDN PLLVDDL0 ATESTCK0 P2MDIAP P2MDIAN P2MDIBP P2MDIBN AVDDL Figure 6. Pin Assignments 5.2. Package Identification Green package is indicated by the ‘G’ in GXXXV (Figure 6). The version number is shown in the location marked ‘V’. Integrated Octal 10/100/1000M Ethernet Transceiver 8 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 5.3. Pin Assignment Tables Upon Reset: Defined as a short time after the end of a hardware reset. After Reset: Defined as the time after the specified ‘Upon Reset’ time. I: Input Pin AI: Analog Input Pin O: Output Pin AO: Analog Output Pin I/O: Bi-Directional Input/Output Pin AI/O: Analog Bi-Directional Input/Output Pin P: Digital Power Pin AP: Analog Power Pin G: Digital Ground Pin AG: Analog Ground Pin IPD: Input Pin With Pull-Down Resistor A: Analog Pin IPU: Input Pin With Pull-Up Resistor; OPU: Output Pin With Pull-Up Resistor; (Typical Value = 75K Ohm) (Typical Value = 75K Ohm) SP: SerDes Power Pin SG: SerDes Ground Pin IS: Schmitt Trigger Input Pin Pin Name P2MDICP P2MDICN P2MDIDP P2MDIDN AVDDH P3MDIAP P3MDIAN P3MDIBP P3MDIBN AVDDL P3MDICP P3MDICN P3MDIDP P3MDIDN AVDDH AGND MDIREF AVDDL RTT1 RTT2 AVDDH Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 Table 1. Pin Assignments Table Type Pin Name AI/O DVDDL AI/O DVDDL AI/O AVDDH AI/O P4MDIAP AP P4MDIAN AI/O P4MDIBP AI/O P4MDIBN AI/O AVDDL AI/O P4MDICP AP P4MDICN AI/O P4MDIDP AI/O P4MDIDN AI/O AVDDH AI/O P5MDIAP AP P5MDIAN AG P5MDIBP AO P5MDIBN AP AVDDL AO P5MDICP AO P5MDICN AP P5MDIDP Integrated Octal 10/100/1000M Ethernet Transceiver 9 Pin No. 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 Type P P AP AI/O AI/O AI/O AI/O AP AI/O AI/O AI/O AI/O AP AI/O AI/O AI/O AI/O AP AI/O AI/O AI/O Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet Pin Name P5MDIDN PLLVDDL1 ATESTCK1 P6MDIAP P6MDIAN P6MDIBP P6MDIBN AVDDL P6MDICP P6MDICN P6MDIDP P6MDIDN AVDDH P7MDIAP P7MDIAN P7MDIBP P7MDIBN AVDDL P7MDICP P7MDICN P7MDIDP P7MDIDN AVDDH Reserved CHIP_MODE1 CHIP_MODE2 DVDDL EN_PHY PHYADDR1 PHYADDR0 Reserved DVDDIO MDIO MDC DVDDL INTERRUPT SVDDH NC SVDDL S1RXP S1RXN SGND S1TXP S1TXN Pin No. 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 Type AI/O AP AO AI/O AI/O AI/O AI/O AP AI/O AI/O AI/O AI/O AP AI/O AI/O AI/O AI/O AP AI/O AI/O AI/O AI/O AP I/OPU IPU IPU P I/OPU I/OPD I/OPD I/OPU P I/OPU I P I/OPU SP SP AO AO SG AI AI Integrated Octal 10/100/1000M Ethernet Transceiver Pin Name SGND SVDDL S0RXN S0RXP SVDDL S0TXN S0TXP SGND XTALO XTALI DVDDIO nRESET PHYADDR4/LEDCK PHYADDR3/LEDDA PHYADDR2 AVDDH P0MDIAP P0MDIAN P0MDIBP P0MDIBN AVDDL P0MDICP P0MDICN P0MDIDP P0MDIDN AVDDH P1MDIAP P1MDIAN P1MDIBP P1MDIBN AVDDL P1MDICP P1MDICN P1MDIDP P1MDIDN PLLVDDL0 ATESTCK0 P2MDIAP P2MDIAN P2MDIBP P2MDIBN AVDDL 10 Pin No. 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 Type SG SP AO AO SP AI AI SG AO AI P IPU I/OPD I/OPD IPD AP AI/O AI/O AI/O AI/O AP AI/O AI/O AI/O AI/O AP AI/O AI/O AI/O AI/O AP AI/O AI/O AI/O AI/O AP AO AI/O AI/O AI/O AI/O AP Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 6. Pin Descriptions 6.1. Media Dependent Interface Pins Pin Name P0MDIAP P0MDIAN P0MDIBP P0MDIBN P0MDICP P0MDICN P0MDIDP P0MDIDN P1MDIAP P1MDIAN P1MDIBP P1MDIBN P1MDICP P1MDICN P1MDIDP P1MDIDN P2MDIAP P2MDIAN P2MDIBP P2MDIBN P2MDICP P2MDICN P2MDIDP P2MDIDN P3MDIAP P3MDIAN P3MDIBP P3MDIBN P3MDICP P3MDICN P3MDIDP P3MDIDN P4MDIAP P4MDIAN P4MDIBP P4MDIBN P4MDICP P4MDICN P4MDIDP P4MDIDN Pin No. 103 104 105 106 108 109 110 111 113 114 115 116 118 119 120 121 124 125 126 127 1 2 3 4 6 7 8 9 11 12 13 14 25 26 27 28 30 31 32 33 Table 2. Media Dependent Interface Pins Type Description AI/O Port 0 Media Dependent Interface A~D. For 1000Base-T operation, differential data from the media is transmitted and received on all four pairs. For 100Base-TX and 10Base-T operation, only MDIAP/N and MDIBP/N are used. Auto MDIX can reverse the pairs MDIAP/N and MDIBP/N. Each of the differential pairs has an internal 100ohm termination resistor. AI/O Port 1 Media Dependent Interface A~D. For 1000Base-T operation, differential data from the media is transmitted and received on all four pairs. For 100Base-TX and 10Base-T operation, only MDIAP/N and MDIBP/N are used. Auto MDIX can reverse the pairs MDIAP/N and MDIBP/N. Each of the differential pairs has an internal 100ohm termination resistor. AI/O Port 2 Media Dependent Interface A~D. For 1000Base-T operation, differential data from the media is transmitted and received on all four pairs. For 100Base-TX and 10Base-T operation, only MDIAP/N and MDIBP/N are used. Auto MDIX can reverse the pairs MDIAP/N and MDIBP/N. Each of the differential pairs has an internal 100ohm termination resistor. AI/O Port 3 Media Dependent Interface A~D. For 1000Base-T operation, differential data from the media is transmitted and received on all four pairs. For 100Base-TX and 10Base-T operation, only MDIAP/N and MDIBP/N are used. Auto MDIX can reverse the pairs MDIAP/N and MDIBP/N. Each of the differential pairs has an internal 100ohm termination resistor. AI/O Port 4 Media Dependent Interface A~D. For 1000Base-T operation, differential data from the media is transmitted and received on all four pairs. For 100Base-TX and 10Base-T operation, only MDIAP/N and MDIBP/N are used. Auto MDIX can reverse the pairs MDIAP/N and MDIBP/N. Each of the differential pairs has an internal 100ohm termination resistor. Integrated Octal 10/100/1000M Ethernet Transceiver 11 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet Pin Name P5MDIAP P5MDIAN P5MDIBP P5MDIBN P5MDICP P5MDICN P5MDIDP P5MDIDN P6MDIAP P6MDIAN P6MDIBP P6MDIBN P6MDICP P6MDICN P6MDIDP P6MDIDN P7MDIAP P7MDIAN P7MDIBP P7MDIBN P7MDICP P7MDICN P7MDIDP P7MDIDN Pin No. 35 36 37 38 40 41 42 43 46 47 48 49 51 52 53 54 56 57 58 59 61 62 63 64 Type AI/O Description Port 5 Media Dependent Interface A~D. For 1000Base-T operation, differential data from the media is transmitted and received on all four pairs. For 100Base-TX and 10Base-T operation, only MDIAP/N and MDIBP/N are used. Auto MDIX can reverse the pairs MDIAP/N and MDIBP/N. Each of the differential pairs has an internal 100ohm termination resistor. AI/O Port 6 Media Dependent Interface A~D. For 1000Base-T operation, differential data from the media is transmitted and received on all four pairs. For 100Base-TX and 10Base-T operation, only MDIAP/N and MDIBP/N are used. Auto MDIX can reverse the pairs MDIAP/N and MDIBP/N. Each of the differential pairs has an internal 100ohm termination resistor. AI/O Port 7 Media Dependent Interface A~D. For 1000Base-T operation, differential data from the media is transmitted and received on all four pairs. For 100Base-TX and 10Base-T operation, only MDIAP/N and MDIBP/N are used. Auto MDIX can reverse the pairs MDIAP/N and MDIBP/N. Each of the differential pairs has an internal 100ohm termination resistor. Integrated Octal 10/100/1000M Ethernet Transceiver 12 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 6.2. RSGMII-Plus Pins Pin Name S0RXP S0RXN S1RXP S1RXN S0TXP S0TXN S1TXP S1TXN Pin No. 90 89 82 83 Type AO 93 92 85 86 AI Table 3. RSGMII-Plus Pins Description RSGMII-Plus Differential Output. 5GHz serial interfaces to transfer data from an External device that supports the RSGMII-Plus interface. Differential pairs have an internal 100ohm termination resistor. RSGMII-Plus Differential Input. 5GHz serial interfaces to receive data from an External device that supports the RSGMII-Plus interface. Differential pairs have an internal 100ohm termination resistor. 6.3. QSGMII Pins Pin Name S0RXP S0RXN S1RXP S1RXN S0TXP S0TXN S1TXP S1TXN Pin No. 90 89 82 83 93 92 85 86 Type AO AI Table 4. QSGMII Pins Description QSGMII Differential Output. 5GHz serial interfaces to transfer data from an External device that supports the QSGMII interface. Differential pairs have an internal 100ohm termination resistor. QSGMII Differential Input. 5GHz serial interfaces to receive data from an External device that supports the QSGMII interface. Differential pairs have an internal 100ohm termination resistor. 6.4. Serial LED Pins Pin Name LEDCK LEDDA Pin No. 99 100 Type I/OPD I/OPD Table 5. Parallel LED Pins Description Serial LED Clock Output. Serial LED Data Output. Integrated Octal 10/100/1000M Ethernet Transceiver 13 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 6.5. Configuration Pins Pin Name PHYADDR0 Pin No. 72 Type I/OPD PHYADDR1 71 I/OPD PHYADDR2 101 IPD PHYADDR3 / LEDDA 100 I/OPD PHYADDR4 / LEDCK 99 I/OPD EN_PHY 70 I/OPU CHIP_MODE2 68 IPU CHIP_MODE1 67 IPU Table 6. Configuration Pins Description PHYADDR0, PHY Address Select. These pins are the 5-bit IEEE-specified PHY address. The states of these five pins are latched during power-up or reset. Note: This pin must be kept floating, or pulled high or low via an external 4.7k ohm resistor upon power on or reset. PHYADDR1, PHY Address Select. These pins are the 5-bit IEEE-specified PHY address. The states of these five pins are latched during power-up or reset. Note: This pin must be kept floating, or pulled high or low via an external 4.7k ohm resistor upon power on or reset. PHYADDR2, PHY Address Select. These pins are the 5-bit IEEE-specified PHY address. The states of these five pins are latched during power-up or reset. Note: This pin must be kept floating, or pulled high or low via an external 4.7k ohm resistor upon power on or reset. PHYADDR3, PHY Address Select. These pins are the 5-bit IEEE-specified PHY address. The states of these five pins are latched during power-up or reset. Note: This pin must be kept floating, or pulled high or low via an external 4.7k ohm resistor upon power on or reset. PHYADDR4, PHY Address Select. These pins are the 5-bit IEEE-specified PHY address. The states of these five pins are latched during power-up or reset. Note: This pin must be kept floating, or pulled high or low via an external 4.7k ohm resistor upon power on or reset. Enable PHY Power 1: Power up all ports. 0: Power down all ports and set the MII register 0.11 power down as 1. Note: This pin must be kept floating, or pulled high or low via an external 4.7k ohm resistor upon power on or reset. MAC Interface Configuration: CHIP_MODE[2:1] = 11: RSGMII-Plus 10: QSGMII Reference CHIP_MODE2 Integrated Octal 10/100/1000M Ethernet Transceiver 14 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 6.6. Miscellaneous Pins Pin Name MDC Pin No. 76 Type I MDIO 75 I/OPU INTERRUPT 78 I/OPU nRESET 98 IPU MDIREF 17 AO NC XTALI 80 96 AI XTALO 95 AO Table 7. Miscellaneous Pins Description MII Management Interface Clock Input. The clock reference for the MII management interface. The maximum frequency support is 8MHz. MII Management Interface Data Input/Output. MDIO transfer management data in and out of the device synchronous to the rising edge of MDC. Interrupt output when Interrupt even occurs. Active High by pull-down to GND via a 1K resister. Active Low by pull-up to DVDDIO via a 4.7K resister. Hardware Reset (Active Low Reset Signal). To complete the reset function, this pin must be asserted for at least 10ms. It must be pulled high for normal operation. MDI Bias Resistor. Adjusts the reference current for all PHYs. This pin must connect to AGND via a 2.49k ohm resistor. We suggest NC pins are left floating. 25MHz Crystal Clock Input. 25MHz±50ppm tolerance crystal reference or oscillator input. When using a crystal, connect a loading capacitor from each pad to ground. When either using an oscillator or driving an external 25MHz clock from another device, XTALO should be kept floating. The maximum XTALI input voltage is 3.3V. 25MHz Crystal Clock Output. 25MHz±50ppm tolerance crystal output. Refer to XTALI. Integrated Octal 10/100/1000M Ethernet Transceiver 15 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 6.7. Power and GND Pins Pin Name AVDDH AVDDL PLLVDD0 PLLVDD1 SVDDH SVDDL DVDDIO DVDDL AGND SGND GND 6.8. Table 8. Power and GND Pins Pin No. Type Description AP Analog High Voltage Power 5, 15, 21, 24, 34, 55, 65, 102, 112 AP Analog Low Voltage Power 10, 18, 29, 39, 50, 60, 107, 117, 128 122 AP PLL Power This pin should be filtered with a low resistance series ferrite bead and 1000pF + 2.2µF shunt capacitors to ground 44 AP PLL Power This pin should be filtered with a low resistance series ferrite bead and 1000pF + 2.2µF shunt capacitors to ground 79 SP QSGMII / RSGMII-Plus SerDes High Voltage Power 81, 88, 91 SP QSGMII / RSGMII-Plus SerDes Low Voltage Power 74, 97 P Digital I/O Power 22, 23, 69, 77 P Digital Low Voltage Power 16 AG Analog Ground 84, 87, 94 SG QSGMII/RSGMII-Plus SerDes Ground EPAD G Digital/Analog Ground Test Pins Pin Name RTT1 Pin No. 19 Type AO RTT2 20 AO ATESTCK0 123 AO ATESTCK1 45 AO Reserved 66 I/OPU Reserved 73 I/OPU Table 9. Test Pins Description Reserved for Internal Use. Must be Left Floating or pulled-up to to DVDDIO via 4.7K resister. Reserved for Internal Use. Must be Left Floating or pulled-up to to DVDDIO via 4.7K resister. Reserved for Internal Use. Can be Left Floating or tied to GND via a 1K resister. Reserved for Internal Use. Can be Left Floating or tied to GND via a 1K resister. Reserved for Internal Use. Must be Left Floating or pulled-up to to DVDDIO via 4.7K resister. Reserved. Must be tied to GND via a 1K resister for normal operation Integrated Octal 10/100/1000M Ethernet Transceiver 16 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 7. Function Description 7.1. MDI Interface The RTL8218B-VC embeds octal 10/100/1000M Ethernet PHYs in one chip. Each port uses a single common MDI interface to support 1000Base-T, 100Base-TX, and 10Base-T. This interface consists of four signal pairs-A, B, C, and D. Each signal pair consists of two bi-directional pins that can transmit and receive at the same time. The MDI interface has internal termination resistors, and therefore reduces BOM cost and PCB complexity. For 1000Base-T, all four pairs are used in both directions at the same time. For 10/100M links and during auto-negotiation, only pairs A and B are used. 7.2. 1000Base-T Transmit Function The 1000Base-T transmit function performs 8B/10B coding, scrambling, 4D-PAM5 encoding. These code groups are passed through a waveform-shaping filter to minimize EMI effect, and are transmitted onto the 4-pair CAT5 cable at 125MBaud/s through a D/A converter. 7.3. 1000Base-T Receive Function Input signals from the media pass through the sophisticated on-chip hybrid circuit to subtract the transmitted signal from the input signal for effective reduction of near-end echo. The received signal is processed with state-of-the-art technology, e.g., adaptive equalization, BLW (Baseline Wander) correction, cross-talk cancellation, echo cancellation, timing recovery, error correction, and 4D-PAM5 decoding. The 8-bit-wide data is recovered and is sent to the GMII interface at a clock speed of 125MHz. The Rx MAC retrieves the packet data from the internal receive MII/GMII interface and sends it to the packet buffer manager. 7.4. 100Base-TX Transmit Function The 100Base-TX transmit function performs parallel to serial conversion, 4B/5B coding, scrambling, NRZ/NRZI conversion, and MLT-3 encoding. The 5-bit serial data stream after 4B/5B coding is then scrambled as defined by the TP-PMD Stream Cipher function to flatten the power spectrum energy such that EMI effects can be reduced significantly. The scrambled seed is based on PHY addresses and is unique for each port. After scrambling, the bit stream is driven into the network media in the form of MLT-3 signaling. The MLT-3 multi-level signaling technology moves the power spectrum energy from high frequency to low frequency, which also reduces EMI emissions. Integrated Octal 10/100/1000M Ethernet Transceiver 17 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 7.5. 100Base-TX Receive Function The receive path includes a receiver composed of an adaptive equalizer and DC restoration circuits (to compensate for an incoming distorted MLT-3 signal), an MLT-3 to NRZI and NRZI to NRZ converter to convert analog signals to digital bit-stream, and a PLL circuit to clock data bits with minimum bit error rate. A de-scrambler, 5B/4B decoder, and serial-to-parallel conversion circuits are followed by the PLL circuit. Finally, the converted parallel data is fed into the MAC. 7.6. 10Base-T Transmit Function The output 10Base-T waveform is Manchester-encoded before it is driven onto the network media. The internal filter shapes the driven signals to reduce EMI emissions, eliminating the need for an external filter. 7.7. 10Base-T Receive Function The Manchester decoder converts the incoming serial stream to NRZ data when the squelch circuit detects the signal level is above squelch level. 7.8. Auto-Negotiation for UTP The RTL8218B-VC obtains the states of duplex, speed, and flow control ability for each port in UTP mode through the auto-negotiation mechanism defined in the IEEE 802.3 specifications. During autonegotiation, each port advertises its ability to its link partner and compares its ability with advertisements received from its link partner. By default, the RTL8218B-VC advertises full capabilities (1000full, 100full, 100half, 10full, 10half) together with flow control ability. Integrated Octal 10/100/1000M Ethernet Transceiver 18 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 7.9. Crossover Detection and Auto Correction The RTL8218B-VC automatically determines whether or not it needs to crossover between pairs, so that an external crossover cable is not required. When connecting to a device that does not perform MDI crossover, the RTL8218B-VC automatically switches its pin pairs to communicate with the remote device. When connecting to a device that does have MDI crossover capability, an algorithm determines which end performs the crossover function. The crossover detection and auto correction function can be disabled via register configuration. The RTL8218B-VC is set to MDI Crossover by default. The pin mapping in MDI and MDI Crossover mode is given below. Pairs A B C D Table 10. Media Dependent Interface Pin Mapping MDI MDI Crossover 1000Base-T 100Base-TX 10Base-T 1000Base-T 100Base-TX A TX TX B RX B RX RX A TX C Unused Unused D Unused D Unused Unused C Unused 10Base-T RX TX Unused Unused 7.10. Polarity Correction The RTL8218B-VC automatically corrects polarity errors on the receiver pairs in 1000Base-T and 10Base-T modes. In 100Base-TX mode, the polarity is irrelevant. In 1000Base-T mode, receive polarity errors are automatically corrected based on the sequence of idle symbols. Once the descrambler is locked, the polarity is also locked on all pairs. The polarity becomes unlocked only when the receiver loses lock. In 10Base-T mode, polarity errors are corrected based on the detection of valid spaced link pulses. The detection begins during the MDI crossover detection phase and locks when 10Base-T links up. The polarity becomes unlocked when the link is down. Figure 7. Conceptual Example of Polarity Correction Integrated Octal 10/100/1000M Ethernet Transceiver 19 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 7.11. MDC/MDIO Interface The RTL8218B-VC supports the IEEE compliant Management Data Input/Output (MDIO) Interface. This is the only method for the MAC to acquire the status of the PHY. The Media Independent Interface Management (MIIM) registers are written and read serially, using the MDC/MDIO pins. Data transferred to and from the MDIO pins is synchronized with the MDC clock. All transfers are initiated by the MAC. A clock of up to 8MHz must drive the MDC pin of the RTL8218B-VC. The MII register is a block of 32 registers, each 16 bits wide. Certain registers are defined by IEEE 802.3 and are required for compliance (0~10, 15). The MDIO frame structure starts with a 32-bit preamble, which is required by the RTL8218B-VC. The following data includes a start-of-frame marker, an op-code, a 10-bit address field, and a 16-bit data field. The address field is divided into two 5-bit segments. The first segment identifies the PHY address and the second identifies the register being accessed. The 5-bits of the PHY address are determined by the hardware strapping values during power up. The MDIO protocol provides both read and write operations. During a write operation, the MAC drives the MDIO line for the entire frame. For a read operation, a turn-around time is inserted in the frame to allow the PHY to drive back to the MAC. The MDIO pin of the MAC must be put in high-impedance during these bit times. Figure 8 and Figure 9 depict the MDIO read and write frame format respectively. The RTL8218B-VC is permanently programmed for preamble suppression. A preamble of 32 ‘1’ bits is required only for the first read or write. The management preamble may be as short as 1 bit. Figure 8. MDIO Read Frame Format Figure 9. MDIO Write Frame Format Integrated Octal 10/100/1000M Ethernet Transceiver 20 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 7.12. Reduced Serial Gigabit Media Independent Interface Plus (RSGMII-Plus) RSGMII-Plus (Reduced Serial Gigabit Media Independent Interface plus) reduces PCB complexity and IC pin count. This innovative 5Gbps serial interface provides an up to 10 inch MAC to PHY communication path. RSGMII-Plus can carry the full duplex gigabit Ethernet data streams of four ports simultaneously, using only 4 pins. Figure 10. RSGMII-Plus Interconnection Diagram Integrated Octal 10/100/1000M Ethernet Transceiver 21 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 7.13. Quad Serial Gigabit Media Independent Interface (QSGMII) QSGMII (Quad Serial Gigabit Media Independent Interface) reduces PCB complexity and IC pin count. This innovative 5Gbps serial interface provides an up to 5 inch MAC to PHY communication path. QSGMII can carry the full duplex gigabit Ethernet data streams of four ports simultaneously, using only 4 pins. Figure 11. QSGMII Interconnection Diagram Integrated Octal 10/100/1000M Ethernet Transceiver 22 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 7.13.1. RSGMII-Plus Interface Figure 12. [MDI x 8] + [RSGMII-Plus x 2 7.13.2. QSGMII Interface
Figure 13. [[MDI x 8] + [QSGMII x 2] Integrated Octal 10/100/1000M Ethernet Transceiver 23 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 7.14. Serial LED 7.14.1. Port Status Indicator The RTL8218B-VC supports serial LED mode. In the serial LED mode, the data is clocked through a shift register and the shifted symbols are output to the 36 LED pins. Each MDI port has three indicator symbols and each fiber port has three indicator symbols. Each symbol may have different indicator information 7.14.2. LED Configuration Table 11. Serial LED Per-LED Control PHY0, Reg.30 = 8, Reg.=31=0x281 Reg.bit Name 18.[15:12] LED_00_Mode Mode RW 18.11 18.10 18.9 18.8 18.7 RW RW RW RW RW 18.6 RW 18.5 RW 18.4 18.3 18.2 18.1 RW RW RW RW 18.0 RW 19[15:0] 20[15:0] LED_01_Mode LED_02_Mode RW RW Integrated Octal 10/100/1000M Ethernet Transceiver Description Assign LEDn to Port. 0000: MDI0 0001: MDI1 0010: MDI2 0011: MDI3 0100: Reserved 0101: Reserved 0110: Reserved 0111: Reserved 1000: FX0 1001: FX1 1010: FX2 1011: FX3 1100~1110: Reserved 1111: Disable 1000M Speed Indicator. 100M Speed Indicator. 10M Speed Indicator. Reserved 1000M Activity Indicator. Act blinking when the corresponding port is transmitting or receiving. 100M Activity Indicator. Act blinking when the corresponding port is transmitting or receiving. 10M Activity Indicator. Act blinking when the corresponding port is transmitting or receiving. Reserved Duplex Indicator. Collision Indicator. Blinking when a collision occurs. Tx Activity Indicator. Blinking when the corresponding port is transmitting. Rx Activity Indicator. Blinking when the corresponding port is receiving. Same as LED_00_Mode Same as LED_00_Mode 24 Default 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 - Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet Reg.bit 21[15:0] 22[15:0] 23[15:0] Name LED_03_Mode LED_04_Mode LED_05_Mode Mode RW RW RW Description Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Default - Mode RW RW RW RW RW RW RW RW Description Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Default - Mode RW RW RW RW RW RW RW RW Description Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Default - Mode RW RW RW RW RW RW RW RW Description Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Default - PHY0, Reg.29 = 8, Reg.=31=0x282 Reg.bit 16[15:0] 17[15:0] 18[15:0] 19[15:0] 20[15:0] 21[15:0] 22[15:0] 23[15:0] Name LED_06_Mode LED_07_Mode LED_08_Mode LED_09_Mode LED_10_Mode LED_11_Mode LED_12_Mode LED_13_Mode PHY0, Reg.29 = 8, Reg.=31=0x283 Reg.bit 16[15:0] 17[15:0] 18[15:0] 19[15:0] 20[15:0] 21[15:0] 22[15:0] 23[15:0] Name LED_14_Mode LED_15_Mode LED_16_Mode LED_17_Mode LED_18_Mode LED_19_Mode LED_20_Mode LED_21_Mode PHY0, Reg.29 = 8, Reg.=31=0x284 Reg.bit 16[15:0] 17[15:0] 18[15:0] 19[15:0] 20[15:0] 21[15:0] 22[15:0] 23[15:0] Name LED_22_Mode LED_23_Mode LED_24_Mode LED_25_Mode LED_26_Mode LED_27_Mode LED_28_Mode LED_29_Mode Integrated Octal 10/100/1000M Ethernet Transceiver 25 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet PHY0, Reg.29 = 8, Reg.=31=0x285 Reg.bit 16[15:0] 17[15:0] 18[15:0] 19[15:0] 20[15:0] 21[15:0] Name LED_30_Mode LED_31_Mode LED_32_Mode LED_33_Mode LED_34_Mode LED_35_Mode Mode RW RW RW RW RW RW Description Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Same as LED_00_Mode Default - Table 12. Serial LED Mode Configuration (Per-Port 3 LEDs) of Per-LED LED_MODE LED_MODE LED_MODE LED_MODE Register [1:0]=11 [1:0]=10 [1:0]=01 [1:0]=00 LED35 0x0FF0 0x0880 0x0880 0x0FF0 LED34 0x1FF0 0x1880 0x1880 0x1FF0 LED33 0x2FF0 0x2880 0x2880 0x2FF0 LED32 0x3FF0 0x3880 0x3880 0x3FF0 LED31 0x4FF0 0x4880 0x4880 0x4FF0 LED30 0x5FF0 0x5880 0x5880 0x5FF0 LED29 0x6FF0 0x6880 0x6880 0x6FF0 LED28 0x7FF0 0x7880 0x7880 0x7FF0 LED27 0x0800 0x0440 0x0660 0x8CC0 LED26 0x1800 0x1440 0x1660 0x9CC0 LED25 0x2800 0x2440 0x2660 0xACC0 LED24 0x3800 0x3440 0x3660 0xBCC0 LED23 0x4800 0x4440 0x4660 0xF000 LED22 0x5800 0x5440 0x5660 0xF000 LED21 0x6800 0x6440 0x6660 0xF000 LED20 0x7800 0x7440 0x7660 0xF000 LED19 0x0400 0x0220 0x8880 0xF000 LED18 0x1400 0x1220 0x9880 0xF000 LED17 0x2400 0x2220 0xA880 0xF000 LED16 0x3400 0x3220 0xB880 0xF000 LED15 0x4400 0x4220 0x8440 0xF000 LED14 0x5400 0x5220 0x9440 0xF000 LED13 0x6400 0x6220 0xA440 0xF000 LED12 0x7400 0x7220 0xB440 0xF000 LED11 0x8CC0 0x8880 0xF000 0xF000 LED10 0x9CC0 0x9880 0xF000 0xF000 LED09 0xACC0 0xA880 0xF000 0xF000 LED08 0xBCC0 0xB880 0xF000 0xF000 LED07 0x8800 0x8440 0xF000 0xF000 LED06 0x9800 0x9440 0xF000 0xF000 LED05 0xA800 0xA440 0xF000 0xF000 LED04 0xB800 0xB440 0xF000 0xF000 LED03 0x8400 0xF000 0xF000 0xF000 Integrated Octal 10/100/1000M Ethernet Transceiver 26 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet of Per-LED LED_MODE LED_MODE Register [1:0]=11 [1:0]=10 LED02 0x9400 0xF000 LED01 0xA400 0xF000 LED00 0xB400 0xF000 Notes: LED_MODE [1:0]=11 MDI: [Link/Act] [SPD1000] [SPD100] FX: [Link/Act] [SPD1000] [SPD100] LED_MODE [1:0]=01 0xF000 0xF000 0xF000 LED_MODE [1:0]=00 0xF000 0xF000 0xF000 LED_MODE [1:0]=10 MDI: [SPD1000/Act] [SPD100/Act] [SPD10/Act] FX: [SPD1000/Act] [SPD100/Act] [Disable] LED_MODE [1:0]=01 MDI: [SPD1000/Act] [SPD100(10)/Act] FX: [SPD1000/Act] [SPD100/Act] LED_MODE [1:0]=00 MDI: [Link/Act] FX: [Link/Act] 7.14.3. Serial LED Configuration Register Table 13. Serial LED Configuration Register PHY0, Reg.29 = 8, Reg.=31=0x280 Reg.bit 16[15:14] 16[13:12] Name Reserved cfg_led_mode Mode RW RW 16[11] 16[10:8] Reserved Serial Blink Rate RW RW 16[7:6] serial led burst cycle RW Integrated Octal 10/100/1000M Ethernet Transceiver Description Reserved 00: LED_Mode0. Per-Port 2 LEDs 01: LED_Mode1. Per-Port 2 LEDs 10: LED_Mode2. Per-Port 3 LEDs 11: LED_Mode3. Per-Port 3 LEDs Reserved LED Blink Rate Configuration. 000: 32ms 001: 64ms 010: 128ms 011: 256ms 100: 512ms 101: 1024ms 110: 48ms 111: 96ms 2'b00: 8 (ms) 2'b01: 16 2'b10: 32 2'b11: 64 27 Default 00 11 0 000 10 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet Reg.bit 16[5:4] Name serial led clock cycle Mode RW Description Default 2'b00: 32 (ns) 11 2'b01: 64 2'b10: 96 2'b11: 192 16[3] led_seri_active_low RW Serial LED active LOW 1 0: LED status active high 1: LED status active low 16[2] led_seri_disable RW Disable Serial LED. 1: Disable 0: Enable Default by strapping option (pin-30) 16[1] led_data_e_b RW Serial LED DATA_EN 16[0] led_clk_e_b RW Serial LED CLK_EN Note: Upon reset, the RTL8218B-VC supports chip diagnostics and LED functions by blinking all LEDs once via the LED_PowerOn_Light strapping pin configuration. 7.14.4. Serial LED Timing Definitions T2 T1 LEDCK T3 LEDDA LED 35 LED 34 LED 33 LED 02 LED 01 LED 35 LED 00 LED 34 LED 33 LED 02 LED 01 LED 00 Figure 14. Serial LED Timing Definitions 7.15. Realtek Cable Test (RTCT) The RTL8218B-VC physical layer transceivers use DSP technology to implement the Realtek Cable Test (RTCT) feature. The RTCT function could be used to detect short, open, or impedance mismatch in each differential pair. The RTL8218B-VC. Integrated Octal 10/100/1000M Ethernet Transceiver 28 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 7.16. Green Ethernet 7.16.1. Link-Up and Cable Length Power Saving The RTL8218B-VC provides link-up and dynamic detection of cable length and dynamic adjustment of power required for the detected cable length. This feature provides high performance with minimum power consumption. 7.16.2. Link-Down Power Saving The RTL8218B-VC implements link-down power saving on a per-port basis, greatly cutting power consumption when the network cable is disconnected. After it detects an incoming signal, it wakes up from link-down power saving and operates in normal mode. 7.17. IEEE 802.3az Energy Efficient Ethernet (EEE) The RTL8218B-VC supports IEEE 802.3az Energy Efficient Ethernet ability for 1000Base-T and 100Base-TX in full duplex operation. The Energy Efficient Ethernet (EEE) optional operational mode combines the IEEE 802.3 Media Access Control (MAC) sub-layer with 100Base-T and 1000Base-T Physical Layers defined to support operation in Low Power Idle mode. When Low Power Idle mode is enabled, systems on both sides of the link can disable portions of the functionality and save power during periods of low link utilization. • For 1000Base-T: Supports Energy Efficient Ethernet with the optional function of Low Power Idle • For 100Base-TX: Supports Energy Efficient Ethernet with the optional function of Low Power Idle 7.18. Interrupt Pin for External CPU The RTL8218B-VC provides one Interrupt output pin to interrupt an external CPU for 10/100/1000BaseT ports. The polarity of the Interrupt output pin can be configured via register access. In configuration registers, each port has link-up and link-down interrupt flags with mask. When port link-up or link-down interrupt mask is enabled, the RTL8218B-VC will raise the interrupt signal to alarm the external CPU. The CPU can read the interrupt flag to determine which port has changed to which status. 7.19. Reg.0.11 Power Down Mode The RTL8218B-VC implements power down mode on a per-port basis. Setting MII Reg.0.11 forces the corresponding port of the RTL8218B-VC to enter power down mode. Integrated Octal 10/100/1000M Ethernet Transceiver 29 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 7.20. Reg.0.14 PHY Digital Loopback Return to Internal The digital loopback mode of the PHY (return to MAC) may be enabled on a per-port basis by setting MII Reg.0.14 to 1. In digital loopback mode, the TXD of the PHY is transferred directly to the RXD of the PHY, with TXEN changed to CRS_DV, and returns to the MAC via an internal MII. The data stream coming from the MAC will not egress to the physical medium, and an incoming data stream from the network medium will be blocked in this mode. The packets will be looped back in 10Mbps, 100Mbps, and 1000Mbps in full duplex mode. This function is useful for diagnostic purposes. Figure 15. Reg.0.14 PHY Digital Loopback As the RTL8218B-VC only supports digital loopback in full duplex mode, PHY Reg.0.8 for each port will be always kept to 1 when digital loopback is enabled. In loopback mode, the link LED of the loopback port should be always turned on, and the speed combined with the duplex LED will reflect the link status (1000full/100full/10full) correctly regardless of what the previous status of this loopback port was. Integrated Octal 10/100/1000M Ethernet Transceiver 30 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 8. Register Descriptions Registers 0~15 of the MII are defined by the MII specification. Other registers are defined by Realtek Semiconductor Corp. for internal use and are reserved. The following abbreviations are used in this section: RW: Read/Write RO: Read Only LL: Latch Low until clear LH: Latch High until clear Page 0 Register 0 1 2 3 4 5 6 7 8 9 10 11~14 13 14 15 16~30 SC: Self Clearing Table 14. Register Descriptions Description Control Status PHY Identifier 1 PHY Identifier 2 Auto-Negotiation Advertisement Auto-Negotiation Link Partner Ability Auto-Negotiation Expansion Auto-Negotiation Next Page Transmit Auto-Negotiation Link Partner Next Page Ability 1000Base-T Control 1000Base-T Status Reserved 1000Base-T MMD Access Control 1000Base-T MMD Access Address Data Extended Status ASIC Control Integrated Octal 10/100/1000M Ethernet Transceiver 31 Default 0x1140 0x79C9 0x001C 0xC981 0x05E1 0x0000 0x0064 0x2001 0x0000 0x0E00 0x0000 0x0000 0x0000 0x0000 0x2000 - Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 8.1. Register 0: Control Reg.bit 0.15 Name Reset 0.14 Loopback (Digital loopback) 0.13 Speed Selection[0] 0.12 Auto Negotiation Enable 0.11 Power Down 0.10 Isolate 0.9 Restart Auto Negotiation 0.8 Duplex Mode 0.7 Collision Test 0.6 0.[5:0] Speed Selection[1] Reserved Table 15. Register 0: Control Mode Description RW/SC 1: PHY reset 0: Normal operation This bit is self-clearing. RW 1: Enable loopback (this will loopback TXD to RXD and ignore all activity on the cable media) 0: Normal operation This function is usable only when this PHY is operated in 10Base-T full duplex, 100Base-TX full duplex, or 1000Base-T full duplex. RW [0.6, 0.13] Speed Selection [1:0]. 11: Reserved 10: 1000Mbps 01: 100Mbps 00: 10Mbps This bit can be set through SMI (Read/Write). RW 1: Enable auto-negotiation process 0: Disable auto-negotiation process This bit can be set through SMI (Read/Write). RW 1: Power down (all functions will be disabled except SMI function) 0: Normal operation RW 1: Electrically isolates the PHY from QGMII (PHY still responds to MDC/MDIO) 0: Normal operation RW/SC 1: Restart Auto-Negotiation process 0: Normal operation RW 1: Full duplex operation 0: Half duplex operation This bit can be set through SMI (Read/Write). RO 1: Collision test enabled 0: Normal operation When set, this bit will cause the COL signal to be asserted in response to the assertion of TXEN within 512-bit times. The COL signal will be de-asserted within 4-bit times in response to the de-assertion of TXEN. RW See Bit 13. RO Reserved. Integrated Octal 10/100/1000M Ethernet Transceiver 32 Default 0 0 0 1 0 0 0 1 0 1 000000 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 8.2. Register 1: Status Reg.bit 1.15 Name 100Base-T4 1.14 100Base-TX-FD 1.13 100Base-TX-HD 1.12 10Base-T-FD 1.11 10Base-T-HD 1.10 100Base-T2-FD 1.9 100Base-T2-HD 1.8 Extended Status 1.7 1.6 Reserved MF Preamble Suppression 1.5 Auto-negotiate Complete 1.4 Remote Fault 1.3 Auto-Negotiation Ability 1.2 Link Status 1.1 Jabber Detect 1.0 Extended Capability Table 16. Register 1: Status Mode Description RO 0: No 100Base-T4 capability The RTL8218B-VC does not support 100Base-T4 mode, and this bit should always be 0. RO 1: 100Base-TX full duplex capable 0: Not 100Base-TX full duplex capable RO 1: 100Base-TX half duplex capable 0: Not 100Base-TX half duplex capable RO 1: 10Base-T full duplex capable 0: Not 10Base-TX full duplex capable RO 1: 10Base-T half duplex capable 0: Not 10Base-TX half duplex capable RO 0: No 100Base-T2 full duplex capability The RTL8218B-VC does not support 100Base-T2 mode, and this bit should always be 0. RO 0: No 100Base-T2 half duplex capability The RTL8218B-VC does not support 100Base-T2 mode, and this bit should always be 0. RO 1: Extended status information in Register 15 The RTL8218B-VC always supports Extended Status Register. RO Reserved. RO The RTL8218B-VC will accept management frames with preamble suppressed. RO 1: Auto-negotiation process completed 0: Auto-negotiation process not completed RO/ 1: Remote fault indication from link partner has been detected LH 0: No remote fault indication detected This bit will remain set until it is cleared by reading register 1 via the management interface. RO 1: Auto-negotiation capable (permanently=1) 0: No Auto-negotiation capability RO/ 1: Link has not failed since previous read LL 0: Link has failed since previous read If the link fails, this bit will be set to 0 until this bit is read. RO/ 1: Jabber detected LH 0: No Jabber detected Jabber is supported only in 10Base-T mode. RO 1: Extended register capable (permanently=1) 0: Not extended register capable Integrated Octal 10/100/1000M Ethernet Transceiver 33 Default 0 1 1 1 1 0 0 1 1 1 0 0 1 0 0 1 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 8.3. Register 2: PHY Identifier 1 The PHY Identifier Registers #1 and #2 together form a unique identifier for the PHY part of this device. The Identifier consists of a concatenation of the Organizationally Unique Identifier (OUI), the vendor's model number, and the model revision number. A PHY may return a value of zero in each of the 32 bits of the PHY Identifier if desired. The PHY Identifier is intended to support network management. Reg.bit 2.[15:0] Name OUI Table 17. Register 2: PHY Identifier 1 Mode Description RO Composed of the 3rd to 18th Bits of the Organizationally Unique Identifier (OUI), Respectively. Default 0x001C 8.4. Register 3: PHY Identifier 2 Reg.bit 3.[15:10] 3.[9:4] 3.[3:0] Name OUI Model Number Revision Number Table 18. Register 3: PHY Identifier 2 Mode Description RO Assigned to the 19th through 24th Bits of the OUI. RO Manufacturer’s Model Number. RO Manufacturer’s Revision Number. Default 110010 011000 0001 8.5. Register 4: Auto-Negotiation Advertisement This register contains the advertisement abilities of this device as they will be transmitted to its Link Partner during Auto-negotiation. Note: Each time the link ability of the RTL8218B-VC is reconfigured, the auto-negotiation process should be executed to allow the configuration to take effect. Reg.bit 4.15 4.14 4.13 4.12 4.11 4.10 4.9 4.8 Table 19. Register 4: Auto-Negotiation Advertisement Name Mode Description Next Page RO 1: Additional next pages exchange desired 0: No additional next pages exchange desired Acknowledge RO Permanently=0. Remote Fault RW 1: Advertises that the RTL8218B-VC has detected a remote fault 0: No remote fault detected Reserved RO Reserved. Asymmetric Pause RW 1: Advertises that the RTL8218B-VC has asymmetric flow control capability 0: No asymmetric flow control capability Pause RW 1: Advertises that the RTL8218B-VC has flow control capability 0: No flow control capability 100Base-T4 RO 1: 100Base-T4 capable 0: Not 100Base-T4 capable (permanently=0) 100Base-TX-FD RW 1: 100Base-TX full duplex capable 0: Not 100Base-TX full duplex capable Integrated Octal 10/100/1000M Ethernet Transceiver 34 Default 0 0 0 0 0 1 0 1 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet Reg.bit 4.7 Name 100Base-TX Mode Description RW 1: 100Base-TX half duplex capable 0: Not 100Base-TX half duplex capable 4.6 10Base-T-FD RW 1: 10Base-TX full duplex capable 0: Not 10Base-TX full duplex capable 4.5 10Base-T RW 1: 10Base-TX half duplex capable 0: Not 10Base-TX half duplex capable 4.[4:0] Selector Field RO 00001: IEEE 802.3 Note 1: This Register 4 setting has no effect unless auto-negotiation is restarted or link down. Note 2: If 1000Base-T is advertised, then the required next pages are automatically transmitted. Default 1 1 1 00001 8.6. Register 5: Auto-Negotiation Link Partner Ability This register contains the advertised abilities of the Link Partner as received during Auto-negotiation. The content changes after a successful Auto-negotiation. Reg.bit 5.15 5.14 5.13 5.12 5.11 5.10 5.9 5.8 5.7 5.6 5.5 5.[4:0] Table 20. Register 5: Auto-Negotiation Link Partner Ability Name Mode Description Next Page RO 1: Link partner desires Next Page transfer 0: Link partner does not desire Next Page transfer Acknowledge RO 1: Link Partner acknowledges reception of Fast Link Pulse (FLP) 0: Not acknowledged by Link Partner Remote Fault RO 1: Remote Fault indicated by Link Partner 0: No remote fault indicated by Link Partner Reserved RO Technology Ability Field. Received code word bit 12. Asymmetric Pause RO 1: Asymmetric Flow control supported by Link Partner 0: No Asymmetric flow control supported by Link Partner When auto-negotiation is enabled, this bit reflects Link Partner ability (Read only). Pause RO 1: Flow control supported by Link Partner 0: No flow control supported by Link Partner When auto-negotiation is enabled, this bit reflects Link Partner ability (Read only). 100Base-T4 RO 1: 100Base-T4 supported by Link Partner 0: 100Base-T4 not supported by Link Partner 100Base-TX-FD RO 1: 100Base-TX full duplex supported by Link Partner 0: 100Base-TX full duplex not supported by Link Partner 100Base-TX RO 1: 100Base-TX half duplex supported by Link Partner 0: 100Base-TX half duplex not supported by Link Partner 10Base-T-FD RO 1: 10Base-TX full duplex supported by Link Partner 0: 10Base-TX full duplex not supported by Link Partner 10Base-T RO 1: 10Base-TX half duplex supported by Link Partner 0: 10Base-TX half duplex not supported by Link Partner Selector Field RO 00001: IEEE 802.3 Integrated Octal 10/100/1000M Ethernet Transceiver 35 Default 0 0 0 0 0 0 0 0 0 0 0 00000 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 8.7. Register 6: Auto-Negotiation Expansion Reg.bit 6.[15:7] 6.6 6.5 6.4 6.3 6.2 6.1 6.0 Table 21. Register 6: Auto-Negotiation Expansion Name Mode Description Reserved RO Ignore On Read. RO 1: Received next page storage location is Receive Next Page Location specified by bit (6.5) Able 0: Received next page storage location is not specified by bit (6.5) RO 1: Link Partner next pages are stored in Received Next Page Storage Register 8 Location 0: Link Partner next pages are stored in Register 5 Parallel Detection Fault RO/LH 1: A fault has been detected via the Parallel Detection function 0: No fault has been detected via the Parallel Detection function RO 1: Link Partner is Next Page able Link Partner Next Page Ability 0: Link Partner is not Next Page able Local Next Page Ability RO 1: RTL8218B-VC is Next Page able Page Received RO/LH 1: A New Page has been received 0: A New Page has not been received RO If Auto-Negotiation is Enabled, this bit means: Link Partner AutoNegotiation Ability 1: Link Partner is Auto-Negotiation able 0: Link Partner is not Auto-Negotiation able Default 0 1 1 0 0 1 0 0 8.8. Register 7: Auto-Negotiation Next Page Transmit Reg.bit 7.15 7.14 7.13 7.12 7.11 7.[10:0] Table 22. Register 7: Auto-Negotiation Next Page Transmit Mode Description RW 1: Another next page desired 0: No other next page to send Reserved RO 1: A fault has been detected via the Parallel Detection function 0: No fault has been detected via the Parallel Detection function Message Page RW 1: Message page Acknowledge 2 RW 1: Local device has the ability to comply with the message received 0: Local device has no ability to comply with the message received Toggle RO Toggle Bit. Message/Unformatted Field RW Content of Message/Unformatted Page. Name Next Page Integrated Octal 10/100/1000M Ethernet Transceiver 36 Default 0 0 1 0 0 000000 00001 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 8.9. Register 8: Auto-Negotiation Link Partner Next Page Ability Reg.bit 8.15 8.14 8.13 8.12 8.11 8.[10:0] Table 23. Register 8: Auto-Negotiation Link Partner Next Page Ability Name Mode Description Next Page RO Received Link Code Word Bit 15. Acknowledge RO Received Link Code Word Bit 14. Message Page RO Received Link Code Word Bit 13. Acknowledge 2 RO Received Link Code Word Bit 12. Toggle RO Received Link Code Word Bit 11. Message/Unformatted Field RO Received Link Code Word Bit 10:0. Default 0 0 0 0 0 0 8.10. Register 9: 1000Base-T Control Table 24. Register 9: 1000Base-T Control Mode Description RW Test Mode Select. 000: Normal mode 001: Test mode 1–Transmit waveform test 010: Test mode 2–Transmit jitter test in MASTER mode 011: Test mode 3–Transmit jitter test in SLAVE mode 100: Test mode 4–Transmitter distortion test 101, 110, 111: Reserved RW 1: Enable MASTER/SLAVE manual configuration MASTER/SLAVE Manual Configuration Enable 0: Disable MASTER/SLAVE manual configuration RW MASTER/SLAVE 1: Configure PHY as MASTER during MASTER/SLAVE Configuration Value negotiation, only when 9.12 is set to logical one 0: Configure PHY as SLAVE during MASTER/SLAVE negotiation, only when 9.12 is set to logical one Port Type RW 1: Multi-port device 0: Single-port device 1000Base-T Full-Duplex RW 1: Advertise PHY is 1000Base-T Full-Duplex capable 0: Advertise PHY is not 1000Base-T Full-Duplex capable 1000Base-T Half-Duplex RW 1: Advertise PHY is 1000Base-T Half-Duplex capable 0: Advertise PHY is not 1000Base-T Half-Duplex capable Reserved RW Reserved. Reg.bit Name 9.[15:13] Test Mode 9.12 9.11 9.10 9.9 9.8 9.[7:0] Integrated Octal 10/100/1000M Ethernet Transceiver 37 Default 000 0 1 1 1 0 0 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 8.11. Register 10: 1000Base-T Status Reg.bit 10.15 10.14 10.13 10.12 10.11 10.10 10.[9:8] 10.[7:0] Table 25. Register 10: 1000Base-T Status Name Mode Description MASTER/SLAVE RO/LH/ 1: MASTER/SLAVE configuration fault detected Configuration Fault SC 0: No MASTER/SLAVE configuration fault detected RO 1: Local PHY configuration resolved to MASTER MASTER/SLAVE Configuration Resolution 0: Local PHY configuration resolved to SLAVE Local Receiver Status RO 1: Local receiver OK 0: Local receiver not OK Remote Receiver Status RO 1: Remote receiver OK 0: Remote receiver not OK RO 1: Link partner is capable of 1000Base-T Full-Duplex Link Partner 1000Base-T Full-Duplex 0: Link partner is not capable of 1000Base-T Full-Duplex 1000Base-T Half-Duplex RO 1: Link partner is capable of 1000Base-T Half-Duplex 0: Link partner is not capable of 1000Base-T Half-Duplex Reserved RO Reserved. Idle Error Count RO/SC Idle Error Counter. The counter stops automatically when it reaches 0xFF. Default 0 0 0 0 0 0 0 0 8.12. Register 13: MMD Access Control Register Reg.bit Name 13.[15:14] Function 13.[13:5] Reserved 13.[4:0] MMD DEVAD Table 26. Register 13: MMD Access Control Register Mode Description RW 13.[15:14] 00: Address 01: Data, no post increment 10: Data, post increment on read and writes 11: Data, post increment on writes only RW Write as 0, ignore on read RW Device address Default 0 0 0 8.13. Register 14: MMD Access Address Data Register Table 27. Register 14: MMD Access Address Data Register Reg.bit Name Mode Description 13.[15:10] MMD Address Data RW If 13.[15:14] = 00, MMD DEVAD’s address register. Otherwise, MMD DEVAD’s data register as indicated by the content of its address register Integrated Octal 10/100/1000M Ethernet Transceiver 38 Default 0 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 8.14. Register 15: Extended Status Table 28. Register 15: Extended Status Reg.bit Name Mode Description 15.15 1000Base-X Full-Duplex RO 1: 1000Base-X Full-Duplex capable 0: Not 1000Base-X Full-Duplex capable 15.14 1000Base-X Half-Duplex RO 1: 1000Base-X Half-Duplex capable 0: Not 1000Base-X Half-Duplex capable 15.13 1000Base-T Full-Duplex RO 1: 1000Base-T Full-Duplex capable 0: Not 1000Base-T Full-Duplex capable 15.12 1000Base-T Half-Duplex RO 1: 1000Base-T Half-Duplex capable 0: Not 1000Base-T Half-Duplex capable 15.[11:0] Reserved RO Reserved. Integrated Octal 10/100/1000M Ethernet Transceiver 39 Default 0 0 1 0 0 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 9. Electrical Characteristics 9.1. Absolute Maximum Ratings WARNING: Absolute maximum ratings are limits beyond which permanent damage may be caused to the device, or device reliability may be affected. All voltages are specified reference to GND unless otherwise specified. Table 29. Absolute Maximum Ratings Parameter Min Junction Temperature (Tj) Storage Temperature -45 DVDDIO, AVDDH Supply Voltage Referenced to GND GND-0.3 DVDDL, AVDDL, SVDDL, PLLVDDL Supply Voltage GND-0.3 Referenced to GND Digital Input Voltage GND-0.3 Max +125 +125 +3.63 Units °C °C V +1.21 V VDDIO+0.3 V 9.2. Operating Range Table 30. Operating Range Parameter Min Ambient Operating Temperature (Ta) 0 DVDDIO, AVDDH Supply Voltage Range 3.135 DVDDL, AVDDL, SVDDL, PLLVDDL Supply Voltage Range 1.05 Integrated Octal 10/100/1000M Ethernet Transceiver 40 Typ 3.3 1.1 Max 70 3.465 1.15 Units °C V V Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 9.3. Power Consumption Table 31. Power Consumption Parameter Symbol Min Typ System Idle (All ports are in link-down state) Power Supply Current for VDDH IDVDDIO, IAVDDH, ISVDDH 74 Power Supply Current for VDDL IDVDDL, IAVDDL, ISVDDL, IPLLVDDL 542 1000Base-T Active (8 1000base-T Ports are in link-up state) Power Supply Current for VDDH IDVDDIO, IAVDDH, ISVDDH 405 Power Supply Current for VDDL IDVDDL, IAVDDL, ISVDDL, IPLLVDDL 1411 EEE 1000Base-T Linkup (8 1000base-T Ports are in link-up state) Power Supply Current for VDDH IDVDDIO, IAVDDH, ISVDDH 70 Power Supply Current for VDDL IDVDDL, IAVDDL, ISVDDL, IPLLVDDL 542 100Base-TX Active (8 100base-TX Ports are in link-up state) Power Supply Current for VDDH IDVDDIO, IAVDDH, ISVDDH 193 Power Supply Current for VDDL IDVDDL, IAVDDL, ISVDDL, IPLLVDDL 638 EEE 100Base-TX Linkup (8 100base-TX Ports are in link-up state) Power Supply Current for VDDH IDVDDIO, IAVDDH, ISVDDH 69 Power Supply Current for VDDL IDVDDL, IAVDDL, ISVDDL, IPLLVDDL 513 10Base-T Active (8 10base-T Ports are in link-up state) Power Supply Current for VDDH IDVDDIO, IAVDDH, ISVDDH 283 Power Supply Current for VDDL IDVDDL, IAVDDL, ISVDDL, IPLLVDDL 453 DVDDIO=3.3V TTL Input High Voltage VIH 2.0 TTL Input Low Voltage VIL Output High Voltage VOH 2.7 Output Low Voltage VOL Note: DVDDIO=3.3V, AVDDH=3.3V, DVDDL=1.10V, AVDDL=1.10V, SVDDL=1.10V. Integrated Octal 10/100/1000M Ethernet Transceiver 41 Max Units - mA mA - mA mA - mA mA - mA mA - mA mA - mA mA 0.7 0.6 V V V V Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 9.4. IEEE 10/100/1000Base-T Specifications Table 32. IEEE 10/100/1000Base-T Specifications Parameter Min Typ Max Units 670 670 - 724.5 726.0 0.467 0.47 820 820 1 2 mV mV % % - 0.66 2 % 73.1 73.1 - 85.4 826 8.5 46.4 10 50 % % mV mV 950 -950 0.98 3 3 3 3 - 1017 -1017 1.001 3.56 3.51 3.54 3.48 70.2 70.1 0.8 1.1 0.62 0.61 80 1050 -1050 1.02 5 5 5 5 500 500 5 5 1.4 1.4 500 mV mV ns ns ns ns ps ps % % ns ns ps 8 2.2 - 16 2.57 1.7 8.2 11.73 0.9 1.2 1.3 23.55 24 2.8 11 22 22 16 40 40 50 ms V ns ns ns ns ns ns mV 1000Base-T Peak Voltage of Point A Peak Voltage of Point B Difference between the Peak Voltage of Point A and Point B Difference between the Peak Voltage of Point C and 0.5 Times the Average of the Peak Voltage of Points A and B Difference between the Peak Voltage of Point D and 0.5 Times the Average of the Peak Voltage of Points A and B Droop of Point G Droop of Point J Transmitter Distortion Common Mode Output Voltage 100Base-TX Peak Voltage (+Vout) Peak Voltage (-Vout) Amplitude Symmetry Rise Time (+Vout) Rise Time (-Vout) Fall Time (+Vout) Fall Time (-Vout) Rise/Fall Symmetry (+Vout) Rise/Fall Symmetry (-Vout) Overshoot (+Vout) Overshoot (-Vout) Transmit Jitter (+Vout) Transmit Jitter (-Vout) Distortion (Duty Cycle) 10Base-T Link Pulse Timing Differential Voltage Peak-to-Peak Normal Jitter with Cable Peak-to-Peak 8.0 BT Jitter with Cable Peak-to-Peak 8.5 BT Jitter with Cable Peak-to-Peak Normal Jitter without Cable Peak-to-Peak 8.0 BT Jitter without Cable Peak-to-Peak 8.5 BT Jitter without Cable Common Mode Output Voltage Integrated Octal 10/100/1000M Ethernet Transceiver 42 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 9.5. QSGMII Characteristics 9.5.1. Symbol UI T_X1 T_X2 T_Y1 T_Y2 VTX-DIFFp-p TTX-EYE TTX-JITTER TTX-RISE TTX-FALL RTX CTX LTX QSGMII Differential Transmitter Characteristics Table 33. QSGMII Differential Transmitter Characteristics Parameter Min Typ Max Units Notes Unit Interval 199.94 200 200.06 ps 200ps ± 300ppm Eye Mask 0.2 UI Eye Mask 0.4 UI Eye Mask 150 mV Eye Mask 650 mV Output Differential Voltage 600 800 1300 mV Minimum TX Eye Width 0.6 UI Output Jitter 0.35 UI TTX-JITTER-MAX=1 - TTX-EYE-MIN=0.35UI Output Rise Time 0.15 UI 20% ~ 80% Output Fall Time 0.15 UI 20% ~ 80% Differential Resistance 80 100 120 ohm AC Coupling Capacitor 80 100 120 nF Transmit Length in PCB 10 inch - TTX-EYE-MIN T_Y2 T_Y1 Amplitude 0V VTX-DIFFp-p-MIN VTX-DIFFp-p-MAX -T_Y1 -T_Y2 0.0 T_X1 T_X2 1-T_X2 1-T_X1 1.0 Time UI Figure 16. QSGMII Differential Transmitter Eye Diagram Integrated Octal 10/100/1000M Ethernet Transceiver 43 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 9.5.2. Symbol UI R_X1 R_Y1 R_Y2 VRX-DIFFp-p TRX-EYE TRX-JITTER RRX QSGMII Differential Receiver Characteristics Table 34. QSGMII Differential Receiver Characteristics Parameter Min Typ Max Units Notes Unit Interval 199.94 200 200.06 ps 200ps ± 300ppm Eye Mask 0.3 UI Eye Mask 100 mV Eye Mask 650 mV Input Differential Voltage 200 1300 mV Minimum RX Eye Width 0.4 UI Input Jitter Tolerance 0.6 UI TRX-JITTER-MAX=1 - TRX-EYE-MIN=0.6UI Differential Resistance 80 100 120 ohm - TRX-EYE-MIN R_Y2 R_Y1 Amplitude 0V VRX-DIFFp-p-MIN VRX-DIFFp-p-MAX -R_Y1 -R_Y2 0.0 R_X1 0.5 1-R_X1 1.0 Time UI Figure 17. QSGMII Differential Receiver Eye Diagram Integrated Octal 10/100/1000M Ethernet Transceiver 44 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 9.6. RSGMII-Plus Characteristics 9.6.1. Symbol UI T_X1 T_X2 T_Y1 T_Y2 VTX-DIFFp-p TTX-EYE TTX-JITTER TTX-RISE TTX-FALL RTX CTX LTX RSGMII-Plus Differential Transmitter Characteristics Table 35. RSGMII-Plus Differential Transmitter Characteristics Parameter Min Typ Max Units Notes Unit Interval 199.94 200 200.06 ps 200ps ± 300ppm Eye Mask 0.2 UI Eye Mask 0.4 UI Eye Mask 150 mV Eye Mask 650 mV Output Differential Voltage 600 800 1300 mV Minimum TX Eye Width 0.6 UI Output Jitter 0.35 UI TTX-JITTER-MAX=1 - TTX-EYE-MIN=0.35UI Output Rise Time 0.15 UI 20% ~ 80% Output Fall Time 0.15 UI 20% ~ 80% Differential Resistance 80 100 120 ohm AC Coupling Capacitor 80 100 120 nF Transmit Length in PCB 10 inch - Figure 18. RSGMII-Plus Differential Transmitter Eye Diagram Integrated Octal 10/100/1000M Ethernet Transceiver 45 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 9.6.2. Symbol UI R_X1 R_Y1 R_Y2 VRX-DIFFp-p TRX-EYE TRX-JITTER RRX RSGMII-Plus Differential Receiver Characteristics Table 36. RSGMII-Plus Differential Receiver Characteristics Parameter Min Typ Max Units Notes Unit Interval 199.94 200 200.06 ps 200ps ± 300ppm Eye Mask 0.3 UI Eye Mask 100 mV Eye Mask 650 mV Input Differential Voltage 200 1300 mV Minimum RX Eye Width 0.4 UI Input Jitter Tolerance 0.6 UI TRX-JITTER-MAX=1 - TRX-EYE-MIN=0.6UI Differential Resistance 80 100 120 ohm - TRX-EYE-MIN R_Y2 R_Y1 Amplitude 0V VRX-DIFFp-p-MIN VRX-DIFFp-p-MAX -R_Y1 -R_Y2 0.0 R_X1 0.5 1-R_X1 1.0 Time UI Figure 19. RSGMII-Plus Differential Receiver Eye Diagram Integrated Octal 10/100/1000M Ethernet Transceiver 46 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 9.7. XTALI Clock Characteristics Table 37. XTALI Clock Characteristics Parameter Min Typ Max Units Frequency of XTALI 25 MHz Frequency Tolerance of XTALI -50 +50 ppm Duty Cycle of XTALI 40 60 % Rise Time of XTALI 12.5 ns Fall Time of XTALI 12.5 ns Jitter of XTALI 200 ps Note: PLL generated clocks are not recommended as input to XTALI since they can have excessive jitter. Zero delay buffers are also not recommended for the same reason. 9.8. Power and Reset Characteristics Figure 20. Power and Reset Characteristics Parameter Reset Delay Time Reset Low Time VDDL Power Rise Settling Time VDDH Power Rise Settling Time Table 38. Power and Reset Characteristics SYM Description/Condition Type t1 I The duration from ‘all power steady’ to the reset signal released to high t2 I The duration of reset signal remaining low time before issuing a reset to the RTL8218B-VC t3 I DVDDL, AVDDL, and SVDDL power rise settling time t4 I DVDDIO, and AVDDH power rise settling time Integrated Octal 10/100/1000M Ethernet Transceiver 47 Min 10 Typical - Max - Units ms 10 - - ms 1 - - ms 1 - - ms Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 9.9. MDC/MDIO Interface Characteristics The RTL8218B-VC supports the IEEE compliant Management Data Input/Output (MDIO) Interface. This is the only method for the MAC to acquire the status of the PHY. The MDIO is a bi-directional signal that can be sourced by the Master or the Slave. In a write command, the master sources the MDIO signal. In a read command, the slave sources the MDIO signal. • • The timing characteristics t1, t2, and t3 (Figure 21) of the Master (MAC) are provided by the Master when the Master sources the MDIO signal (Write command) The timing characteristics t4 (Figure 22) of the Slave (RTL8218B-VC) are provided by the RTL8218B-VC when the RTL8218B-VC sources the MDIO signal (Read command) Figure 21. MDIO Sourced by Master (MAC) Figure 22. MDIO Sourced by RTL8218B-VC (Slave) Table 39. MDIO Timing Characteristics and Requirement Parameter SYM Description/Condition Type Min MDC Clock Period t1 Clock Period I 125 t2 Input Setup Time MDIO to MDC Rising Setup I 10 Time (Write Data) t3 Input Hold Time MDIO to MDC Rising Hold I 10 Time (Write Data) t4 MDC to MDIO Delay Time Clock (Falling Edge) to Data O 20 (Read Data) Delay Time Integrated Octal 10/100/1000M Ethernet Transceiver 48 Typical - Max - Units ns - - ns - - ns - 100 ns Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 9.10. LED Characteristics 9.10.1. Serial LED Timing Figure 23. Serial LED Timing Symbol T1 T2 T3 Table 40. Serial LED Timing Description Min Serial LED Clock Cycle Time Serial LED Clock On/Off Duration Serial LED Burst Cycle Time - Integrated Octal 10/100/1000M Ethernet Transceiver 49 Typ 192 6.82 32 Max - Units ns us ms Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 10. Thermal Characteristics 10.1. Assembly Description Package PCB Heat Sink Table 41. Assembly Description Type E-Pad LQFP-128 Dimension (L×W) 14×20mm Thickness 1.4mm PCB Dimension (L×W) 162×110mm PCB Thickness 1.6mm 2-Layer (2S) Number of Cu Layer-PCB 4-Layer (2S2P) SEP02520A-07 100 x 24.5 x 20.3 mm3 10.2. Material Properties Item Package Die Silver Paste Lead Frame Mold Compound PCB Table 42. Material Properties Material Thermal Conductivity K (W/m-k) Si 147 1.0 1033BF CDA7025 168 G631 0.9 Cu 400 FR4 0.2 10.3. Simulation Conditions Table 43. Simulation Conditions Input Power Test Board (PCB) Control Condition Integrated Octal 10/100/1000M Ethernet Transceiver 2.9W 2L (2S)/4L (2S2P) Air Flow = 0m/s 50 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 10.4. Thermal Performance of E-Pad LQFP-128 on PCB under Still Air Convention Table 44. Thermal Performance of E-Pad LQFP-128 on PCB under Still Air Convention PCB Layer θJA θJC ΨJT ΨJB 4L PCB 18.2 10.4 2.2 7.5 2L PCB 25.9 13.6 2.6 13.3 Note: θJA: Junction to ambient thermal resistance. θJC: Junction to case thermal resistance. ΨJT: Junction to top center of package thermal characterization. ΨJB: Junction to bottom surface center of PCB thermal characterization . Integrated Octal 10/100/1000M Ethernet Transceiver 51 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 11. Mechanical Dimensions 11.1. LQFP-128 E-PAD Package 11.2. Mechanical Dimensions Notes Symbol Dimension in mm Min Nom Max A — — 1.60 A1 0.05 — 0.15 A2 1.35 1.40 1.45 b 0.17 0.2 0.27 D 22.00 BSC D1 20.00 BSC D2/E2 5.6 6.60 7.50 E 16.00BSC E1 14.00BSC e 0.50BSC L 0.45 0.60 0.75 L1 1.00 REF Note 1: CONTROLLING DIMENSION: MILLIMETER (mm). Note 2: REFERENCE DOCUMENT: JEDEC MS-26. Integrated Octal 10/100/1000M Ethernet Transceiver Min — 0.002 0.053 0.007 0.220 0.018 52 Dimension in inch Nom — — 0.055 0.009 0.866 BSC 0.787 BSC 0.260 0.630BSC 0.551BSC 0.020BSC 0.024 0.039 REF Max 0.063 0.006 0.057 0.011 0.295 0.030 Track ID: JATR-8275-15 Rev. 1.1 RTL8218B-VC Datasheet 12. Ordering Information Table 45. Ordering Information Part Number Package RTL8218B-VC-CG LQFP-128 EPAD Green Package Note: See page 8 for package identification information. Status Mass Production Realtek Semiconductor Corp. Headquarters No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel: +886-3-578-0211 Fax: +886-3-577-6047 www.realtek.com Integrated Octal 10/100/1000M Ethernet Transceiver 53 Track ID: JATR-8275-15 Rev. 1.1
