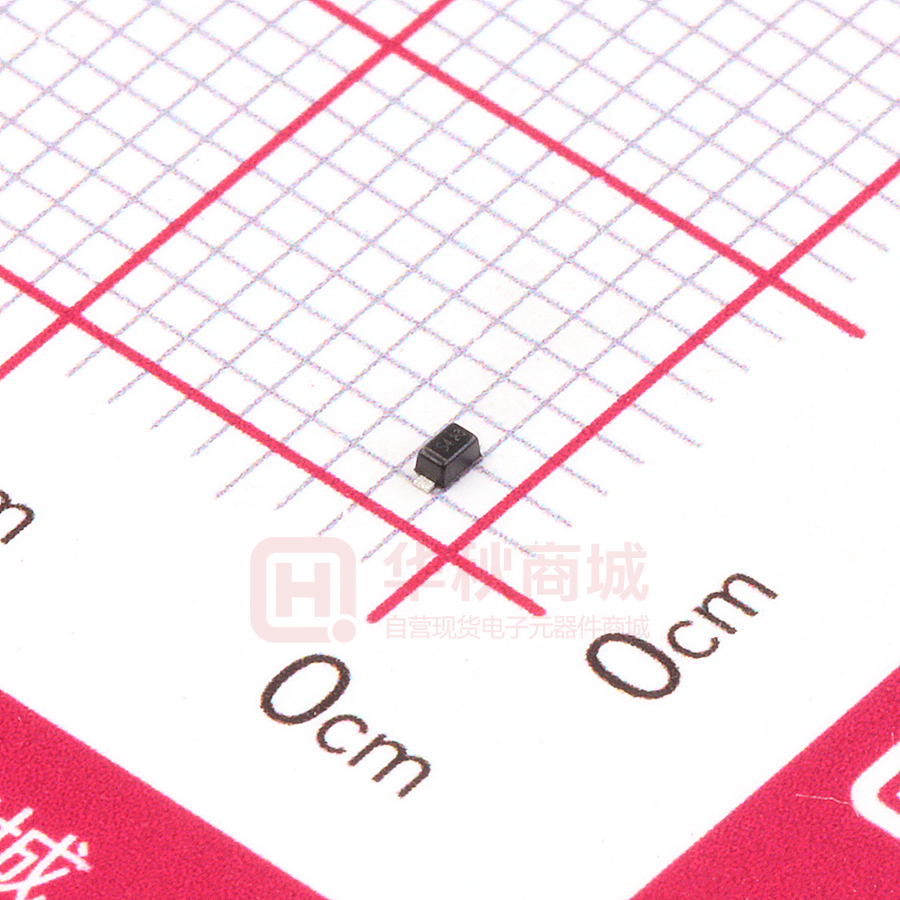

SD103AX

SD103AX SD103BX SD103CX Schottky Barrier Diode FEATURES z z Low Forward Voltage Drop. Guard Ring Construction For Transient Protection. z Negligible Reverse Recovery Time. z Low Reverse Capacitance. APPLICATIONS z SOD-5 23 Schotty barrier switching. ORDERING INFORMATION Type No. Marking Package Code SD103AX SD103BX SD103CX S4 S5 S6 SOD-523 SOD-523 SOD-523 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Symbol SD103AX SD103BX SD103CX Unit Peak Repetitive Peak reverse voltage Working Peak DC Reverse Voltage VRR 40 30 20 V RMS Reverse Voltage VR(RMS) 28 21 14 V Forward Continuous Current IF 350 mA Repetitive Peak Forward Current @t≤1.0s IFRM 1.5 A Power Dissipation Pd 400 mW Thermal Resistance Junction to Ambient RθjA 300 ℃/W Storage temperature Tstg -65~+125 ℃ REV.08 VRWM VR 1 of 3 SD103AX SD103BX SD103CX ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified Parameter Reverse Breakdown Voltage SD103AX SD103BX SD103CX Forward voltage Reverse current Symbol Min. V(BR)R 40 30 20 Typ. Unit V 0.37 0.60 VF SD103AX SD103BX SD103CX Max. IRM 5.0 Conditions IR=10μA IR=10μA IR=10μA V IF=20mA IF=200mA μA VR=30V VR=20V VR=10V Capacitance between terminals CT 50 pF VR=0,f=1MHz Reverse Recovery Time trr 10 ns IR=IF=200mA Irr=0.1*IR,RL=100Ω TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified REV.08 2 of 3 SD103AX SD103BX SD103CX PACKAGE OUTLINE Plastic surface mounted package SOD-523 A C HE V M A 0 D A 0.5 1mm scale E b p DIMENSIONS(mmaretheoriginaldimensions) UNIT A bp c D E HE V mm 0.7 0.5 0.35 0.25 0.2 0.1 1.3 1.1 0.9 0.7 1.7 1.5 0.15 Note 1.Themarkingbarindicatesthecathode. OUTLINE VERSION REFERENCES IEC JEDEC EUROPEAN PROJECTION EIAJ SOD523 REV.08 ISSUEDATE 98-11-25 3 of 3
