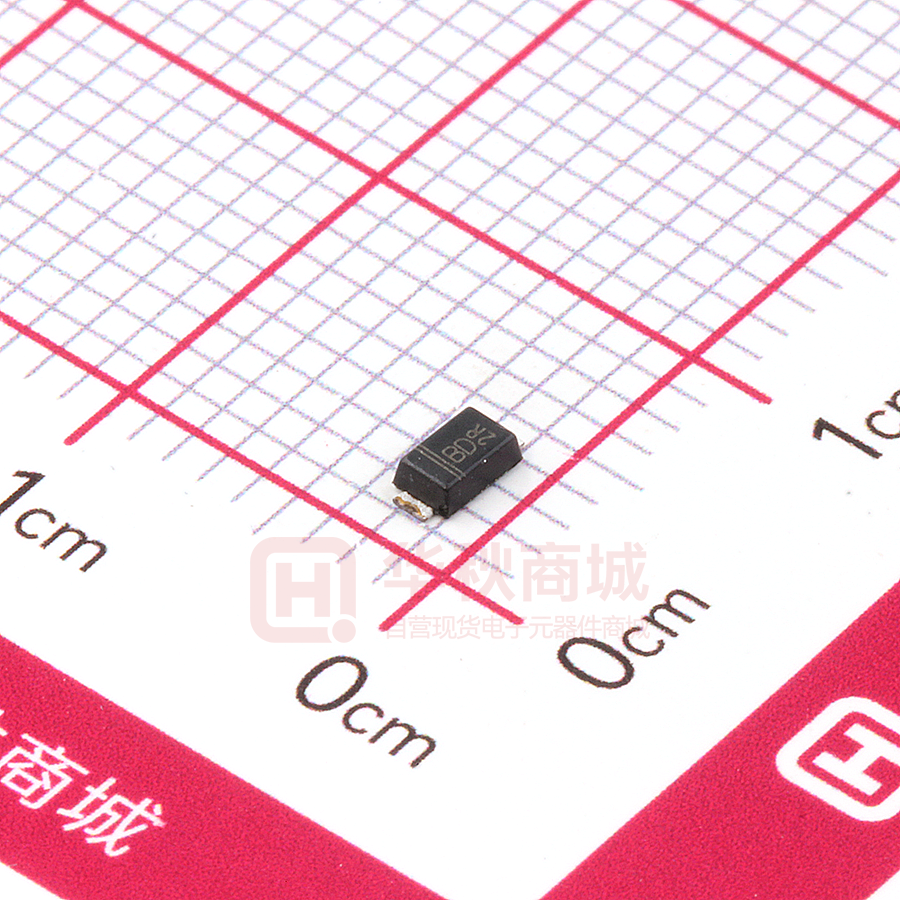

PMEG4010ER

PMEG4010ER SCHOTTKY BARRIER RECTIFIERS FEATURES PINNING • Metal silicon junction, majority carrier conduction PIN • Guarding for overvoltage protection • Low power loss, high efficiency DESCRIPTION 1 Cathode 2 Anode 1 2 • High current capability • low forward voltage drop • High surge capability • For use in low voltage, high frequency inverters, Top View free wheeling, and polarity protection applications MECHANICAL DATA • Case: SOD-123FL • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight:15mg 0.00048oz Simplified outline SOD-123FL and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Symbols PMEG4010ER Units Maximum Repetitive Peak Reverse Voltage V RRM 40 V Maximum RMS voltage V RMS 28 V Maximum DC Blocking Voltage V DC 40 V I F(AV) 1 A Peak Forward Surge Current, 8.3ms Single Half Sine-wave Superimposed On Rated Load (JEDEC method) at TL = 70°C I FSM 25 A Maximum Instantaneous Forward Voltage at 1 A Maximum Instantaneous Forward Voltage at 3.1 A VF 0.6 0.9 V Maximum Instantaneous Reverse Current at TA = 25°C Rated DC Reverse Voltage TA = 100°C IR 1 10 mA Typical Junction Capacitance Cj 110 pF T j , T stg -55 ~ +125 °C Parameter Maximum Average Forward Rectified Current 0.375" (9.5 mm) Lead Length at T L = 90°C Storage and Operating Junction Temperature Range REV.08 1 of 3 PMEG4010ER Fig.2 Typical Reverse Characteristics Instaneous Reverse Current ( μA) Fig.1 Forward Current Derating Curve Average Forward Current (A) 1.2 1.0 0.8 0.6 0.4 0.2 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 75 50 100 125 150 10 4 10 3 T J =125°C 10 2 T J =75°C 10 1 T J =25°C 10 0 0 Ambient Temperature (°C) 80 100 500 5° C =2 TJ 12 5°C 0.5 Junction Capacitance ( pF) 1.0 TJ = 0.2 0.1 0 30 0.1 0.2 0.3 0.4 0.5 0.6 100 50 20 10 0.1 10 1 100 Instaneous Forward Voltage (V) Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Fig.6- Typical Transient Thermal Impedance 8.3 ms Single Half Sine Wave (JEDEC Method) 25 20 15 10 05 00 1 200 0.7 Transient Thermal Impedance（ °C /W） Instaneous Forward Current (A) Peak Forward Surage Current (A) 60 Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 10 100 Number of Cycles at 50Hz REV.08 40 20 Percent of Rated Peak Reverse Voltage（%） 100 10 1 0.1 0.01 0.1 1 10 t, Pulse Duration（sec） 2 of 3 100 PMEG4010ER PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-123FL ∠ALL ROUND C A ∠ALL ROUND VM D E A g Top View mil Bottom View A C D E e g HE max 1.1 0.20 2.9 1.9 1.1 0.9 3.8 min 0.9 0.12 2.6 1.7 0.8 0.7 3.5 max 43 7.9 114 75 43 35 150 min 35 4.7 102 67 31 28 138 UNIT mm 1.2 (47) 1.2 (47) 2.0 (79) Unit： mm (mil) REV.08 ∠ 7° The recommended mounting pad size 1.2 (47) g pad e E A pad HE 3 of 3
