RB521CS-30

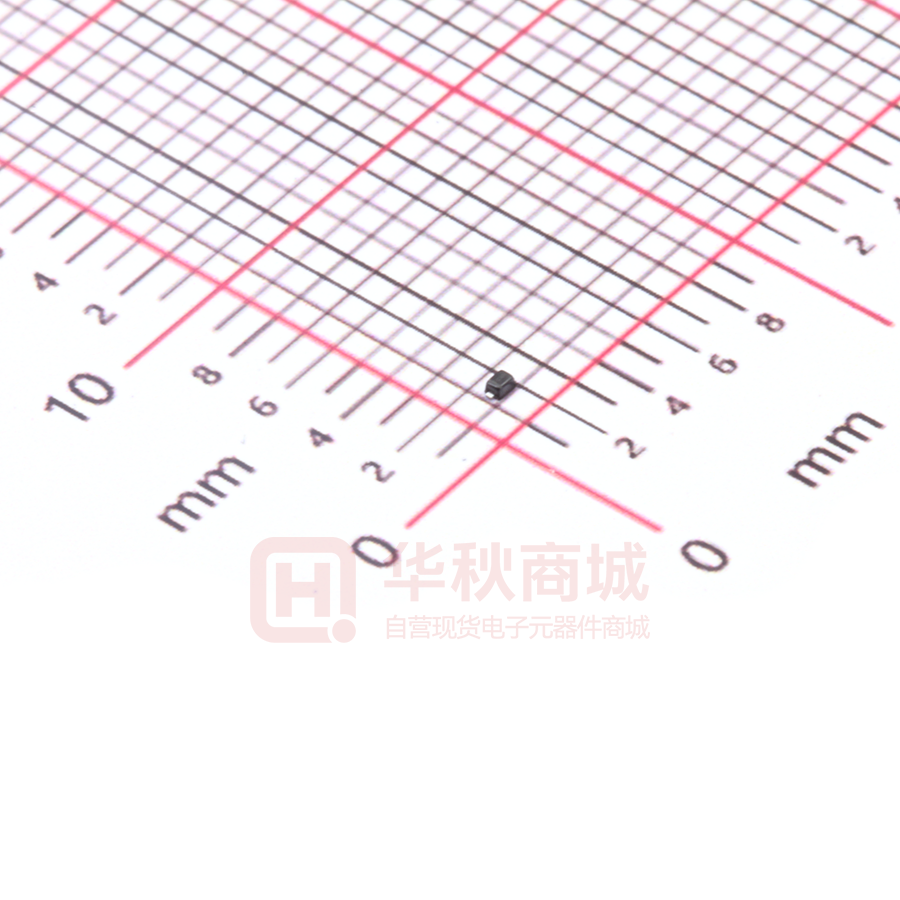

RB521CS-30 Schottky Barrier Diode ◇ Low current rectification ◇ Low forward voltage ◇ SOD923 Micro SMD package (Fig-1) Dimensions: 1.0 mm x 0.6 mm (0.039” x 0.024”) ◇ RoHS compliant ◇ UL-94 V-0 / Green EMC ◇ Matte Tin Lead finish (Pb-Free) ◇ Cathode Band / Device marking: Device Marking Code RB521CS-30 F E 1 Mark: refer to Device Marking Absolute Maximum Ratings （Ta = 25 ℃） Symbol Value Units Repetitive Peak Reverse Voltage 30 V VR Reverse Voltage 30 V IO Continuous Forward Current 100 mA IFSM Non-Repetitive Peak Forward Current *1 500 mA TJ Junction Temperature 125 ℃ TSTG Storage Temperature -55 to +125 ℃ VRRM Parameter *1: 8.3ms Single Half Sine-Wave Electrical Characteristics （Ta = 25 ℃） Symbol VF Parameter Forward Voltage Conditions Min IF = 10mA IF = 20mA BVR IR Breakdown Voltage IR = 100μA Reverse Current VR = 10V Max Units 0.35 0.40 V V 30 V 10 50 VR = 30V REV.08 TYP 1 of 3 μA μA RB521CS-30 Typical Characteristics Forward Characteristics Reverse Characteristics REV.08 2 of 3 RB521CS-30 Ordering Information Device Package Shipping Tape wide Embos pitch Tape specification RB521CS-30 SOD923 8,000 pcs / 7” Reel 8 mm 2 mm Conductive Package Dimensions REV.08 3 of 3 Notes
