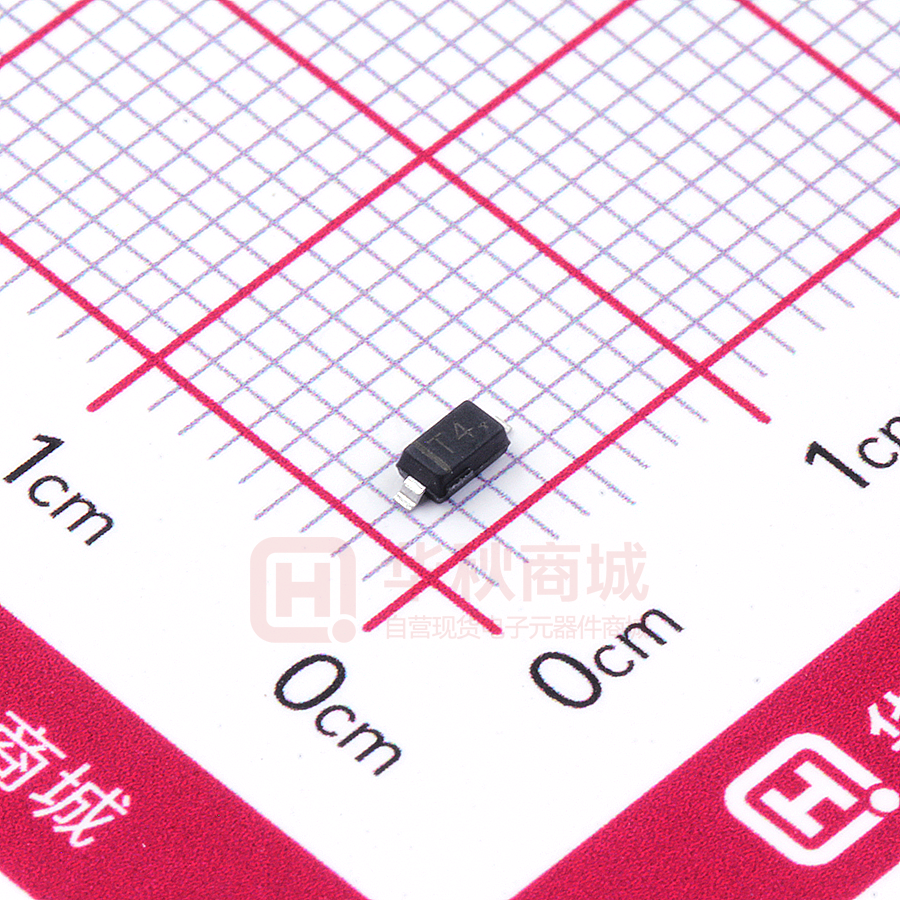

1N4148W

1N4148W SWITCHING DIODE FEATURES  High Conductance  Fast Switching  Small Surface Mount device  For General Purpose Switching Applications SOD-123 MECHANICAL DATA     Case: SOD-123 Case Material: Molded Plastic. UL flammability Classification Rating: 94V-0 Weight: 0.005 grams (approximate) MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Parameter Symbol Value Unit Non-Repetitive Peak Reverse Voltage VRM 100 V DC Blocking Reverse Voltage VR 100 V RMS Reverse Voltage VR(RMS) 70 V Forward Current IF 300 mA Average Rectified Output Current Non-Repetitive Peak Forward Surge Current @t@=8.3ms IO 150 mA IFSM 2.0 A Power Dissipation PD 350 mW Thermal Resistance From Junction To Ambient RθJA 250 °C/W Junction Temperature TJ 150 °C Storage Temperature TSTG -55 ~+150 °C ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Parameter Symbol Min Forward voltage VF Reverse current Diode capacitance IR CD Reverse recovery time TRR © SHENZHEN HOTTECH ELECTRONICS CO.,LTD Typ Max Unit Conditions IF=1mA 0.71 IF=10mA 0.855 1.0 IF=50mA V 1.25 IF=150mA 1 uA VR=75V 2 pF VR=0V,f=1MHz 4 nS IF=IR=10mA,Irr=0.1XIR ,RL=100Ω E-mail:hkt@heketai.com 1/4 1N4148W SWITCHING DIODE Typical Characteristics Characteristics Forward 300 (nA) REVERSE CURRENT IR 10 T= a 2 5℃ T= a 1 00 ℃ 3 1 0.3 0.1 0.0 0.4 0.8 1.2 FORWARD VOLTAGE VF 300 100 Ta=25℃ 30 10 3 0 POWER DISSIPATION 1.2 1.0 0.8 12 REVERSE VOLTAGE 16 VR © SHENZHEN HOTTECH ELECTRONICS CO.,LTD (V) 20 80 VR 100 (V) 400 1N4148W PD 1.4 8 60 Power Derating Curve 500 f=1MHz 4 40 REVERSE VOLTAGE Ta=25℃ 0 20 (V) Capacitance Characteristics 1.6 Ta=100℃ 1000 1 1.6 (mW) FORWARD CURRENT IF (mA) 30 0.6 Characteristics 3000 100 CAPACITANCE BETWEEN TERMINALS CT (pF) Reverse 10000 300 200 100 0 0 25 50 75 100 AMBIENT TEMPERATURE E-mail:hkt@heketai.com Ta 125 150 (℃) 2/4 1N4148W SWITCHING DIODE SOD-123 Package Outline Dimensions Symbol Dimensions In Millimeters Dimensions In Inches Min. Max. Min. Max. A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.450 0.650 0.018 0.026 c 0.080 0.150 0.003 0.006 D 1.500 1.700 0.059 0.067 E 2.600 2.800 0.102 0.110 E1 3.550 3.850 0.140 0.152 L 0.500RE F 0.020 REF L1 0.250 0.450 0.010 0.018 θ 0° 8° 0° 8° SOD-123 Suggested Pad Layout Note: 1.Controlling dimension: in millimeters 2.General tolerance: ±0.05mm 3.The pad layout is for reference purposes only © SHENZHEN HOTTECH ELECTRONICS CO.,LTD E-mail:hkt@heketai.com 3/4 1N4148W SWITCHING DIODE SOD-123 Tape and Reel SOD-123 Embossed Carrier Tape SOD-123 Tape Leader and Trailer DIMENSIONS ARE IN MILLIMETER TYPE A B C d E F P0 P P1 W SOD-123 1.85 3.95 1.57 Ø1.55 1.75 3.50 4.00 4.00 2.00 8.00 TOLERANCE ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 SOD-123 Reel DIMENSIONS ARE IN MILLIMETER REEL OPTION 7’’ DIA TOLERANCE D D1 D2 G H I W1 W2 Ø178 54.40 13.00 R78 R25.60 R6.50 9.50 12.30 ±2 ±1 ±1 ±1 ±1 ±1 ±1 ±1 © SHENZHEN HOTTECH ELECTRONICS CO.,LTD E-mail:hkt@heketai.com 4/4
