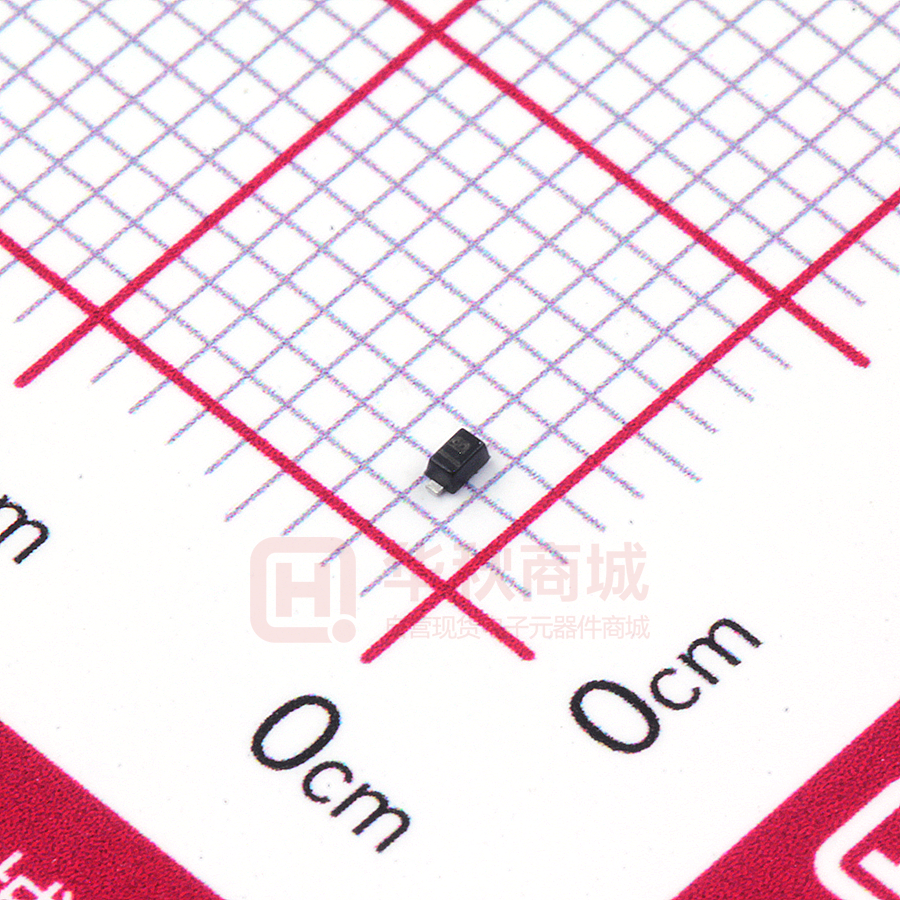

RB520S-30

RB520S-30 SCHOTTKY BARRIER DIODE FEATURES  Low Forward Voltage  Low Reverse voltage leakage current  Small Surface Mount device  For Low Current Rectifier Circuits Applications SOD-523 MECHANICAL DATA      Case: SOD-523 Case Material: Molded Plastic. UL lammability Classification Rating: 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Weight: 0.0015 grams (approximate) MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Parameter Symbol Value Unit Reverse Voltage VR 30 V Non-Repetitive Peak Forward Surge Current @ t = 8.3 ms IFSM 1 A Mean rectifying current IO 200 mA Power Dissipation 150 mW Thermal Resistance From Junction To Ambient PD RθJA 667 °C/W Junction Temperature TJ 125 °C Storage Temperature TSTG -55 ~+150 °C ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Parameter Symbol Forward voltage VF IR Reverse voltage leakage current ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD Min Max 0.60 1 Unit V uA Conditions IF=200mA VR=10V E-mail:hkt@heketai.com 1/4 RB520S-30 SCHOTTKY BARRIER DIODE Typical Characteristics Forward 600 Reverse Characteristics Characteristics 1000 100 100 o Ta =2 5 o C REVERSE CURRENT IR 10 Ta =1 00 FORWARD CURRENT IF o C (uA) (mA) Ta=100 C 1 0.1 0.01 10 1 o Ta=25 C 0.1 0.01 0 100 200 300 400 FORWARD VOLTAGE 500 VF 600 700 800 0 5 10 (mV) 15 20 REVERSE VOLTAGE VR 25 30 (V) Power Derating Curve Capacitance Characteristics 100 200 (mW) 150 PD 30 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) Ta=25℃ f=1MHz 10 3 1 100 50 0 0 5 10 REVERSE VOLTAGE 15 VR (V) ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD 20 0 25 50 75 AMBIENT TEMPERATURE E-mail:hkt@heketai.com 100 Ta 125 ( ℃) 2/4 RB520S-30 SCHOTTKY BARRIER DIODE SOD-523 Package Outline Dimensions Symbol Dimensions In Millimeters Dimensions In Inches Min. Max. Min. Max. A 0.510 0.770 0.020 0.031 A1 0.010 0.070 0.001 0.003 A2 0.500 0.700 0.020 0.028 b 0.250 0.350 0.010 0.014 c 0.080 0.150 0.003 0.006 D 0.750 0.850 0.030 0.033 E 1.100 1.300 0.043 0.051 E1 1.500 1.700 0.059 0.067 L 0.200 RE F 0.008 REF L1 0.250 0.400 0.010 0.016 θ 0° 8° 0° 8° SOD-523 Suggested Pad Layout Note: 1.Controlling dimension: in millimeters 2.General tolerance: ±0.05mm 3.The pad layout is for reference purposes only ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 3/4 RB520S-30 SCHOTTKY BARRIER DIODE SOD-523 Tape and Reel SOD-523 Embossed Carrier Tape DIMENSIONS ARE IN MILLIMETER TYPE A B C d E F P0 P P1 W SOD-523 0.90 1.94 0.73 Ø1.50 1.75 3.50 4.00 2.00 2.00 8.00 TOLERANCE ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 SOD-523 Tape Leader and Trailer SOD-523 Reel DIMENSIONS ARE IN MILLIMETER REEL OPTION 7’’ DIA TOLERANCE D D1 D2 G H I W1 W2 Ø178 54.40 13.00 R78 R25.60 R6.50 9.50 12.30 ±2 ±1 ±1 ±1 ±1 ±1 ±1 ±1 ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 4/4
