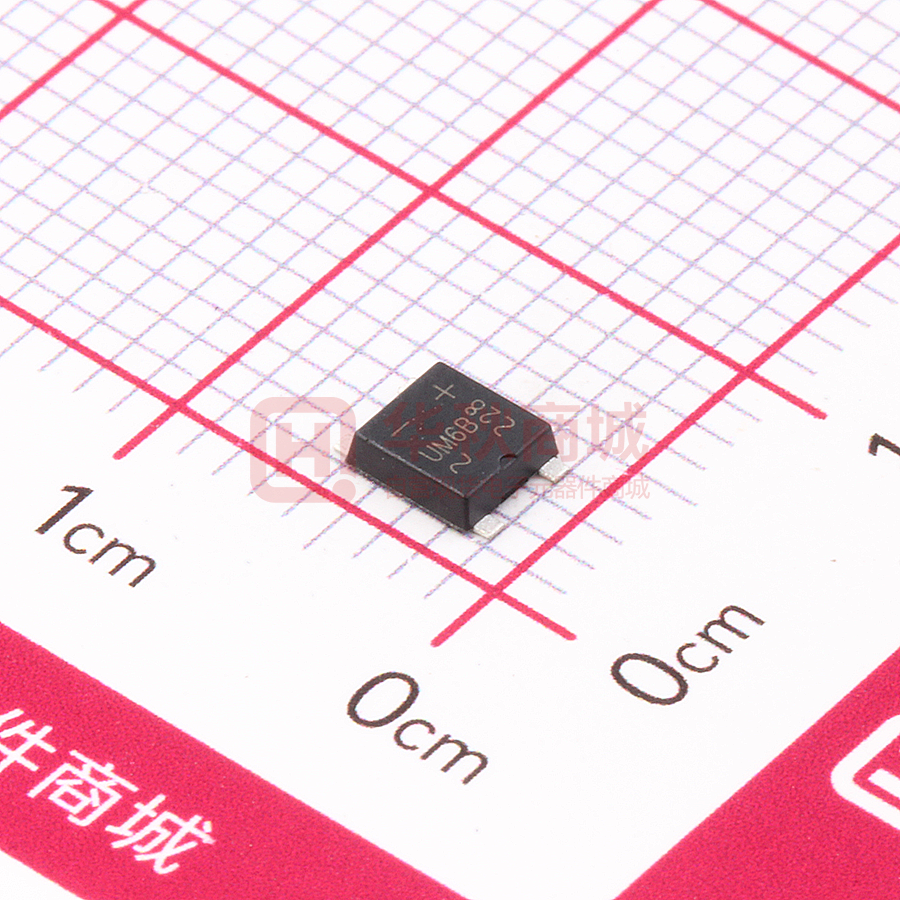

LUM6B

LUM1B THRU LUM10B 1A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER FEATURES: PINNING Glass Passivated Chip Junction Reverse Voltage - 100 to 1000 V PIN DESCRIPTION 1 Input Pin（~） Average Rectified Output Current - 1 A 2 Input Pin（~） High Surge Current Capability 3 Output Anode（+） Designed for Surface Mount Application 4 Output Cathode（-） MECHANICAL DATA • Case: UMB • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 45mg 0.0016oz 3 4 2 1 UMB Package Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols LUM1B LUM2B LUM4B LUM6B LUM8B LUM10B Units Maximum Repetitive Peak Reverse Voltage V RRM 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 100 200 400 600 800 1000 V Parameter Average Rectified Output Current at T c = 115 °C IO 1 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) I FSM 35 A Maximum Forward Voltage at 1.0 A VF 1.1 V IR 5 40 μA Cj 13 pF RθJA RθJC 85 25 °C/W T j , T stg -55 ~ +150 °C Maximum DC Reverse Current at Rated DC Blocking Voltage @ T a =25 °C @ T a =125 °C Typical Junction Capacitance（Note1） Typical Thermal Resistance（Note2） Operating and Storage Temperature Range Note: 1. Measured at 1MHz and applied reverse voltage of 4 V D.C. 2. P.C.B. mounted with 4×1.5"×1.5"（3.81×3.81 cm）copper pad areas. REV.08 1 of 3 LUM1B THRU LUM10B Fig.2 Typical Reverse Characteristics Instaneous Reverse Current（μ A） Average Rectified Output Current (A) Fig.1 Average Rectified Output Current Derating Curve 1.2 1.0 0.8 0.6 0.4 0.2 Resistive or Inductive Load 0.0 25 50 75 100 125 150 175 100 T J =125°C 10 1.0 T J =25°C 0.1 00 T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 1.0 1.5 2.0 Peak Forward Surage Current (A) 100 120 140 T J =25°C 10 40 30 20 10 8.3 ms Single Half Sine Wave (JEDEC Method) 10 1.0 10 Reverse Voltage (V) 100 Number of Cycles REV.08 80 100 0.1 Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 1 60 1 0.5 Instaneous Forward Voltage (V) 00 40 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) Case Temperature (°C) 2 of 3 100 LUM1B THRU LUM10B PACKAGE OUTLINE Plastic surface mounted package; 4 leads UMB C A ∠ALL ROUND HE VM d A E g e D e g UMB mechanical data A C D E HE g d e max 1.2 0.20 3.8 4.0 5.1 0.82 2.7 0.70 min 1.0 0.12 3.4 3.6 4.6 0.51 2.3 0.51 max 47 7.9 150 157 201 32 106 28 min 39 4.7 134 142 181 20 91 20 UNIT ∠ mm 7° mil Marking The recommended mounting pad size Type number 2.5 100 1.0×1.4 39×55 4.3 170 REV.08 Unit： mm (mil) 3 of 3 Marking code LUM1B 10U1 LUM2B 10U2 LUM4B 10U4 LUM6B 10U6 LUM8B 10U8 LUM10B 10U10
