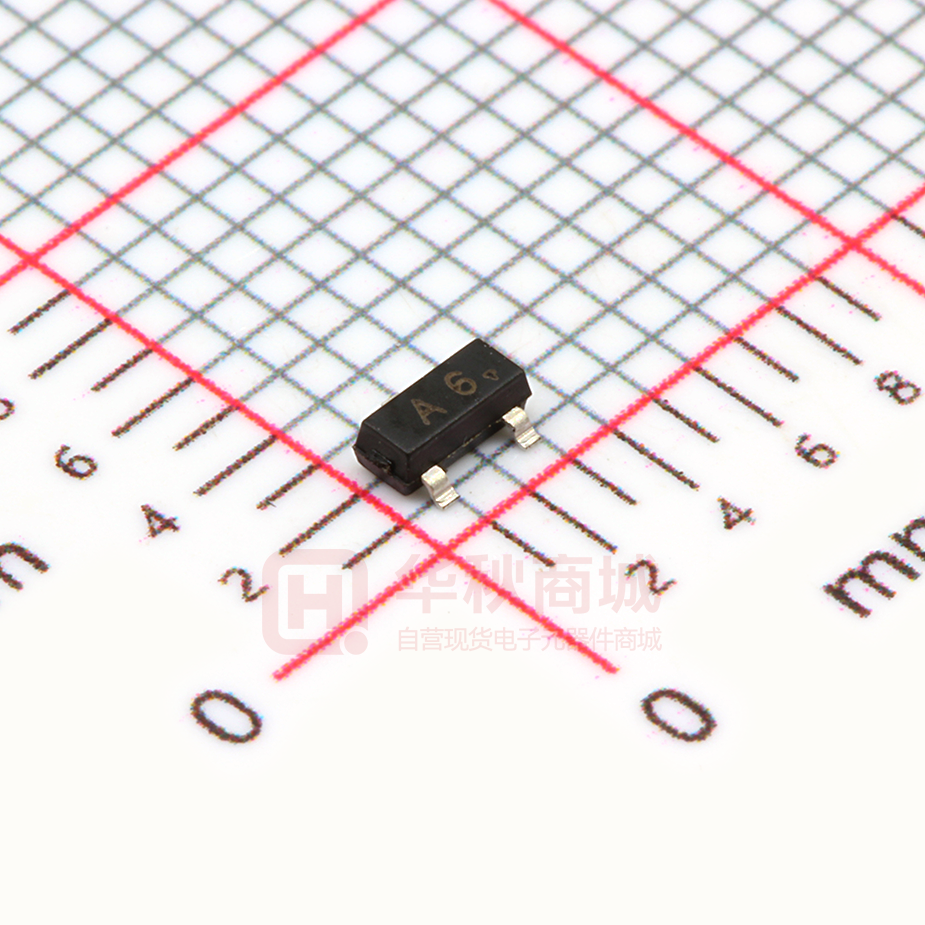

BAS16

BAS16 SWITCHING DIODE FEATURES  Fast Switching  High Conductance  Surface Mount device  For General Purpose Switching Applications SOT-23 MECHANICAL DATA      Case: SOT-23 Case Material: Molded Plastic. UL flammability Classification Rating: 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Weight: 0.008 grams (approximate) MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Parameter Symbol Value Unit Non-Repetitive Peak Reverse Voltage VRM 100 V DC Blocking Reverse Voltage VR 75 V RMS Reverse Voltage VR(RMS) 53 V Forward Current IF 300 mA Average Rectified Output Current Non-Repetitive Peak Forward Surge Current @t@=8.3ms IO 150 mA IFSM 2.0 A Power Dissipation PD 225 mW Thermal Resistance From Junction To Ambient RθJA 556 °C/W Junction Temperature TJ 150 °C Storage Temperature TSTG -55 ~+150 °C ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Parameter Symbol V(BR) Reverse breakdown voltage IR Reverse voltage leakage current Forward voltage VF CD Diode capacitance Trr Reverse recovery time ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD Min 75 Max 1 1 2 6 Unit V uA V pF nS Conditions IR=100uA VR=75V IF=50mA VR=0V,f=1MHz I F=IR=10mA Irr=0.1×IR RL=100Ω E-mail:hkt@heketai.com 1/4 BAS16 SWITCHING DIODE Typical Characteristics Forward Reverse Characteristics Characteristics 1000 300 100 10 (nA) Ta=100℃ 100 REVERSE CURRENT IR FORWARD CURRENT IF Ta =1 00 ℃ 30 Ta =2 5℃ (mA) 300 3 1 30 10 Ta=25℃ 3 0.3 0.1 0.0 1 0.4 0.8 FORWARD VOLTAGE 1.2 VF 0 1.6 20 (V) 40 REVERSE VOLTAGE 60 VR 80 (V) Power Derating Curve Capacitance Characteristics 1.4 300 Ta=25℃ f=1MHz (mW) PD POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) 250 1.3 1.2 1.1 200 150 100 50 1.0 0 0 5 10 REVERSE VOLTAGE 15 VR (V) ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD 20 0 25 50 75 AMBIENT TEMPERATURE E-mail:hkt@heketai.com 100 Ta 125 150 (℃) 2/4 BAS16 SWITCHING DIODE SOT-23 Package Outline Dimensions Symbol Dimensions In Millimeters Dimensions In Inches Min. Max. Min. Max. A 0.900 1.150 0.035 0.045 A1 0.000 0.100 0.000 0.004 A2 0.900 1.050 0.035 0.041 b 0.300 0.500 0.012 0.020 c 0.080 0.150 0.003 0.006 D 2.800 3.000 0.110 0.118 E 1.200 1.400 0.047 0.055 E1 2.250 2.550 0.089 0.100 e e1 0.950 TYP 1.800 L 0.037 TYP 2.000 0.071 0.550 RE F 0.079 0.022 REF L1 0.300 0.500 0.012 0.020 θ 0° 8° 0° 8° SOT-23 Suggested Pad Layout Note: 1.Controlling dimension: in millimeters 2.General tolerance: ±0.05mm 3.The pad layout is for reference purposes only ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 3/4 BAS16 SWITCHING DIODE SOT-23 Tape and Reel SOT-23 Embossed Carrier Tape DIMENSIONS ARE IN MILLIMETER TYPE A B C d E F P0 P P1 W SOT-23 3.15 2.77 1.22 Ø1.50 1.75 3.50 4.00 4.00 2.00 8.00 TOLERANCE ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 SOT-23 Tape Leader and Trailer SOT-23 Reel DIMENSIONS ARE IN MILLIMETER REEL OPTION 7’’ DIA TOLERANCE D D1 D2 G H I W1 W2 Ø178 54.40 13.00 R78 R25.60 R6.50 9.50 12.30 ±2 ±1 ±1 ±1 ±1 ±1 ±1 ±1 ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 4/4
