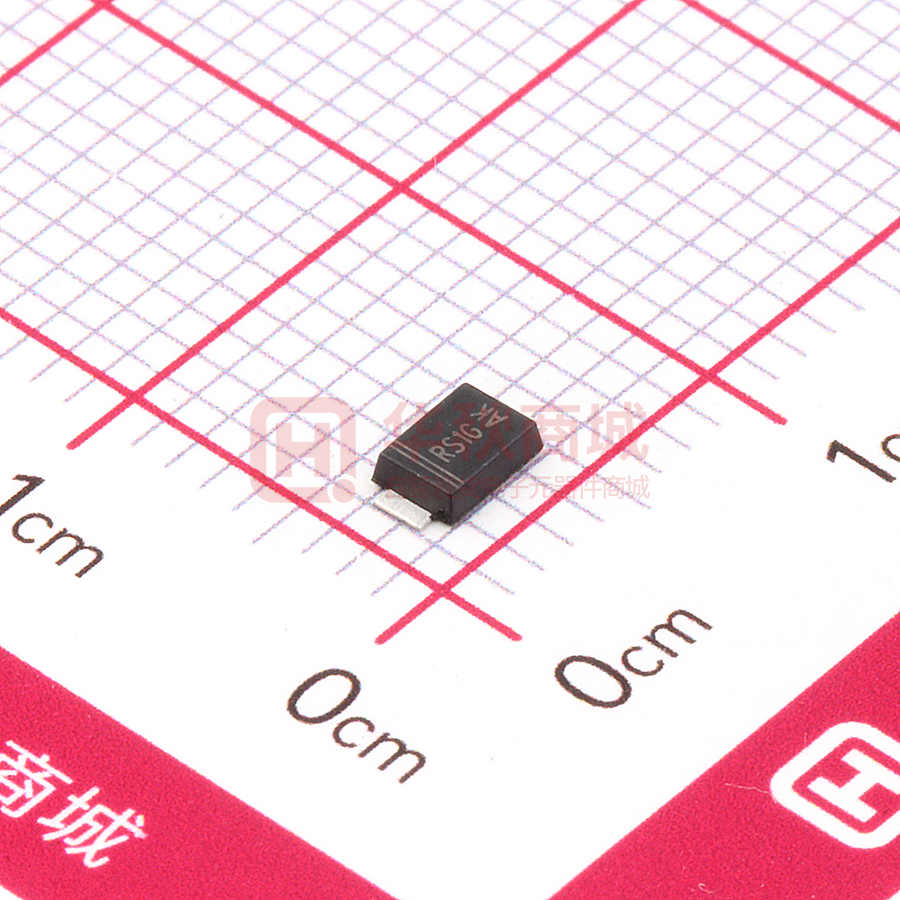

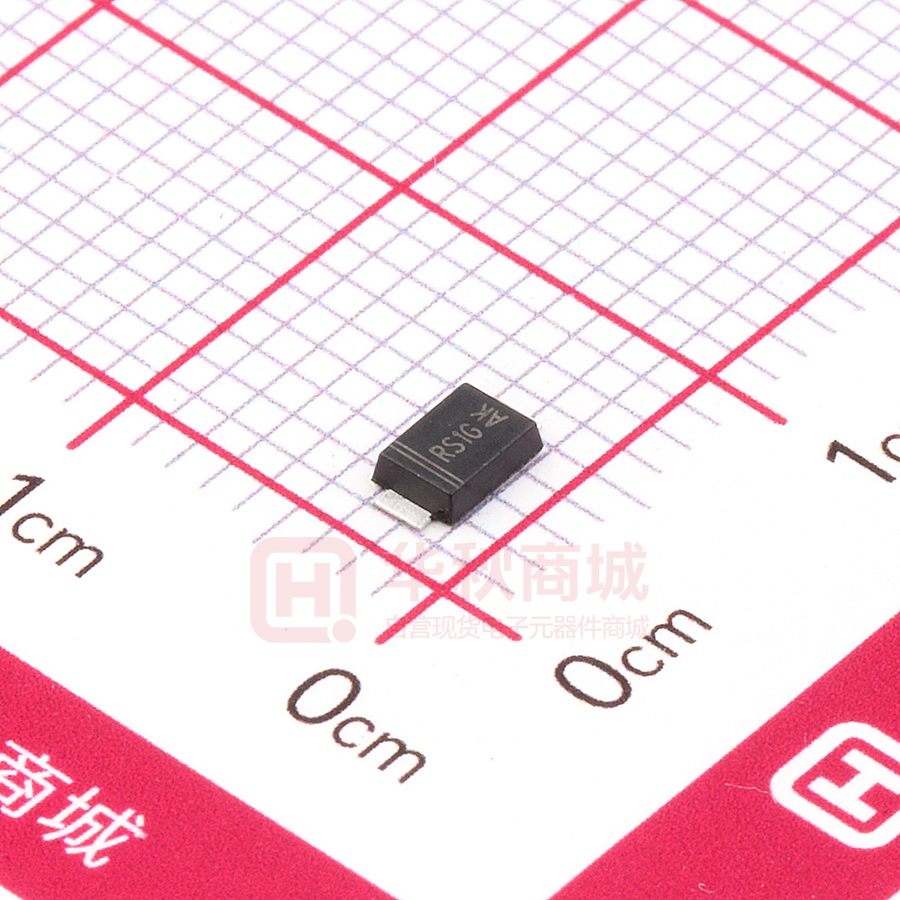

RS1GF

Surface Mount Fast Recovery Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 1 A FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Juntion • Easy to pick and place • Fast reverse recovery time • Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA • Case: SMAF • Terminals: Solderable per MIL-STD-750, 750, Method 2026 • pprox. Weight: 27mg 0.00086oz Maximum Ratings and Electrical characteristics Ratings at 25°C C ambient temperature unless otherwise specified.Single phase half-wave half wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. 1）Measured with IF = 0.5 A, IR = 1 A, Irr = 0.25 A 2）Measured at 1MHz and applied reverse voltage of 4V D.C 1 of 3 2 of 3 PACKAGE OUTLINE Plastic surface mounted package; 2 leads SMAF 3 of 3
