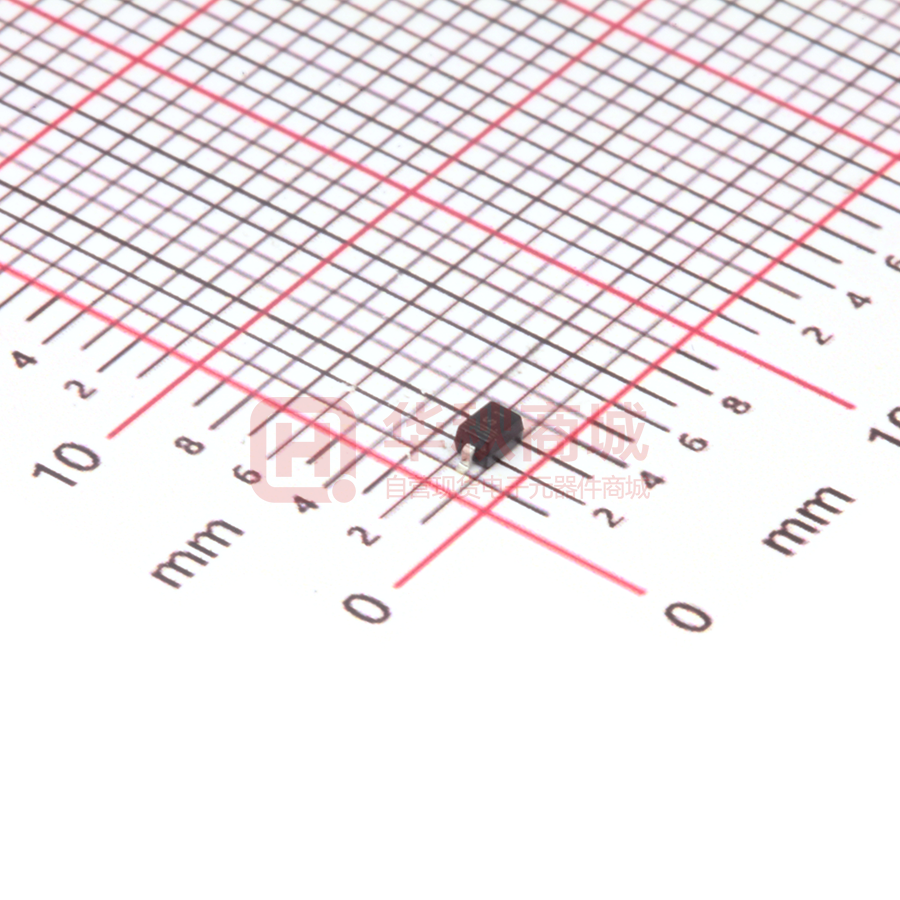

BAT48WS

Schottky Barrier Diode Features PINNING • Low forward voltage DESCRIPTION Cathode Anode PIN 1 2 • Small plastic SMD SOD-323 package 2 1 S1 Top View Marking Code: "S1" Simplified outline SOD-323 and symbol Absolute Maximum Ratings (Ta = 25 C) O Parameter Symbol Value Unit VRRM 40 V IF 350 mA Peak Forward Surge Current (tp = 10 ms) IFSM 2 Thermal Resistance from Junction Ambient RthJA 550 Maximum Operating Junction Temperature Tj 150 O Tstg - 65 to + 150 O Repetitive Peak Reverse Voltage Forward Current Storage Temperature Range A C/W O C C Characteristics at Ta = 25 C O Parameter Reverse Breakdown Voltage at IR = 25 µA Symbol Min. Max. Unit V(BR)R 40 - V - 0.25 0.3 0.4 0.5 0.75 0.9 - 1 2 5 25 Forward Voltage at IF = 0.1 mA at IF = 1 mA at IF = 10 mA at IF = 50 mA at IF = 200 mA at IF = 500 mA VF Reverse Current at VR = 1.5 V at VR = 10 V at VR = 20 V at VR = 40 V IR 1 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. V µA 2 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-323 3 of 3 Copyright © All right reserved Heyuan China Base Electronics Technology Co., Ltd.
